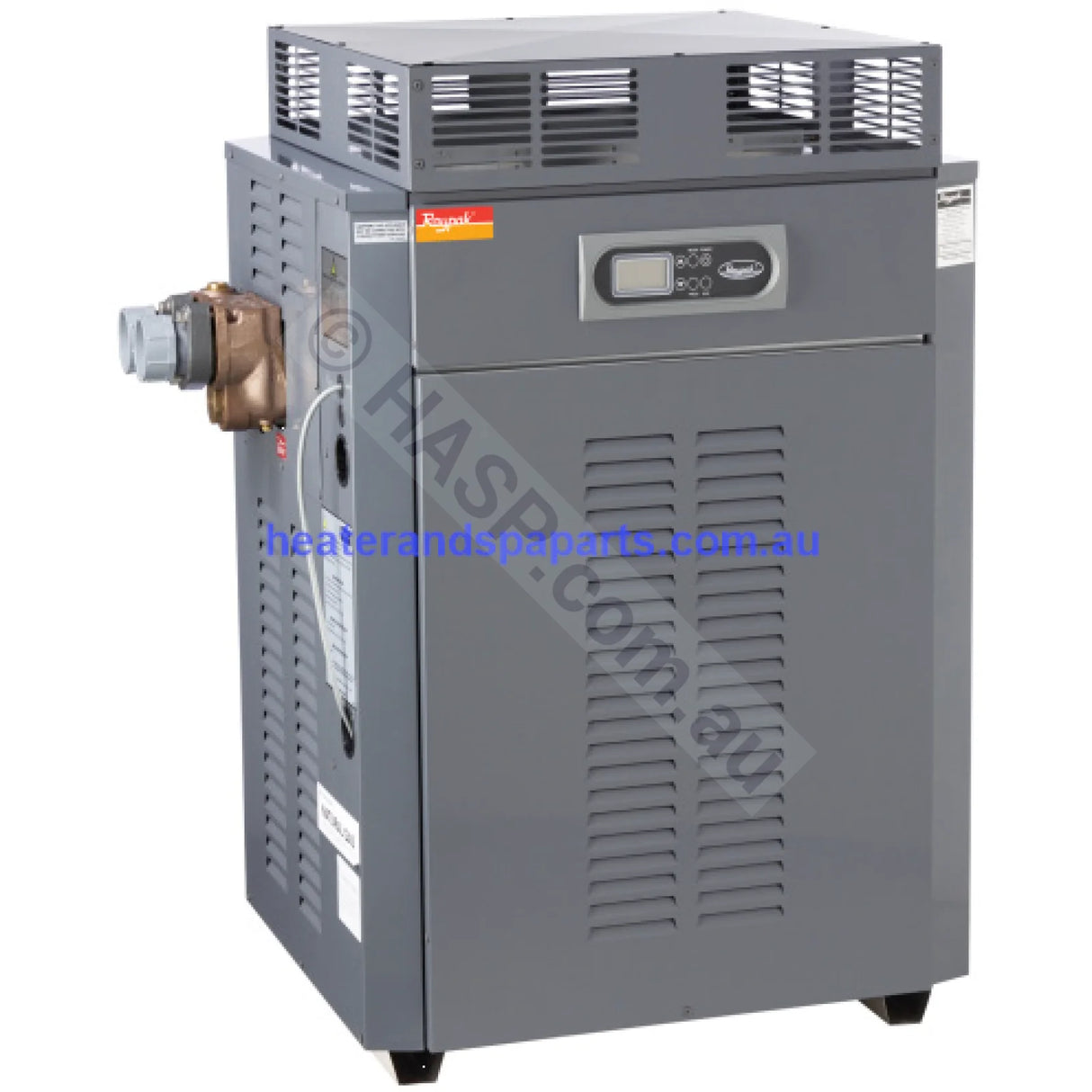

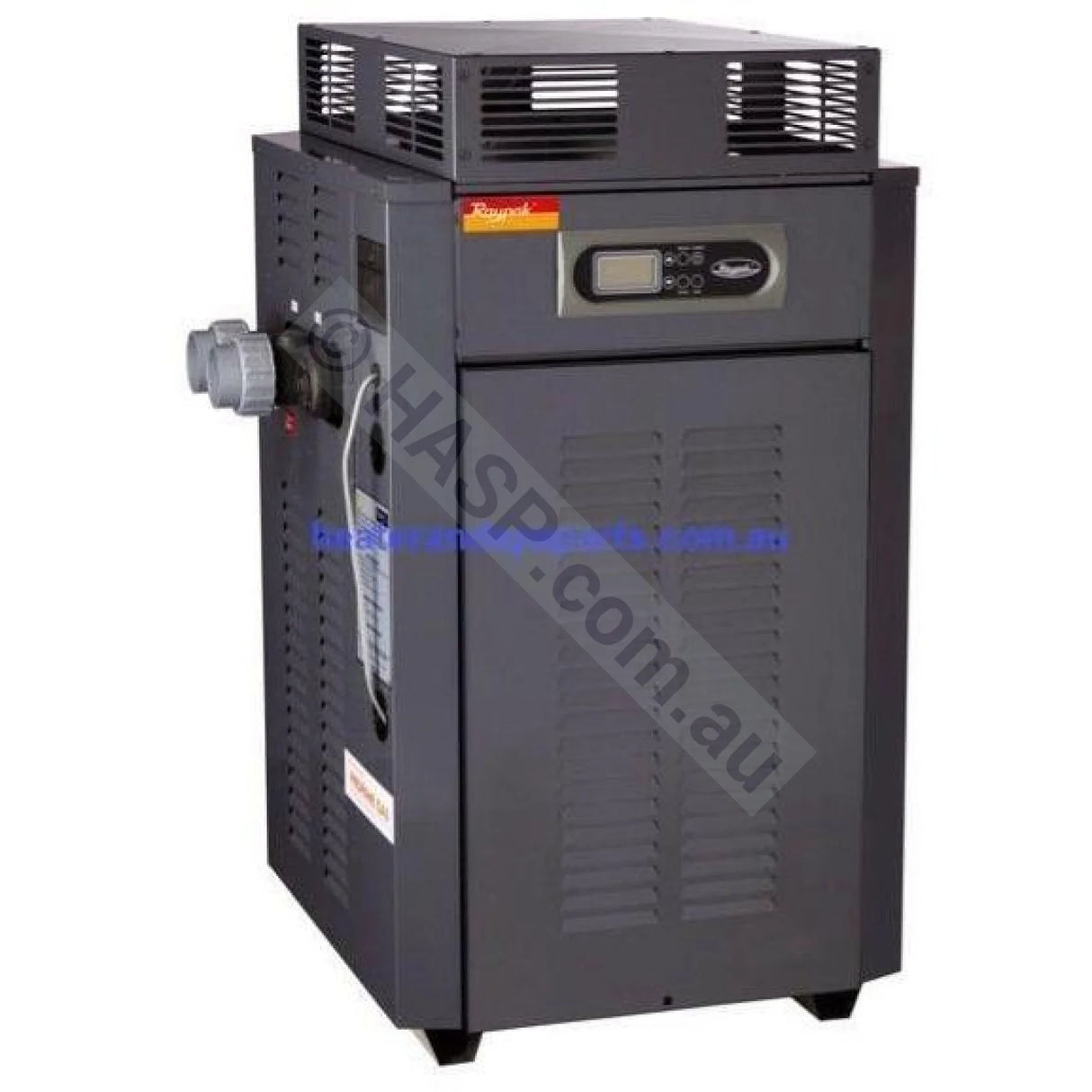

Raypak 200, 280, 350, 430 Gas Pool Heater Spare Parts with Diagrams - also RP2100

$9.00

Description

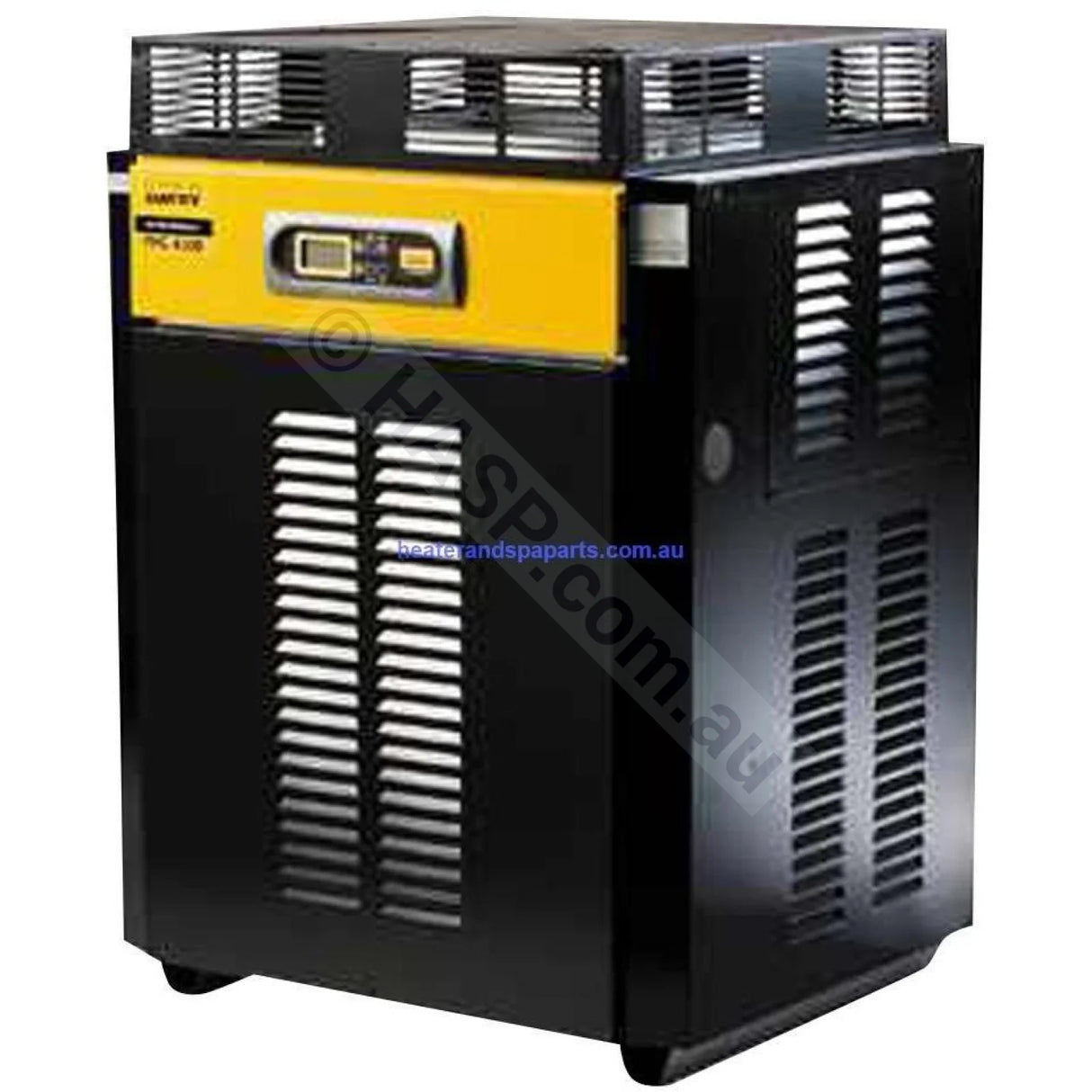

Spare parts for Raypak, Rheem, Davey pool & spa gas heaters. Also covers RP2100 heaters. Use Diagram below to choose parts. For parts that are not linked, contact us.

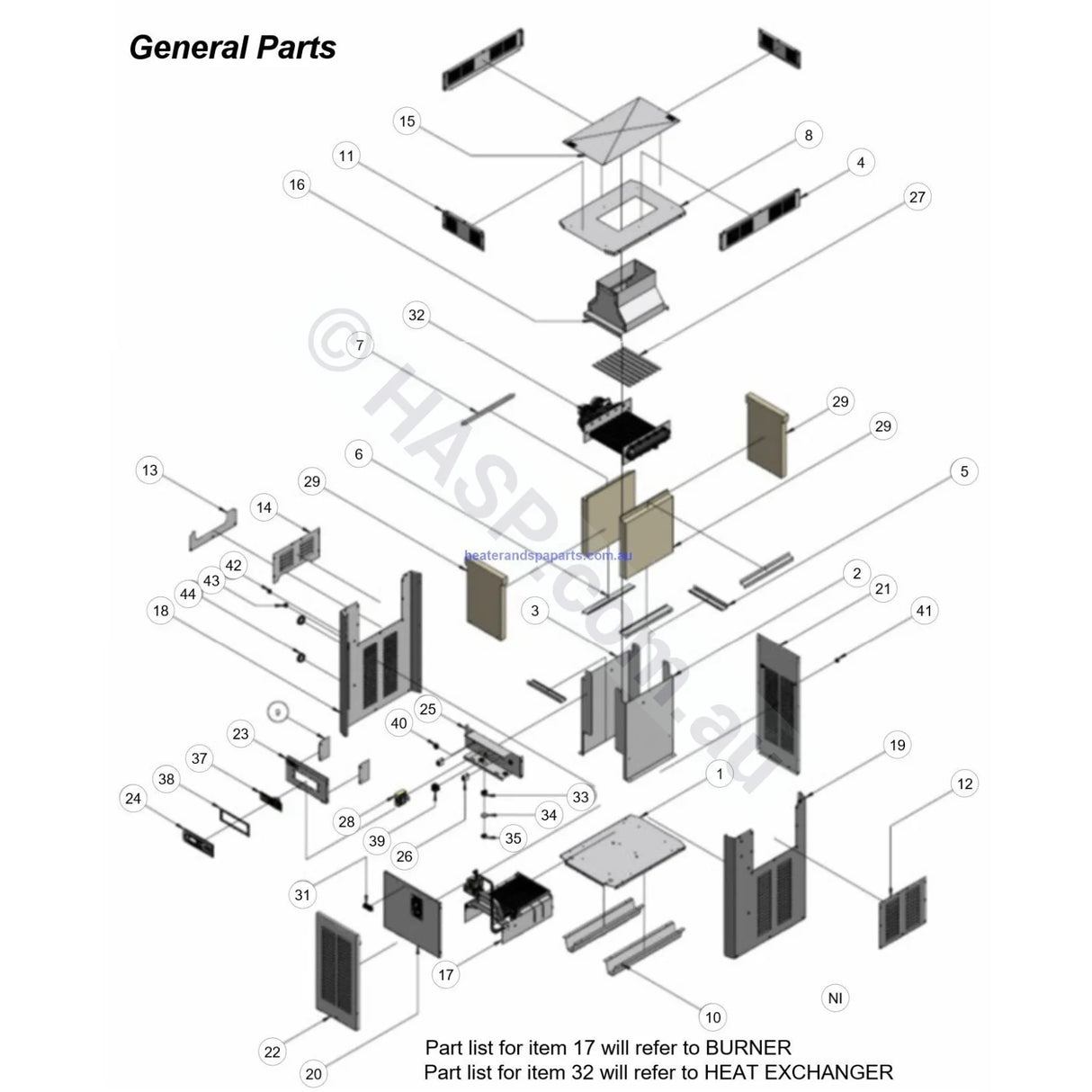

GENERAL PARTS - N/S = Not Sold
1. Base  - N/S
2. RH Side Support - N/S
3. LH Side Support - N/S
4. Panel Hood L and R Common Only available as part of item 15 - N/S
5. Lower Fire Tile Support – Fr/Rr  - N/S
6. Lower Fire Tile Support – LH/RH - N/S
7. Refractory Retainer Kit- N/S
8.  Panel Jacket Top- N/S
10. Feet - N/S
11. Panel Hood F and R - N/S
12. RH header panel - N/S
13. Lower In/Out Header Panel  - N/S
14. Upper In/Out Header Panel  - N/S
15. Outdoor Hood Kit
16. Flue Collector  - N/S
17. Burner Assembley
18. LH Side Panel  - N/S
19. RH Side Panel - N/S
20. Sway Brace Kit - N/S
21. Back Panel - N/S
22. Front Panel - N/S
23. Control Panel - N/S
24. Electronic Control Panel (Grey)
24. Electronic Control Panel (Black)
24. RP2100 Electronic Control Panel PCB
25. Control Panel Enclosure
26. Relay 24V (pre 14/4/09)
26. PCB - Auto Reset (post 14/4/09)
27. Baffles Heat Exchanger - N/S
28. Transformer
29. Fire Tile Kit
31. Terminal Block 3 Terminal - N/S
33. Socket 3 Pin Surface Mount - N/S
34. Gasket for 3 Pin Socket  - N/S
35. GPO Base Only available as part of item 33 Not For Order, Illustrating Only.
37. PCB Only available as part of item 24 Not For Order, Illustrating Only.
38. Gasket Only available as part of item 24 Not For Order, Illustrating Only.
39. Terminal Block 3 Terminal
40. Switch Reset with 24V lamp
41. Snap Bush Black - N/S
42. Bush Black 22mm- N/S
43. Snap Bush Black 28mm - N/S
44. Snap Bush 50mm - N/S
Not Listed. Secondary PCB Relay Control Board
------------------------------------------------------------------------------------------------------------------------

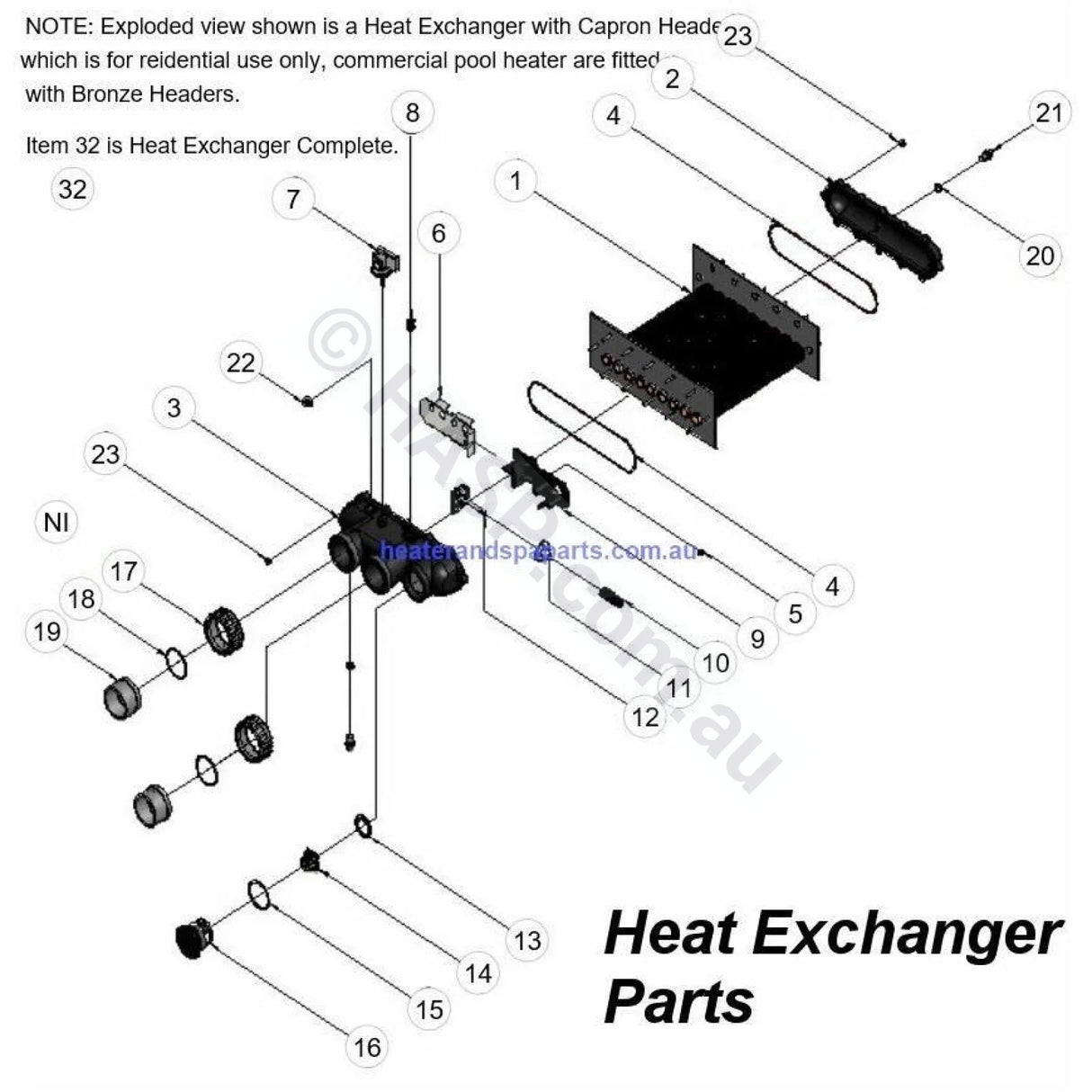

HEAT EXCHANGER PARTS
* Nut, O-Ring and Tailpiece cover item 17, 18, 19 NI – Not Illustrated

1. Tube Bundle Cu-Ni Bronze Commercial
1. Tube Bundle Cu Ni – Capron
1. Tube Bundle Copper – Capron
2. Header Return 0200 to 0430 Br - N/S
2. Header Return Capron
3. Header In/Out Capron with well
3. Header In/Out 280/430 Bronze - N/S
4. Gasket Header 5/8” Silicone Flat (18 per heater) for Brass Headers
4. Large O-ring for Capron (Plastic) Header Manifolds
4. O Ring for Drain Plug Capron - N/S<-- use 1/4 Plug w/ Teflon tape
5. Retaining Pin Only available as part of Item 3 Not For Order, Illustrating Only.
6. Baffle Capron In/Out Header Only available as part of Item 3 Not For Order, Illustrating Only.
7. Pressure Switch Bronze Headers
7. Pressure Switch Capron Headers
8. Auto Reset Bronze Hdr
8. T/tat 55 deg Capron Hr
9. Dam Capron In/Out Header Only available as part of item 3 - N/S
10. Spring Bypass Bronze Header - N/S
10. Spring Bypass Capron Header
11. Valve Bypass Disc Plastic
12. Bypass Shaft Bronze Header - N/S
12. Bypass Valve Plug – Bronze Header  - N/S
12. Bypass Shaft Capron Header
13. Gasket Unatherm GovernorN/S
14.  Unatherm Governor Capron Header N/S
14.  Unatherm Governor Bronze Header N/S
15. O-ring Unatherm Governor Cap N/S
16. Plug Pipe Brass 1 1/2 BSPT Hex Hd Bass plug 1 1/2 BSPT for commercial bronze header
16. Unatherm Governor Cap Capron N/S
17. Capron Nut Only available as part of 56076847 Nut and Tail Not For Order, Illustrating Only.
18 O Ring Only Available as part of 56076847 Nut and Tail Not For Order, Illustrating Only.
19. Tail Only Available as part of 56076847 Nut and Tail Not For Order, Illustrating Only.
20. O Ring for Drain Plug Capron
21. Plug BR 1/8BSP Hex Head N/S
21. Drain Plug Black for Capron Headers <-- Use 1/4 Plug
21. Drain Plug Grey for Capron Headers <-- Use 1/4 Plug
22. T/Stat Hi Limit A/Reset 45 deg
Not Listed. Temperature Sensor w/ O-ring (Current)
Not Listed. Temp Sensor Brass Locator
Not Listed. RP2100 Temp Sensor
22. Temp Sensor & Hi Limit Brass
23. Nut 1/4” x 20mm Flanged  - NLS
32. Heat Exchanger Copper Capron
32. Heat Exchanger Cu-Ni Capron
32. Heat Exchanger Cu-Ni Bronze
------------------------------------------------------------------------------------------------------------------------

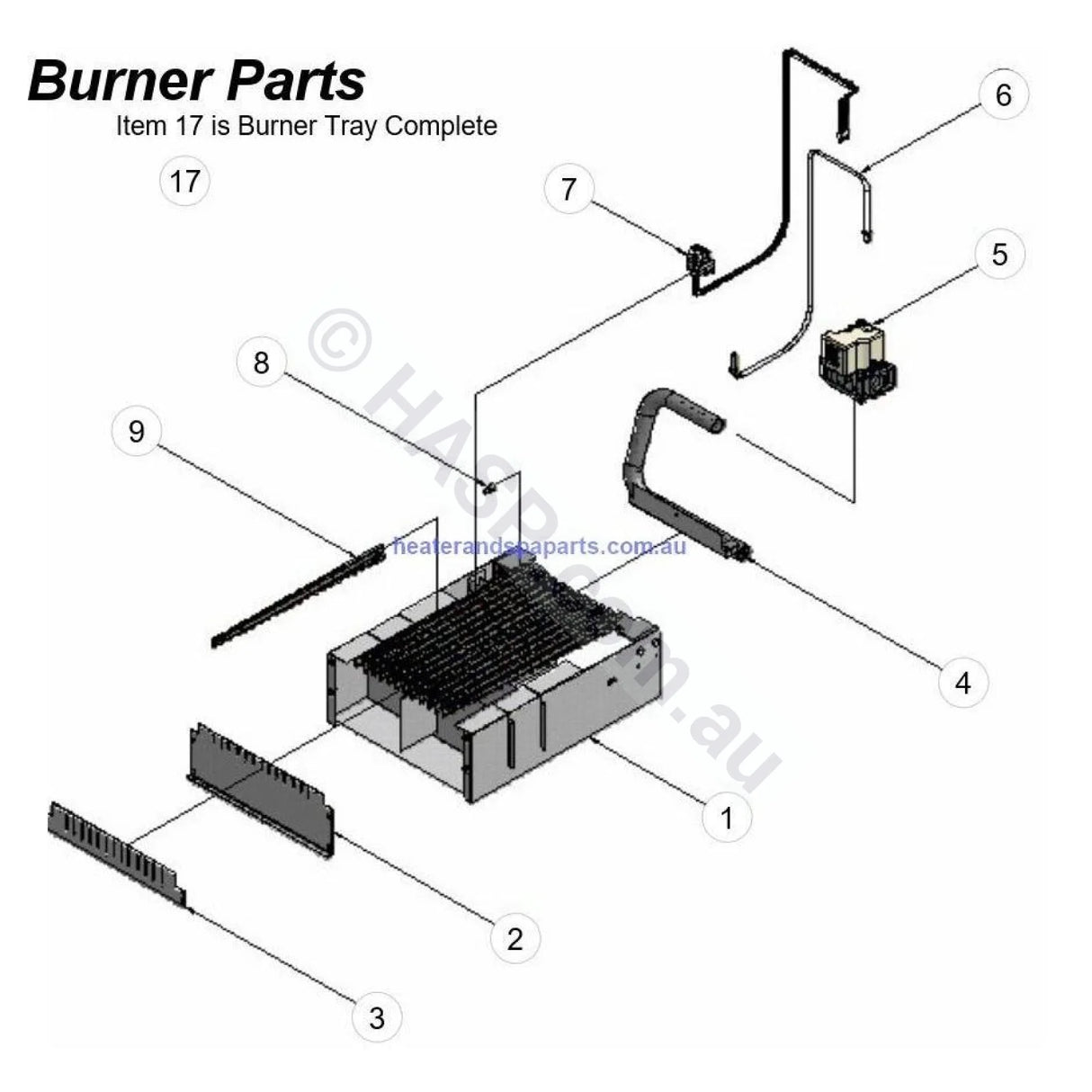

BURNER & GAS PARTS
1. Burner Sheet Metal Burner Tray Sheet Metal does not include Burner bars - N/S
2. Burner Spacer Only available as part of Item 1 Not For Order, Illustrating Only.
3. Burner Hold Down Only available as part of Item 1 Not For Order, Illustrating Only.
4. Manifold – Without Injectors - N/S
5. Gas Valve Spring – Propane Gas
5. Gas ValveSmart Valve 9605 Nat Gas Honeywell smart valve (obsolete)
5. 2019+ White Rodgers Gas Valve
6. Pilot Tube 6mm 650mm length (obsolete)
7. Pilot Assembly H.S.I – Natural Gas Pilot is only supplied as Natural Gas. Injector 56600812 must be used to convert to Propane.
7. 2019+ Pilot Assembly (for White Rodgers Gas Valve)
8. Jet Burner 1/16” NPT 1.10mm Propane
8. Jet Burner 1/16” NPT Natural Gas 1.90mm
9. SS Burner Bar
17. Burner Tray Complete O/O NG
17. Burner Tray Complete O/O Propane



NLS - No Longer Sold

N/S - Not Sold

Please don't attemplt to order diagram. Listing is for information only.
