OBSOLETE - Replace with identical TDA 150 here.
Archived Information:

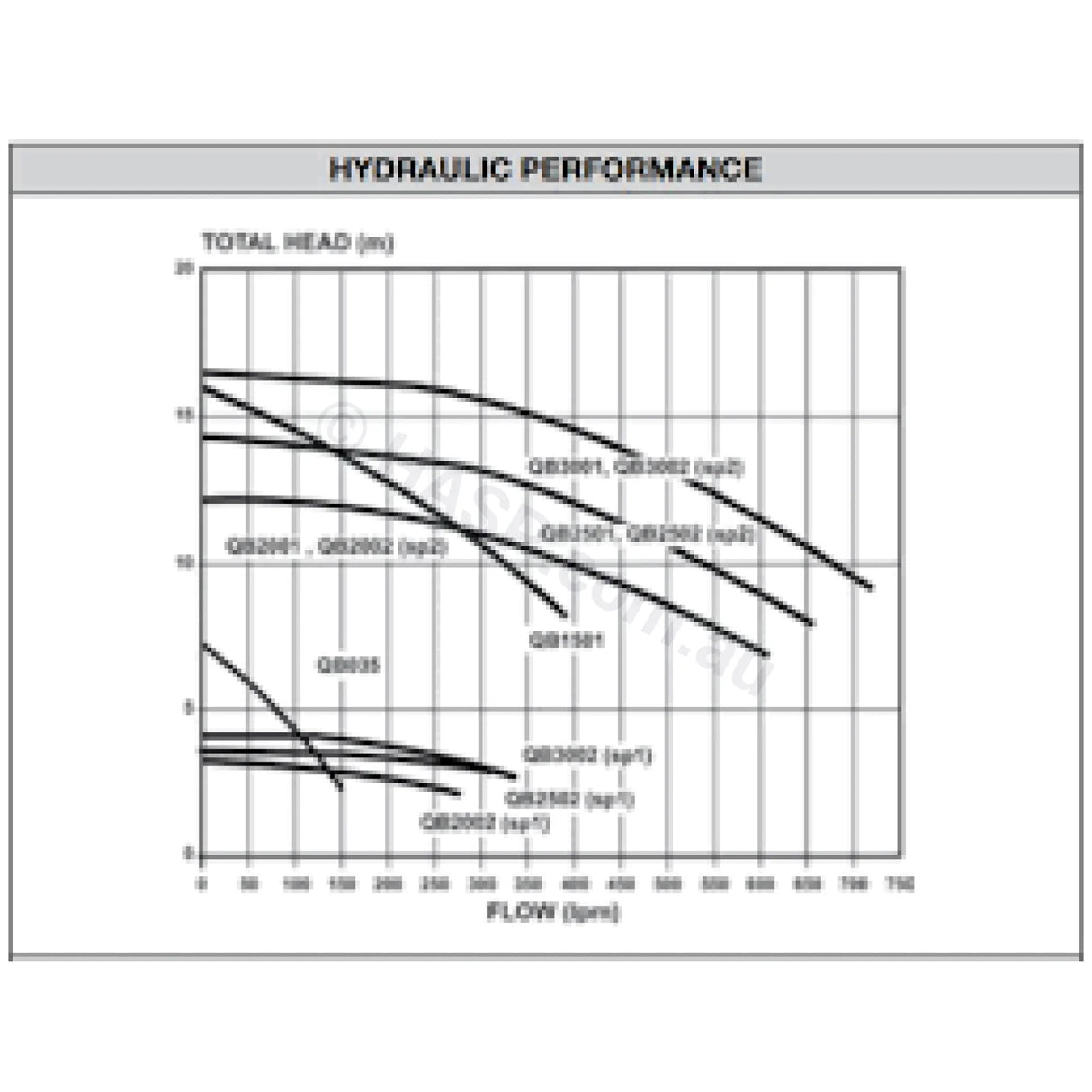

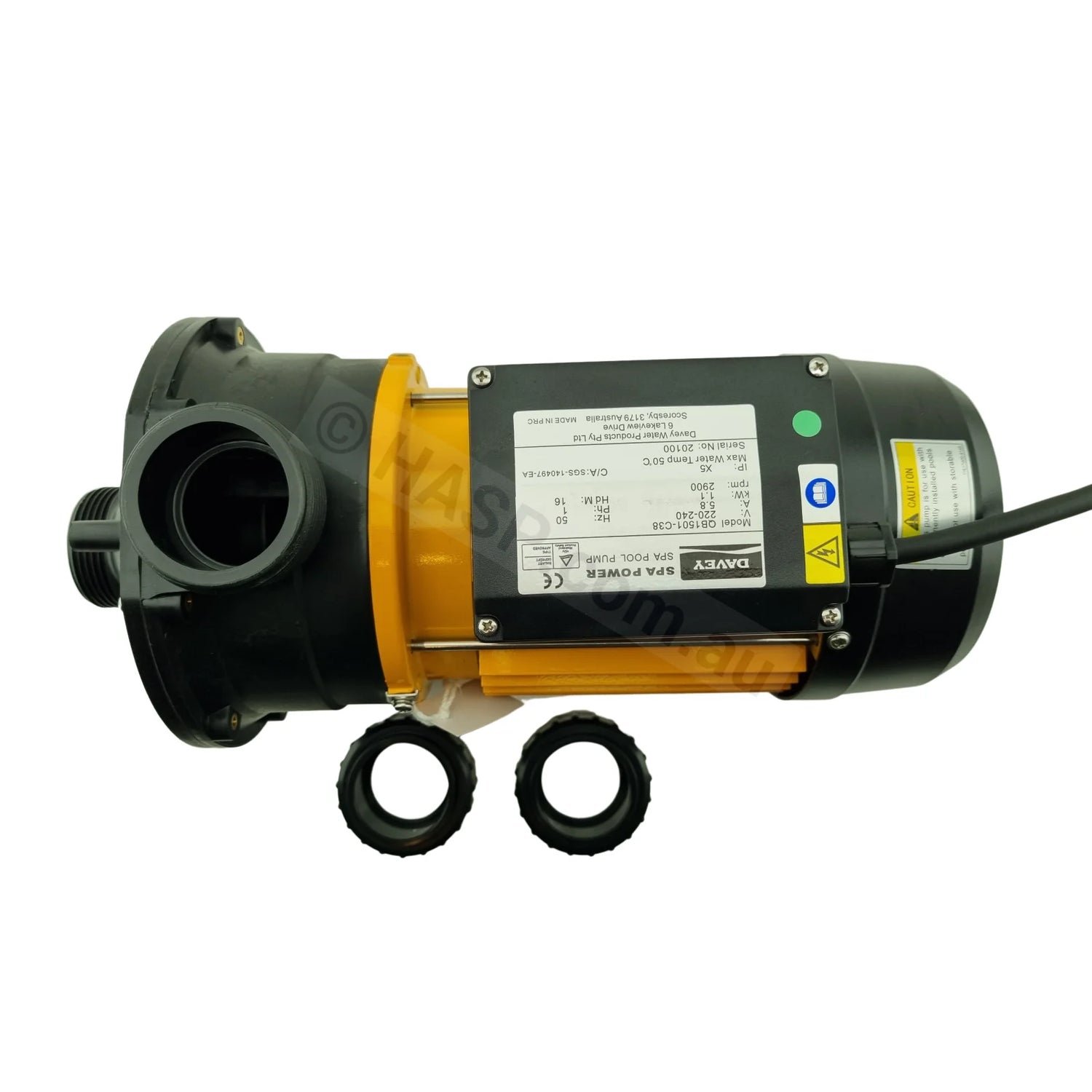

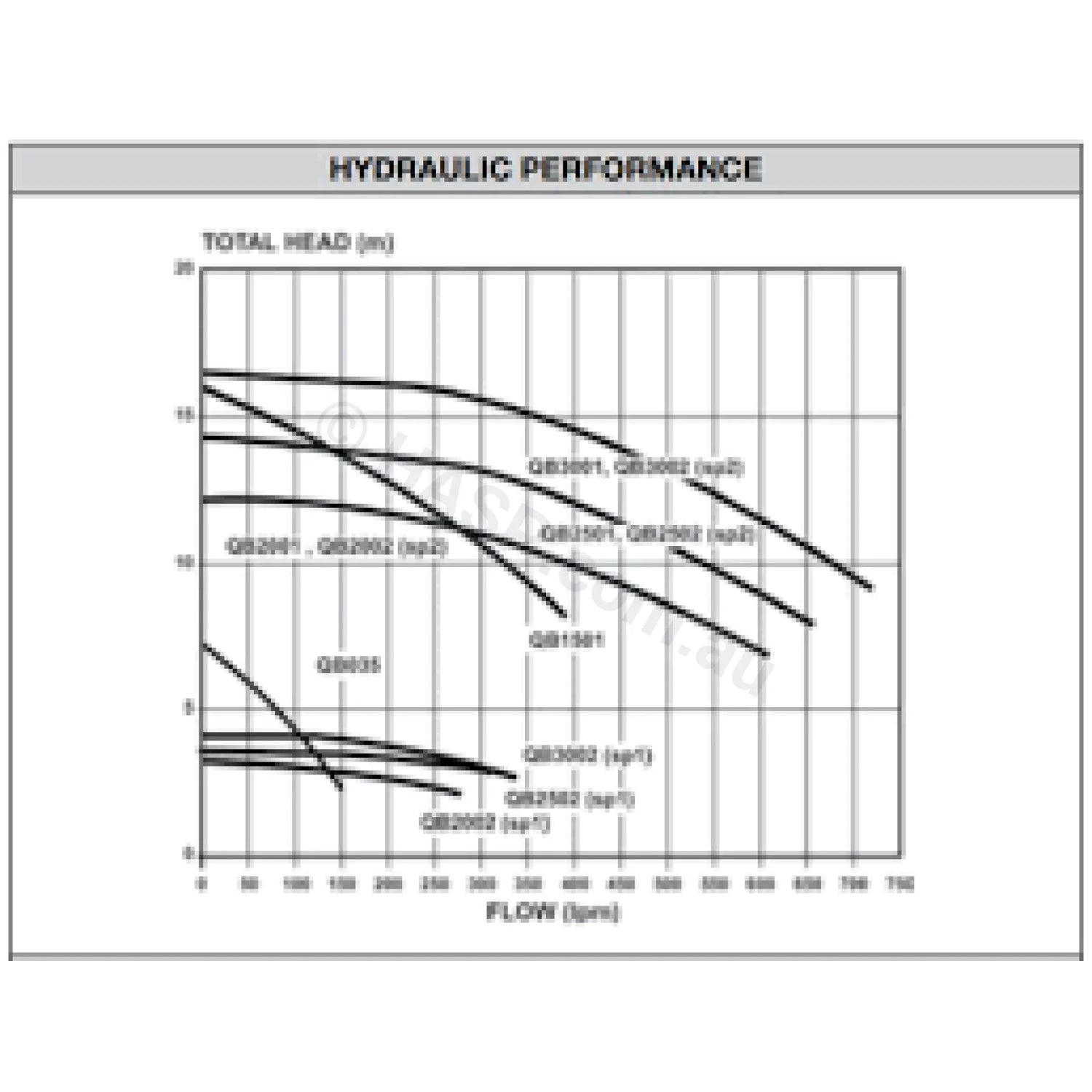

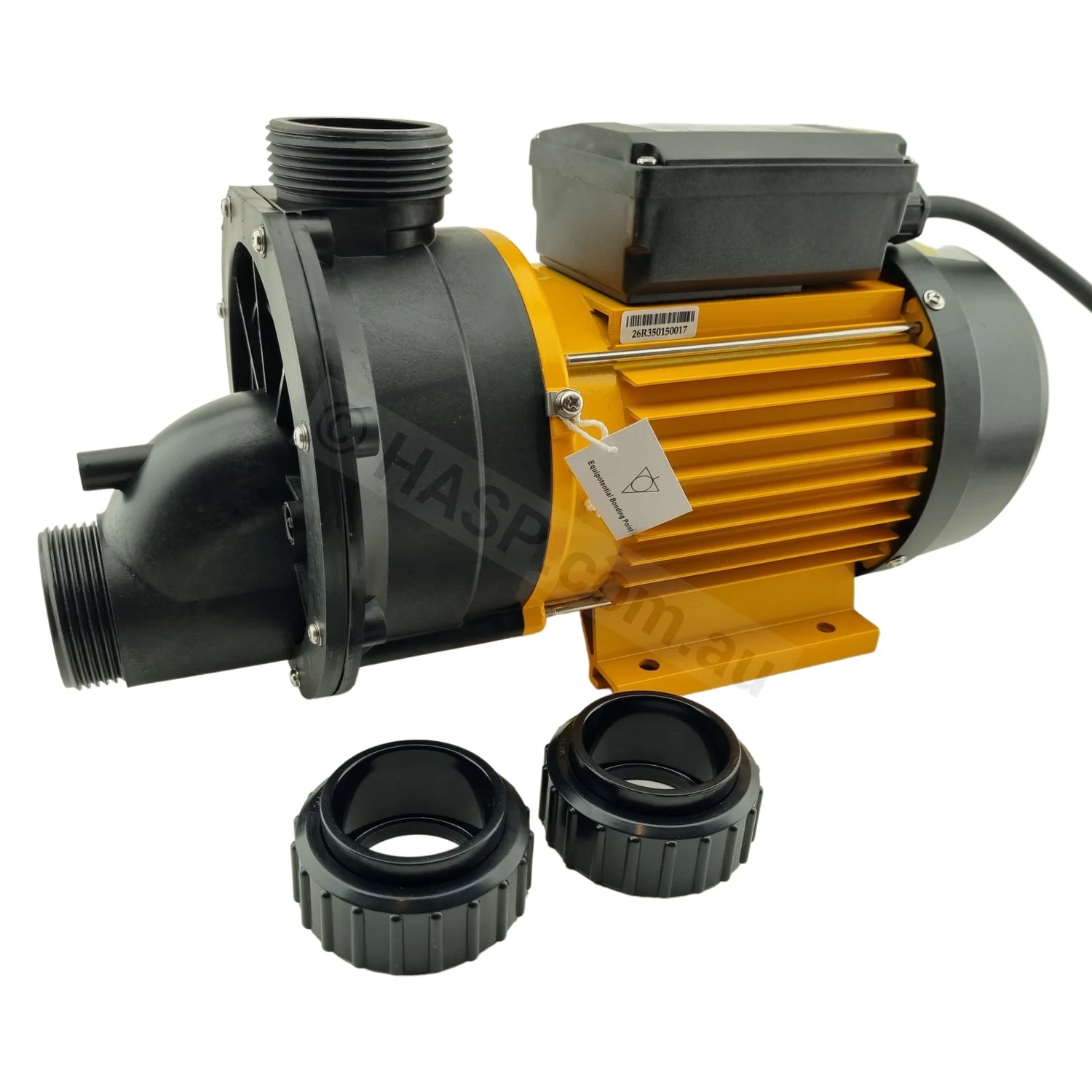

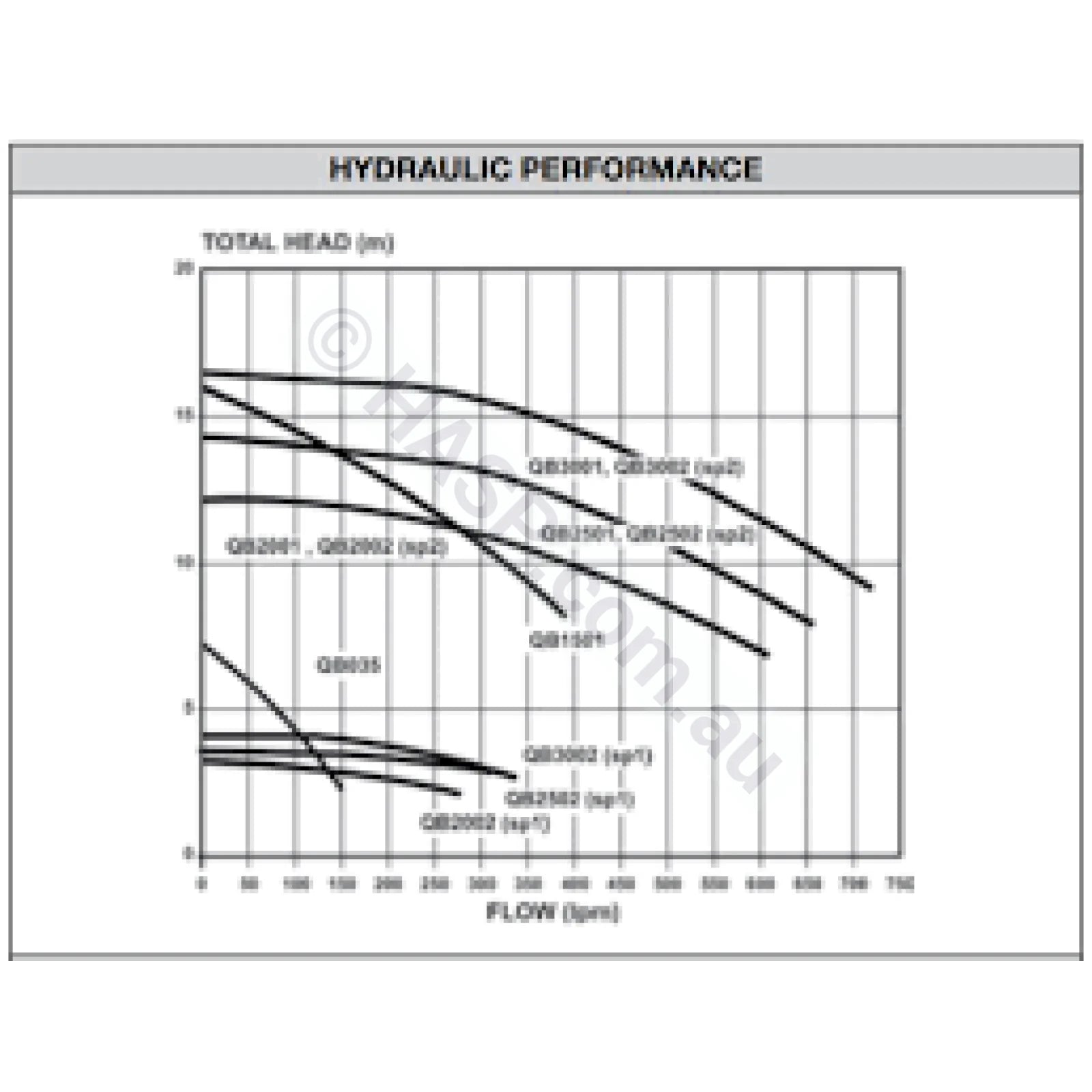

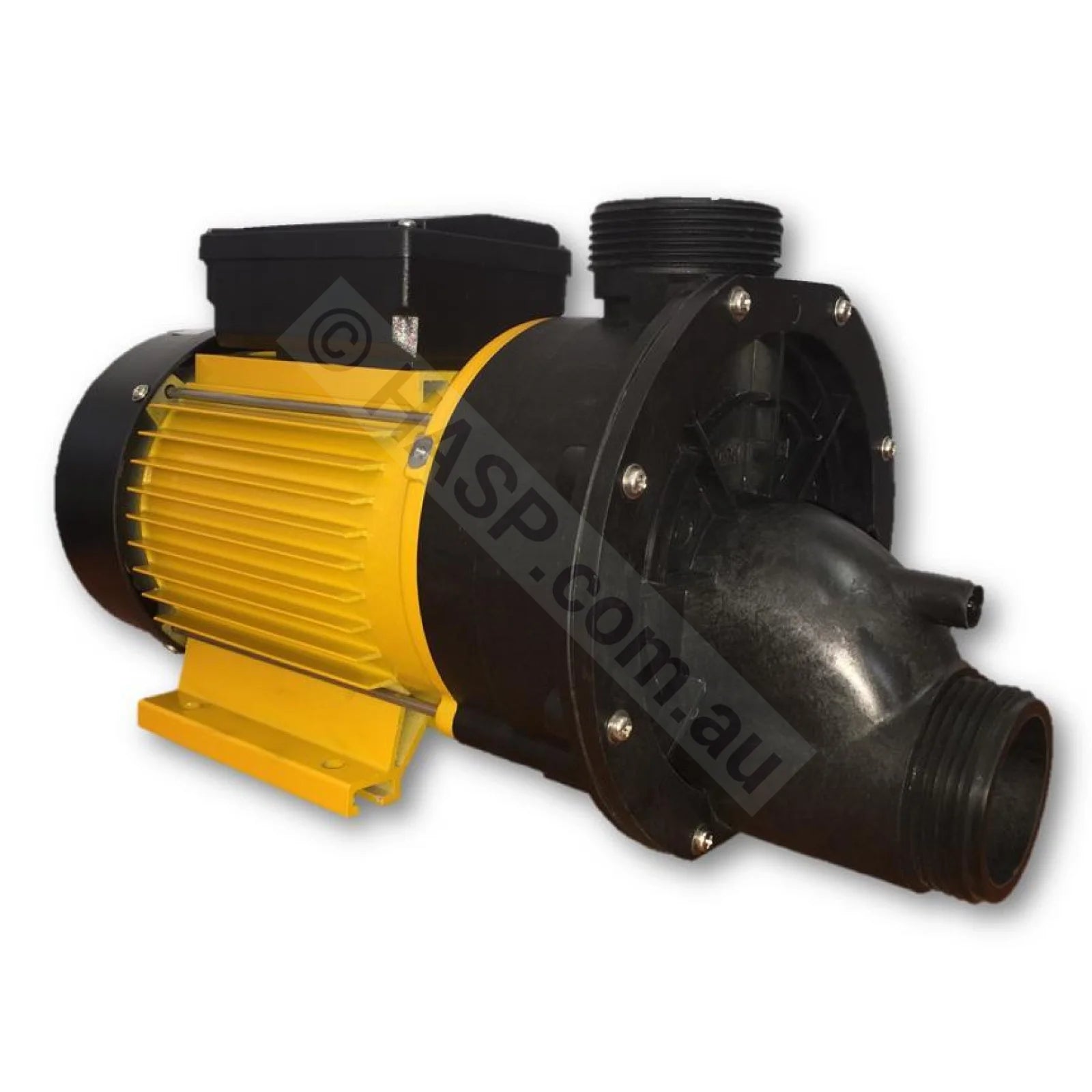

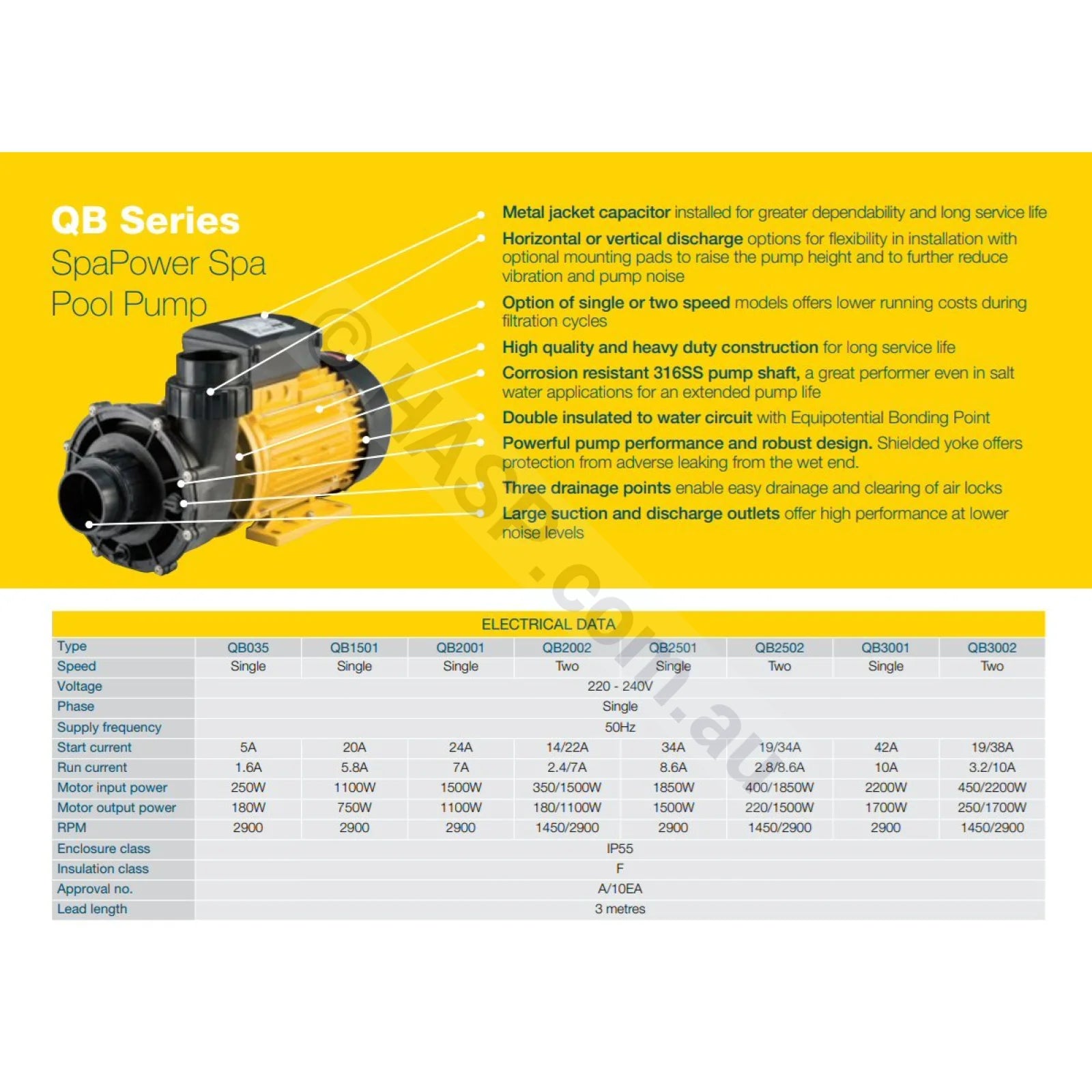

Davey Spaquip QB series 1 speed Spa Jet Booster Pumps. This is a 1.5HP, 1100W pump with 40mm fittings. Max Flow Rate of 380lpm. Can be used to directly replace most Aquaflo, LX Whirlpool LP / WP series pumps, Piranha, Maxi Flow, and also SpaNET Jetmaster spa pumps.
THE MOST COMMON SIZE IS 2.5HP (QB2501)

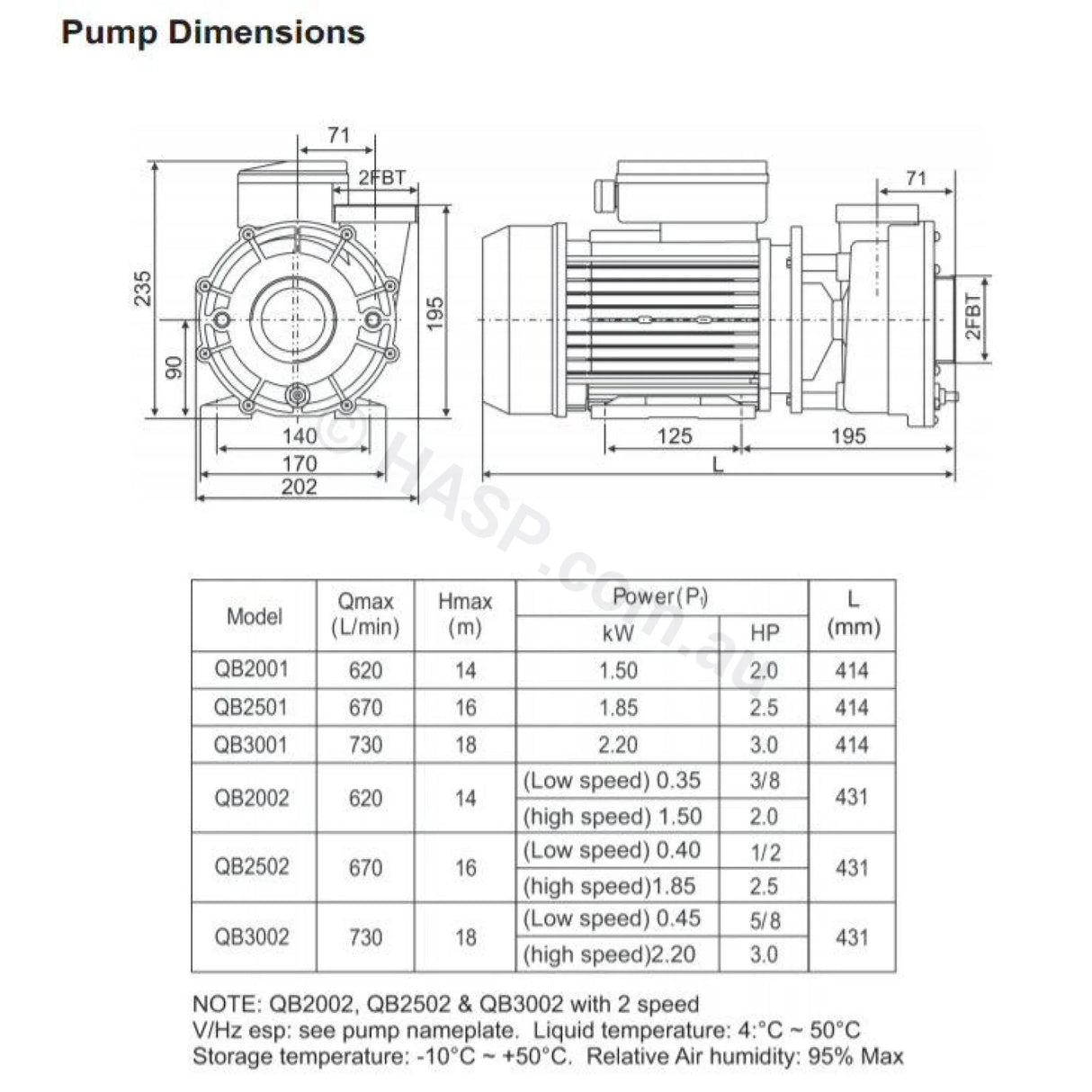

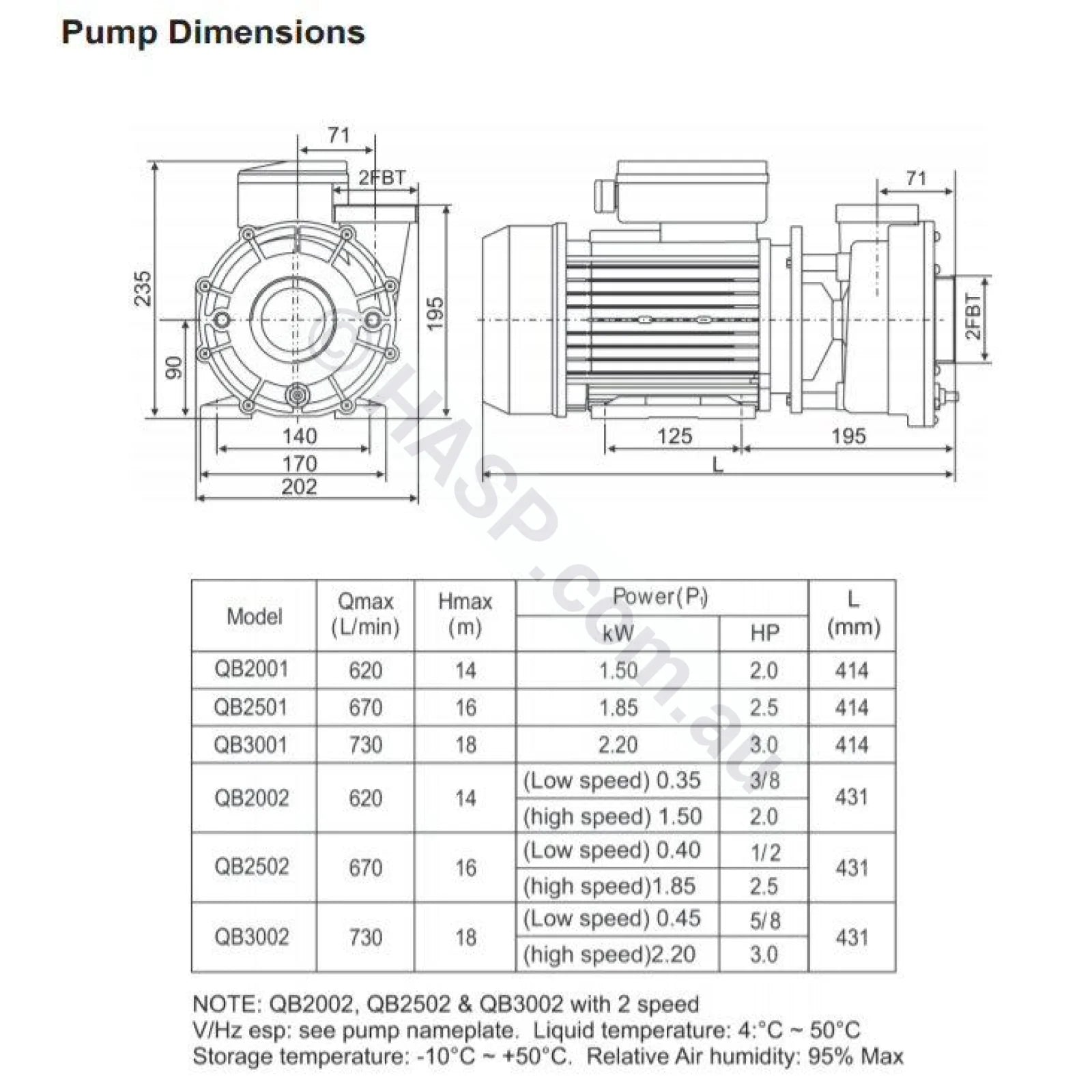

Dimensions:
- Length: 402mm
- Width: 186mm
- Height: 220mm
- Weight: 11.5kg
Davey QB SpaQuip Ratings / Pump Sizes:
QB1501 1100W 1.5hp
QB2001 1500w 2.0hp
QB2501 1850w 2.5hp
QB3001 2200w 3.0hp
Features of the Davey QB Booster Pump Include:
- Double insulated to water circuit – provided with an Equipotential Bonding Point for AS/NZ 3000 wiring standards
- Powerful Pump Performance – Robust pump design combined with powerful motor options delivers high performance, for a satisfying spa experience
- Stainless Steel Pump Shaft – Corrosion resistant 316SS pump shaft to ensure years of trouble-free use, even in salt water spa pool applications, for an extended pump life
- Energy Efficient – Single and two speed models available to help conserve energy during filtration cycles
- Flexible Installation – Pump housing can be turned 180° for easy installation of pipework, horizontal or vertical
- Quiet – Large suction and discharge outlets allow for higher performance but at lower noise levels, ensuring a powerful yet relaxing spa experience
- Enhanced Pump Design – Shielded yoke design helps protect the motor from any adverse leaking from the wet end whilst still meeting all industry safety standards.
- Comes standard with Overmoulded AMP plug. Aus 3-Pin, Mini JJ or in.link plugs available. Please order separately, and notify us when ordering so we can fit it. Or, you can use your old cord.
Warranty:
2-Year Return-to-base Warranty. Excludes damage from chemical corrosion.
