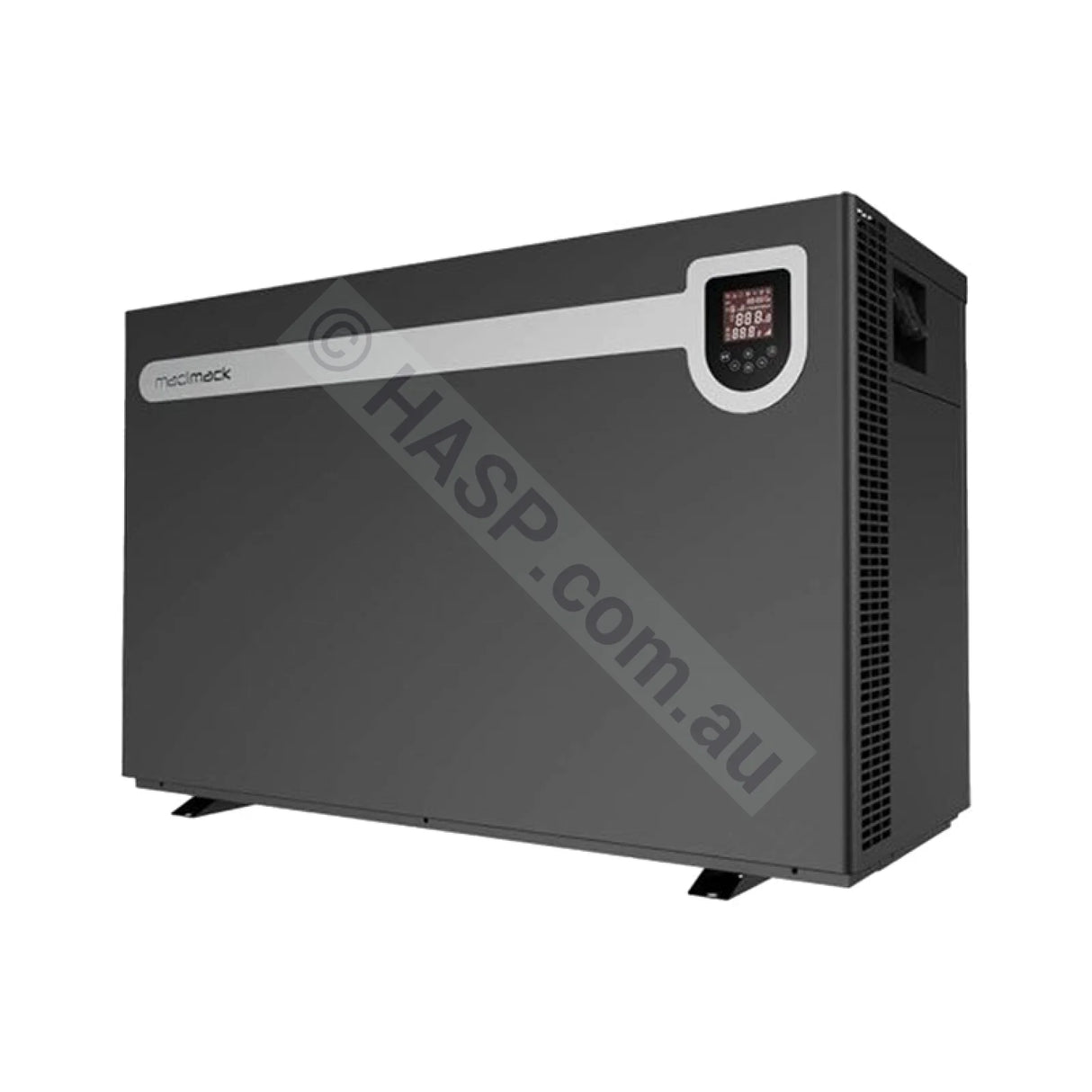

Madimack InverElite V4 10kW Pool Heat Pump

Madimack InverElite V4 10kW Pool Heat Pump

Madimack InverElite V4 10kW — the world's most efficient and quietest pool heat pump, sized for small pools and swim spas. Peak COP of 19.5 delivers near-unmatched energy savings, and triple-layered sound insulation keeps operation whisper-quiet.

• Physically Stocked, unlike most "drop-shipping" websites.
• Shipped from VIC, NSW, WA, QLD

• Documentation: Brochure | User Manual | Sizing Chart
• Shipping: Someone may be required to help lift the heater from the delivery truck if a tailgate lifter isn't available.

Choose Your Size — InverElite V4 Range

The InverElite V4 is available in 9 outputs. This page is for the 10kW model. View other sizes:

• 10kW — you are here
• 12kW
• 14kW
• 17kW
• 19kW
• 23kW
• 27kW
• 33kW
• 41kW (3-Phase)

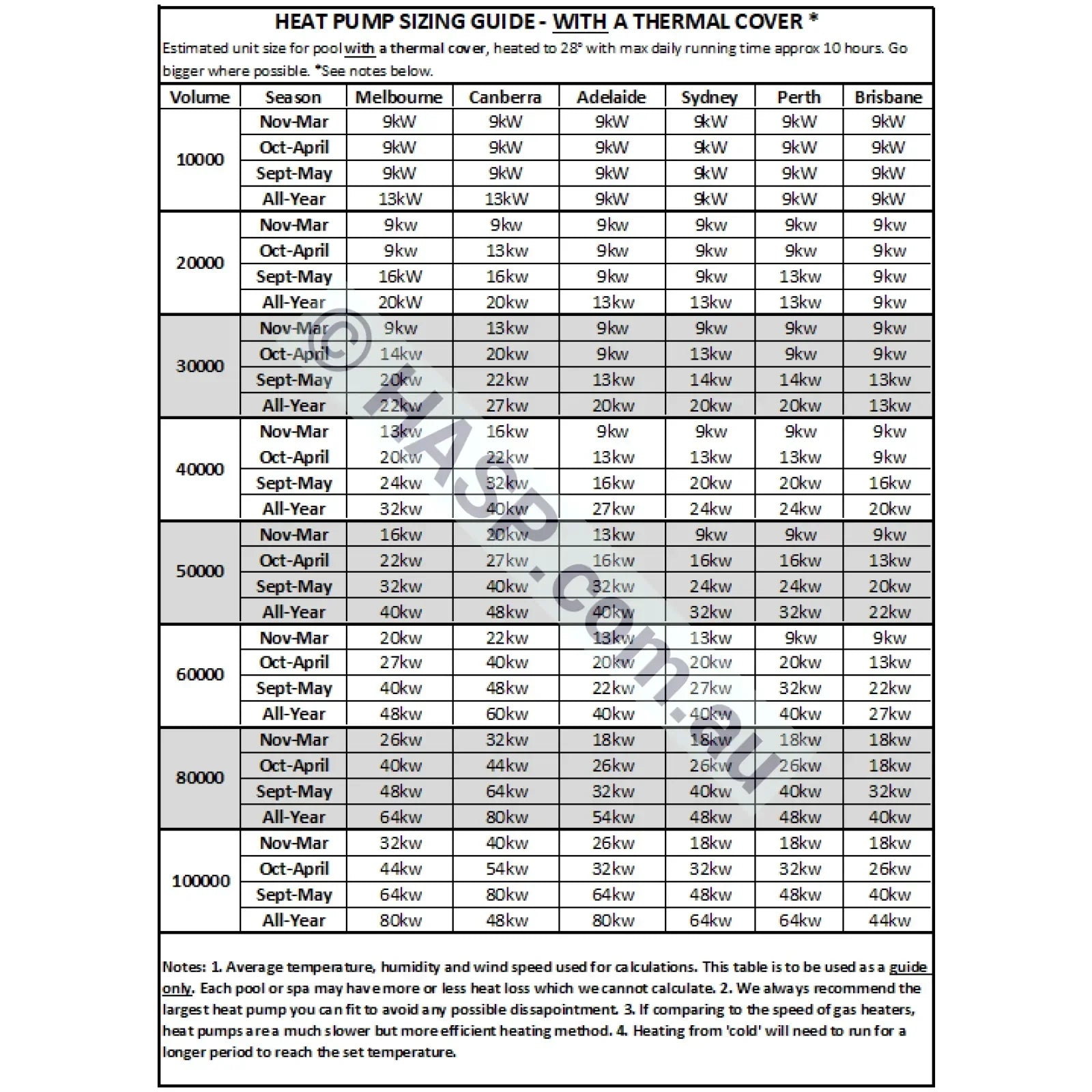

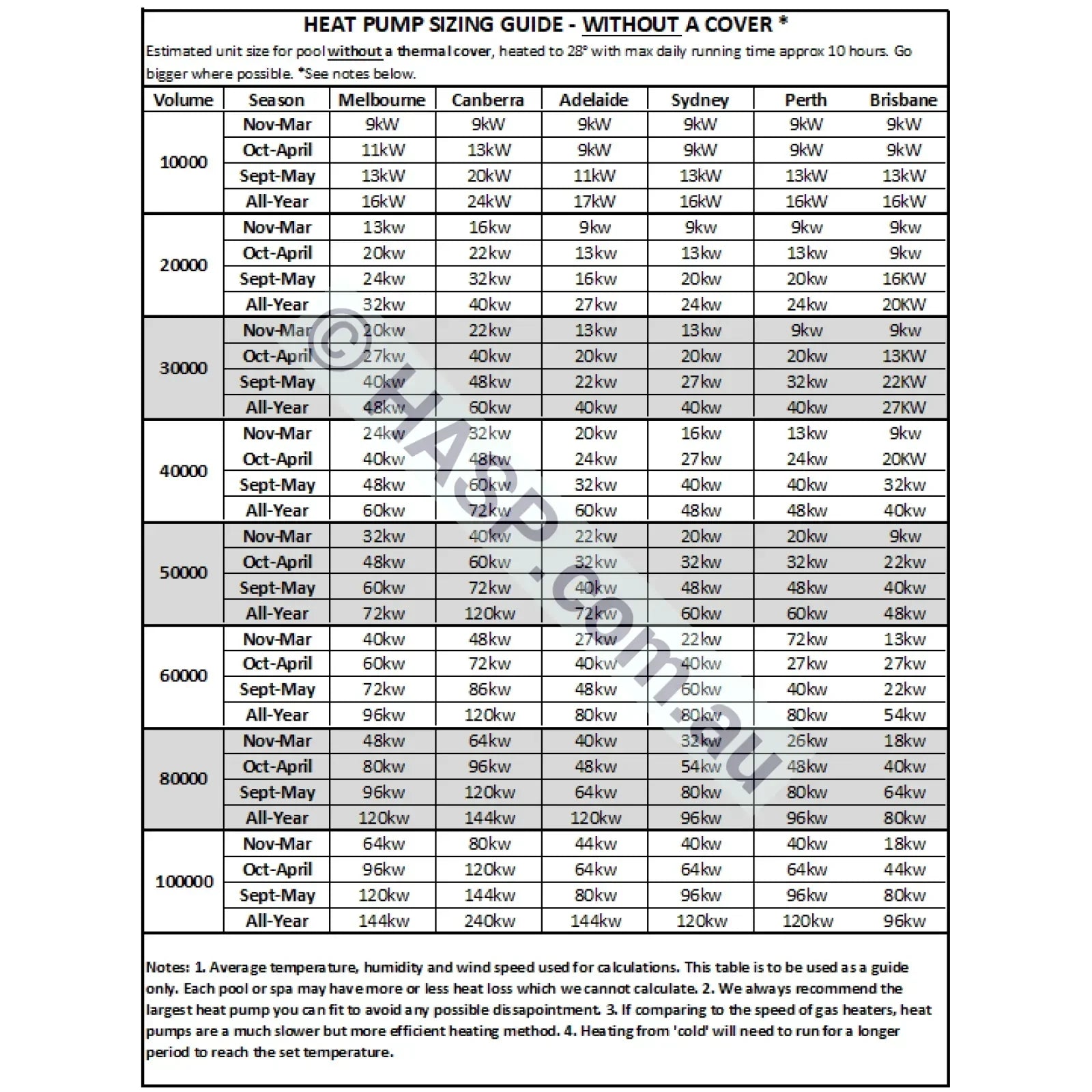

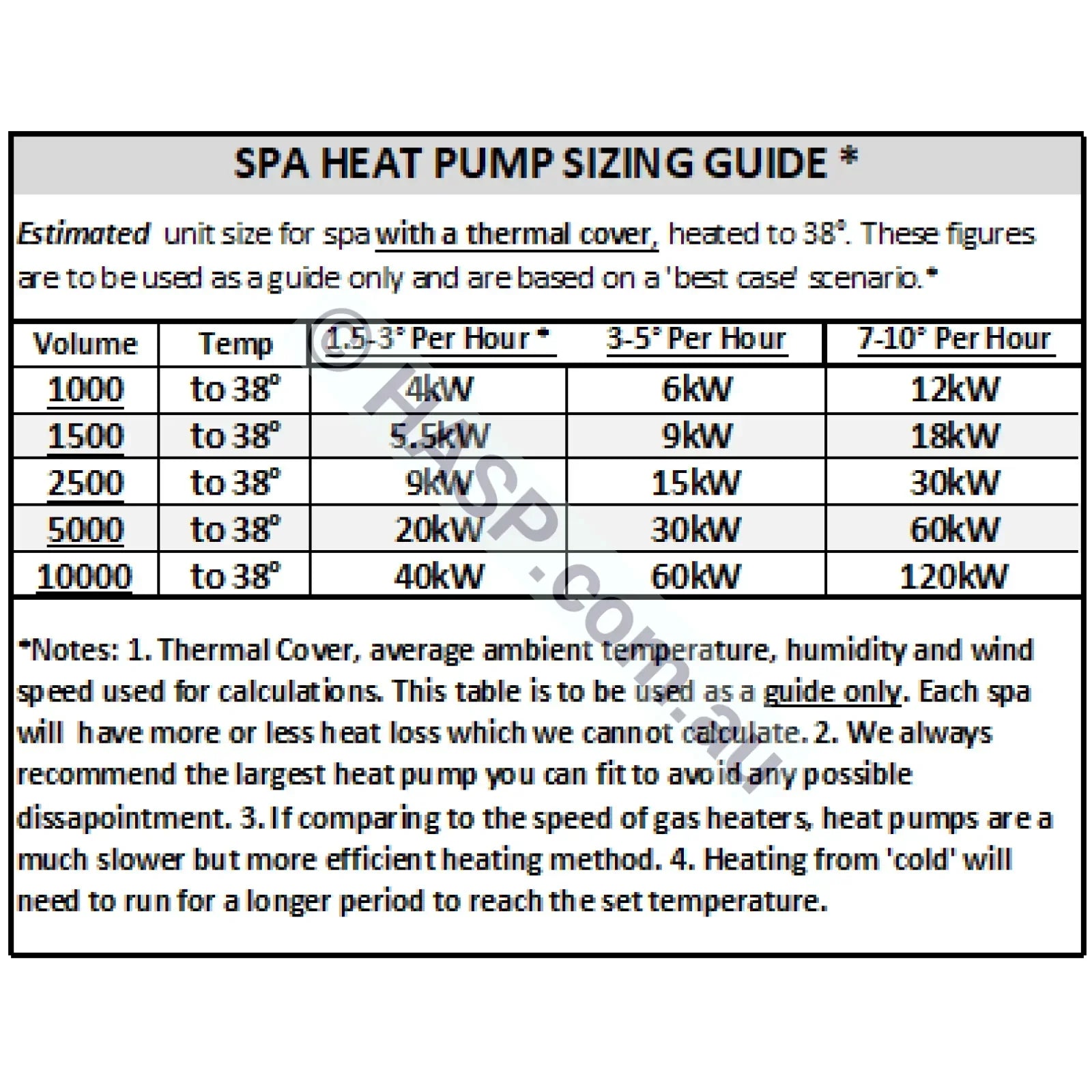

Unsure which size is right for your pool? View the Madimack Sizing Chart or contact our team for a recommendation.

InverElite V4 10kW — Key Specifications

• Heating Capacity (Air 27°C / Water 27°C / 80% humidity): 9.8 kW
• Heating Capacity (Air 15°C / Water 26°C / 70% humidity): 6.8 kW
• COP Range (warm conditions): 19.5~7.0
• COP Range (cool conditions): 7.6~5.1
• Cooling Capacity (Air 35°C / Water 28°C): 4.8 kW
• Rated Input Power: 0.16~1.33 kW
• Rated Input Current: 0.70~5.78 A
• Sound Level at 1 m: 36.0~41.8 dB(A)
• Sound Level at 10 m: 16.0~21.8 dB(A) — whisper-quiet
• Recommended Water Flow: 50 L/min
• Power Supply: 230V / 1-Phase
• Electrical Connection: 10A Plug
• Net Dimensions (L × W × H): 936 × 494 × 655 mm
• Refrigerant: R32
• Water Connection: 40 mm
• Operating Air Temperature: -20°C to 43°C
• Temperature Set Range: 5°C to 40°C
• Compressor: Twin-Rotary Mitsubishi DC
• Casing: Marine-grade aluminium alloy

Why Choose the InverElite V4?

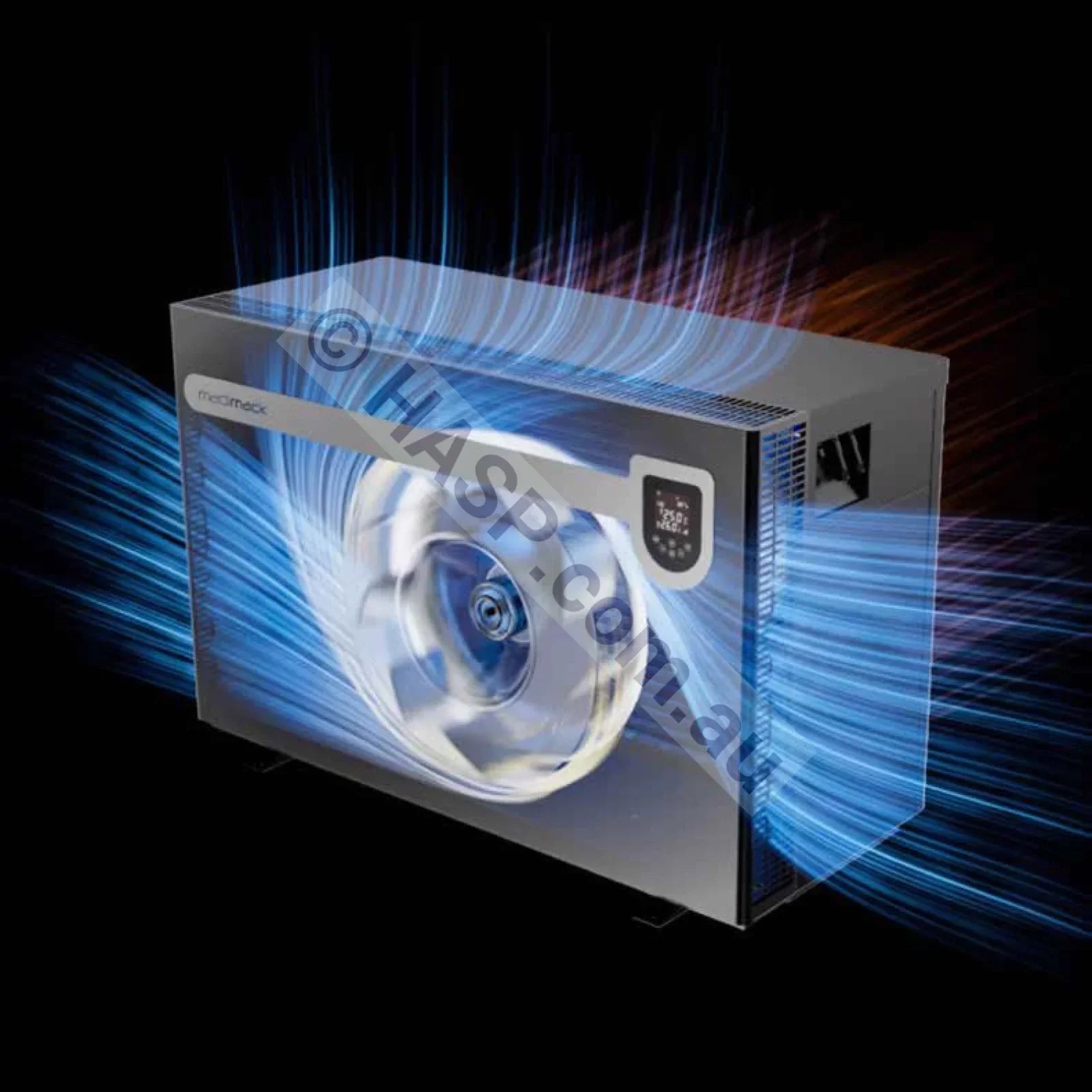

World's First 3D Airflow Ventilation — A 3-directional ventilation system that reduces installation space while improving efficiency and performance.

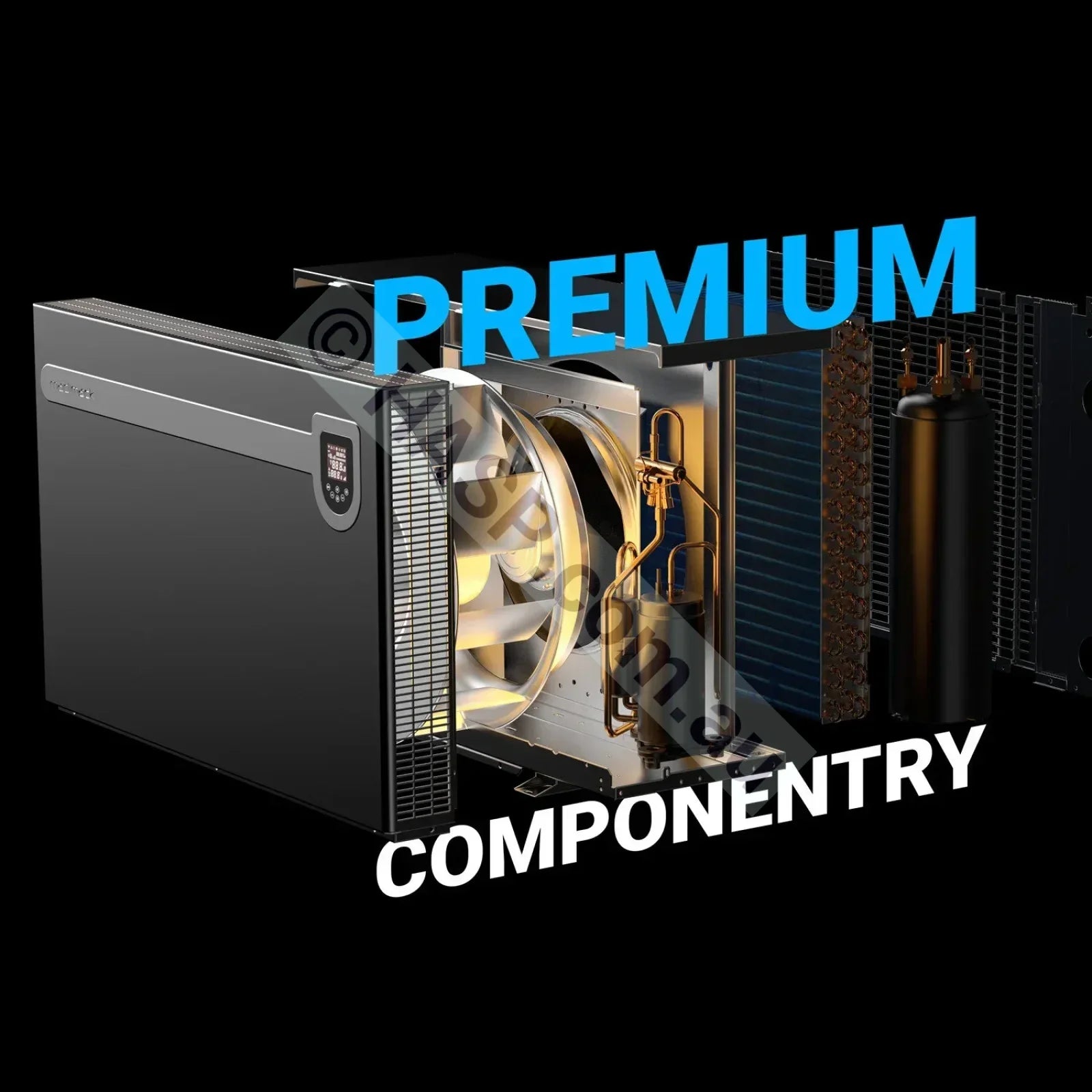

Twin-Rotary Mitsubishi DC Compressor — Rapid heat-up times paired with a commercial-grade centrifugal fan for exceptional power-to-performance efficiency.

Whisper-Quiet Operation — Triple-layered sound insulation (condensed fibre, foam, and metal jacket) makes the V4 the quietest heat pump available.

Marine-Grade Protection — Corrosion-resistant aluminium alloy jacket built for harsh Australian conditions.

Quick & Easy Installation — Universal external quick-connect plugs simplify install. Only heat pump with external universal controls, allowing multiple devices to connect seamlessly.

User-Friendly Digital Display — Sleek display with advanced features for effortless control and monitoring.

Warranty*

• 7 years on all parts
• 10 years on the compressor
• 25 years on the heat exchanger

*Refer to Madimack's Warranty Schedule for full terms and conditions.
