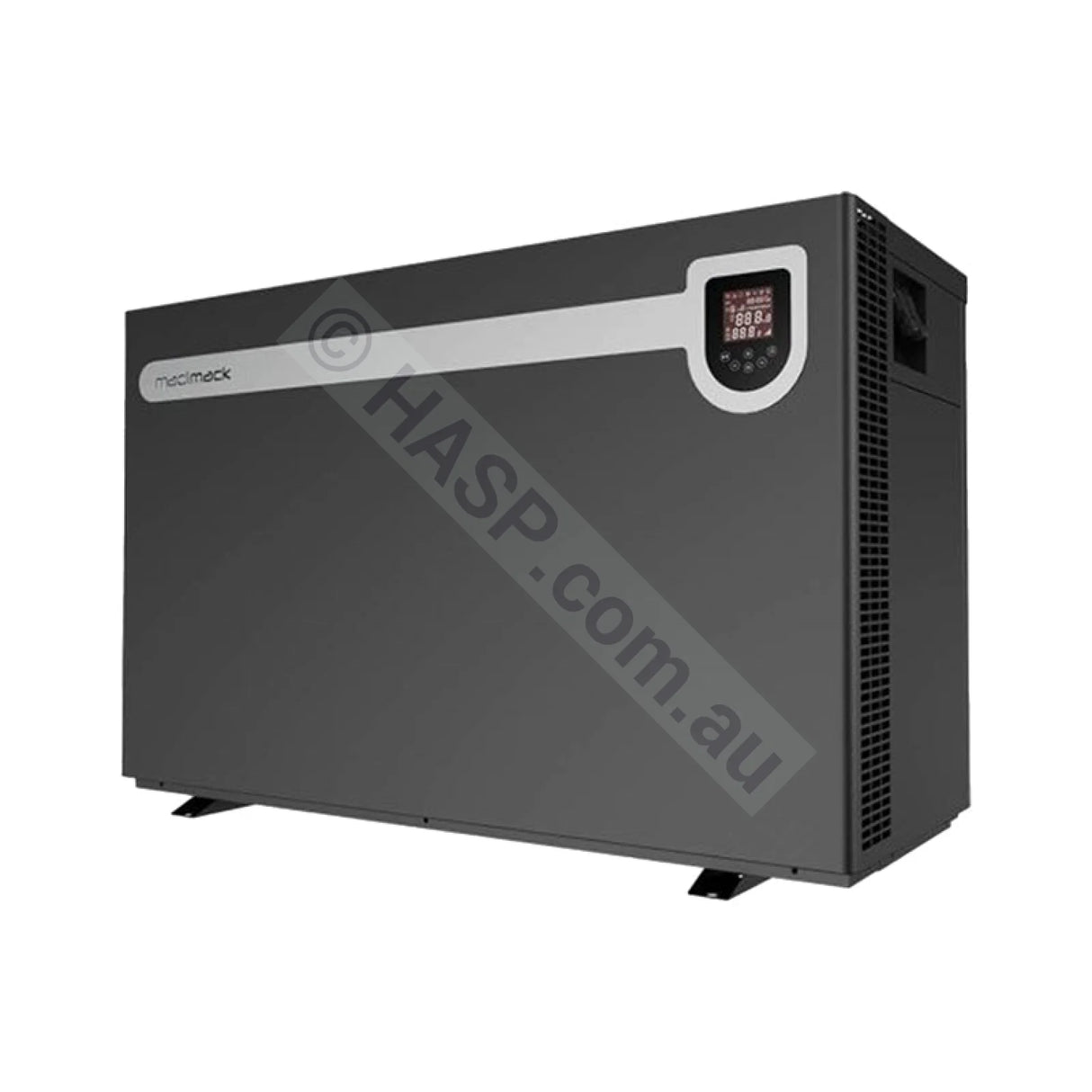

Name: Madimack InverElite V4 33kW Pool Heat Pump
Brand: Madimack
SKU: MM-V4ELITE33
Price: 14004.00 AUD
Availability: InStock

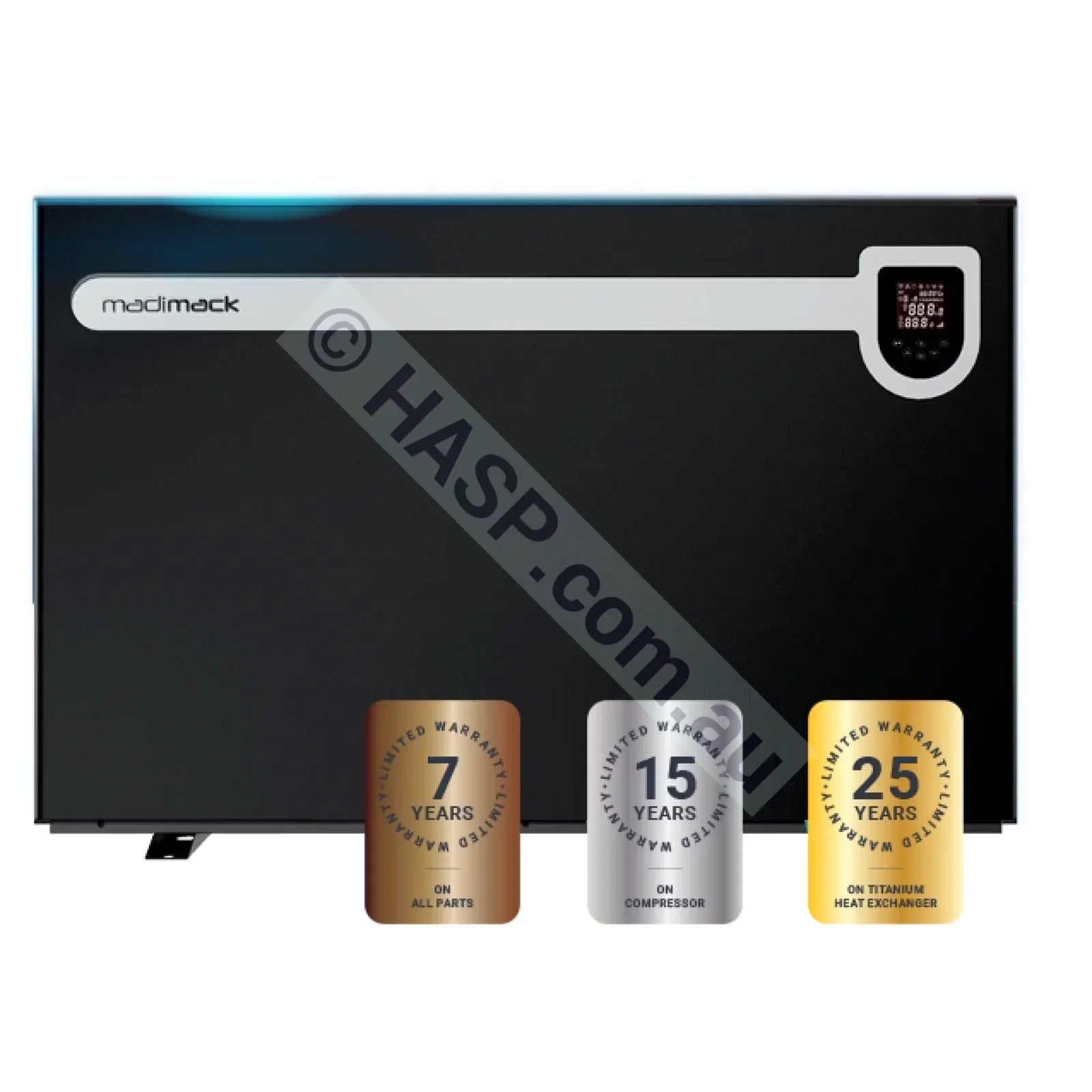

Madimack InverElite V4 41kW 3-Phase Pool Heat Pump

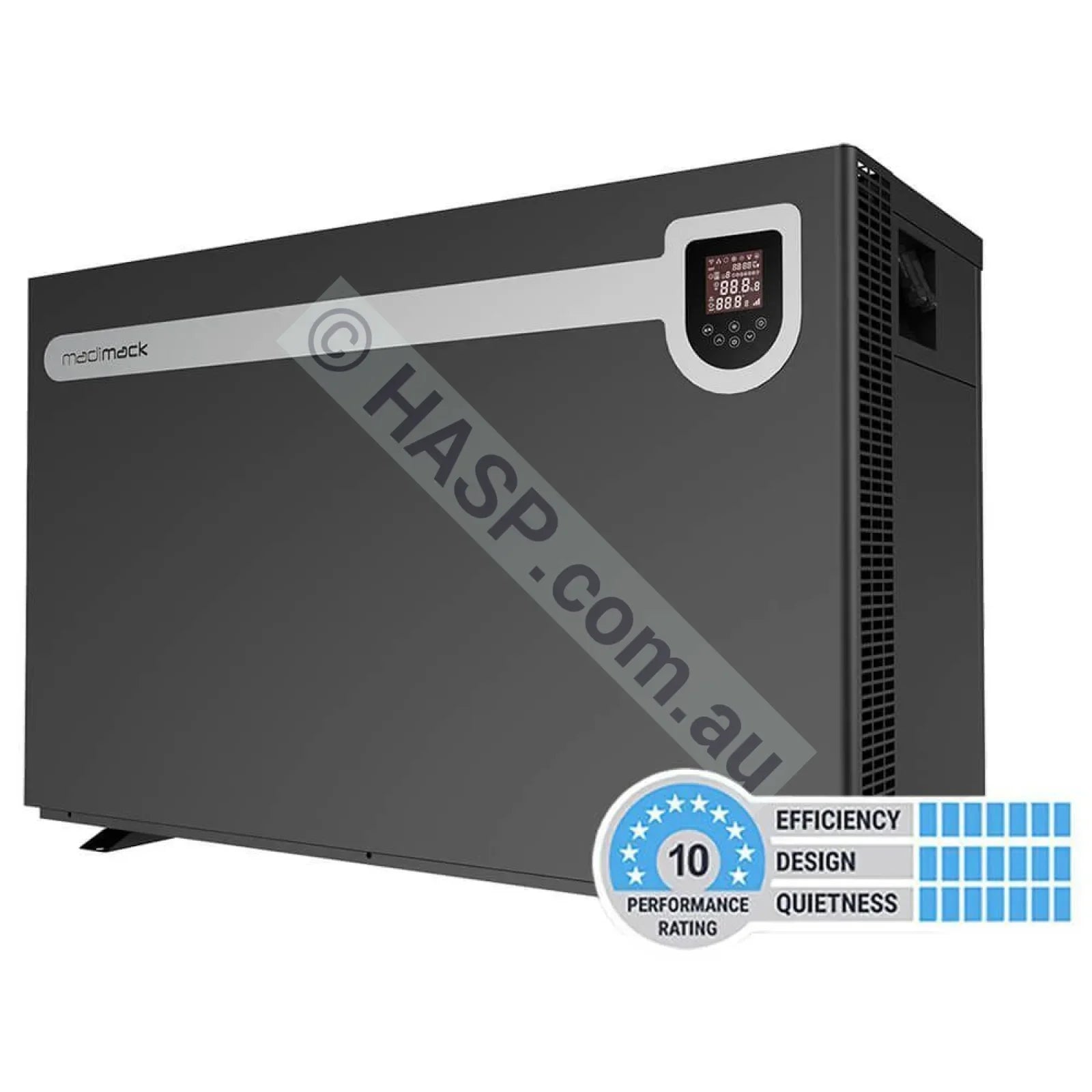

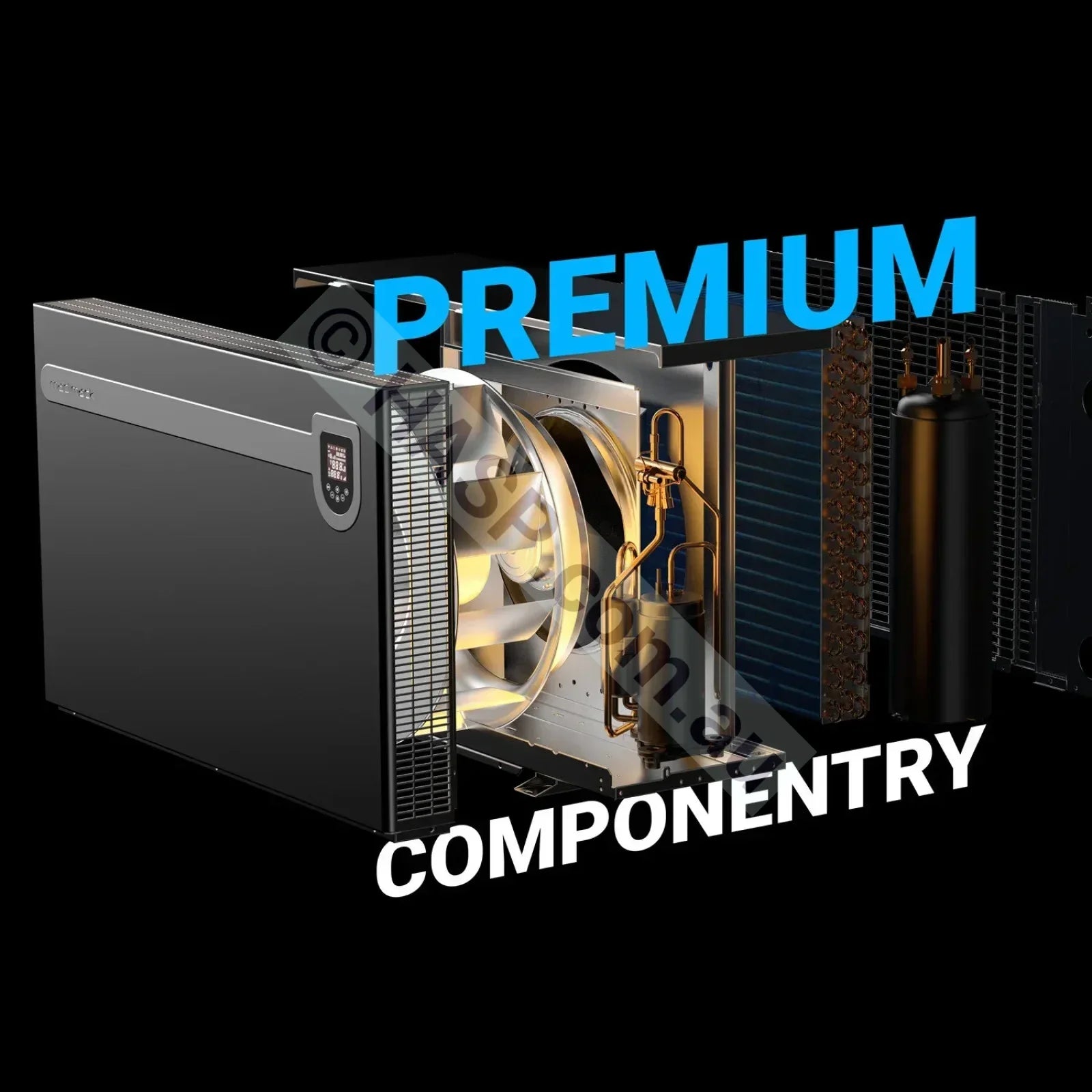

Madimack InverElite V4 Pool Heat Pump - features

Madimack InverElite V4 33kW — the world's most efficient and quietest pool heat pump, sized for extra-large residential and light commercial pools. Peak COP of 20.3 delivers near-unmatched energy savings, and triple-layered sound insulation keeps operation whisper-quiet.

Free Shipping Australia Wide
Documentation: Brochure | User Manual | Sizing Chart
Shipping: Someone may be required to help lift the heater from the delivery truck if a tailgate lifter isn't available.
Pickup: Available at 10 Industry Blvd, Carrum Downs VIC

Choose Your Size — InverElite V4 Range

The InverElite V4 is available in 9 outputs. This page is for the 33kW model. View other sizes:

10kW
12kW
14kW
17kW
19kW
23kW
27kW
33kW — you are here
41kW (3-Phase)

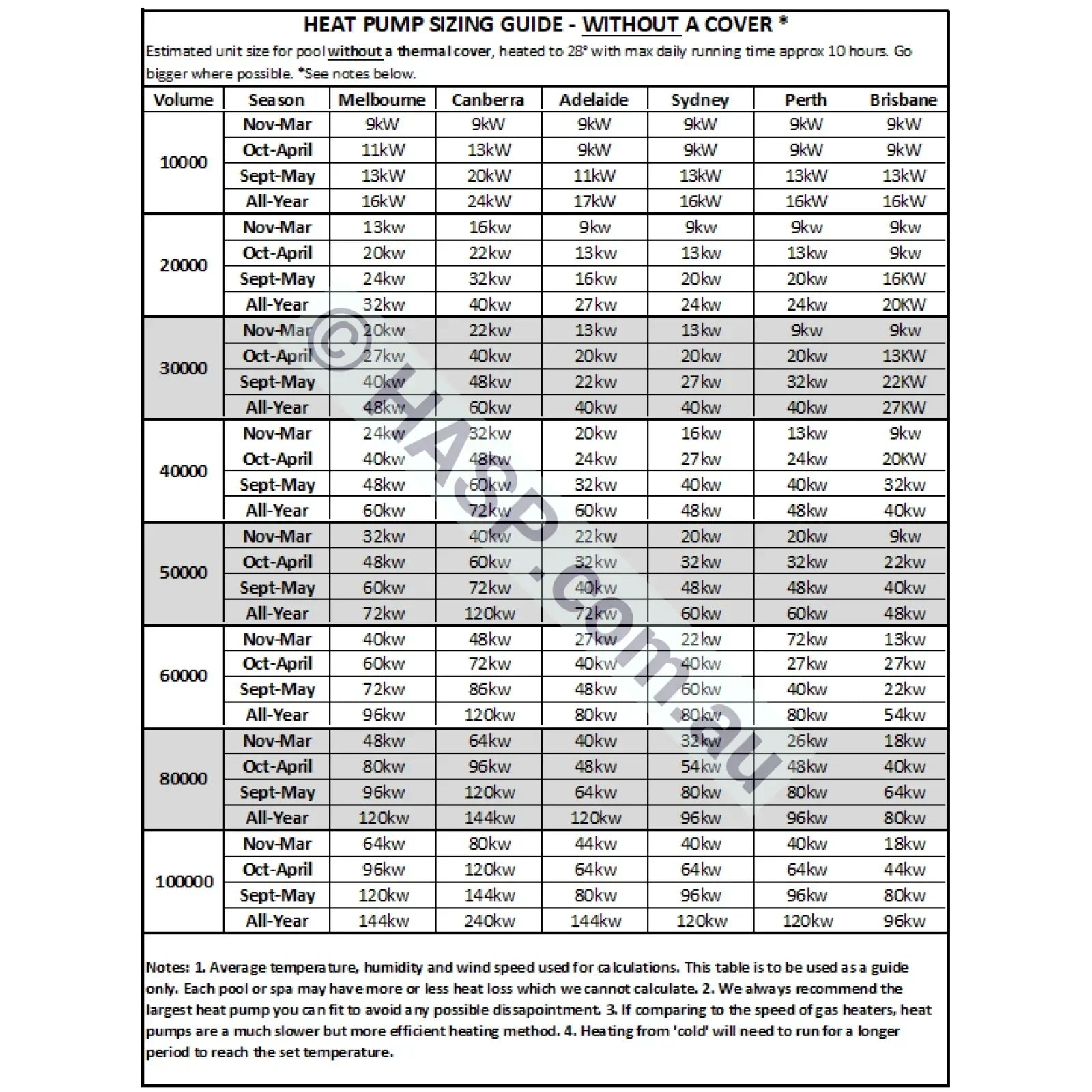

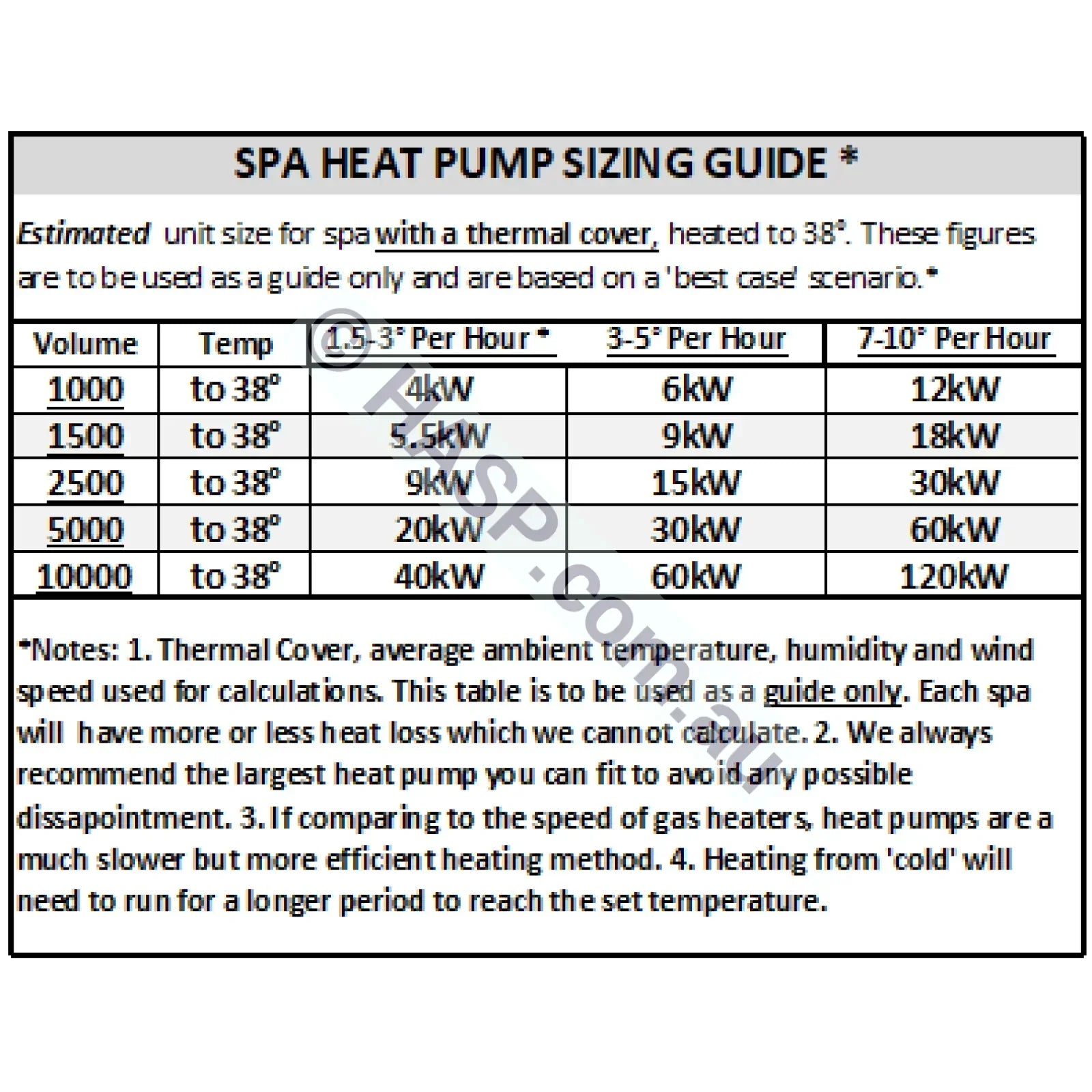

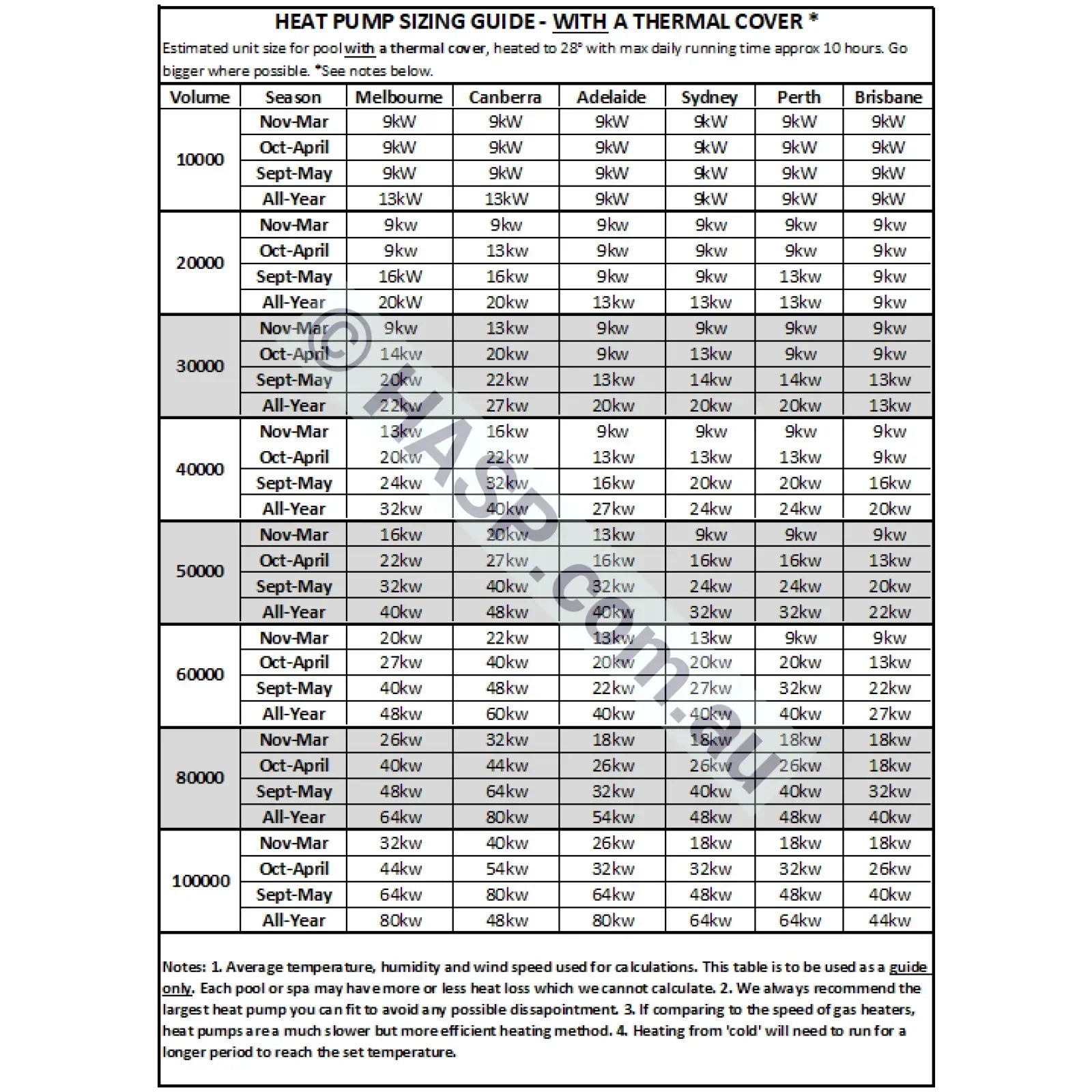

Unsure which size is right for your pool? View the Madimack Sizing Chart or contact our team for a recommendation.

InverElite V4 33kW — Key Specifications

Heating Capacity (Air 27°C / Water 27°C / 80% humidity): 33.0 kW
Heating Capacity (Air 15°C / Water 26°C / 70% humidity): 22.7 kW
COP Range (warm conditions): 20.3~7.1
COP Range (cool conditions): 8.0~5.2
Cooling Capacity (Air 35°C / Water 28°C): 15.4 kW
Rated Input Power: 0.52~4.37 kW
Rated Input Current: 2.26~19.0 A
Sound Level at 1 m: 38.2~48.7 dB(A)
Sound Level at 10 m: 18.2~28.7 dB(A) — whisper-quiet
Recommended Water Flow: 180 L/min
Power Supply: 230V / 1-Phase
Electrical Connection: Hard Wired
Net Dimensions (L × W × H): 1310 × 514 × 945 mm
Refrigerant: R32
Water Connection: 40 mm
Operating Air Temperature: -20°C to 43°C
Temperature Set Range: 5°C to 40°C
Compressor: Twin-Rotary Mitsubishi DC
Casing: Marine-grade aluminium alloy

Why Choose the InverElite V4?

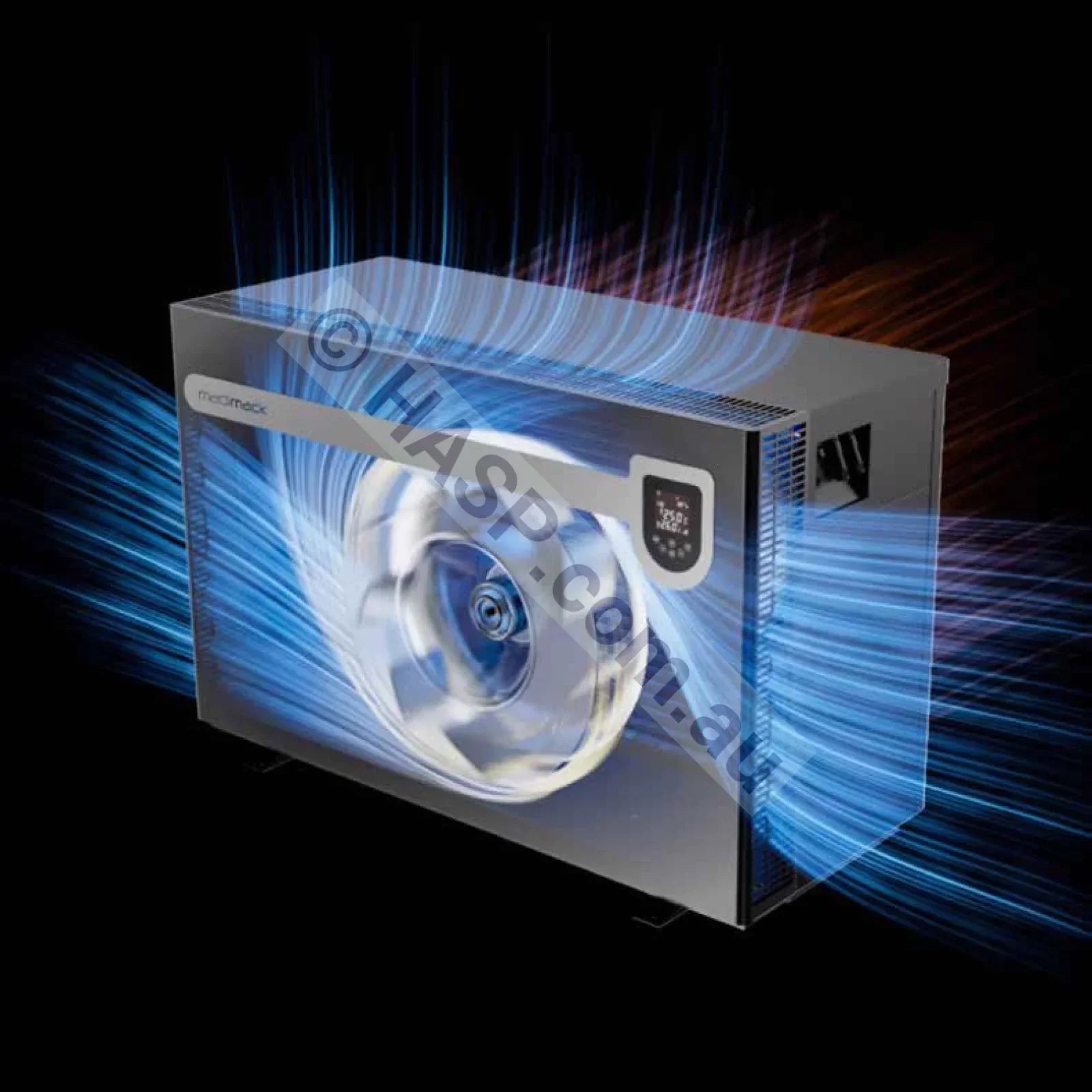

World's First 3D Airflow Ventilation — A 3-directional ventilation system that reduces installation space while improving efficiency and performance.

Twin-Rotary Mitsubishi DC Compressor — Rapid heat-up times paired with a commercial-grade centrifugal fan for exceptional power-to-performance efficiency.

Whisper-Quiet Operation — Triple-layered sound insulation (condensed fibre, foam, and metal jacket) makes the V4 the quietest heat pump available.

Marine-Grade Protection — Corrosion-resistant aluminium alloy jacket built for harsh Australian conditions.

Quick & Easy Installation — Universal external quick-connect plugs simplify install. Only heat pump with external universal controls, allowing multiple devices to connect seamlessly.

User-Friendly Digital Display — Sleek display with advanced features for effortless control and monitoring.

Warranty*

7 years on all parts
10 years on the compressor
25 years on the heat exchanger

*Refer to Madimack's Warranty Schedule for full terms and conditions.
