Name: Madimack InverElite V4 12kW Pool Heat Pump
Brand: Madimack
SKU: MM-V4ELITE12
Price: 4994.00 AUD
Availability: InStock

Madimack InverElite V4 41kW 3-Phase Pool Heat Pump

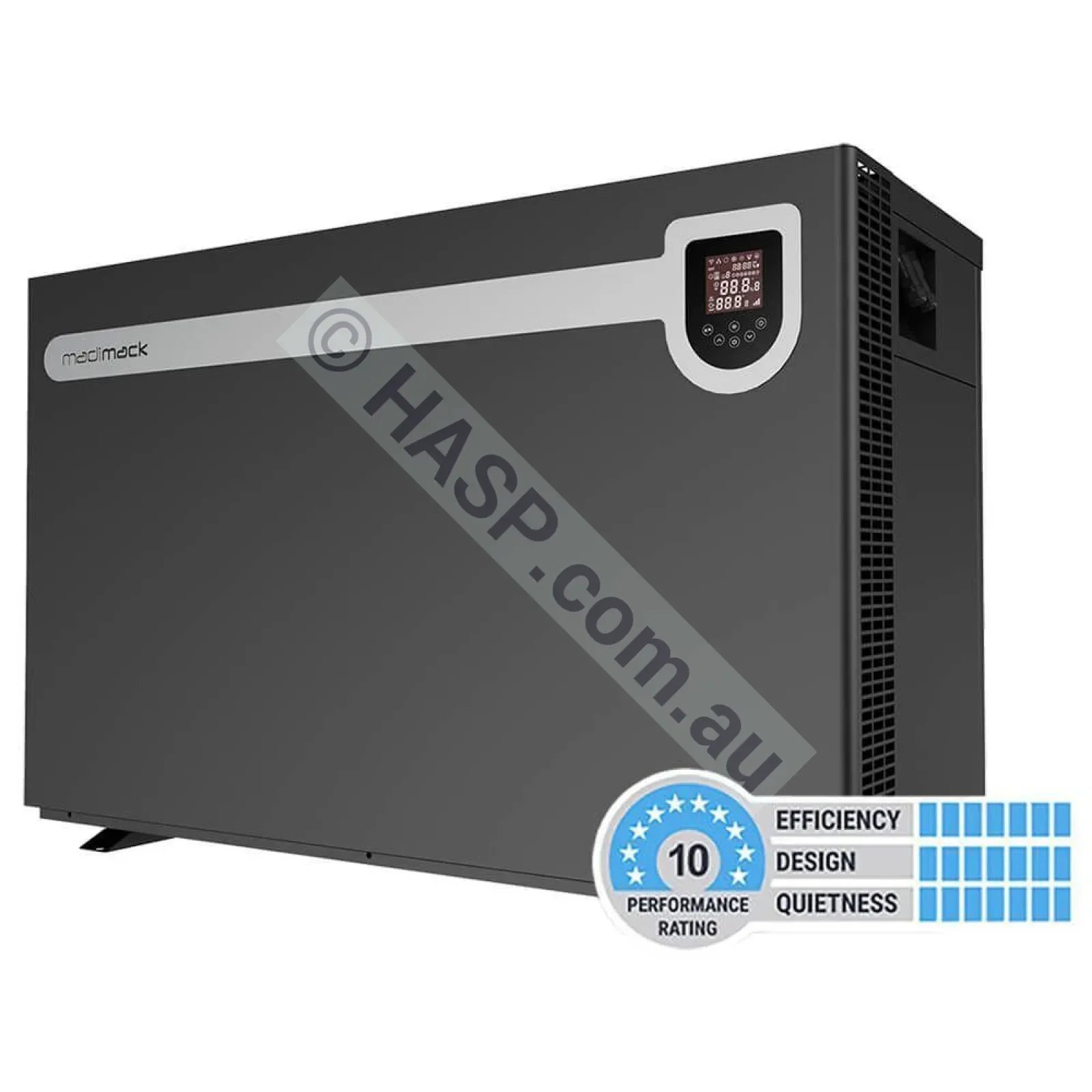

Madimack InverElite V4 Pool Heat Pump - features

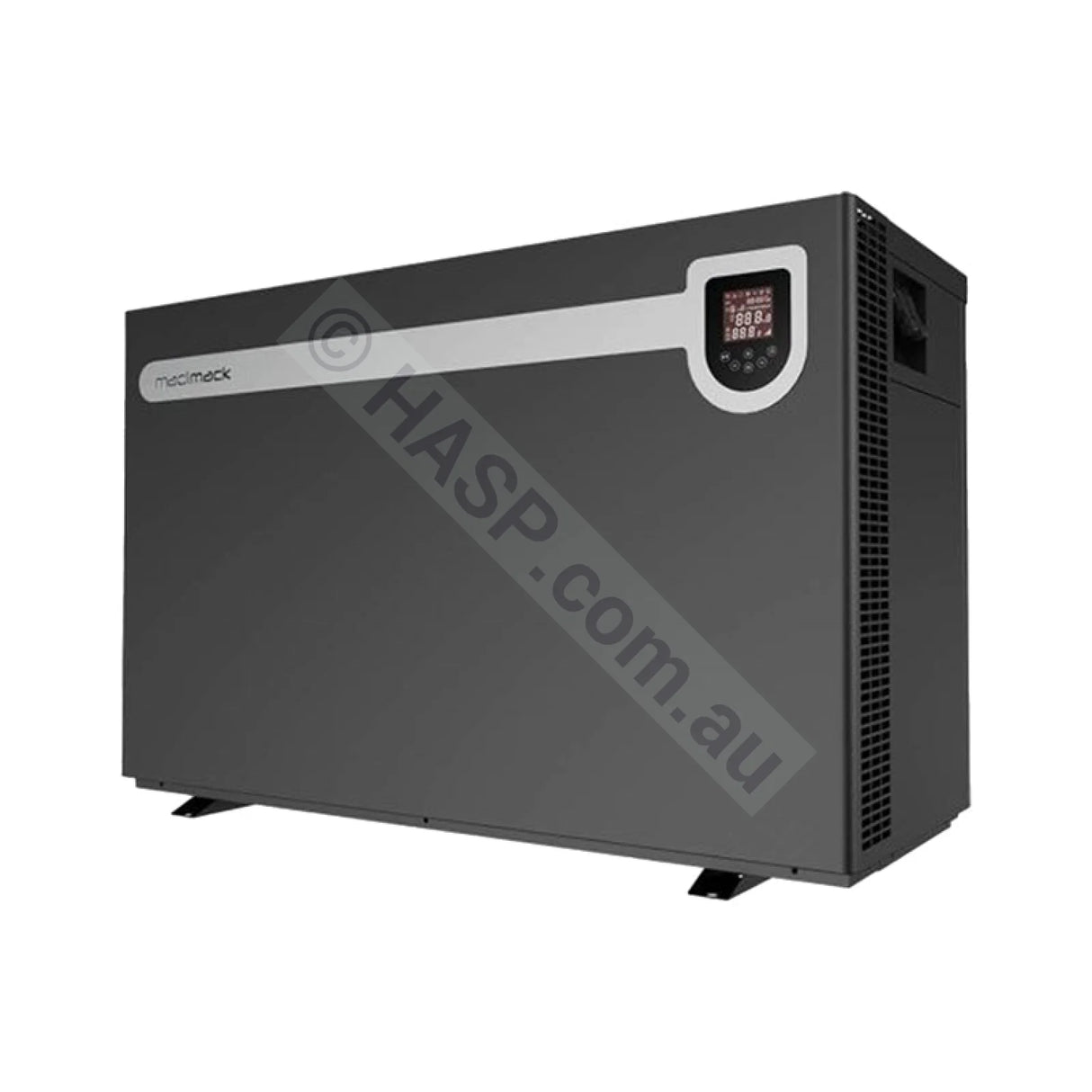

Madimack InverElite V4 12kW — the world's most efficient and quietest pool heat pump, sized for small to medium pools. Peak COP of 19.7 delivers near-unmatched energy savings, and triple-layered sound insulation keeps operation whisper-quiet.

Free Shipping Australia Wide
Documentation: Brochure | User Manual | Sizing Chart
Shipping: Someone may be required to help lift the heater from the delivery truck if a tailgate lifter isn't available.
Pickup: Available at 10 Industry Blvd, Carrum Downs VIC

Choose Your Size — InverElite V4 Range

The InverElite V4 is available in 9 outputs. This page is for the 12kW model. View other sizes:

10kW
12kW — you are here
14kW
17kW
19kW
23kW
27kW
33kW
41kW (3-Phase)

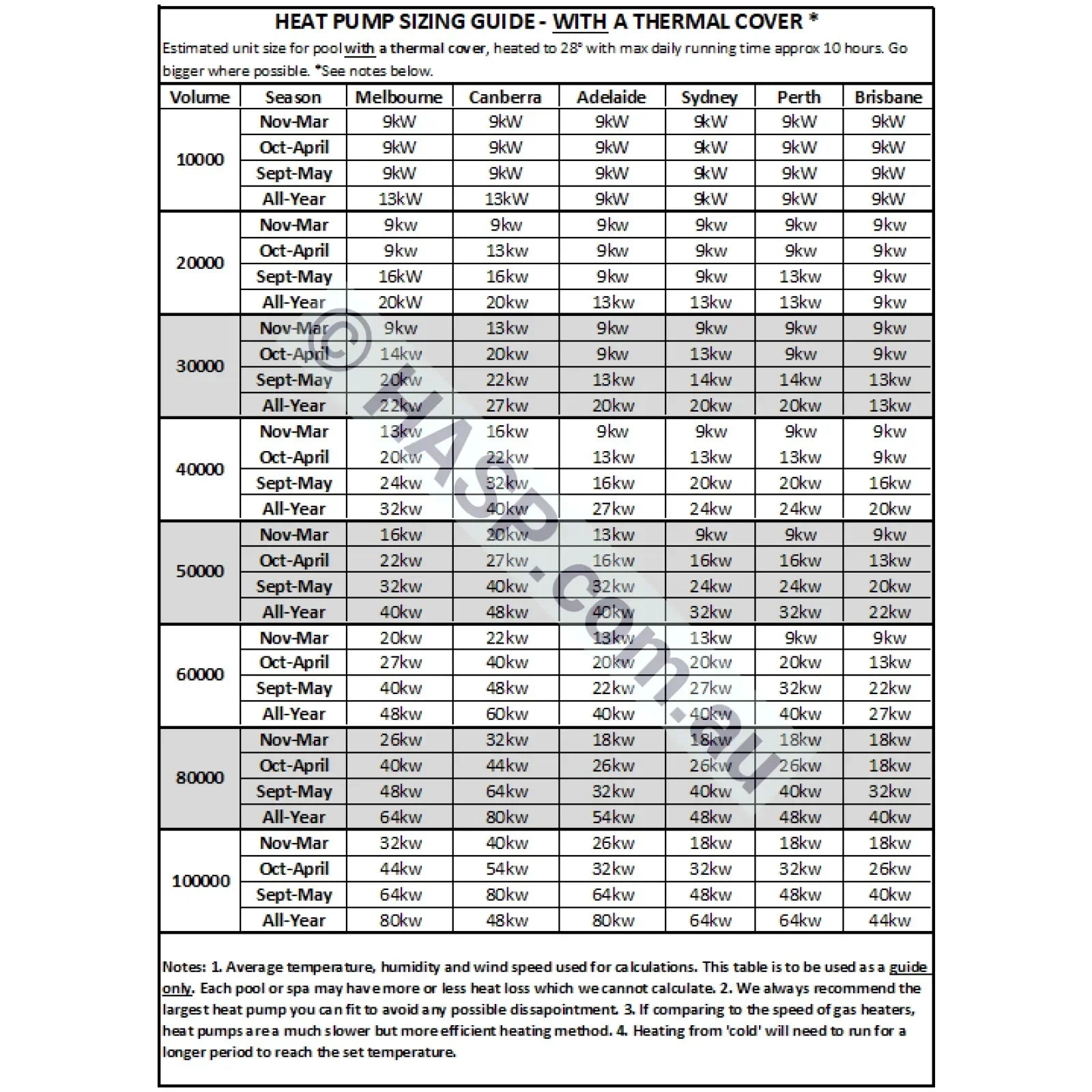

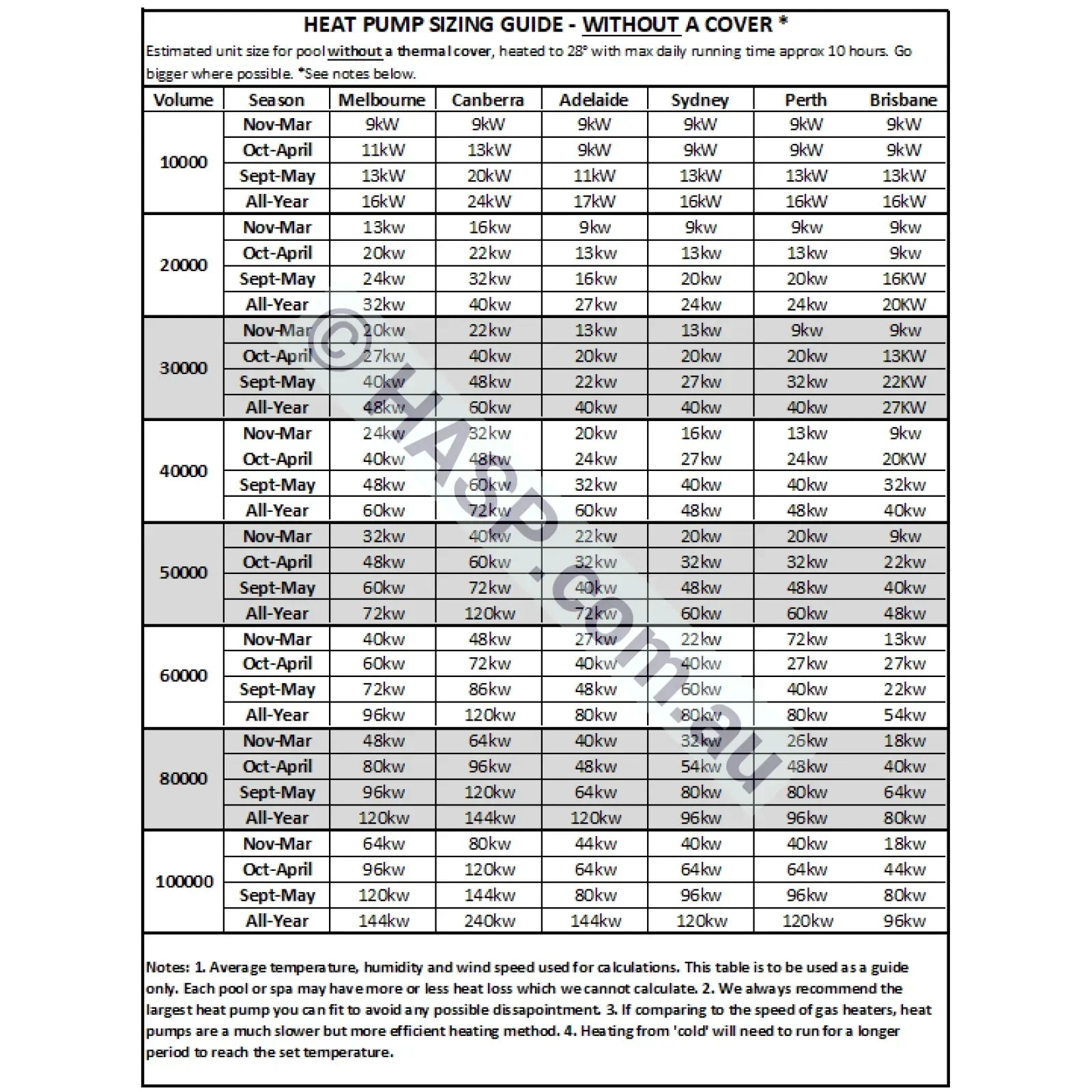

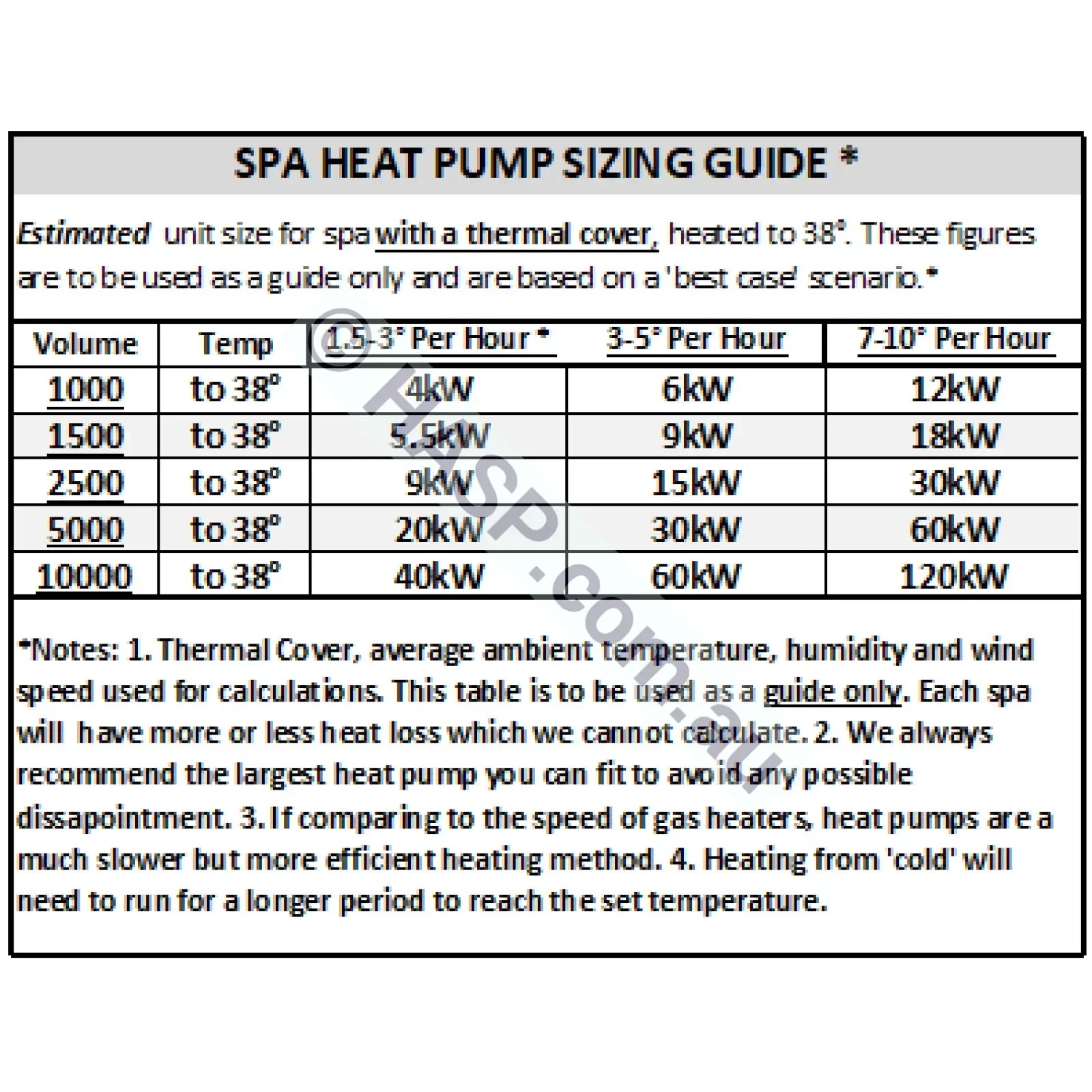

Unsure which size is right for your pool? View the Madimack Sizing Chart or contact our team for a recommendation.

InverElite V4 12kW — Key Specifications

Heating Capacity (Air 27°C / Water 27°C / 80% humidity): 11.8 kW
Heating Capacity (Air 15°C / Water 26°C / 70% humidity): 8.1 kW
COP Range (warm conditions): 19.7~7.2
COP Range (cool conditions): 8.1~5.2
Cooling Capacity (Air 35°C / Water 28°C): 5.5 kW
Rated Input Power: 0.19~1.56 kW
Rated Input Current: 0.83~6.78 A
Sound Level at 1 m: 36.0~42.5 dB(A)
Sound Level at 10 m: 16.0~22.5 dB(A) — whisper-quiet
Recommended Water Flow: 65 L/min
Power Supply: 230V / 1-Phase
Electrical Connection: 10A Plug
Net Dimensions (L × W × H): 936 × 494 × 655 mm
Refrigerant: R32
Water Connection: 40 mm
Operating Air Temperature: -20°C to 43°C
Temperature Set Range: 5°C to 40°C
Compressor: Twin-Rotary Mitsubishi DC
Casing: Marine-grade aluminium alloy

Why Choose the InverElite V4?

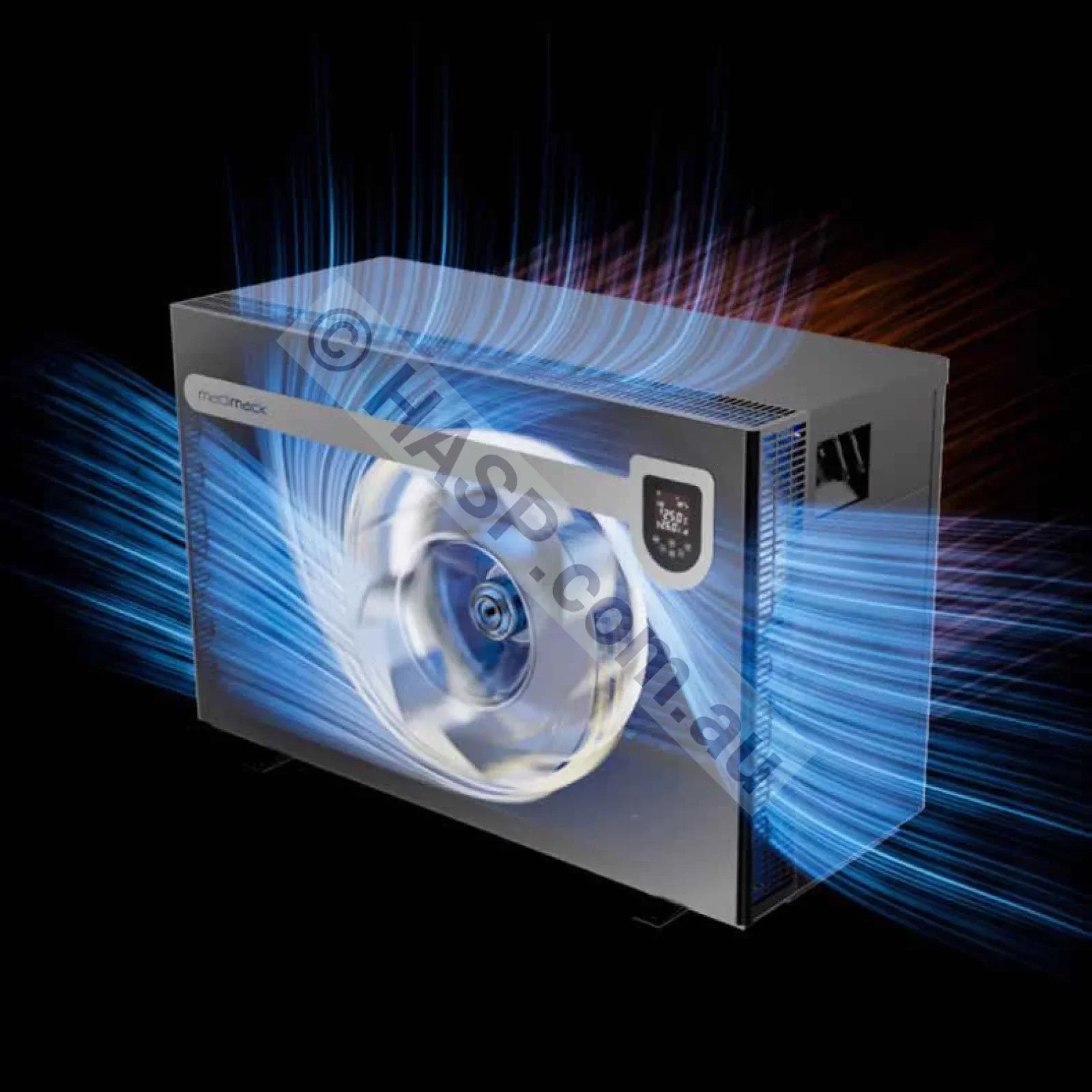

World's First 3D Airflow Ventilation — A 3-directional ventilation system that reduces installation space while improving efficiency and performance.

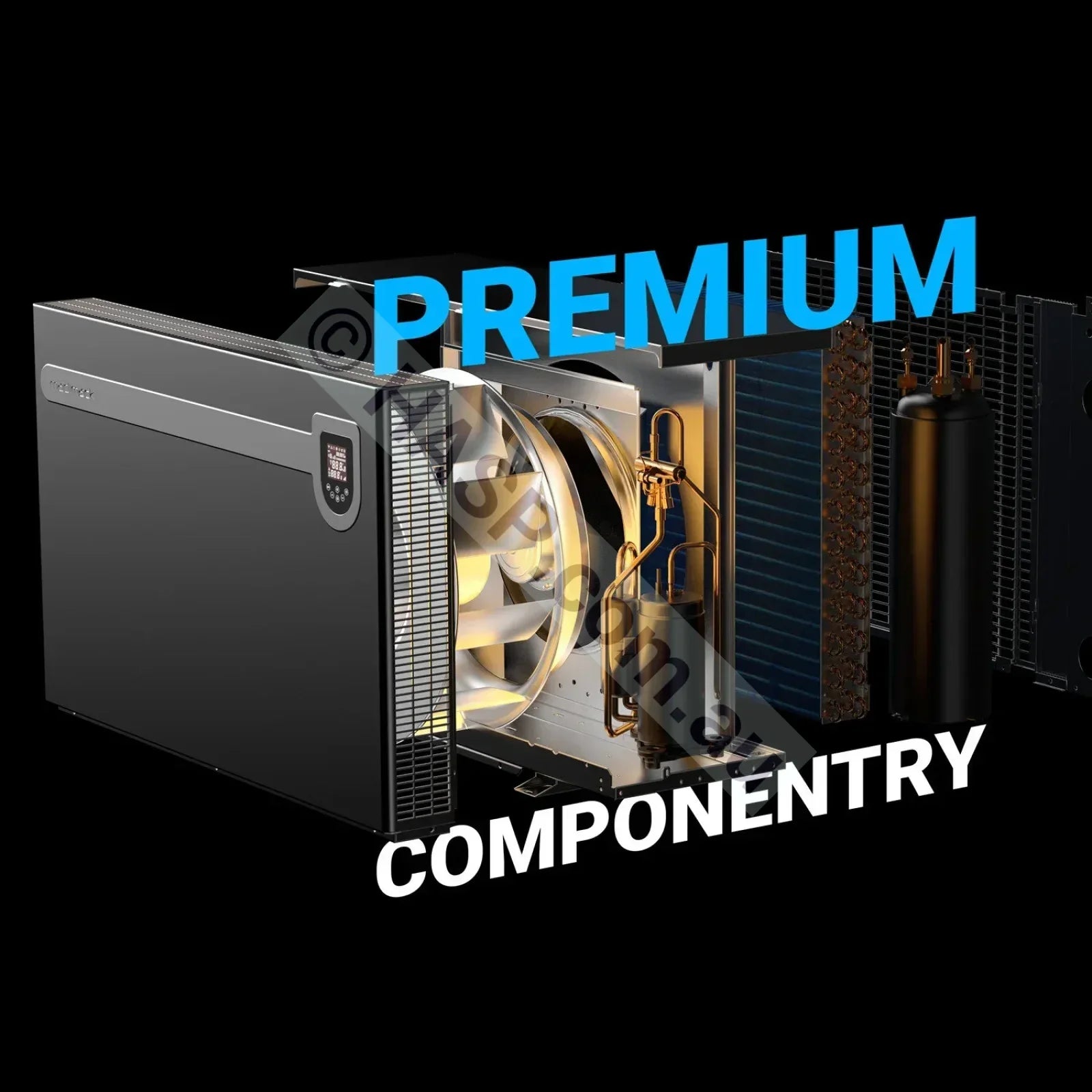

Twin-Rotary Mitsubishi DC Compressor — Rapid heat-up times paired with a commercial-grade centrifugal fan for exceptional power-to-performance efficiency.

Whisper-Quiet Operation — Triple-layered sound insulation (condensed fibre, foam, and metal jacket) makes the V4 the quietest heat pump available.

Marine-Grade Protection — Corrosion-resistant aluminium alloy jacket built for harsh Australian conditions.

Quick & Easy Installation — Universal external quick-connect plugs simplify install. Only heat pump with external universal controls, allowing multiple devices to connect seamlessly.

User-Friendly Digital Display — Sleek display with advanced features for effortless control and monitoring.

Warranty*

7 years on all parts
10 years on the compressor
25 years on the heat exchanger

*Refer to Madimack's Warranty Schedule for full terms and conditions.
