Description

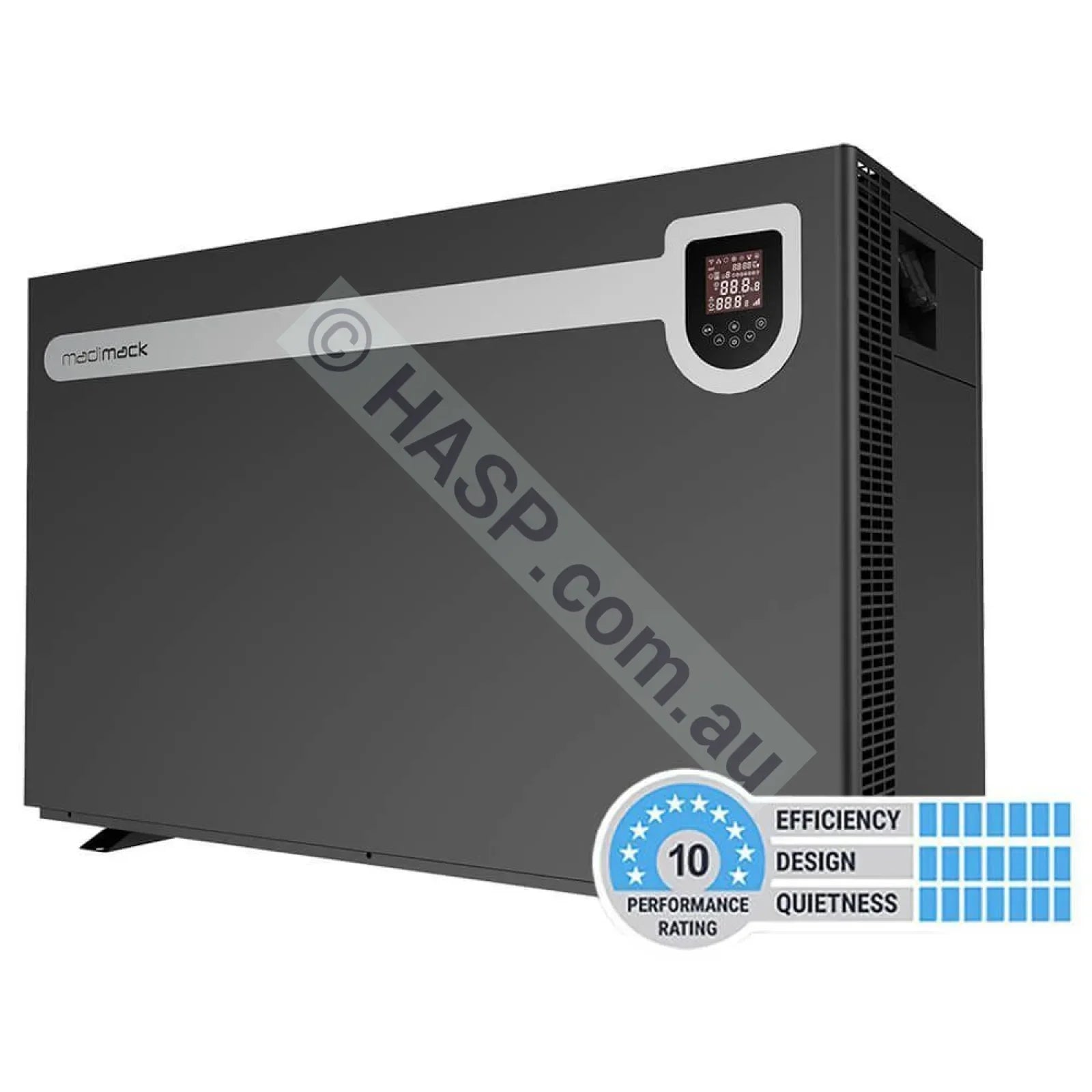

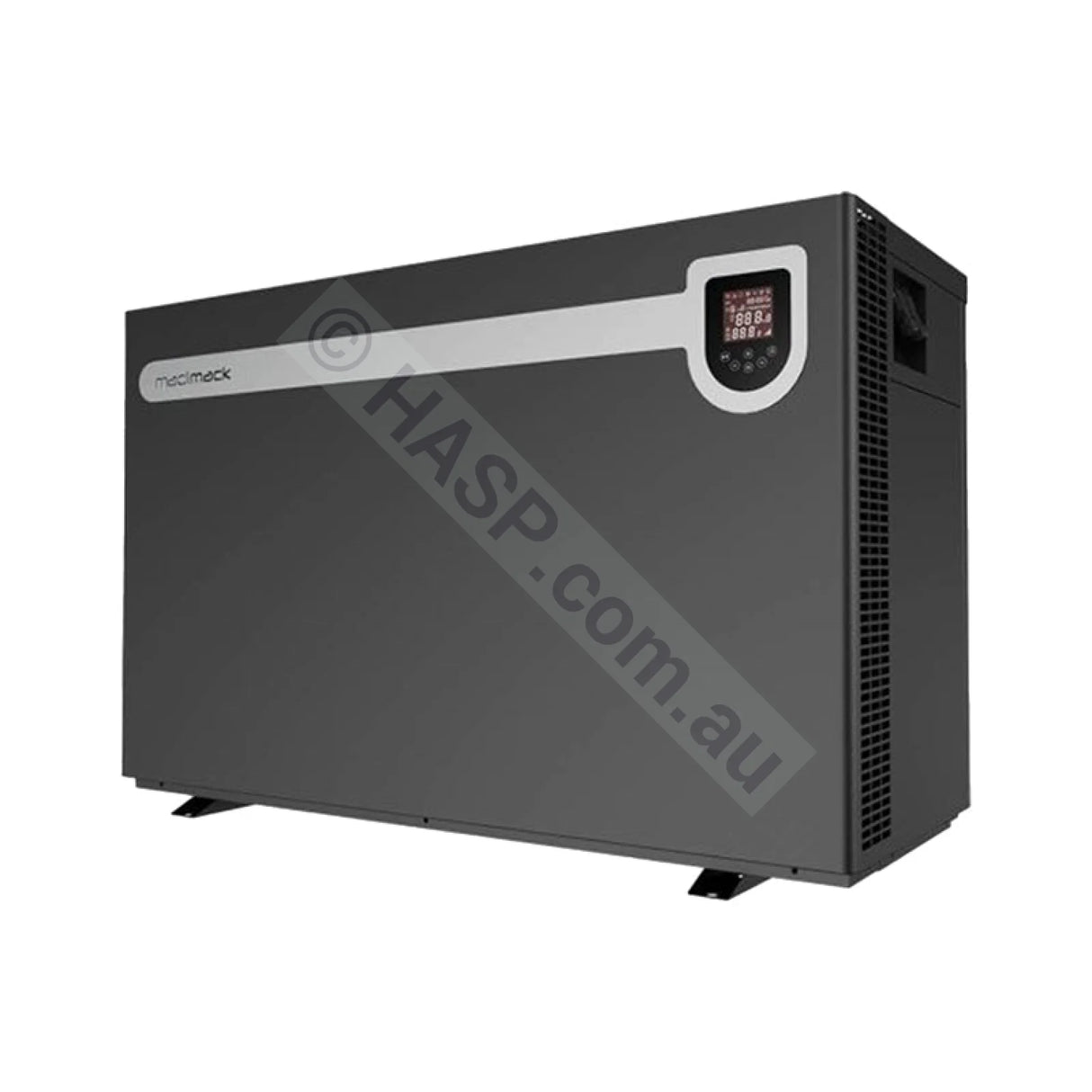

Madimack InverElite V4 41kW — the world's most efficient and quietest pool heat pump, sized for commercial pools and very large residential installations. Peak COP of 18.9 delivers near-unmatched energy savings, and triple-layered sound insulation keeps operation whisper-quiet.
- Free Shipping Australia Wide
- Documentation: Brochure | User Manual | Sizing Chart
- Shipping: Someone may be required to help lift the heater from the delivery truck if a tailgate lifter isn't available.
- Pickup: Available at 10 Industry Blvd, Carrum Downs VIC
Note: The 41kW model is the largest in the range and requires a 3-phase power supply. A qualified electrician is needed for installation.
Choose Your Size — InverElite V4 Range
The InverElite V4 is available in 9 outputs. This page is for the 41kW model. View other sizes:

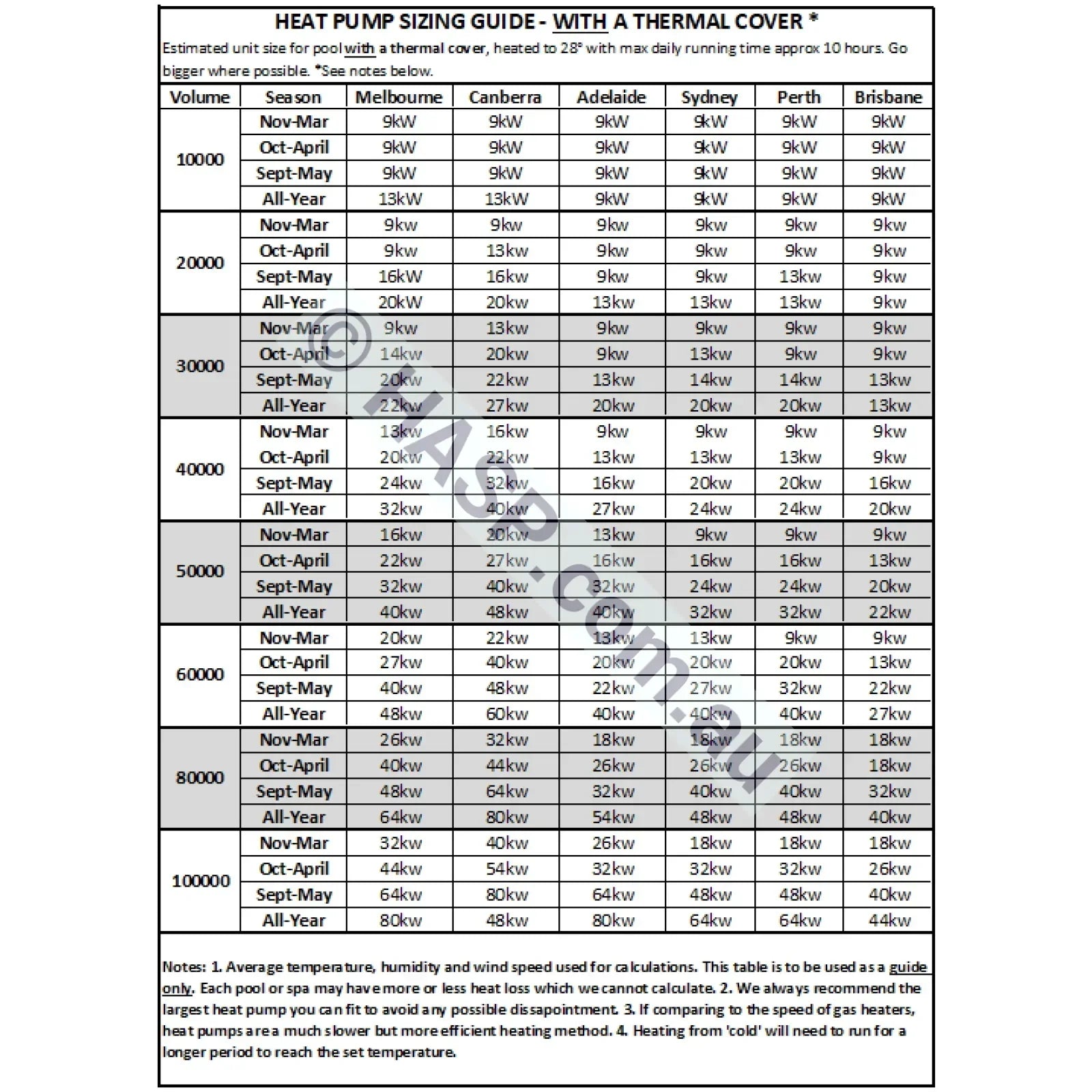

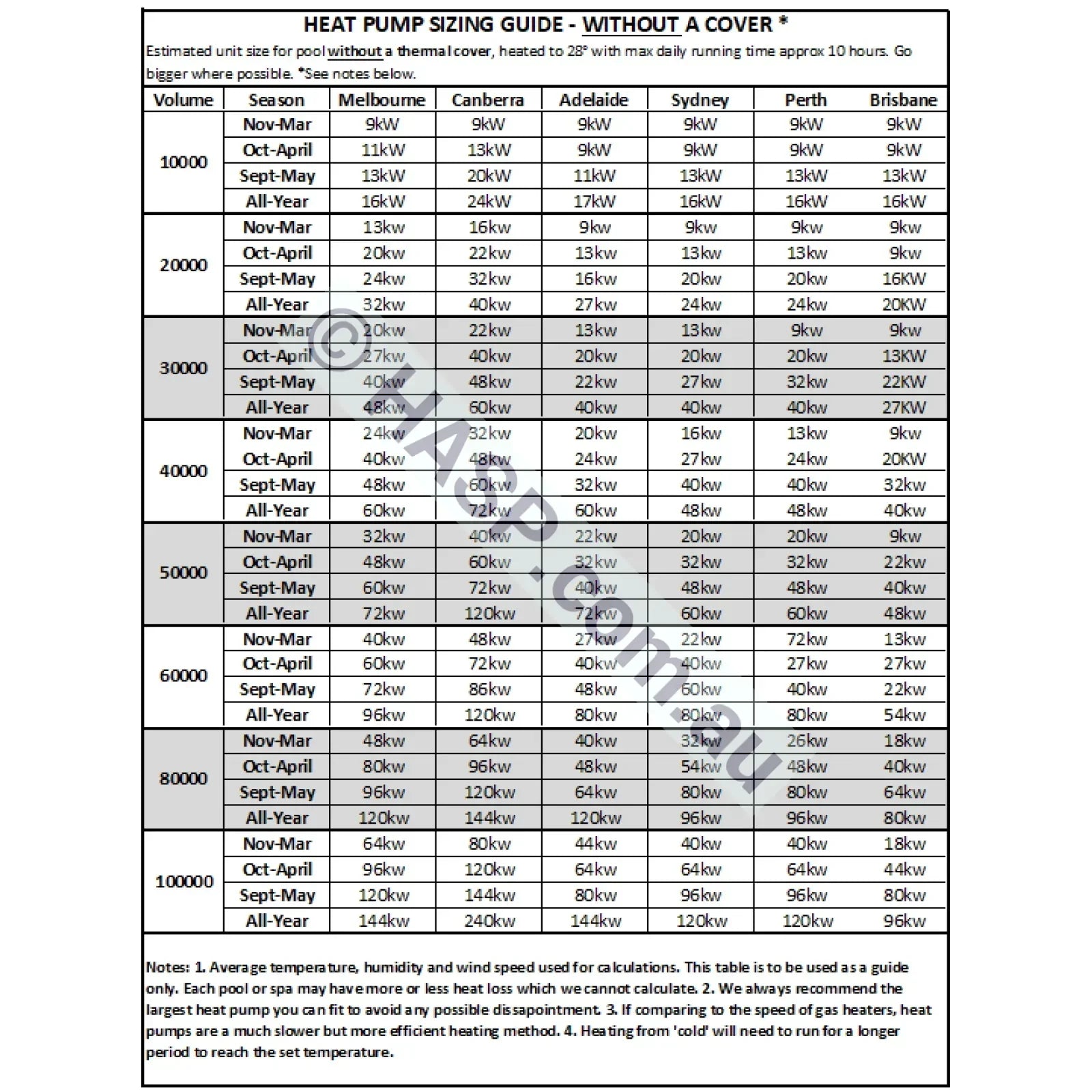

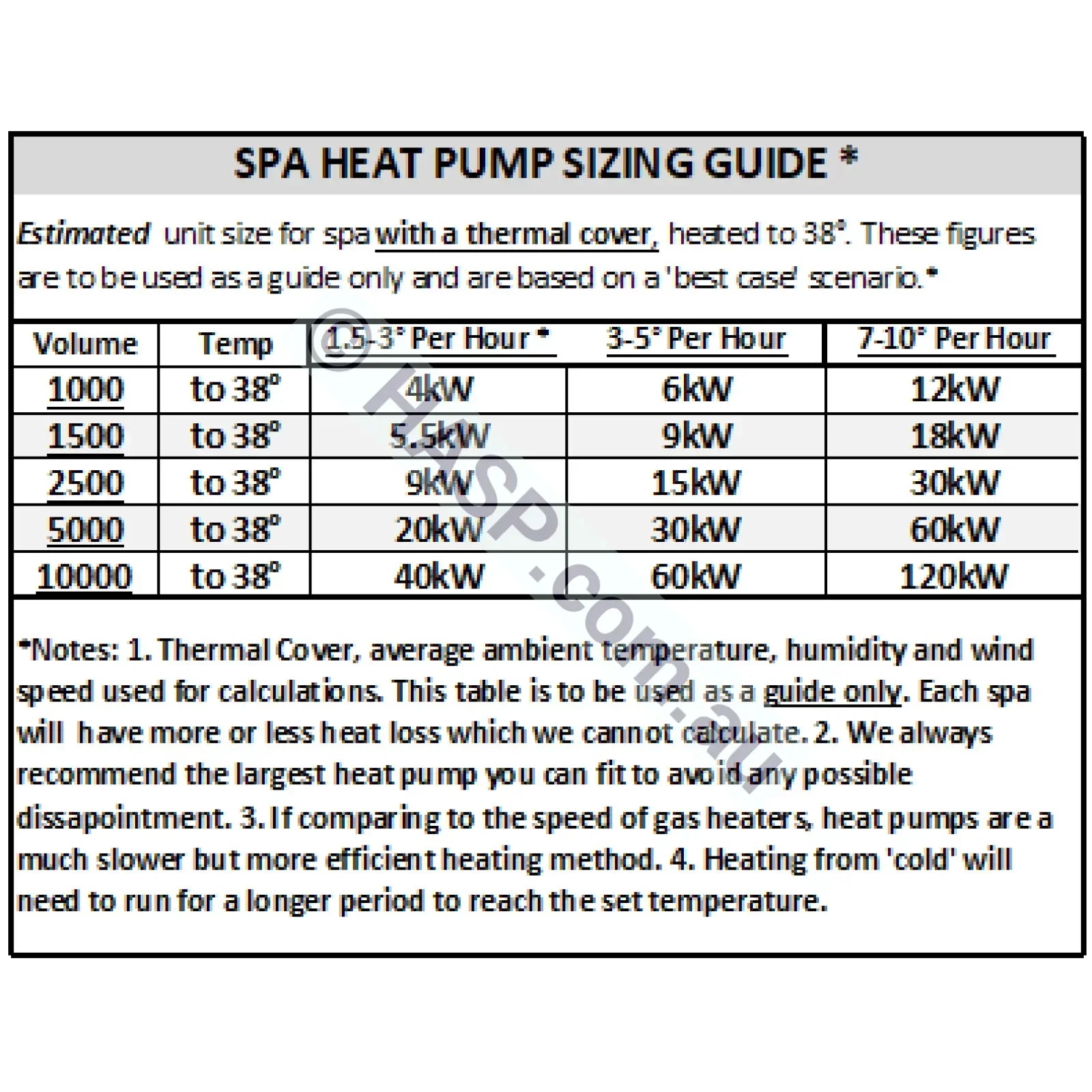

Unsure which size is right for your pool? View the Madimack Sizing Chart or contact our team for a recommendation.
InverElite V4 41kW — Key Specifications
- Heating Capacity (Air 27°C / Water 27°C / 80% humidity): 40.8 kW
- Heating Capacity (Air 15°C / Water 26°C / 70% humidity): 29.0 kW
- COP Range (warm conditions): 18.9~7.0
- COP Range (cool conditions): 7.8~5.0
- Cooling Capacity (Air 35°C / Water 28°C): 20.0 kW
- Rated Input Power: 0.70~5.80 kW
- Rated Input Current: 1.01~8.41 A
- Sound Level at 1 m: 38.8~49.3 dB(A)
- Sound Level at 10 m: 18.8~29.3 dB(A) — whisper-quiet
- Recommended Water Flow: 220 L/min
- Power Supply: 400V / 3-Phase
- Electrical Connection: Hard Wired
- Net Dimensions (L × W × H): 1405 × 514 × 1070 mm
- Refrigerant: R32
- Water Connection: 40 mm
- Operating Air Temperature: -20°C to 43°C
- Temperature Set Range: 5°C to 40°C
- Compressor: Twin-Rotary Mitsubishi DC
- Casing: Marine-grade aluminium alloy
Why Choose the InverElite V4?

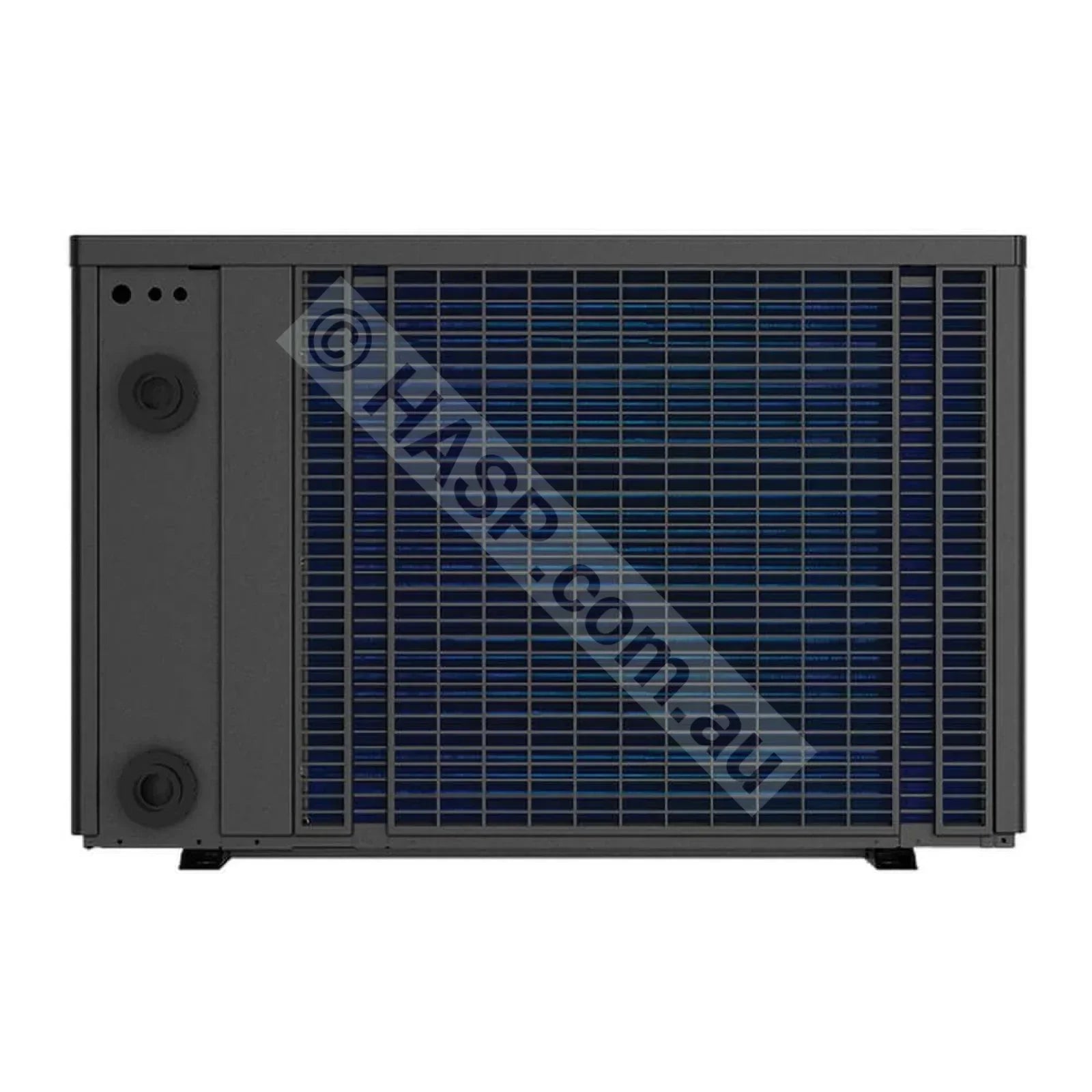

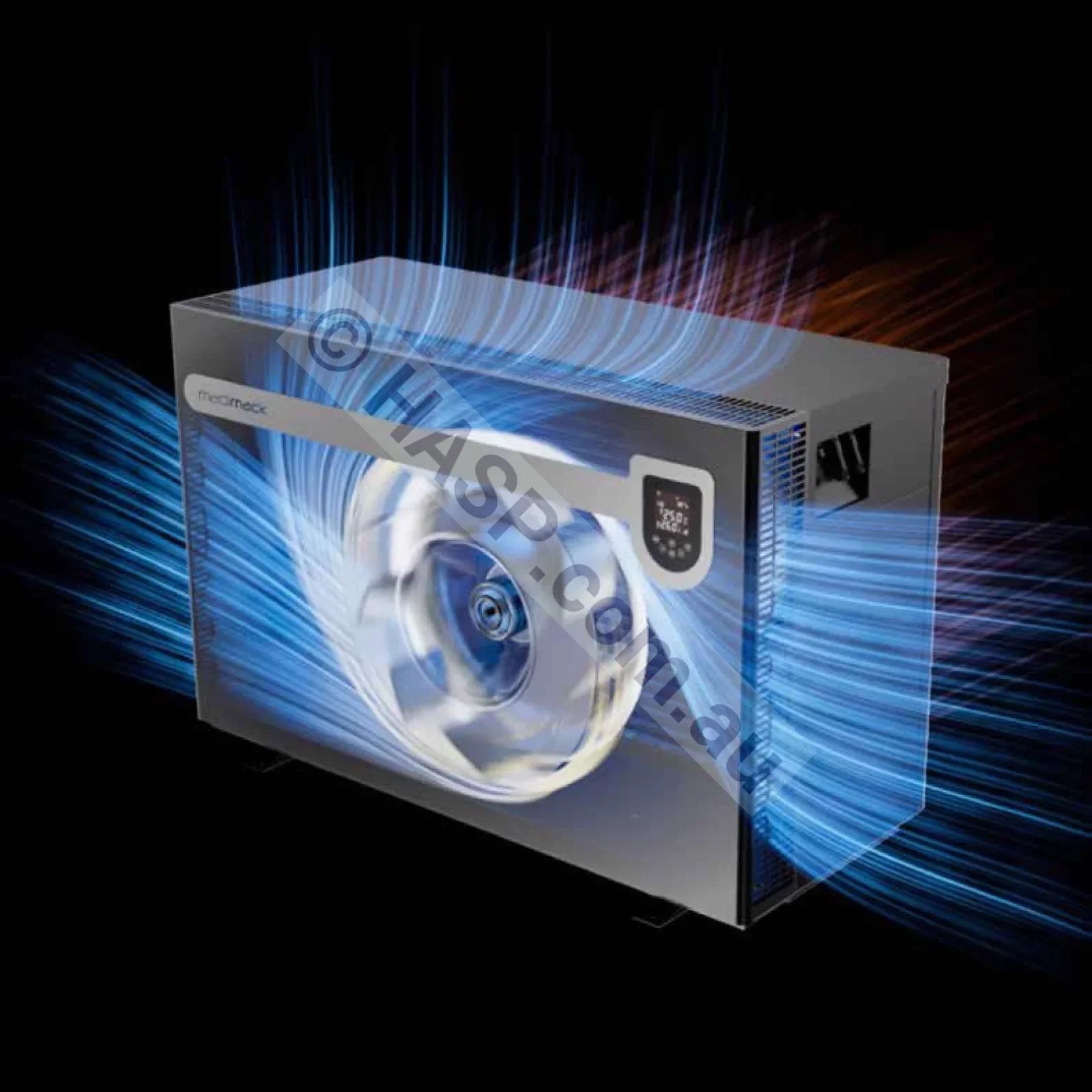

World's First 3D Airflow Ventilation — A 3-directional ventilation system that reduces installation space while improving efficiency and performance.

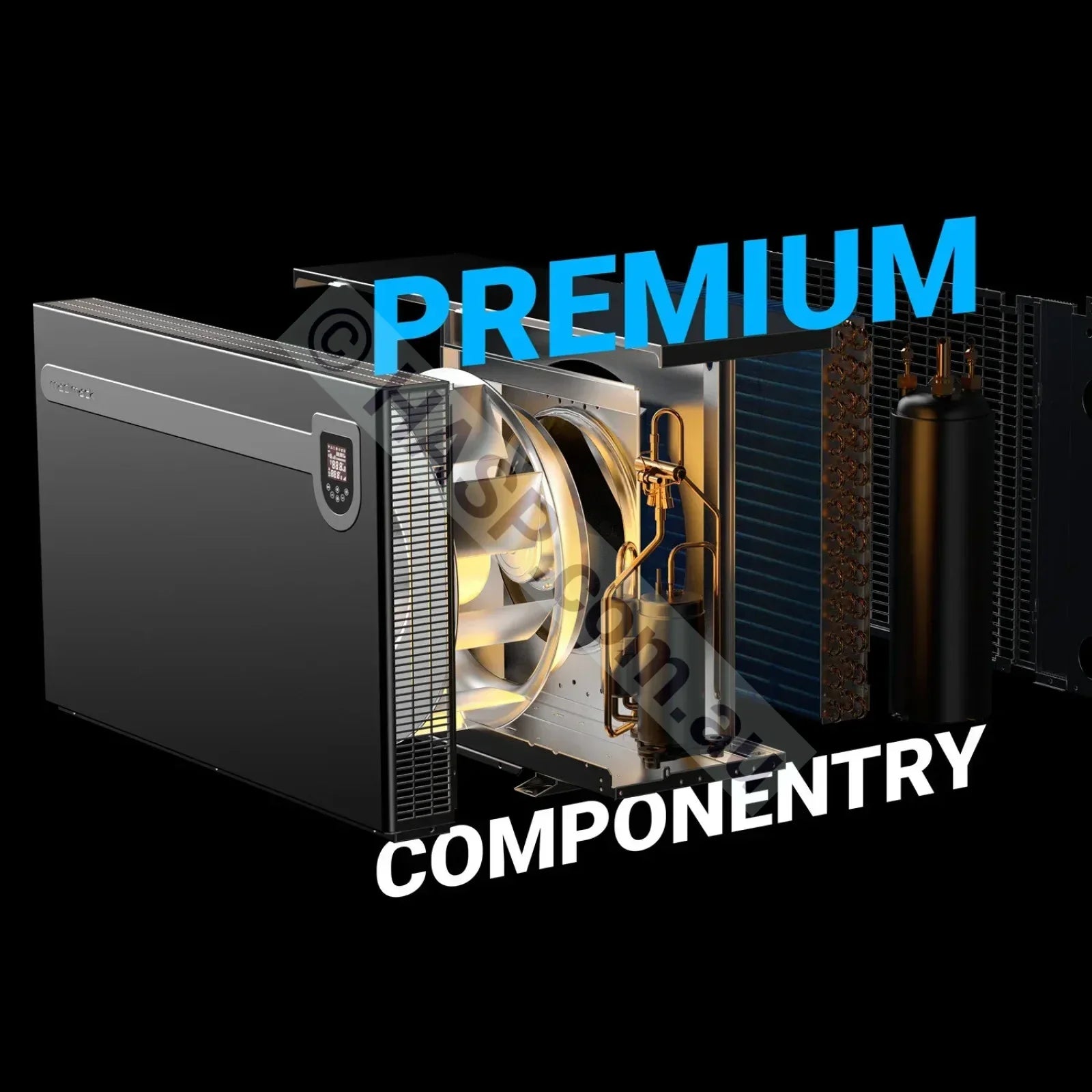

Twin-Rotary Mitsubishi DC Compressor — Rapid heat-up times paired with a commercial-grade centrifugal fan for exceptional power-to-performance efficiency.
Whisper-Quiet Operation — Triple-layered sound insulation (condensed fibre, foam, and metal jacket) makes the V4 the quietest heat pump available.
Marine-Grade Protection — Corrosion-resistant aluminium alloy jacket built for harsh Australian conditions.
Quick & Easy Installation — Universal external quick-connect plugs simplify install. Only heat pump with external universal controls, allowing multiple devices to connect seamlessly.
User-Friendly Digital Display — Sleek display with advanced features for effortless control and monitoring.
Warranty*
- 7 years on all parts
- 10 years on the compressor
- 25 years on the heat exchanger
*Refer to Madimack's Warranty Schedule for full terms and conditions.
