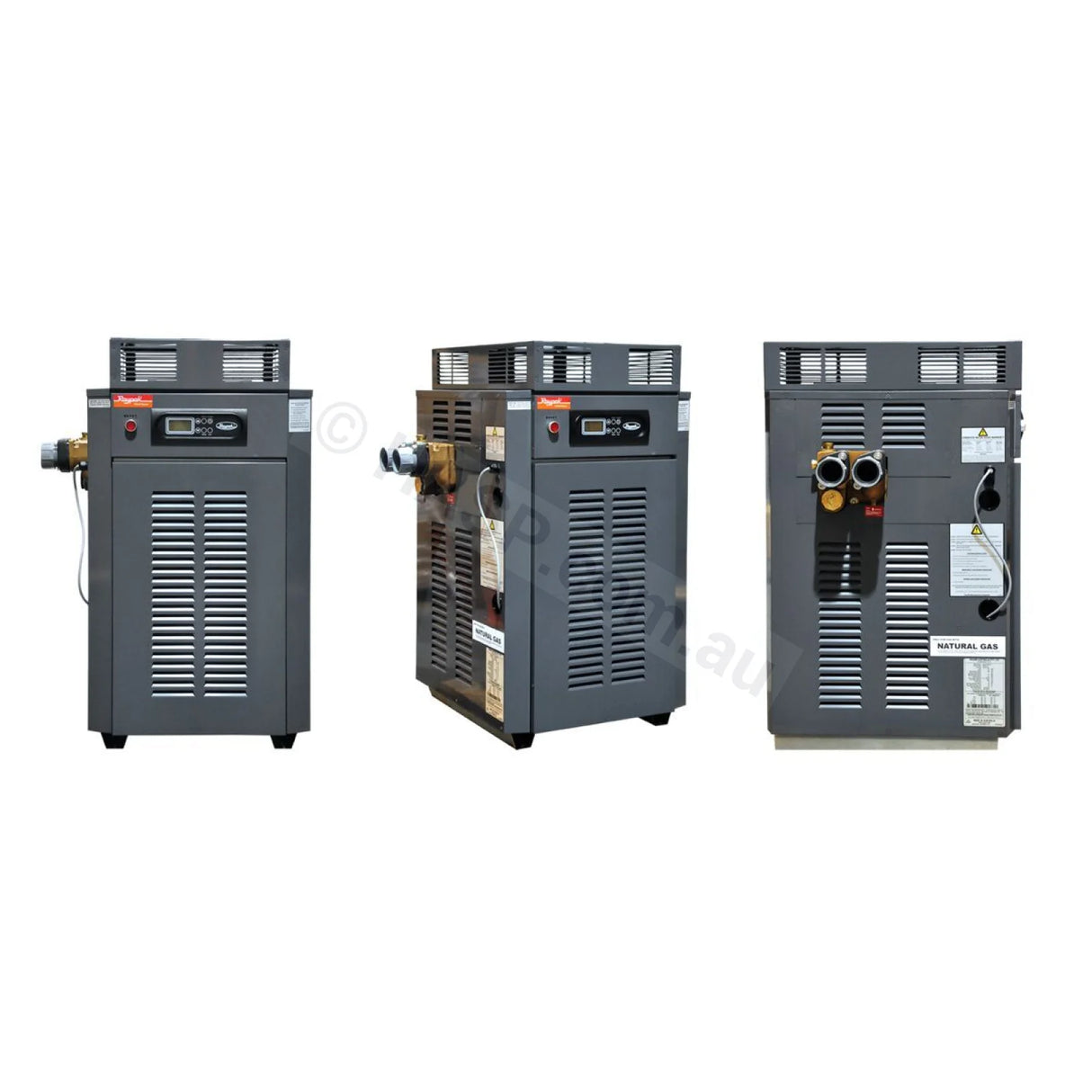

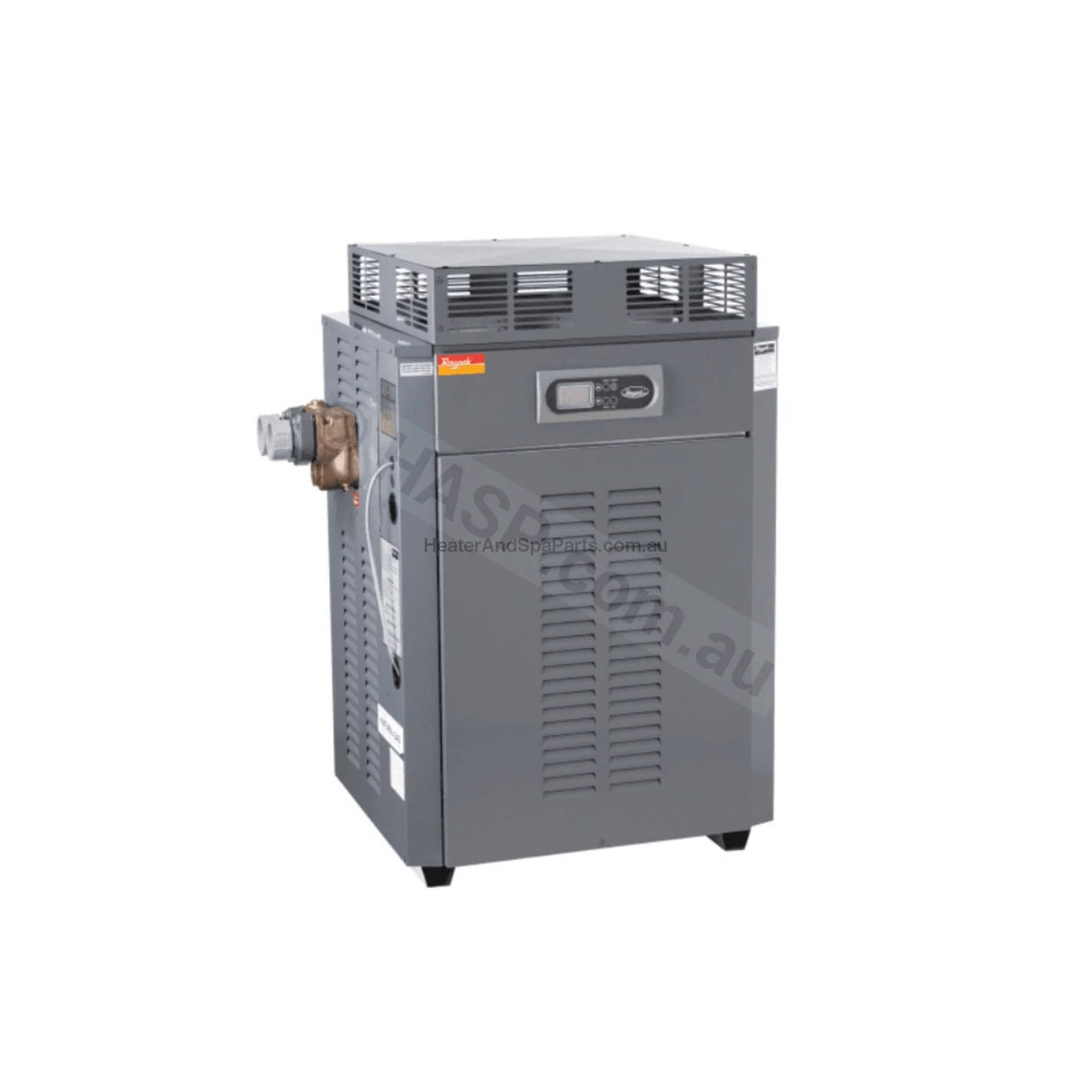

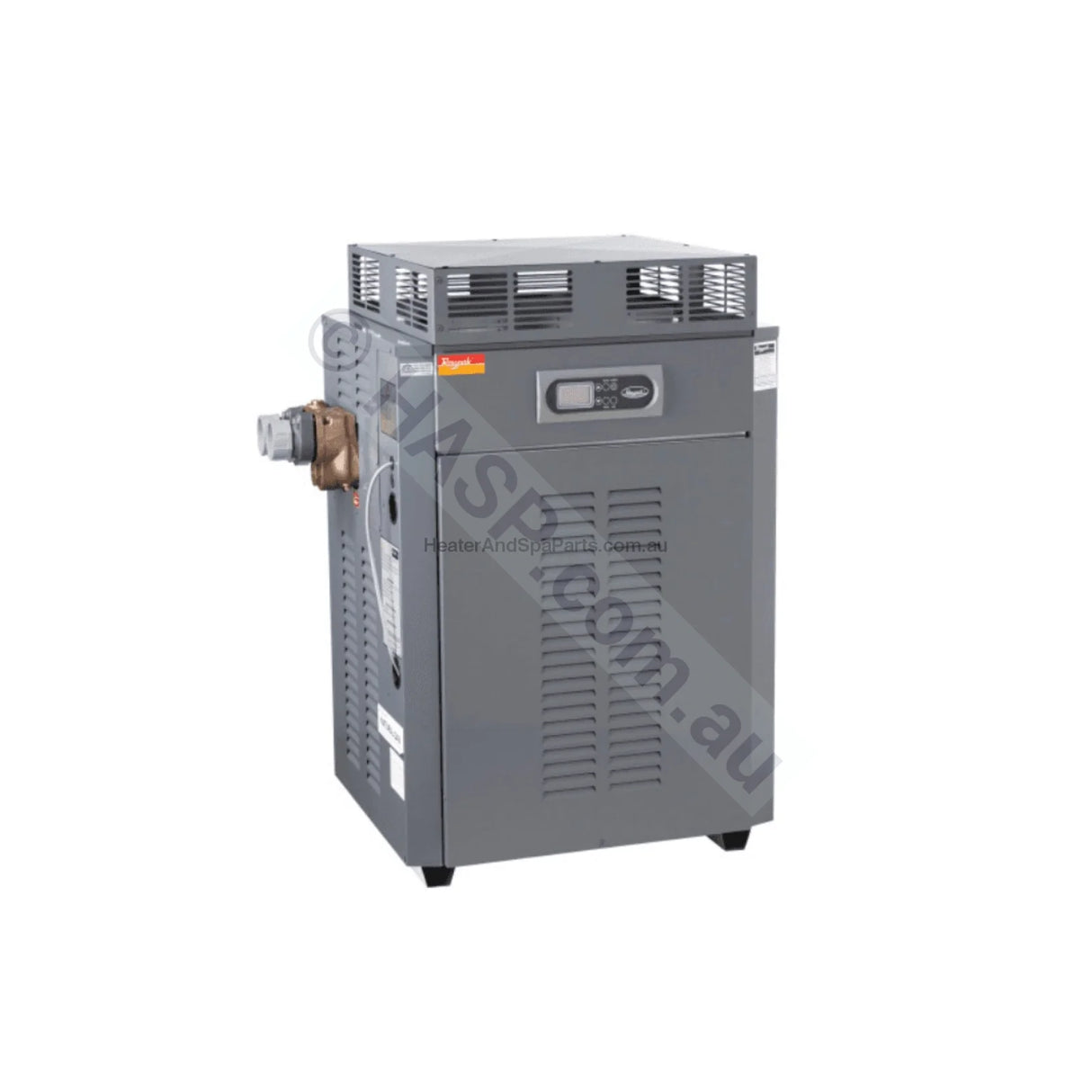

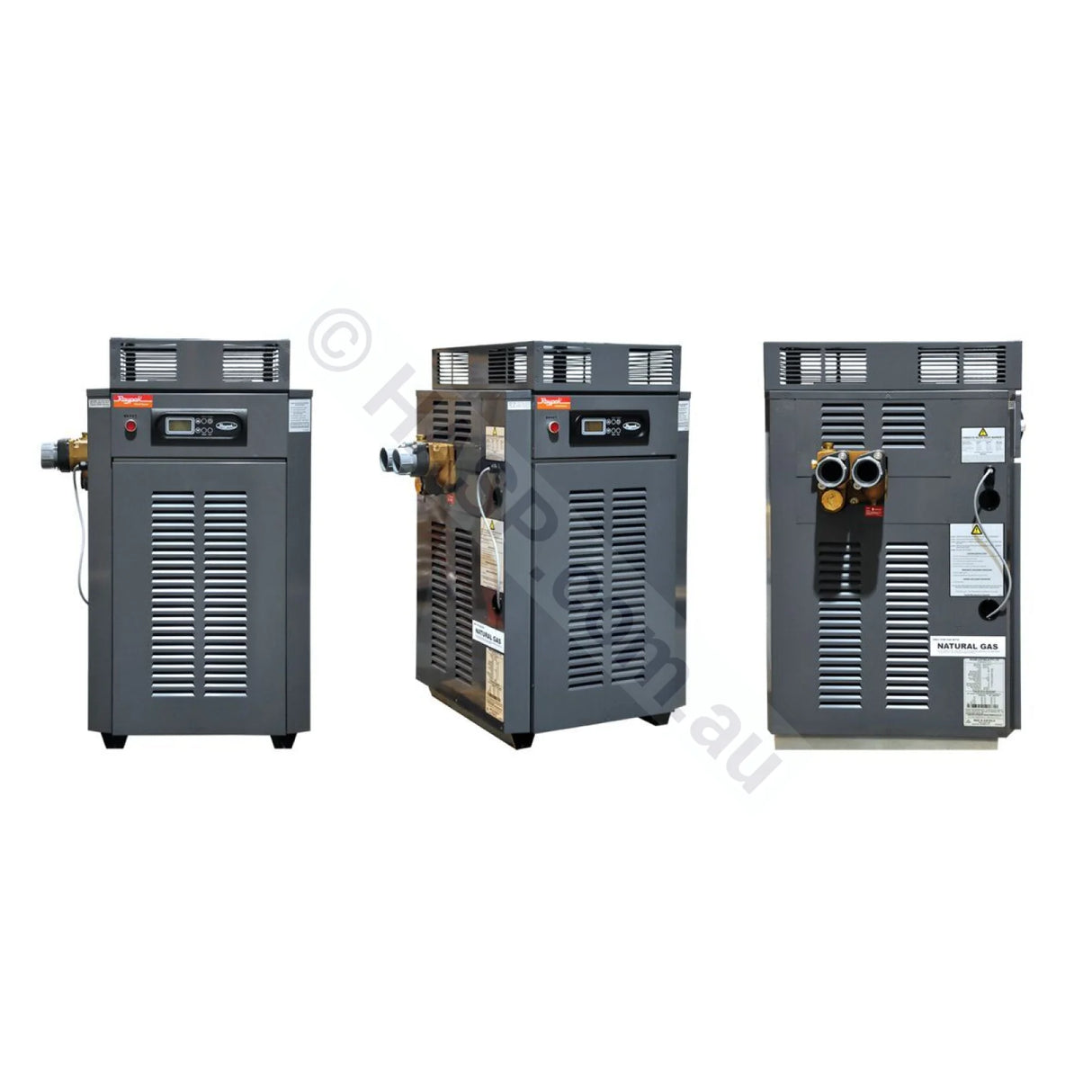

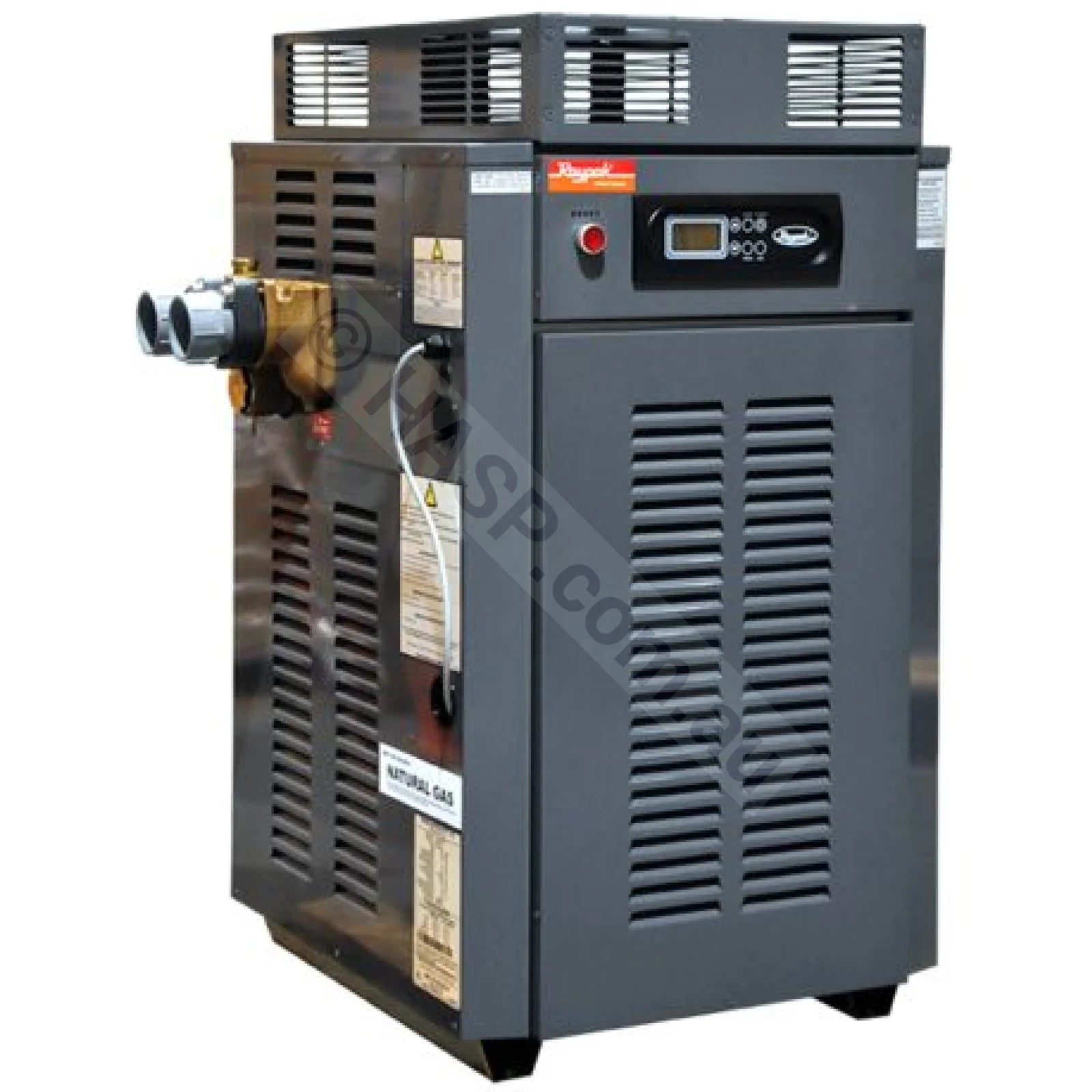

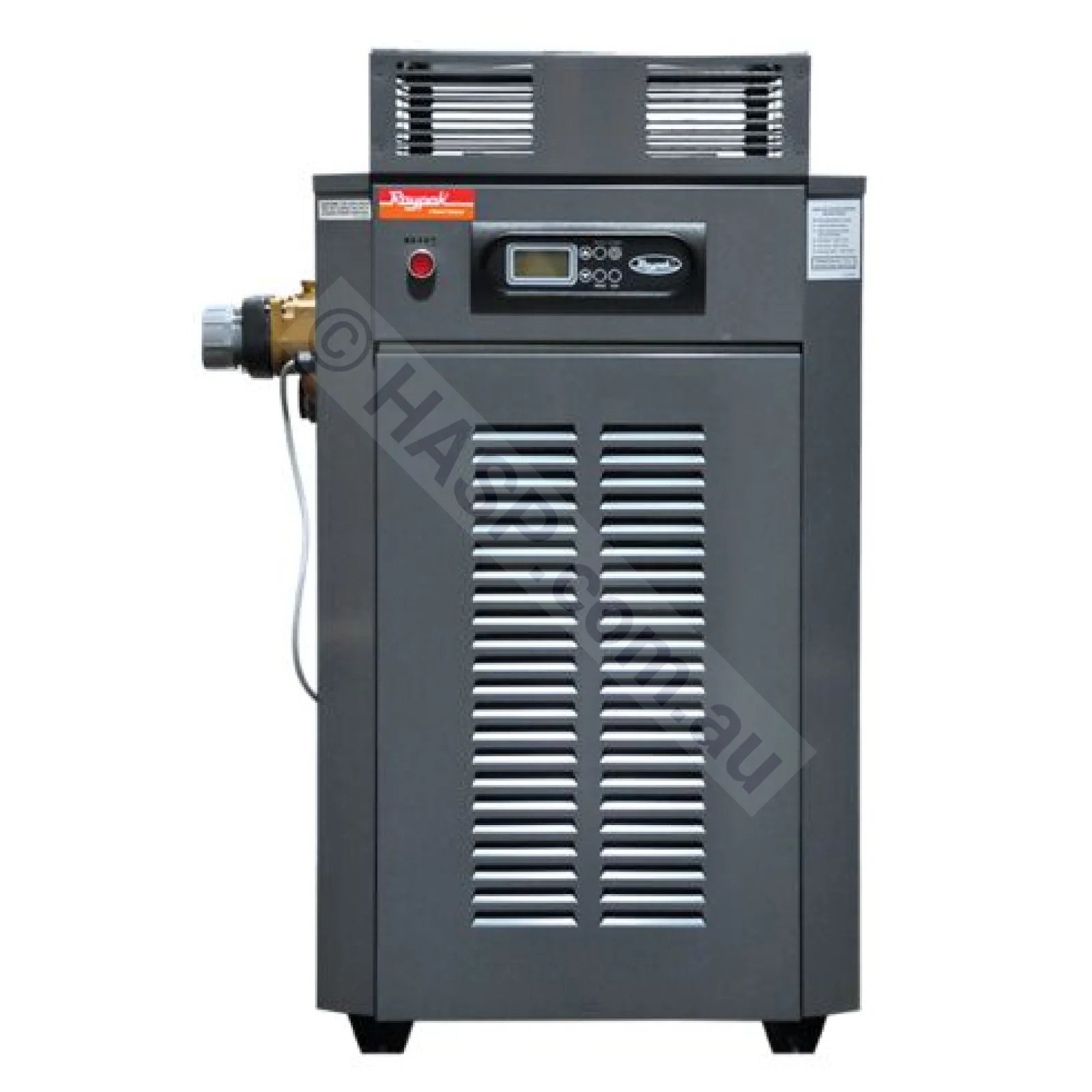

Raypak 280 Premium Natural Gas or LPG Pool & Spa Heater. ~62kW heat output.
The Commercial pool heater that's tried & proven. Big & Robust, Raypak gas heaters have had the same basic design for over 20 years with improvements made during that time. For a simple, robust heater that just works, you can't go past a Raypak. Easy to maintain, and easy to work on. When set up properly & maintained, these heaters can last many years. Built with USA & Australian parts, these heaters are fully assembled in Australia
- Raypak Authorised Agent.
- We carry more gas heater spare parts than anyone.
-
Buy Genuine with Warranty from someone that's been in the Gas-heating industry for over 20 years.
- Shipping: Please note someone may be required to help lift heater from delivery truck if they cannot provide a tailgate lifter.
- Pickup: Available at 10 Industry Blvd, Carrum Downs Vic
Important: When replacing an existing Raypak Heater:
- Raypak heaters no longer have in-built Valve Actuator, nor Pump Controls. If operating Valve Actuators, or switching a Pump, you will need to fit a control system such as the Aquatek with WiFi
- Raypak (domestic) heaters now come with a sacrificial anode built-in.
- We do not recommend the newer Raypak 280, 350, 430 gas heaters be installed where 40mm plumbing is used. Flow characteristics have changed in the newer heaters.
Raypak’s Premium 280 Gas Pool and Spa Heater Features:
- Bronze Manifolds
- Stainless Steel Base
- Stainless Steel Combustion Support
- Built for Commercial Use
- Choose between Natural Gas or LPG
- Cupro-nickel heat exchanger for greater protection from corrosion
- Programmable digital heater controller with independent settings for your pool or spa
- Spark DSI Ignition
- Australian manufacture and design excellence (some parts are USA made)
- Suitable for either indoor or outdoor installations.
- Outdoor configuration is standard

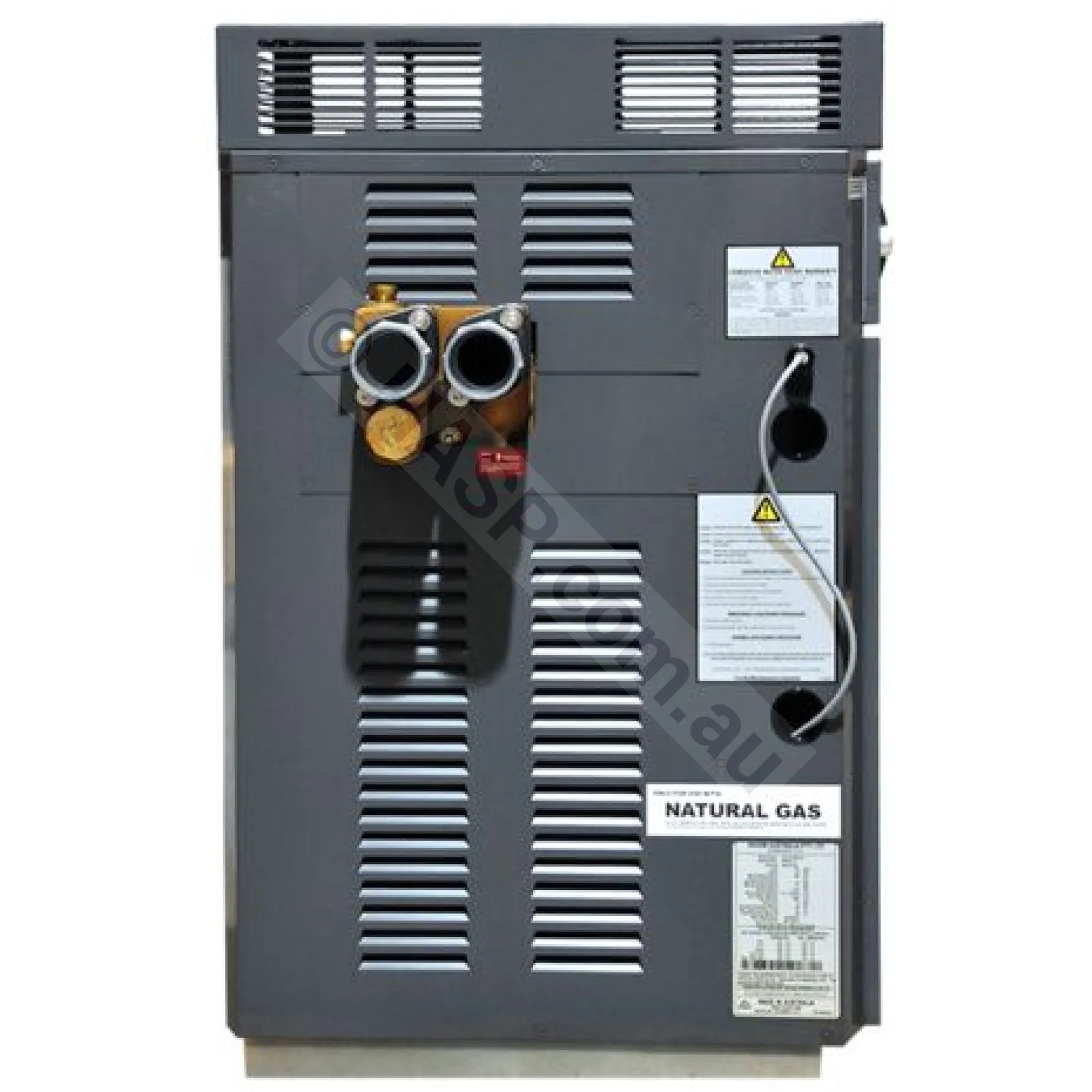

- Left or Right hand water connections
- Remote control available as an option
- User & Installation Manual
Warranty Information:
- 3-Year Warranty* on Domestic use for all parts.
- 3-Year on Commercial use.
- 1-Year Labour Warranty
- Warranty does not cover incorrect gas settings or damage from chemical corrosion.
- Ensure heater is fitted by a licensed person and a compliance certificate is given.
In plumbing, named sizes are not the actual measurements. A pipe called “50mm” or “2"” does not measure 50 mm across. Instead, it follows nominal sizing, an internationally-standardised naming system.
Use the Outside Diameter (OD) to check your pipe against fittings. Below is a quick reference for common spa & pool pipe sizes:
| Imperial Name | Metric Name | Pipe Diameter (OD) |
|---|---|---|
| 1" | 25 mm | ~33.4–33.7 mm |
| 1.5" | 40 mm | ~48.1–48.4 mm |
| 2" | 50 mm | ~60.2–60.8 mm |
| 2.5" | 65 mm | ~75.2–75.5 mm |
These are nominal sizes and are designed to fit matching fittings — not to measure exactly what their name suggests.
Understanding Plumbing Sizes & Nominal Measurements
Plumbing sizes can be confusing. PVC and many other pipe systems use nominal sizes—the size is a name, not the exact measured dimension. This convention is used across most pool and spa systems so that pipes and fittings remain compatible.
Why pipe sizes don’t match the measurements
The Nominal Pipe Size (NPS) system standardises pipe dimensions so that pipes, fittings, valves, and accessories interoperate. Plumbers work with these nominal names every day, but DIYers can be tripped up if they try to match by a tape-measure alone.
How to Measure Pipe Correctly
-
Pipe size is identified by:
- The pipe’s Outside Diameter (OD).
- The fitting’s Inside Diameter (ID) (socket opening).
- Pipe Class / Schedule (e.g., Class 9, 12, 18 or Sch 40) relates to wall thickness and therefore the Internal Diameter (ID) and pressure rating.
- The outside diameter of a fitting is not useful (wall thickness varies by manufacturer).
PVC Pressure Pipe AS/NZ 1477 Dimensions1:
Common nominal sizes with typical outside diameters and indicative inside diameters by class.
| Imperial Name | Metric Name | Outside Diameter (OD) |
|---|---|---|
| 1/2" | 15 mm | ~21.2–21.5 mm |
| 3/4" | 20 mm | ~26.6–26.9 mm |
| 1" | 25 mm | ~33.4–33.7 mm |
| 32 mm | ~42.1–42.4 mm | |
| 1.5" | 40 mm | ~48.1–48.4 mm |
| 2" | 50 mm | ~60.2–60.8 mm |
| 65 mm | ~75.2–75.5 mm | |
| 2.5" | ~73 mm |
- º Internal diameters vary slightly by manufacturer and class.
- 1 Not all pool/spa fittings match these dimensions exactly. Some do not follow Australian or international standards. Chinese spas may use proprietary fittings.
Hose & Tube Dimensions
Common flexible hose sizes used in pool/spa systems (approximate IDs).
| Imperial Name | Metric Name | Inside Diameter (ID) |
|---|---|---|
| 3/8" | 9–10 mm | ~9 mm |
| 3/4" | 19 mm | ~19 mm |
BSP – British Standard Pipe Thread Sizes
BSP thread names are also nominal. The thread OD will not equal the nominal name.
| BSP Thread Size Naming | Outside Diameter (mm / inch) | TPI |
|---|---|---|
| 1/16" BSP | 7.7 mm / 0.304" | 28 |
| 1/8" BSP | 9.7 mm / 0.383" | 28 |
| 1/4" BSP | 13.16 mm / 0.518" | 19 |
| 3/8" BSP | 16.66 mm / 0.656" | 19 |
| 1/2" BSP / 15 mm | 20.99 mm / 0.825" | 14 |
| 5/8" BSP | 22.99 mm / 0.902" | 14 |
| 3/4" BSP / 20 mm | 26.44 mm / 1.041" | 14 |
| 7/8" BSP | 30.20 mm / 1.189" | 14 |
| 1" BSP / 25 mm | 33.25 mm / 1.309" | 11 |
| 1-1/4" BSP | 41.91 mm / 1.650" | 11 |
| 1-1/2" BSP / 40 mm | 47.80 mm / 1.882" | 11 |
| 2" BSP / 50 mm | 59.61 mm / 2.347" | 11 |
| 2-1/4" BSP | 65.71 mm / 2.587" | 11 |
| 2-1/2" BSP | 75.18 mm / 2.960" | 11 |
| 3" BSP | 87.88 mm / 3.460" | 11 |
| 4" BSP | 113.03 mm / 4.450" | 11 |
| 5" BSP | 138.43 mm / 5.450" | 11 |
| 6" BSP | 163.83 mm / 6.450" | 11 |
