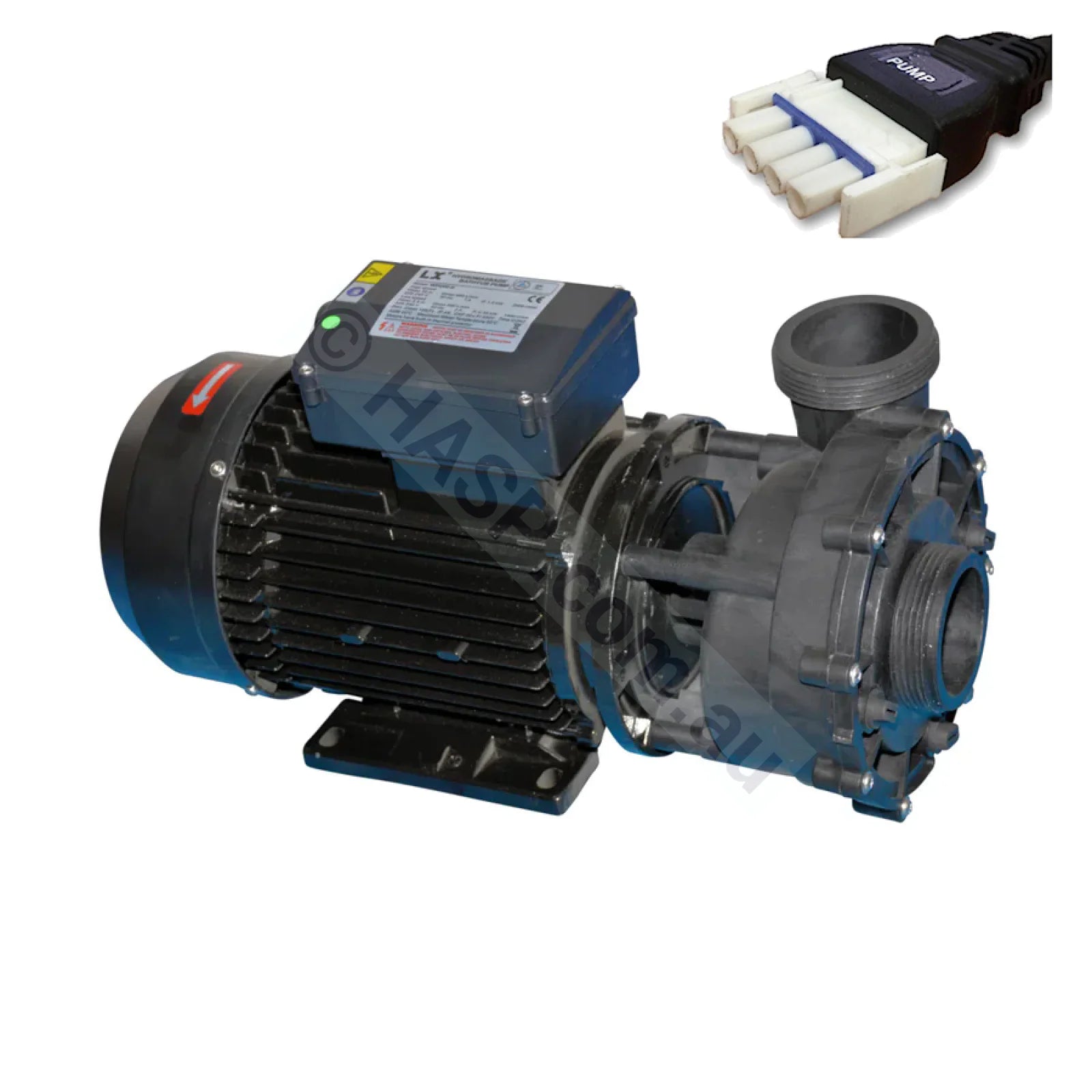

Lp200 Pro 2.0Hp - Lx Whirlpool Single-Speed Jet Booster Pump Overmoulded For Davey / Spanet Pumps

Lp200 Pro 2.0Hp - Lx Whirlpool Single-Speed Jet Booster Pump Amp For Balboa / Gecko Pumps

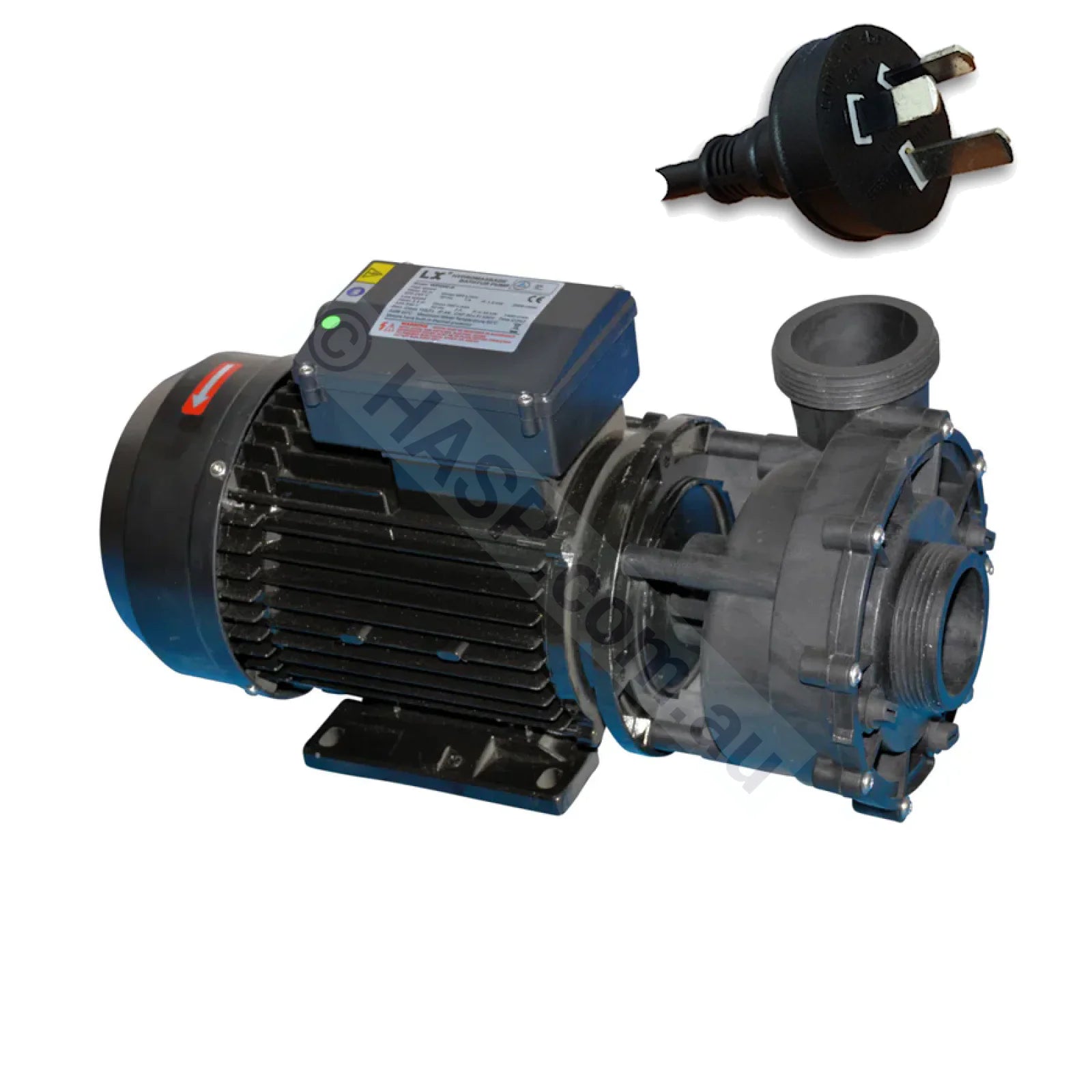

Lp200 Pro 2.0Hp - Lx Whirlpool Single-Speed Jet Booster Pump 3-Pin Aus Plug Pumps

Roll over image to zoom in Click on image to zoom

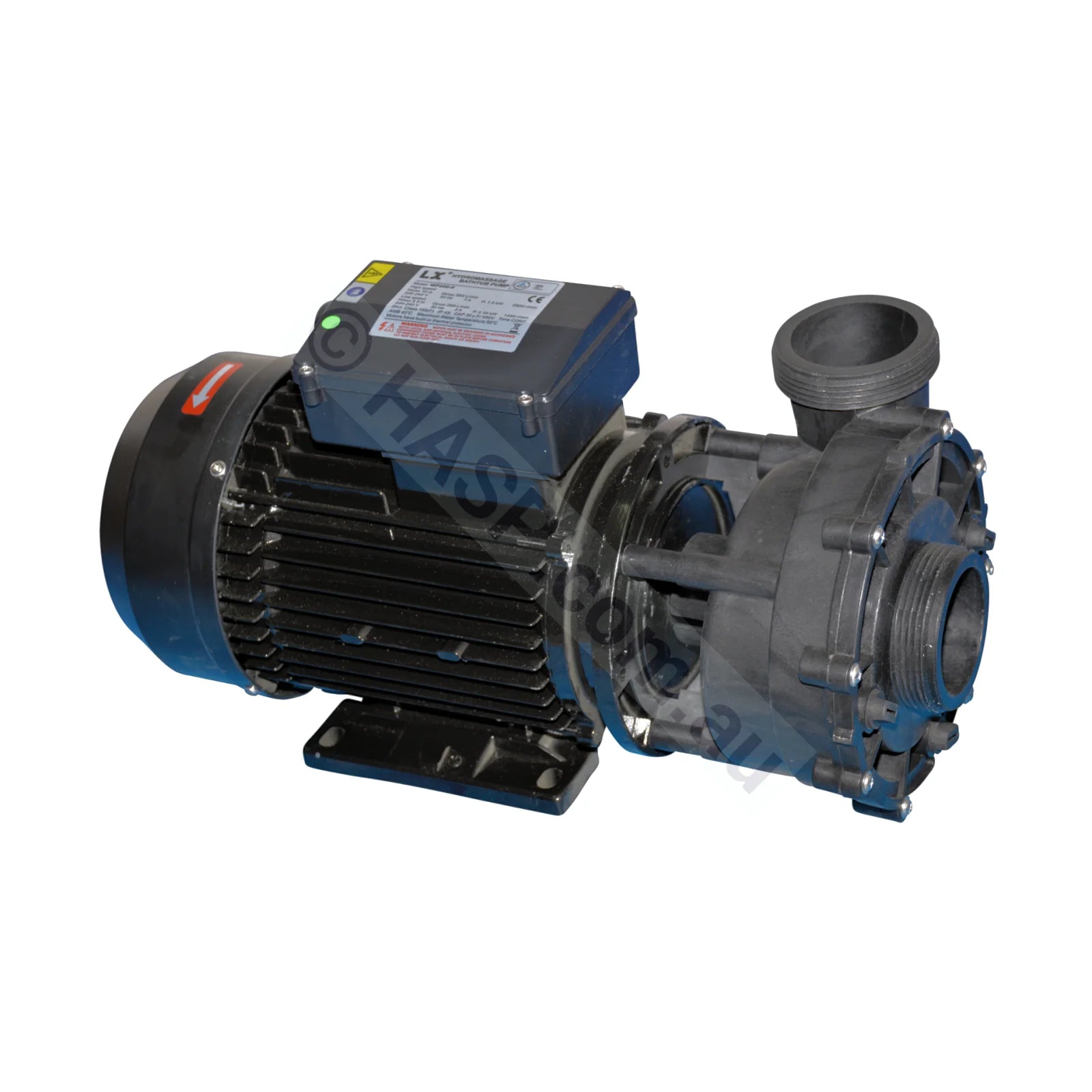

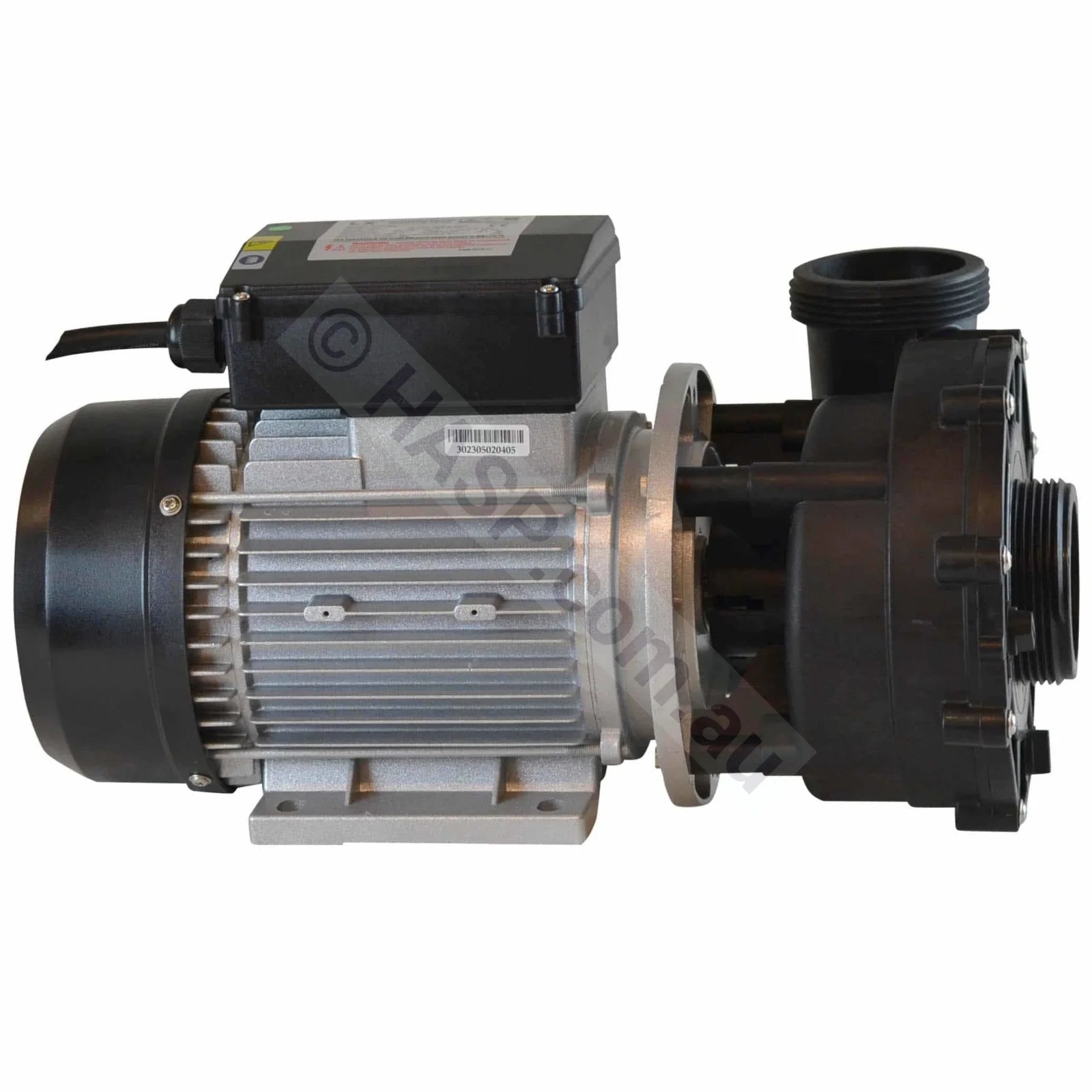

LP200 2.0HP - LX Whirlpool - Single-speed Jet Booster Pump

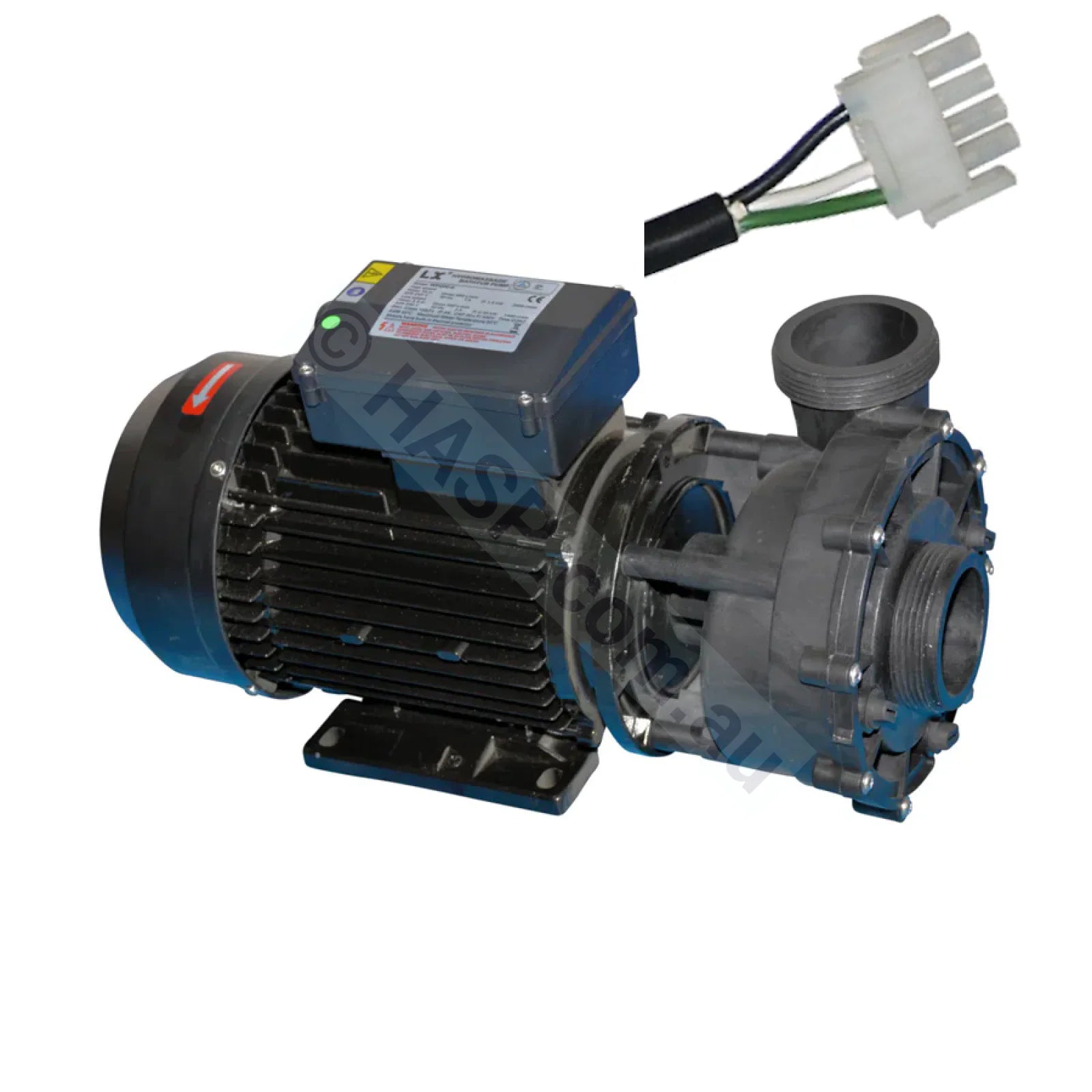

Choose Plug Type: AMP for Balboa/Gecko Aeware/Joyonway

Variant

Price:

$473.00 $738.73

Quantity:

Tax Included. Shipping over $149 FREE or calculated at checkout.

About Us: We keep physical stock in Vic, NSW, Qld, WA unline most online stores. We offer sustainable, value-based pricing that reflects our stock and support. We don’t price match but stay competitive for the long term.

LX Whirlpool Hydro Massage Spa Jet Booster Pumps - LP 200 2.0HP Hi-Spec Version. Universal Spa Jet Pump that fits almost all of the major brands of pumps. This is the upgraded "Pro Series" version of the LX Whirlpool pump with better seals and impeller material.

Protip: For an even better version, with same fittings, better seals, windings, etc choose the Spatex SX200 here.

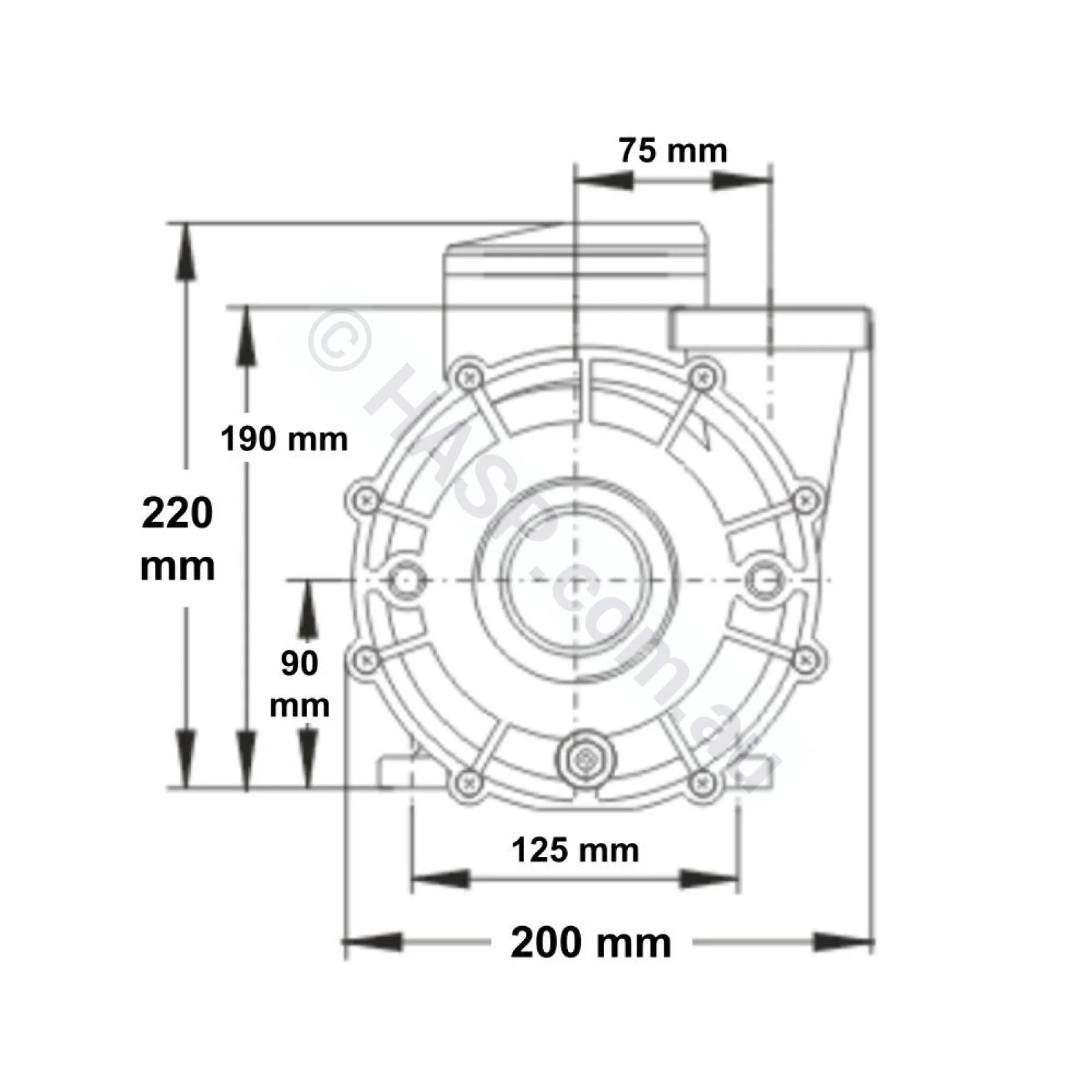

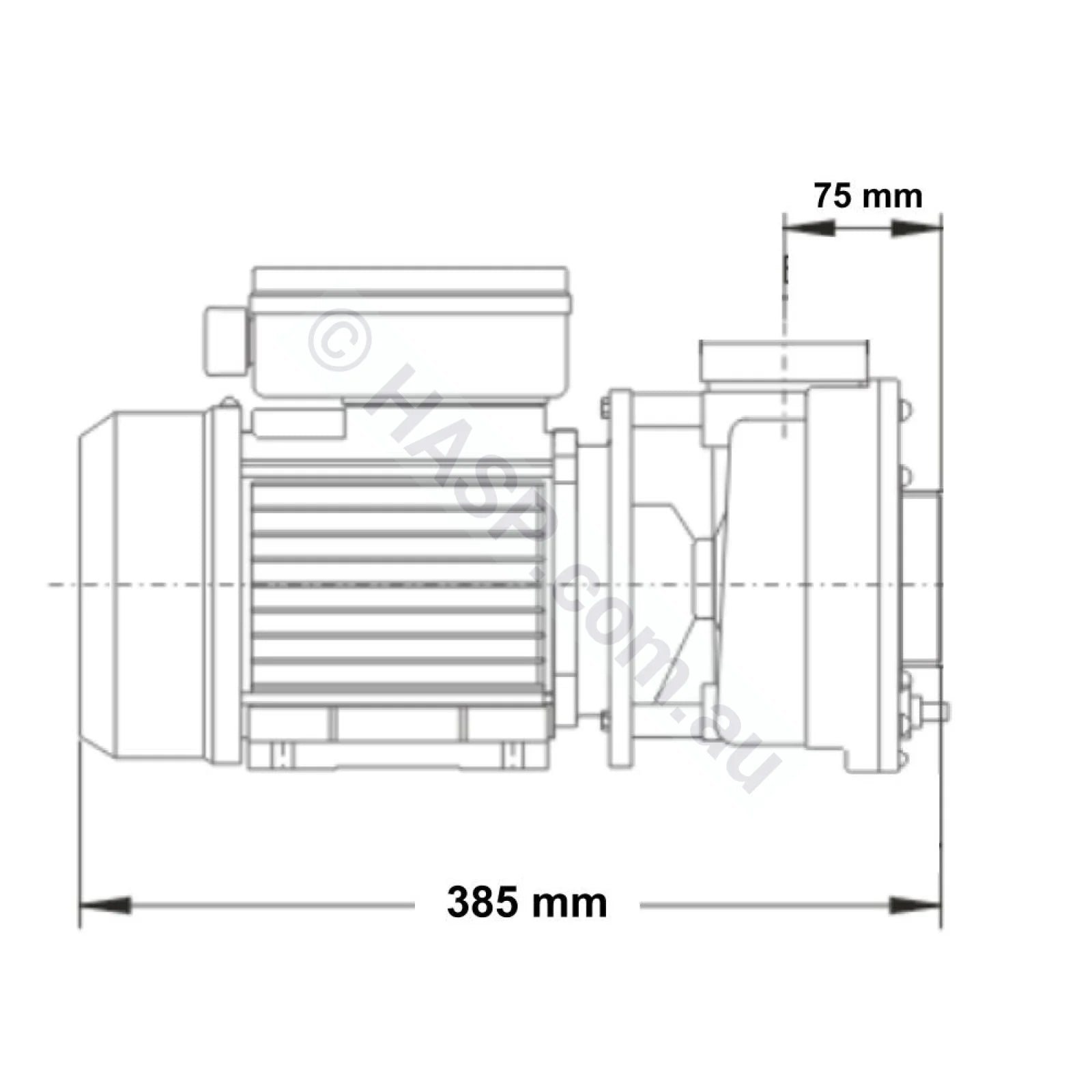

Dimensions (without fittings)

Length: 385 mm
Width: 200 mm
Height: 220 mm
2"/50mm FBT Thread - measures ~78-79mm OD on pump

Also replaces:

Watkins / HotSpring: 37066-03, parfois étiqueté "Watkins Wavemaster 800"
Kinedo: SPOM010
Wellis: ACM0079
Volition: 20PL ou PL200
Jacuzzi and Sundance Spas Theramax: replaces part numbers 6500-117, 6500-123, 6500-124, 6500-124a, 6500-239, 6500-240 and 6500-294

This is the one-speed version. Check your plug to ensure it has 3 wires, not 4. If it has 4-wires, it is the LP two-speed version.

Pick-up available from Factory 1 / 10 Industry Blvd, Carrum Downs. Please contact to ensure stock.

Note, you may find pumps listed with the same model numbers as these listed elsewhere. LX is an OEM pump manufacturer, and provide various specifications within the same main model numbers. Versions listed crazy-cheap elsewhere have lower-grade seals, impellers, have no Electrical Approvals, and are illegal. There is only one importer that ensures the highest-specs are sold, and tracked via serial numbers. We only sell these.

Save money and get the highest quality pumps available on the market. These pumps are as good as, or better than their more expensive counterparts.
