Universal spa control system for several pumps, plus circ pump, blower, ozone and a light. Generally these are used to control 3 pumps, a blower, ozone, and a light. This control system comes with 9x outputs and is generally found on high-end spas, or swim spas.
Comes with in.link cables and in.k600 touchpad. Can be set up for 15A, 20A, 40A single-phase, or 3-phase power.
WiFi option is also available via an in.touch module.

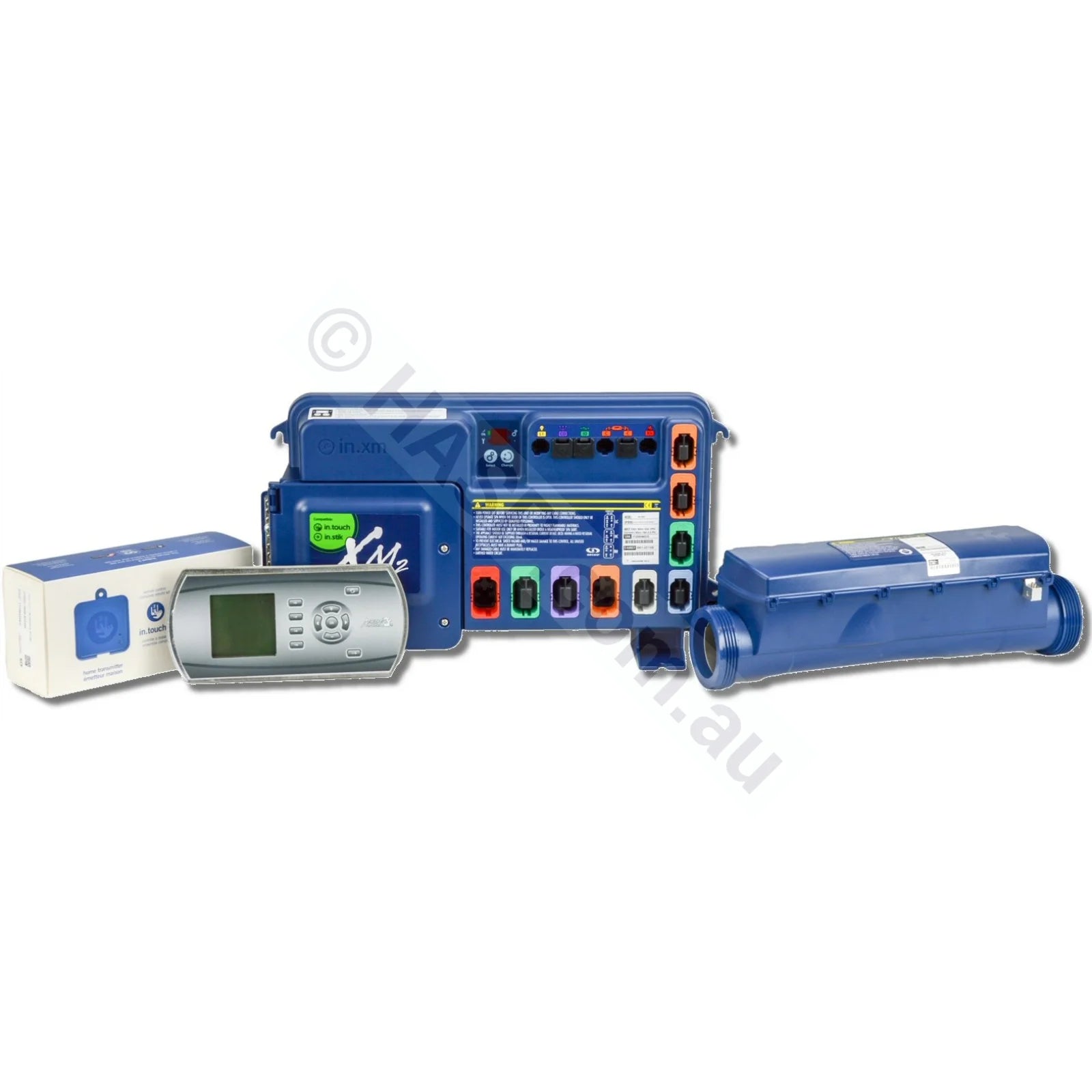

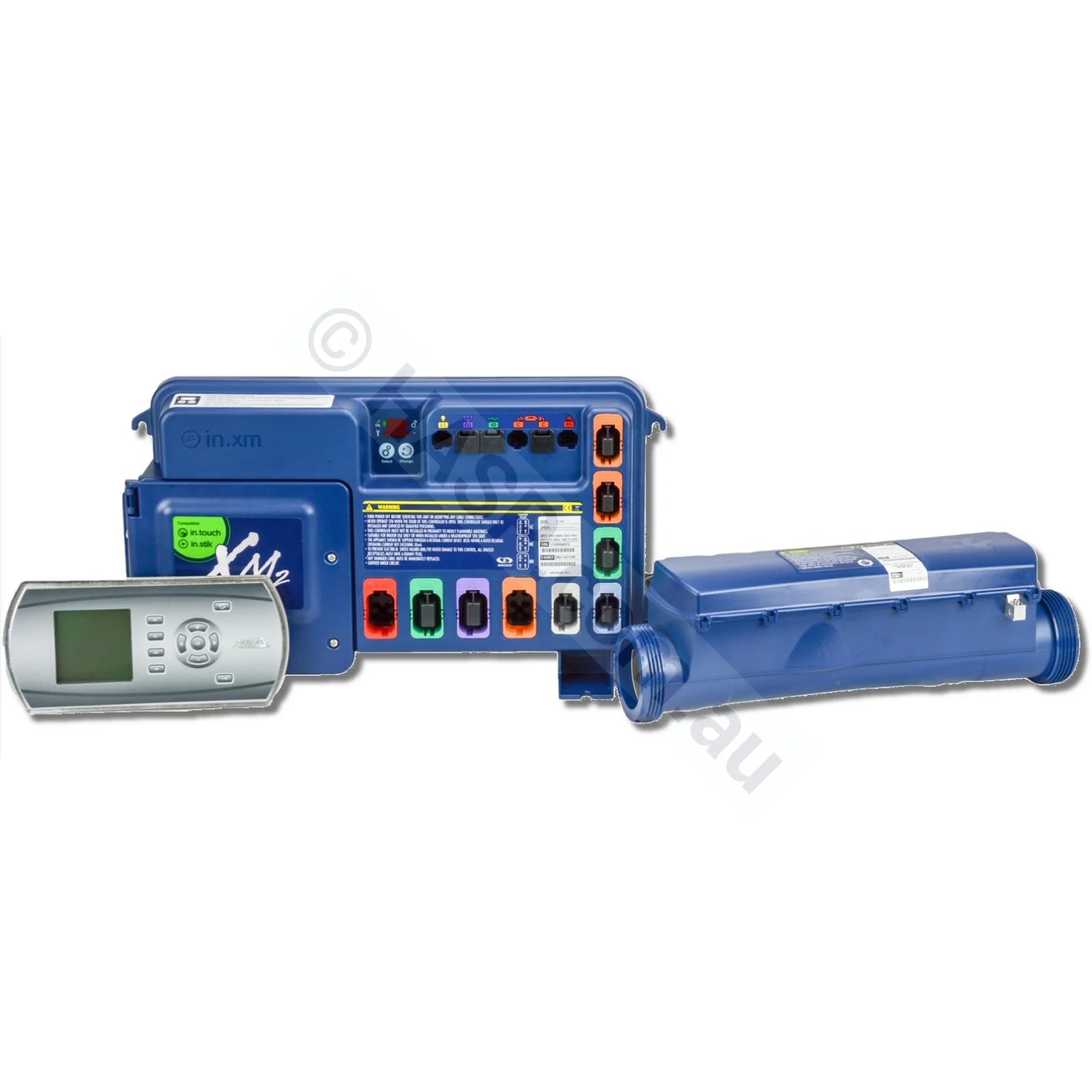

Aeware in.xm2 by Gecko Electronics 9 outputs - can accomodate a combination of the following - 1 - 5* pumps (up to 3 without optional in.split adaptor cables), blower, circ pump, ozone, light, aux/audio 3.8kw titanium in.therm in-line heater 15" long x 2" plastic tube, complete with unions. Utilises in.link cables to connect to equipment - Pump 1, Pump 2, Pump 3, Blower, Ozone & Light INCLUDED.Circulation Pump & Direct AV in.link cables extra if required. All inputs and outputs are plugged into the front panel. Incoming power supply is from the left side only through a 32mm hole (32mm gland/conduit fitting and appropriate cable set up required to maintain box seal against entry of vermin, ants, etc.) in.k600 11 button topside INCLUDED. 230v, 50Hz, 40A max single phase (can be configured for 15A), or 415v, 50Hz, 20A two or three phase. Pack 450mm wide x 260mm high x 80mm deep. Heater tube including unions 450mm long x 100mm wide x 110mm high Touchpad 220mm long x 106mm wide. 180mm long x 95mm wide * maximum number of pumps is restricted by pump size. Each outlet socket is limited to 16A (ie pump 1 and 4 could be 8A ea) but also restricted by spa pack max loading of 40A. If 4-5 high powered pumps require control, use aeware in.xe 'swimspa' system.
