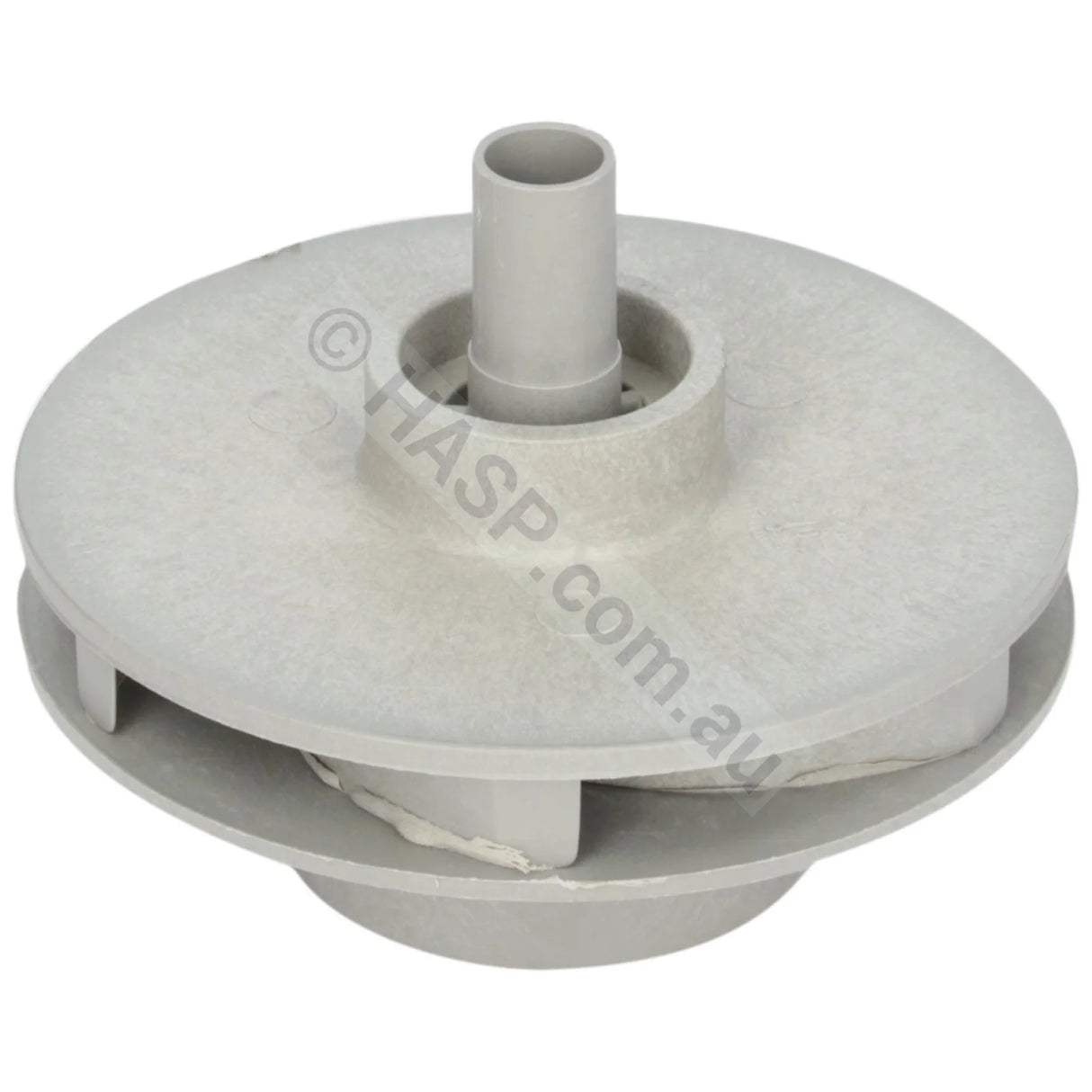

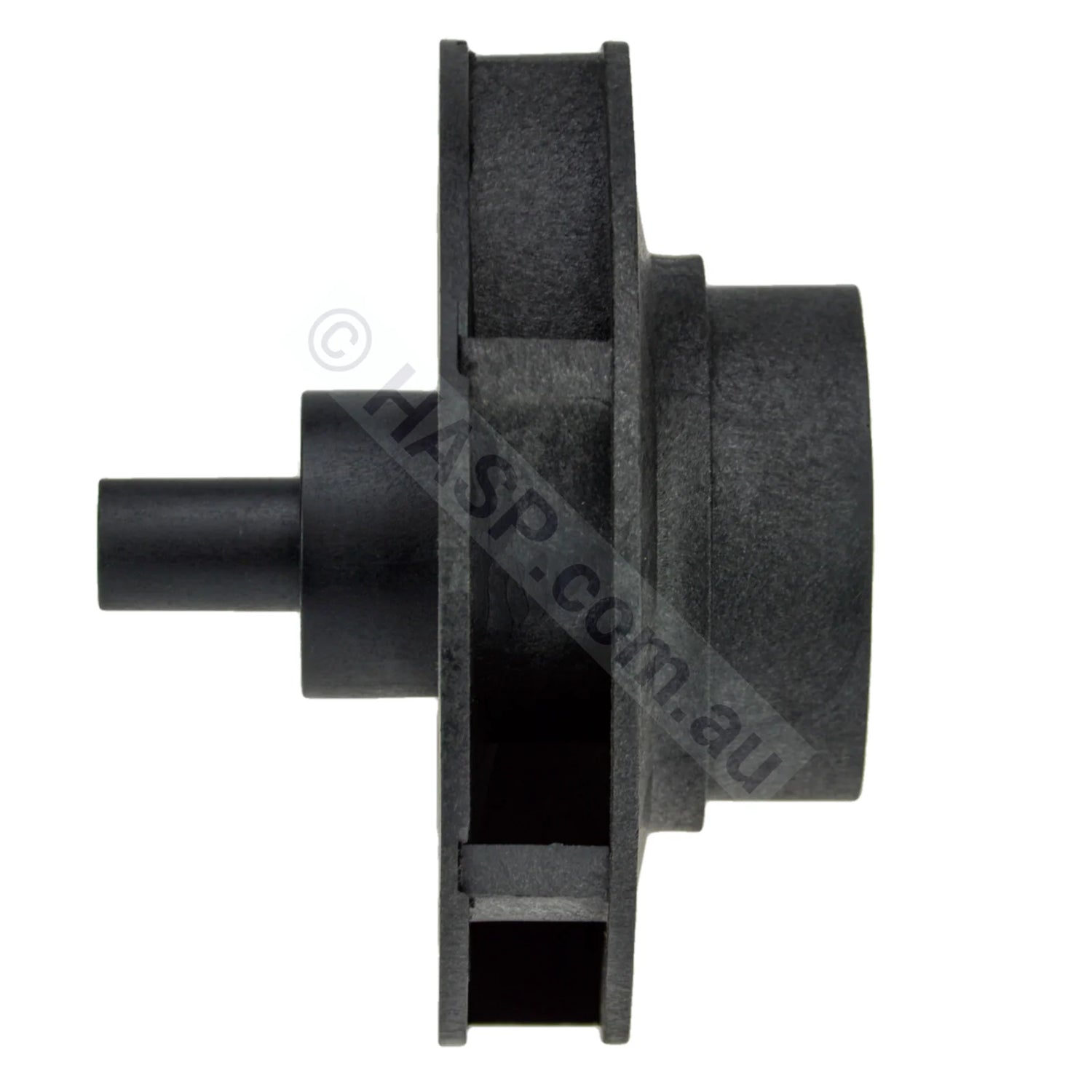

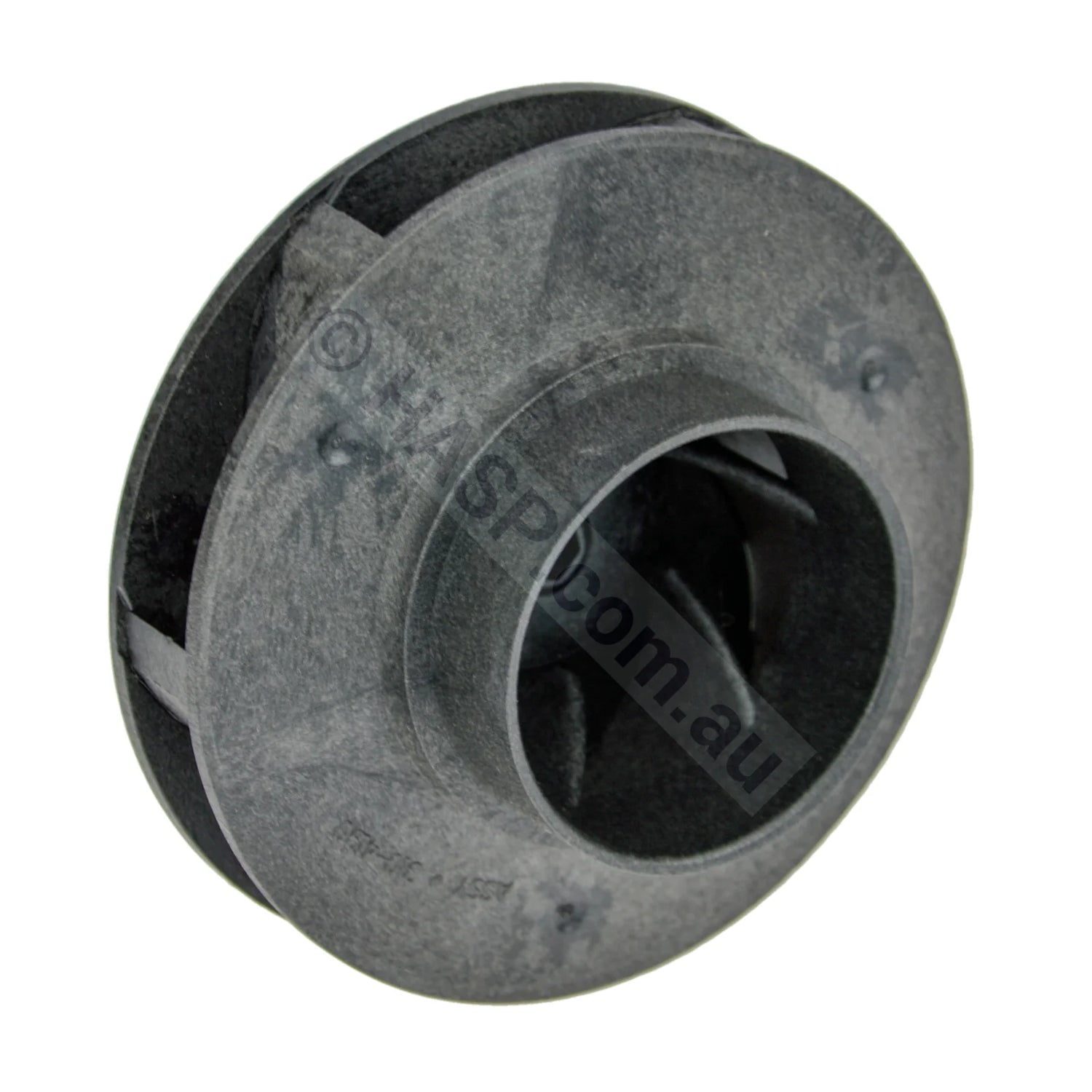

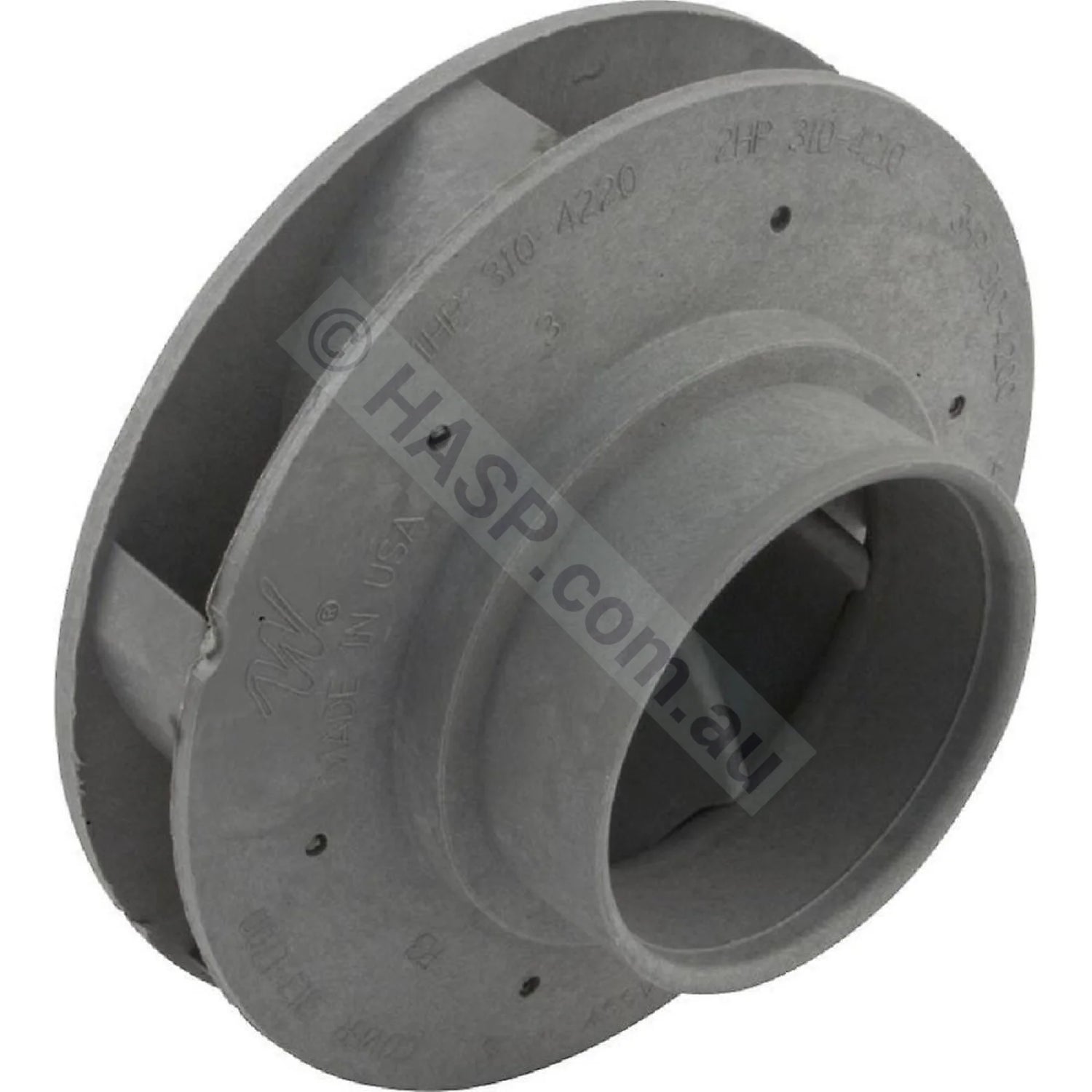

Waterway 5HP/3.5HP/2HP-2.5HP (1.5-1.8kw) Executive Pump Impeller

This product is no longer available.

Scroll down for replacement options and more information.

Description

Very common impeller in older spas. The horsepower ratings were a bit confusing as some areas use Brake Horsepower, and also North American uses 60Hz power to our 50Hz. Old pumps that were 2hp-2.5hp may be labelled 5HP. Check dimensions to compare. Pump label may have on it's metal tag 1.5kW.

Dimensions:

  • 115mm Diameter
  • 15.5 Vane Width (Inner)
  • 6 x Vanes
  • May be marked "5HP" on suction throat

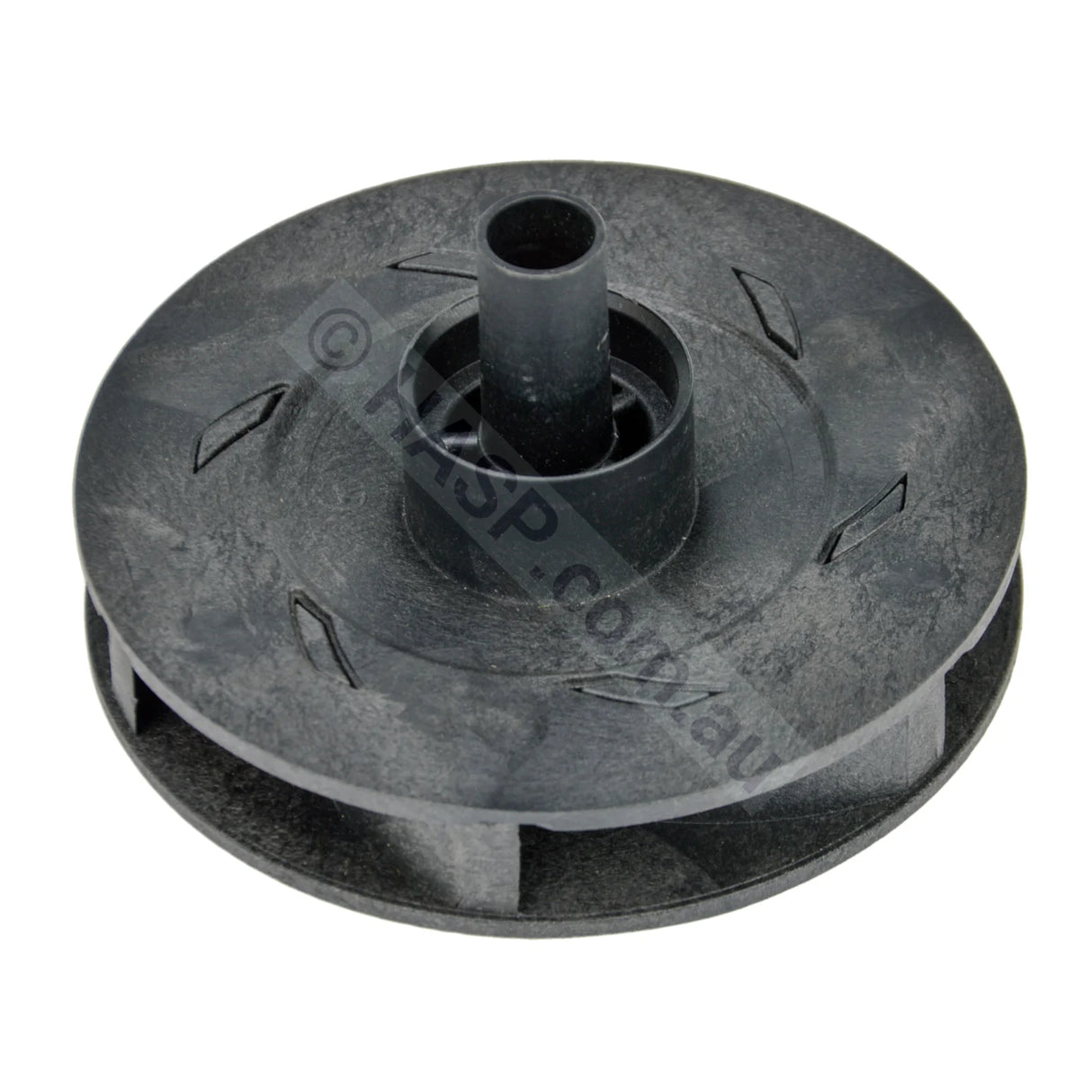

New impellers are normally black, and perform / measure the same but look different on the back, and have a small hex in the centre of the throat.

310-4180

  • Plug Types & Styles

    Common plug types found on spa equipment are AMP, Mini JJ, C38 (Aus 3-pin), Gecko in.link, etc. For more information please click here.

    • AMP plugs are the most common type used for over 20 years.
    • Many Mini J&J plugs are no longer available and must be modified.
    • C38 is the common Australian 3-pin plug found in normal household outlets.
    • Gecko (Aeware) in.link style plugs are no longer available and must be modified.

  • Handy PVC Plumbing Size Info

    Plumbing sizes can be confusing. Pressure PVC pipe use nominal sizes - the size is simple a name, not the measured dimension. This convention is used across most pool and spa systems so that pipes and fittings remain compatible.

    • 50mm / 2" = ~60-61mm OD
    • 40mm / 1.5" = ~48mm OD
    • 25mm / 1" = ~33-34mm OD
