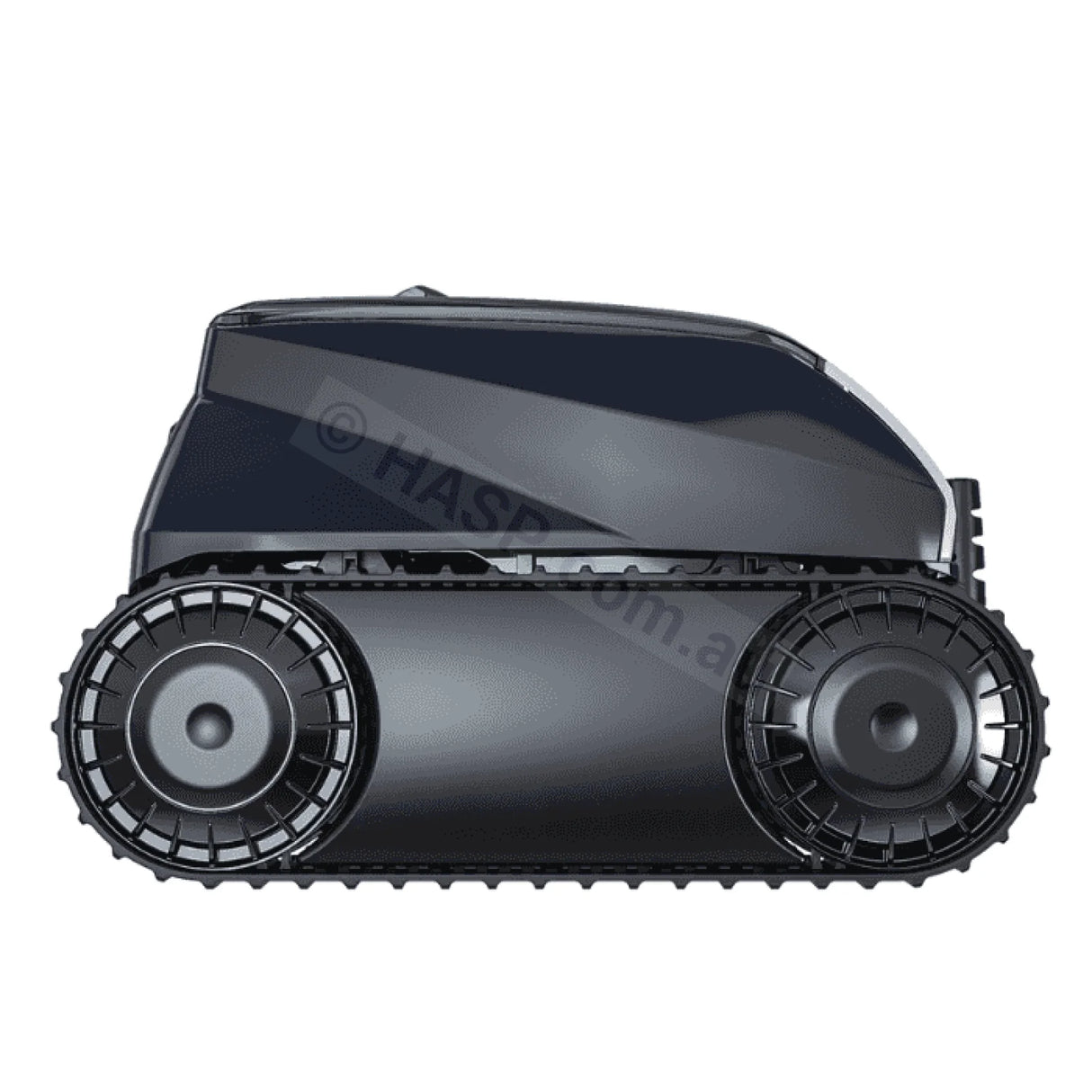

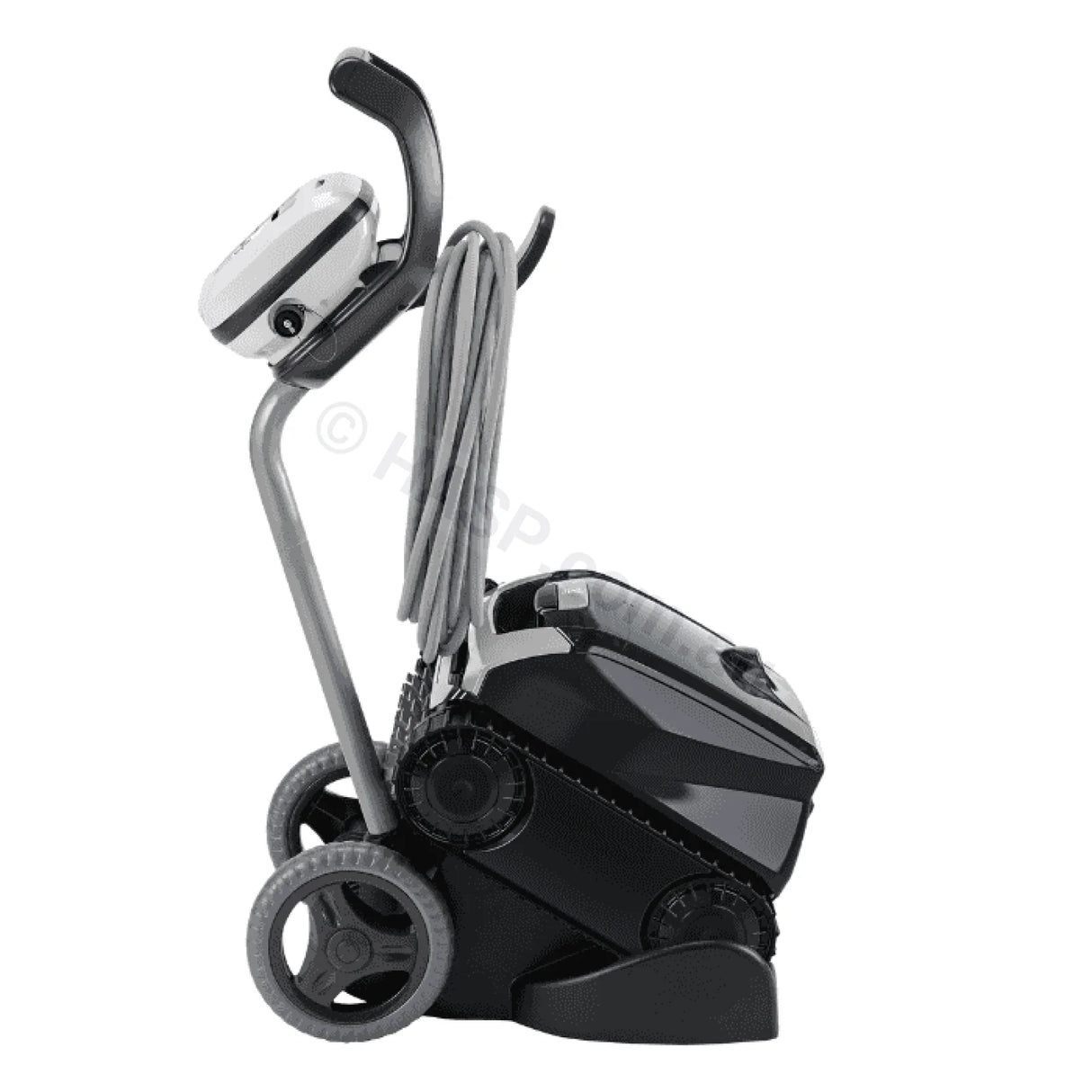

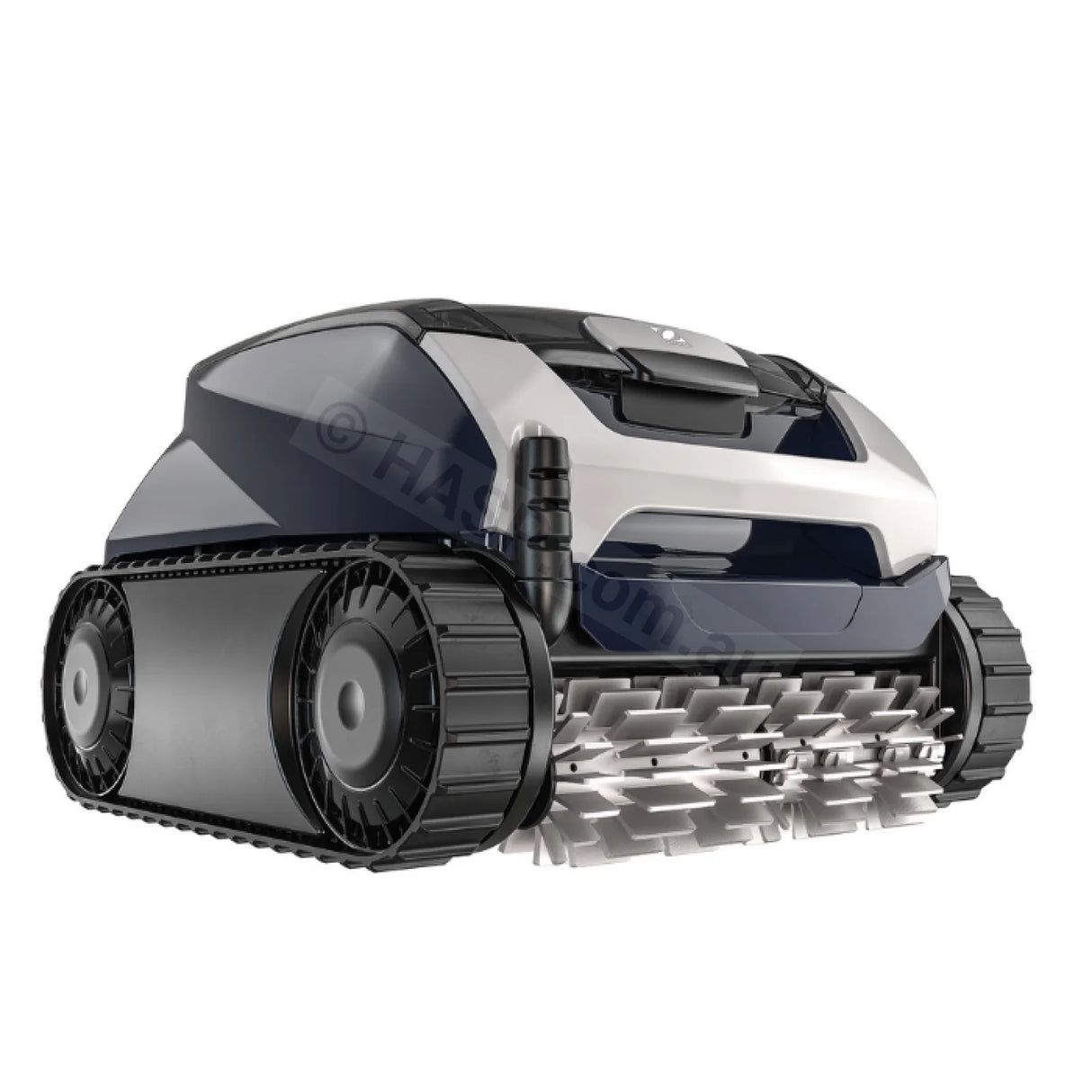

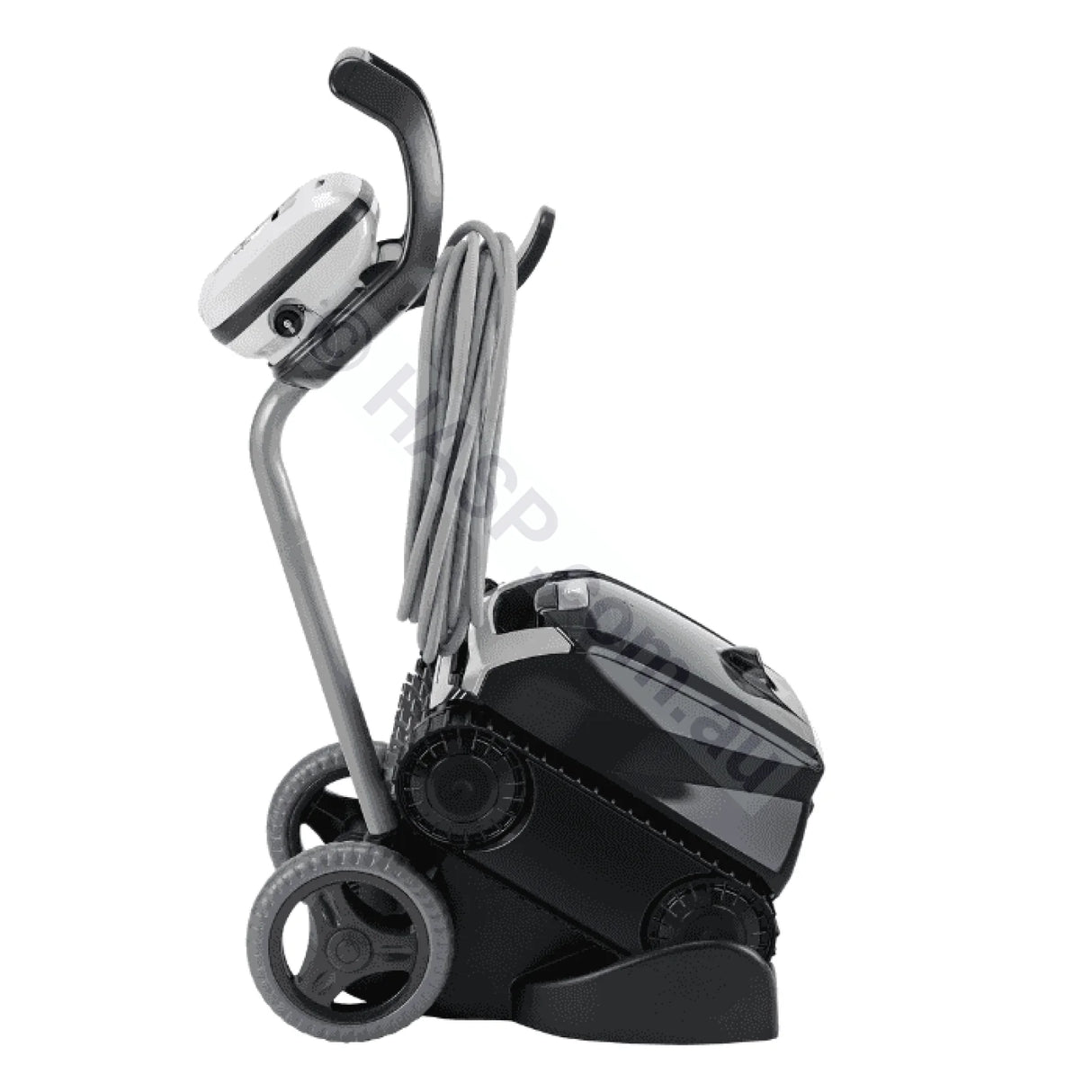

Zodiac DX4050 iQ Robotic Pool Cleaner
Zodiac DX4050 iQ Robotic Pool Cleaner is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Free Shipping over $149 for most products. Choose Express Post for fastest shipping!
Zodiac DX 4050 IQ Robotic Pool Cleaner - With new patented Helix shaped brush and compact body, the new Duo-X™ offers integrated agility. Featuring dual stage filtration (150μ/60μ) that is capable of picking up small and large debris, the Duo-X™ is designed to run in all types of pools. With the patented Lift System™ and unique design, the Duo-X™ is capable of expelling water very quickly making it very easy to operate and remove from the water. Duo-X™ has superior wall detection without the need for tilting making it very efficient in covering the pool. DX4050 iQ can be controlled anywhere, anytime through the intuitive interface of the iAquaLink™ App and also enjoy the benefit of automatic over the air remote updates.
- Authorised Astralpool dealers cannot advertise price online.
- Contact us for pricing & availability.
-
Physically-stocked. We aren't a drop shipper!
Duo-X™ DX4050 iQ
- Duo-X™ offers integrated agility with a compact body intelligent cleaner
- Dual stage filtration with 150µ/60µ filter canisters
- Patented Helix shaped brush picks up all type of debris
- Patented Cyclonic Suction technology
- Control and monitor cleaning progress using iAquaLink™ app

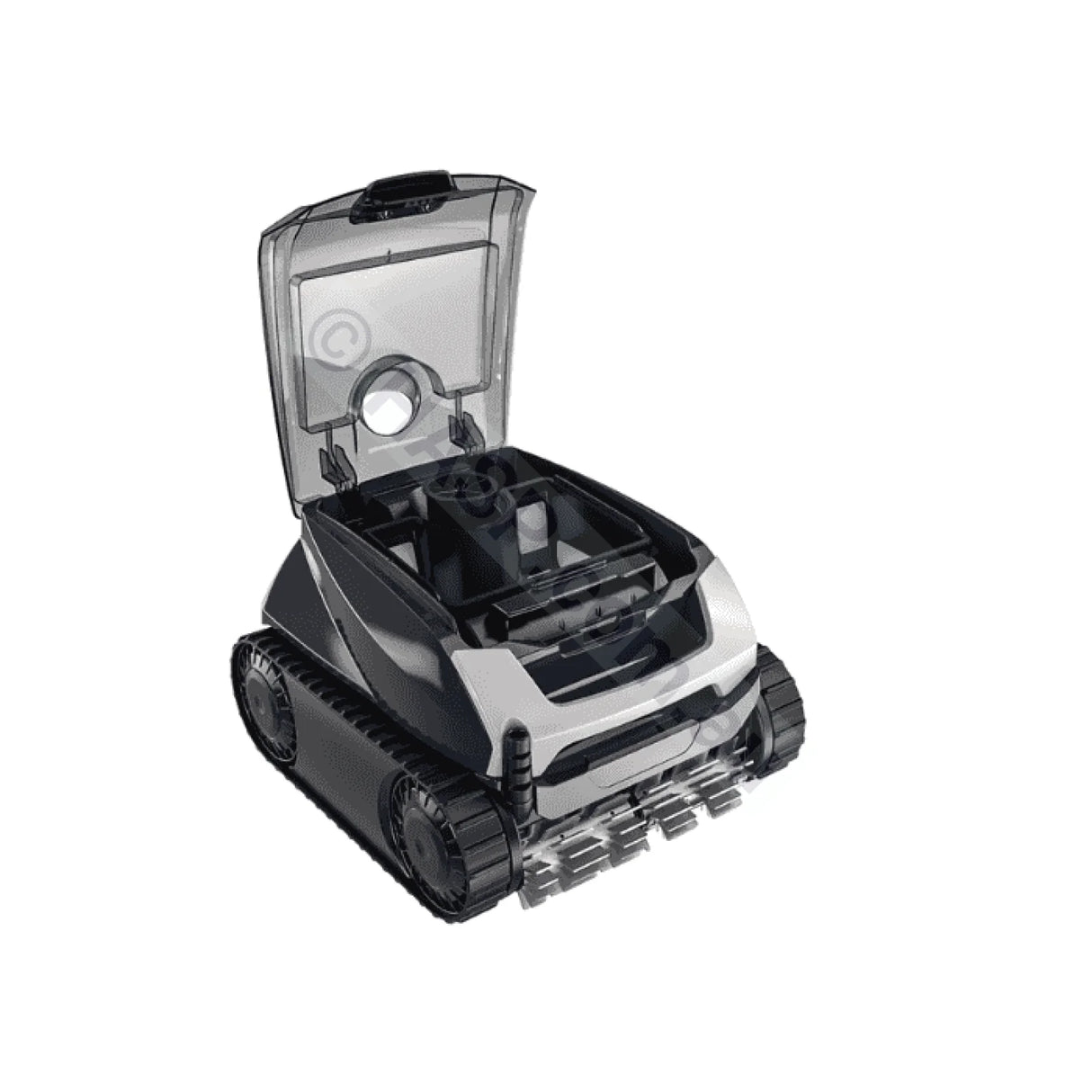

- Transparent canister window with LED illumination
- Patented Lift System™ makes for easy pool removal
- Climate Care Certified by SPASA Australia
DUAL STAGE FILTRATION (150μ/60μ)
Capture large and small debris with great efficiency. The dual filters ensure all debris is picked up no matter how large or how small, keeping your pool clean. The 150μ filter can also be used on its own.
INTUITIVE iAQUALINK™ APP CONTROL
Smartphone connectivity has now won over every sector, including swimming pools. Thanks to the intuitive iAquaLink™ App, you can remotely operate the DX4050™ iQ robotic cleaner and review the progress of the cleaning cycle. Also it is upgradeable thanks to over the air updates.
Specifications:
| Pool surfaces | Concrete, pebblecrete, quartzon, fibreglass, vinyl and tiles. |
| Cleaner weight | 9.5kg |
| Pool shapes | Rectangular, oval, free shape, flat, gentle slope, composite slope, diamond shape |
| Pool sizes | Up to 12m x 6m (18m cable) |
| Cleaning areas | Floors, walls and waterline |
| Filter capacity | 4L |
| Number of motors | 3 |
| Control box supply | 200-240 VAC / 50Hz / 60Hz |
| Power supply / operating power | 30V DC / 150W |
| Cleaner dimensions | 43 cm x 48 cm x 27 cm (L x W x H) |
| Filtration level | Dual stage filtration with 150μ/60μ filter canister |
| Packaging gross weight | 19kg |
In plumbing, named sizes are not the actual measurements. A pipe called “50mm” or “2"” does not measure 50 mm across. Instead, it follows nominal sizing, an internationally-standardised naming system.
Use the Outside Diameter (OD) to check your pipe against fittings. Below is a quick reference for common spa & pool pipe sizes:
| Imperial Name | Metric Name | Pipe Diameter (OD) |
|---|---|---|
| 1" | 25 mm | ~33.4–33.7 mm |
| 1.5" | 40 mm | ~48.1–48.4 mm |
| 2" | 50 mm | ~60.2–60.5 mm |
| 2.5" | 65 mm | ~75.2–75.5 mm |
These are nominal sizes and are designed to fit matching fittings — not to measure exactly what their name suggests.
Understanding Plumbing Sizes & Nominal Measurements
Plumbing sizes can be confusing. PVC and many other pipe systems use nominal sizes—the size is a name, not the exact measured dimension. This convention is used across most pool and spa systems so that pipes and fittings remain compatible.
Why pipe sizes don’t match the measurements
The Nominal Pipe Size (NPS) system standardises pipe dimensions so that pipes, fittings, valves, and accessories interoperate. Plumbers work with these nominal names every day, but DIYers can be tripped up if they try to match by a tape-measure alone.
How to Measure Pipe Correctly
-
Pipe size is identified by:
- The pipe’s Outside Diameter (OD).
- The fitting’s Inside Diameter (ID) (socket opening).
- Pipe Class / Schedule (e.g., Class 9, 12, 18 or Sch 40) relates to wall thickness and therefore the Internal Diameter (ID) and pressure rating.
- The outside diameter of a fitting is not useful (wall thickness varies by manufacturer).
PVC Pressure Pipe AS/NZ 1477 Dimensions1:
Common nominal sizes with typical outside diameters and indicative inside diameters by class.
| Imperial Name | Metric Name | Outside Diameter (OD) | Class 9 IDº | Class 12 IDº | Class 18 IDº |
|---|---|---|---|---|---|
| 1/2" | 15 mm | ~21.2–21.5 mm | 18.3 mm | 17.8 mm | |
| 3/4" | 20 mm | ~26.6–26.9 mm | 23.7 mm | 22.4 mm | |
| 1" | 25 mm | ~33.4–33.7 mm | 30.5 mm | 29.8 mm | 28.1 mm |
| 32 mm | ~42.1–42.4 mm | 38.5 mm | 37.5 mm | 35.4 mm | |
| 1.5" | 40 mm | ~48.1–48.4 mm | 45.2 mm | 44.1 mm | 42.8 mm |
| 2" | 50 mm | ~60.2–60.5 mm | 55.2 mm | 53.7 mm | 50.5 mm |
| 65 mm | ~75.2–75.5 mm | 68.9 mm | 67.0 mm | 63.2 mm | |
| 2.5" | ~73 mm |
- º Internal diameters vary slightly by manufacturer and class.
- 1 Not all pool/spa fittings match these dimensions exactly. Some do not follow Australian or international standards. Chinese spas may use proprietary fittings.
Hose & Tube Dimensions
Common flexible hose sizes used in pool/spa systems (approximate IDs).
| Imperial Name | Metric Name | Inside Diameter (ID) |
|---|---|---|
| 3/8" | 9–10 mm | ~9 mm |
| 3/4" | 19 mm | ~19 mm |
BSP – British Standard Pipe Thread Sizes
BSP thread names are also nominal. The thread OD will not equal the nominal name.
| BSP Thread Size Naming | Outside Diameter (mm / inch) | TPI |
|---|---|---|
| 1/16" BSP | 7.7 mm / 0.304" | 28 |
| 1/8" BSP | 9.7 mm / 0.383" | 28 |
| 1/4" BSP | 13.16 mm / 0.518" | 19 |
| 3/8" BSP | 16.66 mm / 0.656" | 19 |
| 1/2" BSP / 15 mm | 20.99 mm / 0.825" | 14 |
| 5/8" BSP | 22.99 mm / 0.902" | 14 |
| 3/4" BSP / 20 mm | 26.44 mm / 1.041" | 14 |
| 7/8" BSP | 30.20 mm / 1.189" | 14 |
| 1" BSP / 25 mm | 33.25 mm / 1.309" | 11 |
| 1-1/4" BSP | 41.91 mm / 1.650" | 11 |
| 1-1/2" BSP / 40 mm | 47.80 mm / 1.882" | 11 |
| 2" BSP / 50 mm | 59.61 mm / 2.347" | 11 |
| 2-1/4" BSP | 65.71 mm / 2.587" | 11 |
| 2-1/2" BSP | 75.18 mm / 2.960" | 11 |
| 3" BSP | 87.88 mm / 3.460" | 11 |
| 4" BSP | 113.03 mm / 4.450" | 11 |
| 5" BSP | 138.43 mm / 5.450" | 11 |
| 6" BSP | 163.83 mm / 6.450" | 11 |
