Description
Description
Obsolete - No Longer Available - If you have a gas heater, or heat pump, there are possible replacements (along with Bridge Controller).
See Replacement Options Below:
- 0.35HP Pump Suitable for spas without external heaters and where pump is used only for circulation and built-in electric heaters.
- 0.75HP Pump Suitable for Astral HX 70, HX 120, Raypak 131 Spartan, and Most Heat Pumps
- 1.0HP Pump Suitable for Astral HX 70, HX 120, JX 130, JX 160, HiNRG 175, HiNRG 250, Raypak 131 Sparta, Raypak 200, Raypak 280, and Other Heat Pumps
- For Viron 250, 350, 450 Gas Heaters, Raypak 350, Raypak 430 or where used to run Jets, contact us for information.
Archived Info:
Intelligent Variable Speed Drive for CSN Turbo-Tech Circ-3 variable speed pumps. The intelligent Bridge Control selects the most efficient speeds for filtration, heating & jet performance Super Quiet, Super-efficient brushless DC variable speed motors. Up to 8-star energy rating.
ControlsTurbo-Tech Circ Pumps Perfect for low-speed for normal filtration, and ramping up to power a gas heater or heat pump.

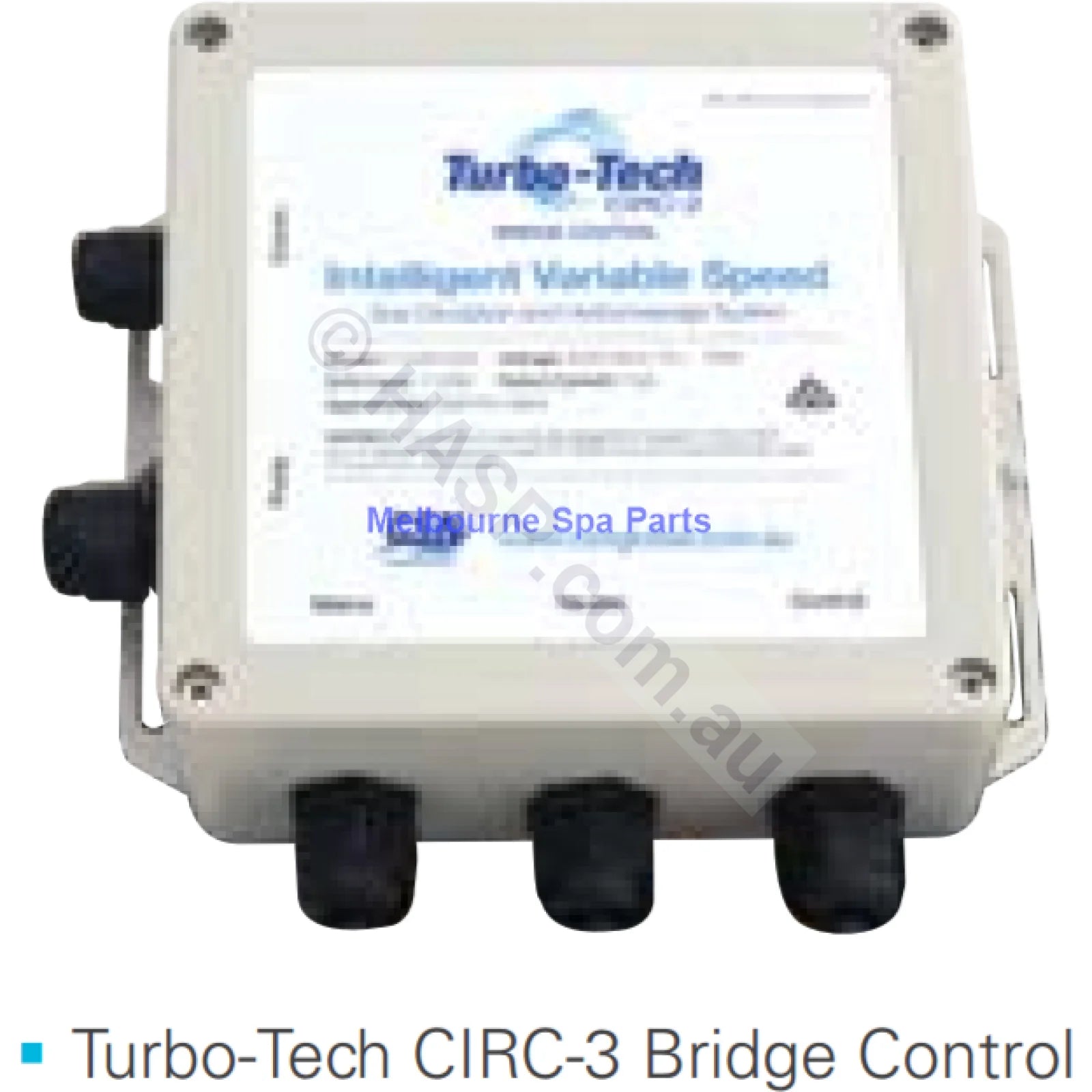

Turbo-Tech Circ-3 variable speed circulation pump Bridge Controller. Works with FT3000 Circ-3 variable speed pump ONLY.

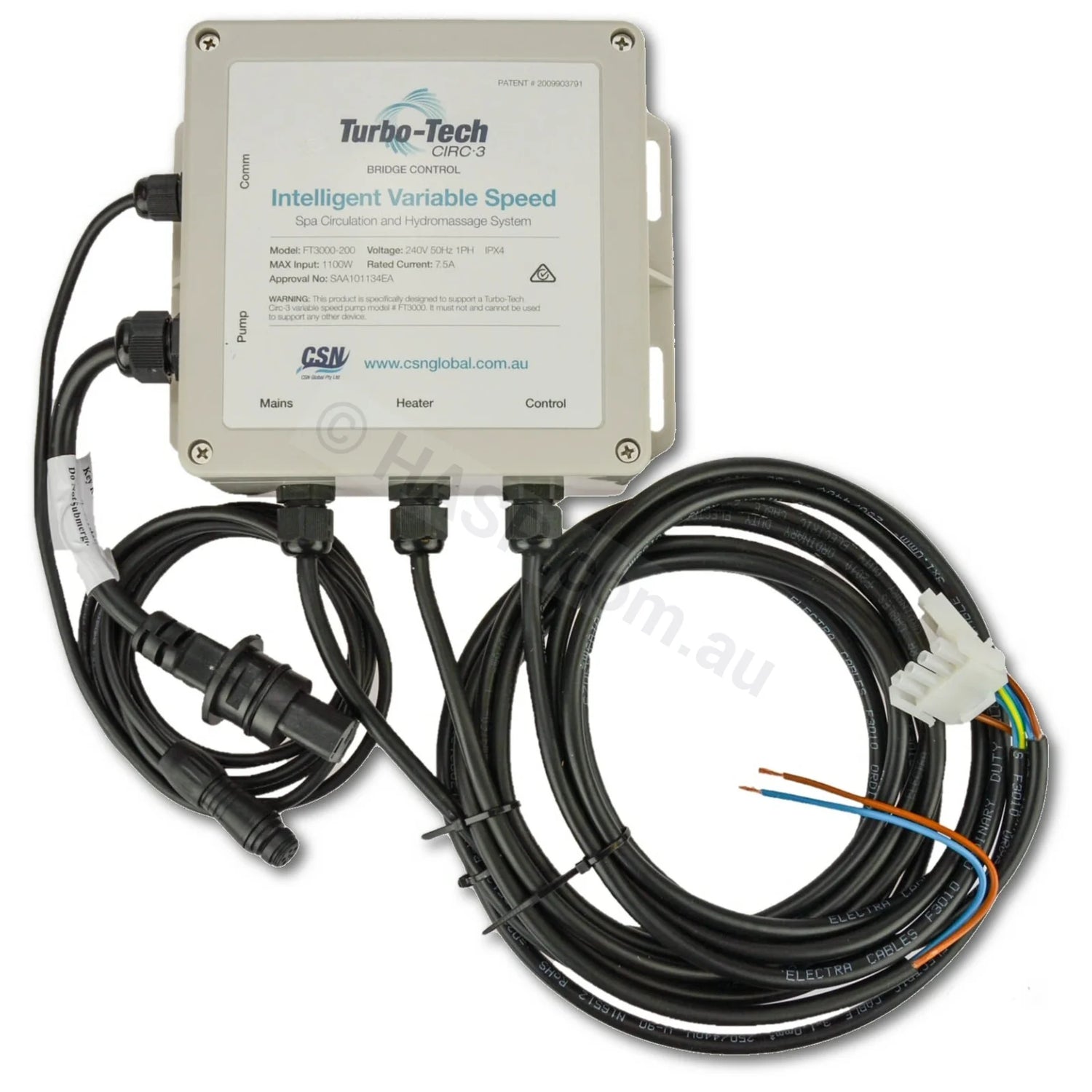

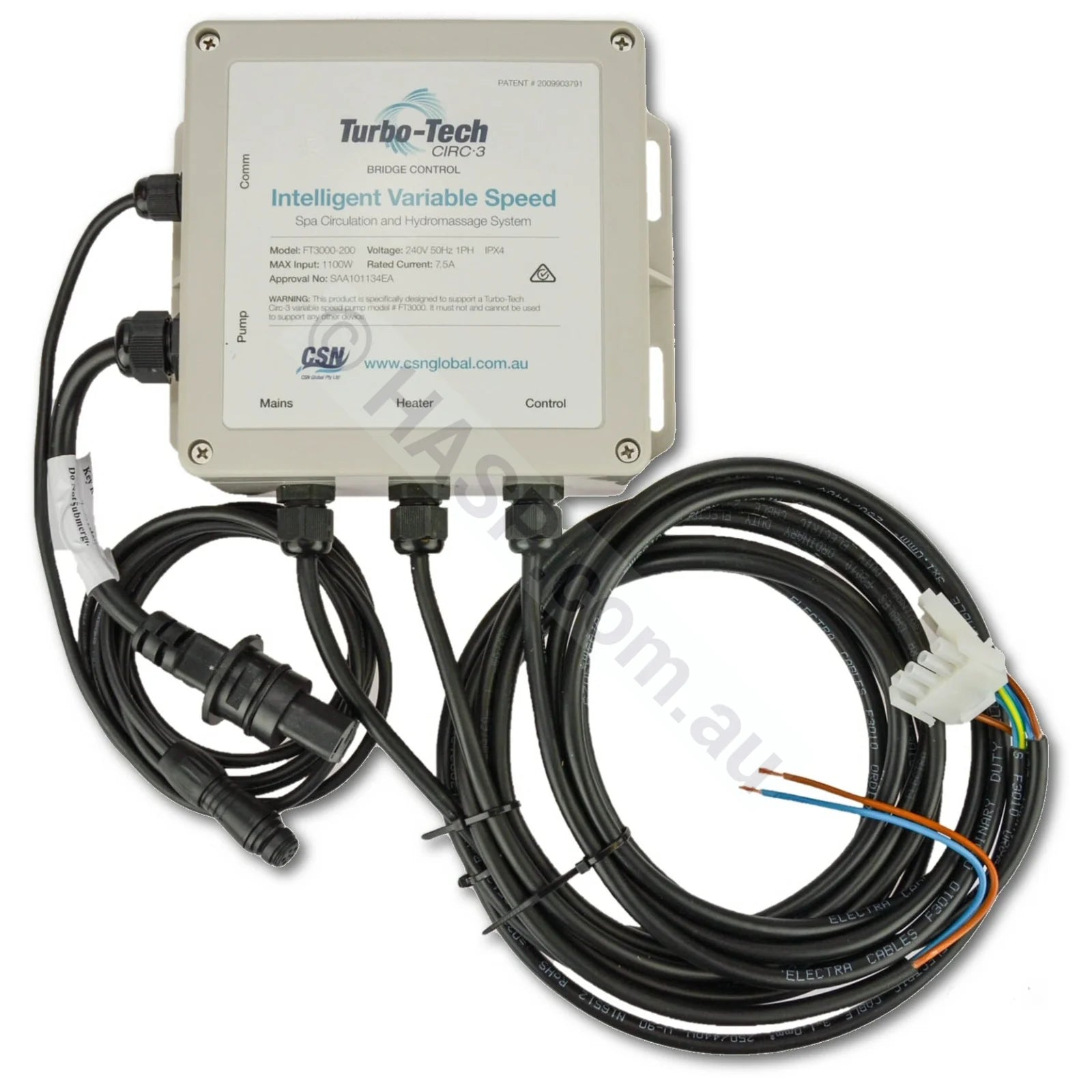

Bridge controller 'control' wire plugs into spa pack Pump socket. Mains wire plugs into permanent power socket on spa pack. Heater wire connects to spa pack heater terminals.
When the spa pack calls the pump to filter, it runs the Circ-3 on low speed. When the spa pack calls the heater on, the Circ-3 ramps up to medium speed.
Particularly useful when the heater is an electric heat pump or gas heater requiring greater flow than low speed offers.
When the user turns the pump on to high speed the Circ-3 runs on high speed. All plugs are AMP to suit Balboa or Aeware Spa Packs with that plug type. Other models will need cord / plug changes.

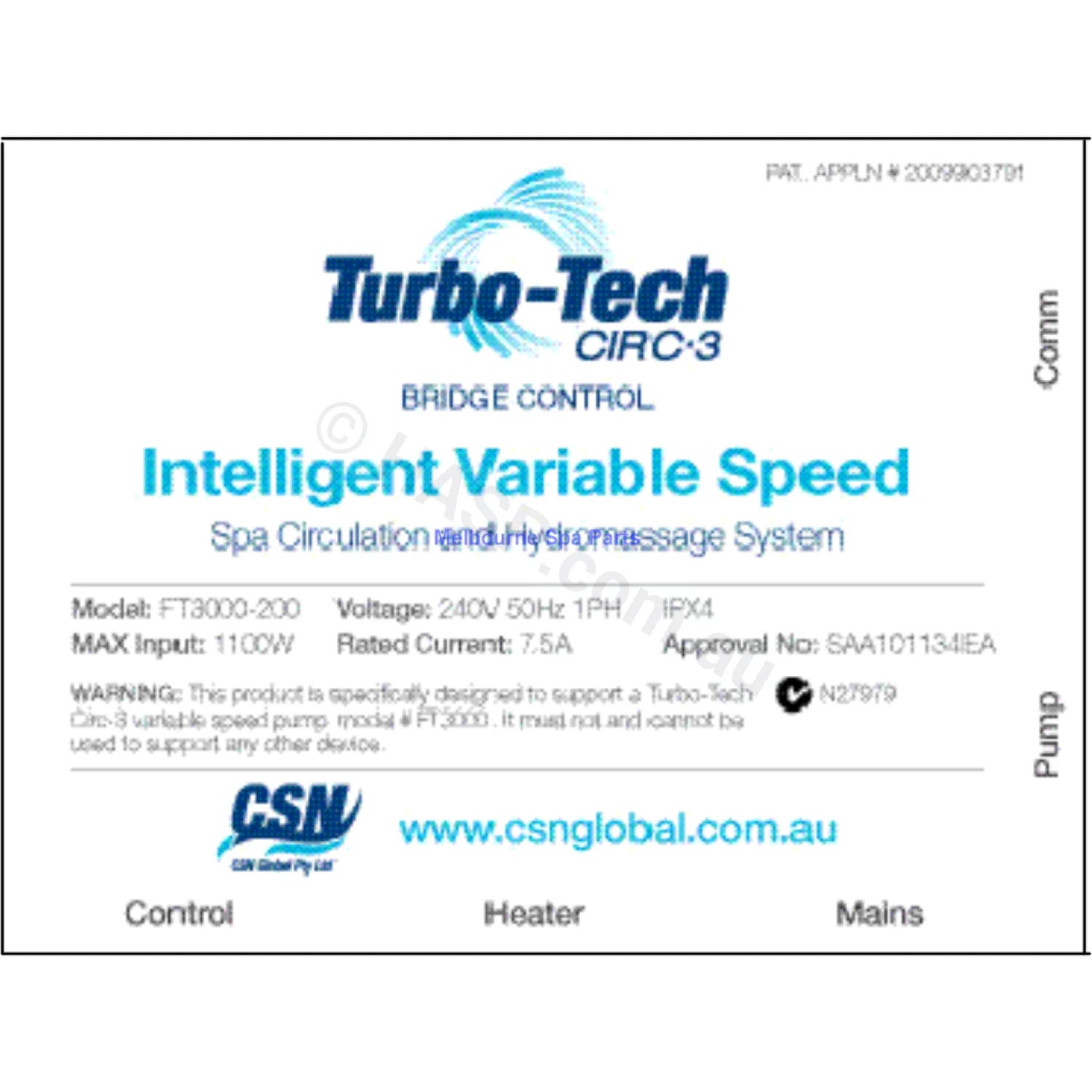

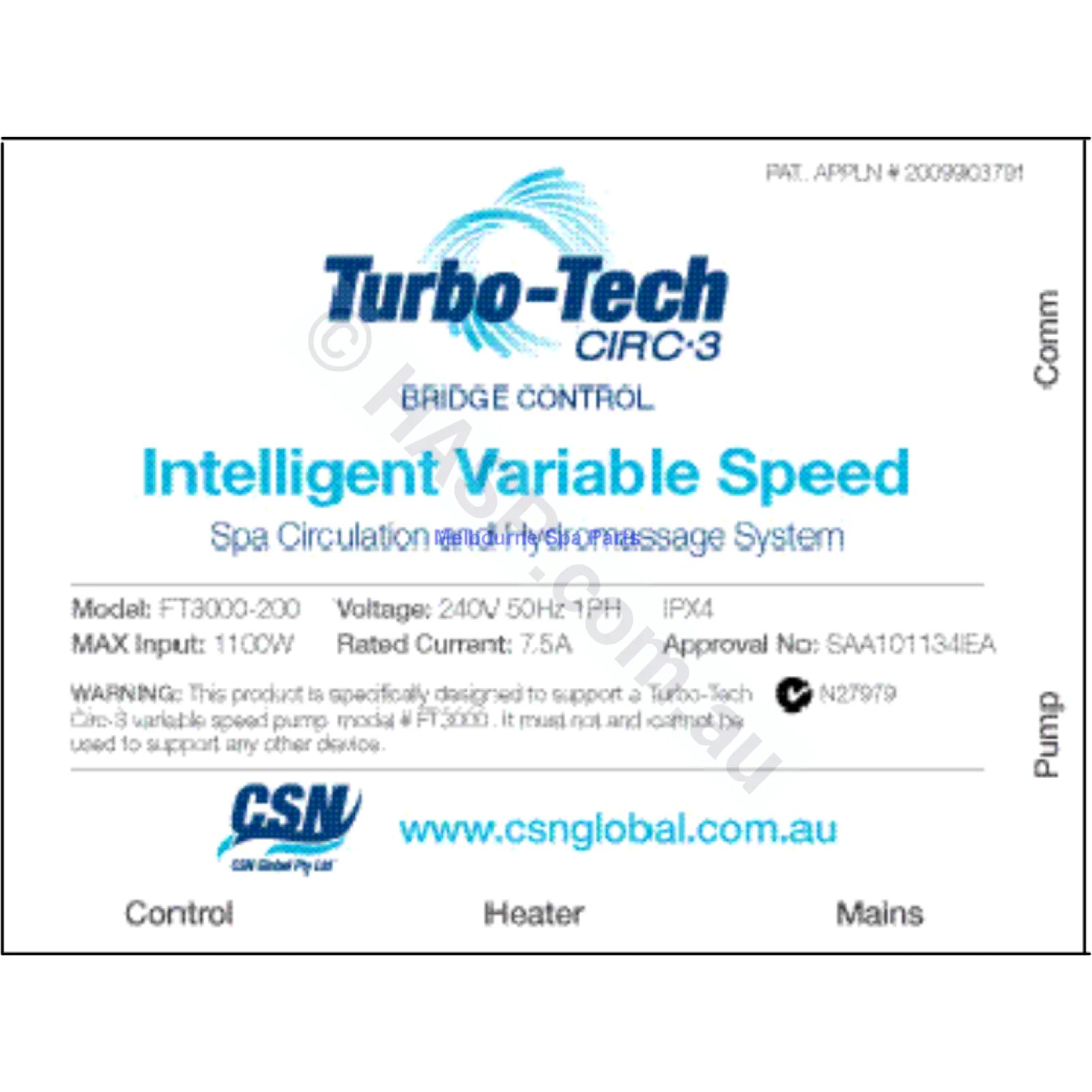

Turbo Tech Circ 3 Bridge Control - Intelligent Variable Speed Spa Circulation and Hydromassage System
Specifications
Model: FT3000-200
Voltage: 240V 50Hz 1PH
Voltage: 240V 50Hz 1PH
IPX4
Max Input: 1100W
Rated Current: 7.5A
Approval No: SAA101134EA
Warning: This product is specifially designed to support a TurboTech Circ-3 variable speed pump model $ FT3000. It must not and cannot be used to support any other device.
Warning: This product is specifially designed to support a TurboTech Circ-3 variable speed pump model $ FT3000. It must not and cannot be used to support any other device.
Patent # 2009903791
