Fenwal 35-630200-007 - Raypak Ignition Module
Fenwal 35-630200-007 - Raypak Ignition Module is temporarily out of stock and will ship as soon as it's available.
Don't Guess - Ask Us!
Don't Guess - Ask Us!
Not sure if it’s the right part? Send us a message and a photo of what you’re replacing, or what you need, and we’ll help make sure you get the right part the first time.
Delivery and Shipping Info*
Delivery and Shipping Info*
Free Shipping over $99 for most products. Choose Express Post for fastest shipping!
Fenwal 35-630200-007 - Raypak Ignition Module
Fenwal 35-630200-007 - Raypak Ignition Module is temporarily out of stock and will ship as soon as it's available.

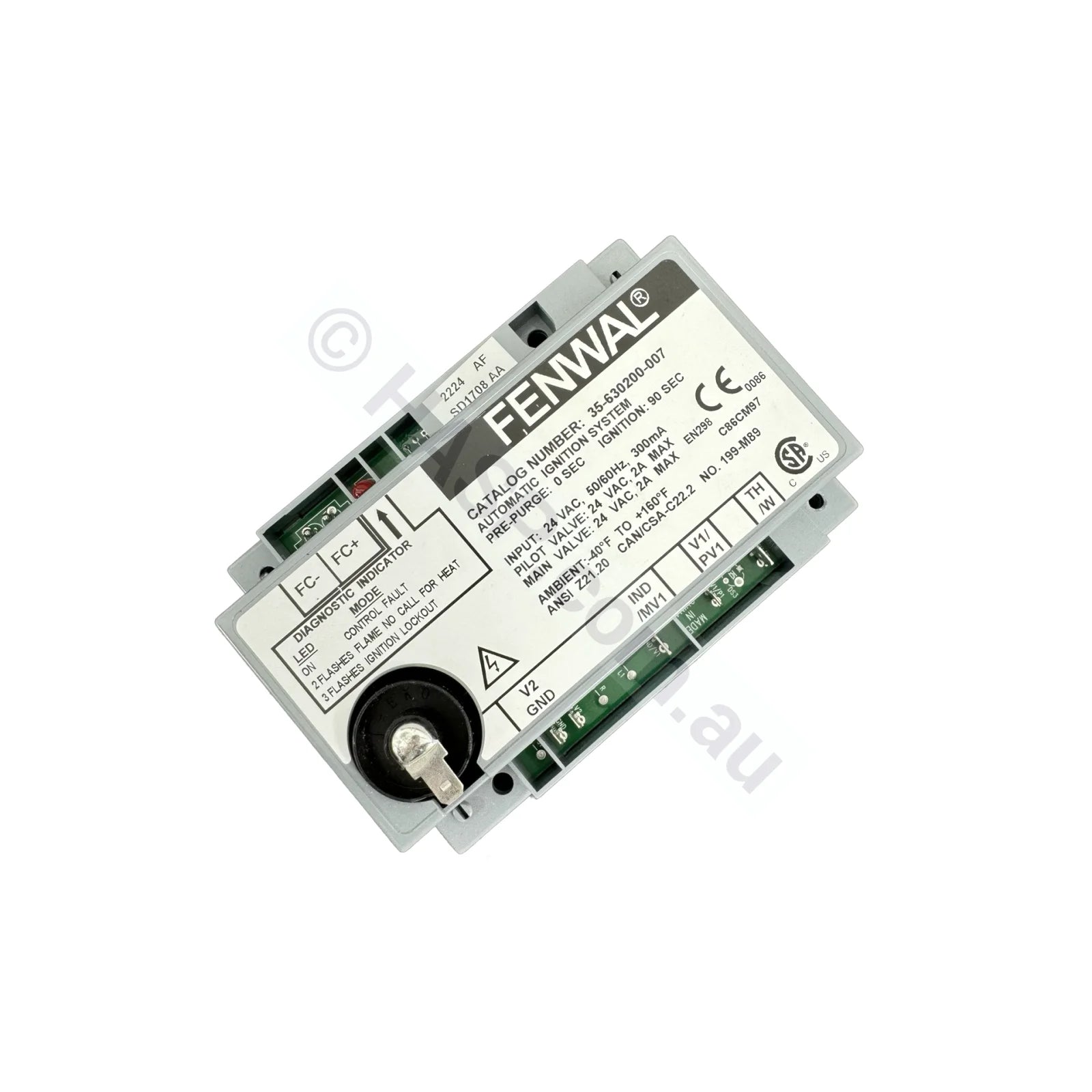

Fenwal 35-630200-007 - Raypak Ignition Module. Used in many gas appliances. Used in Raypak Gas Heaters such as the 200, 280, 350, 430 since 2019.
24 VAC Microprocessor Based Intermittent Pilot Ignition Control
Ensure you have the correct diagnosis and you are ordering correctly. These items cannot be returned for change of mind.
FEATURES
- Safe Start and full time flame sensing
- Custom pre-purge and inter-purge timings
- Multiple trials for ignition
- Mounts on standard 4 in. junction box
- System diagnostic LED
- Flame sense test pins
- Remote flame sense option
- Automatic reset 1 hour after lockout option
APPLICATIONS
- Commercial cooking equipment
- Commercial gas furnaces
- Unit heaters
- Water heaters
- Other applications requiring intermittent pilot
DESCRIPTION
The 35-63 is a 24 VAC intermittent pilot (spark-to-pilot) ignition control. The microprocessor circuit design provides precise, repeatable timing and operating sequences. The on-board diagnostics with LED output make troubleshooting easy and ensures safe and efficient operation.
Important Before Ordering: Please ensure you order correctly. Confirm this product is suitable before ordering. Use the catalogues above, seek professional assistance, or contact us with photos of your existing part, model details, serial numbers, and any labels.
As with all products, these must be diagnosed and fitted by a qualified and experienced person. This is a special-order item & cannot be returned for change of mind.
35-630200-007 / FEN35630200007
