Davey SpaQuip Spa Power 400 SP400 Control System - Ampac Pulsar Replacement System

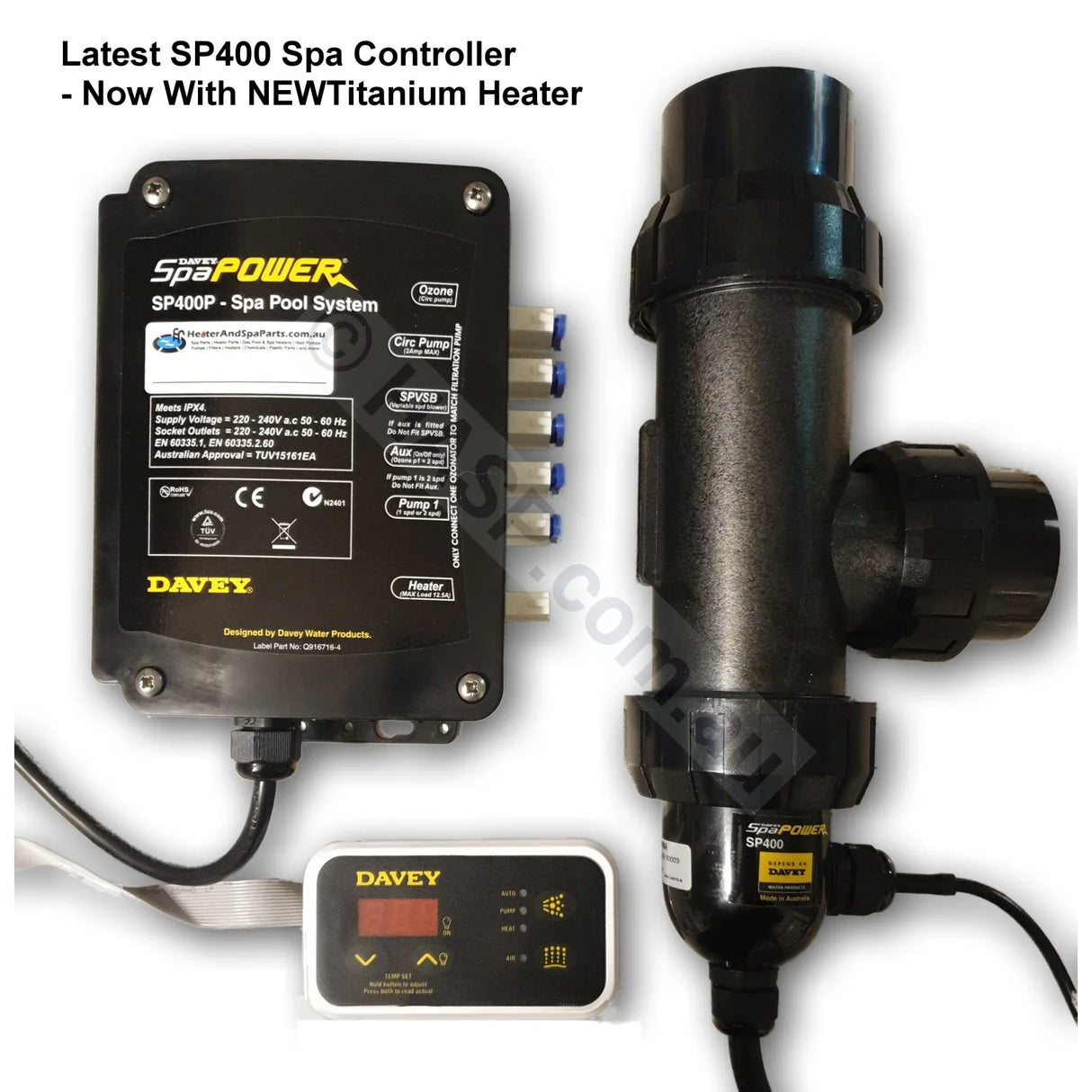

This is the latest version of the Davey Spa Power 400 SP400 Kit. New for 2019, it now comes with a Titanium Heater Element. SP400P. Comes with 1.5kW (10A) or 2.0kW (15A) heater. Uses the industry-standard AMP plugs.
Replaces: Older SP400, Spaquip / Aquaswim / Aquapacific Pulsar Series (1, 2, 3 and 4 button touchpads without displays), SQ1000, SQ1500 Series, and Monarch / Spaquip Intuitive Series (7 button touchpad with LED bar temp indicator display) spa control system replacement retrofit.
Straight replacement for Ampac Pulsar series and Intuitive series 1 x single speed pump and blower systems, or - with a new variable speed air blower you can use 2 x single speed pumps or a 2 speed pump. Does not require replumbing, but you may need an AMP plug & Crimper Kit.
1 x 1-speed pump w/ 1x Blower (old 3 speed blower will now operate at only 1x speed)
Will NOT suit replacement of Pulsar and 2095 series systems fitted with 2 pumps plus blower without also replacing the air blower with a special variable speed air blower at additional cost.
System configurations when replacing Pulsar or 2095 series controller and re-using existing pump(s) and blower:
1. One x single speed pump and air blower = single speed
2. Two x single speed pumps BUT new variable speed blower is required
3. One x 2 speed pump and variable speed blower
(when 2 single speed pumps or a 2 speed pump is used, the only blower that can be fitted is the SQ5602 variable speed air blower - no other blowers can connect)
Ampac Intl. Pulsar Aquaswim Aquapacific Intuitive spa control systems were invented and made in New Zealand before SpaQuip took them over. Then several years ago, Davey bough SpaQuip, discontinuing most parts. The SP400 was then made to replace the majority of the Ampac Pulsar systems.
