Description
Description

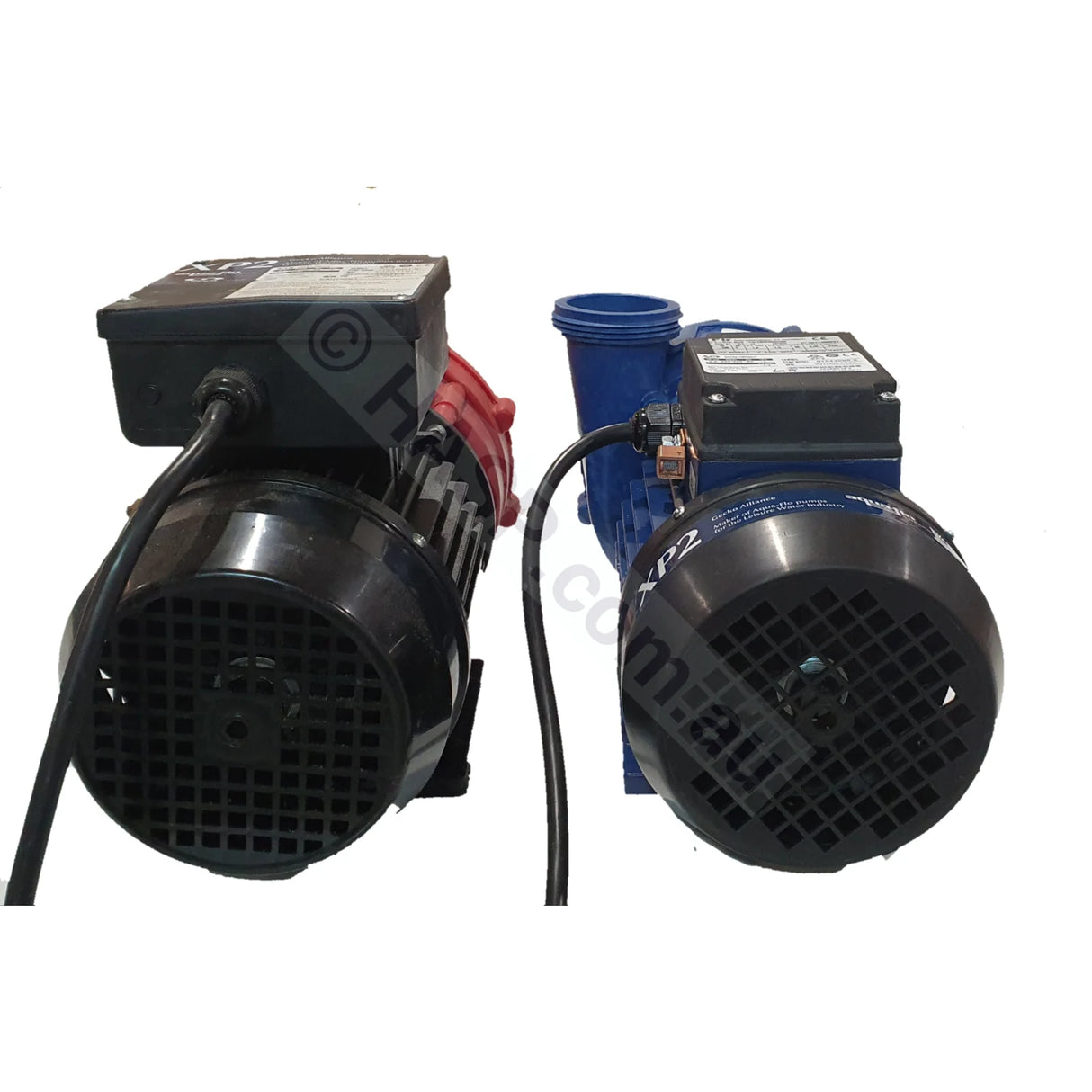

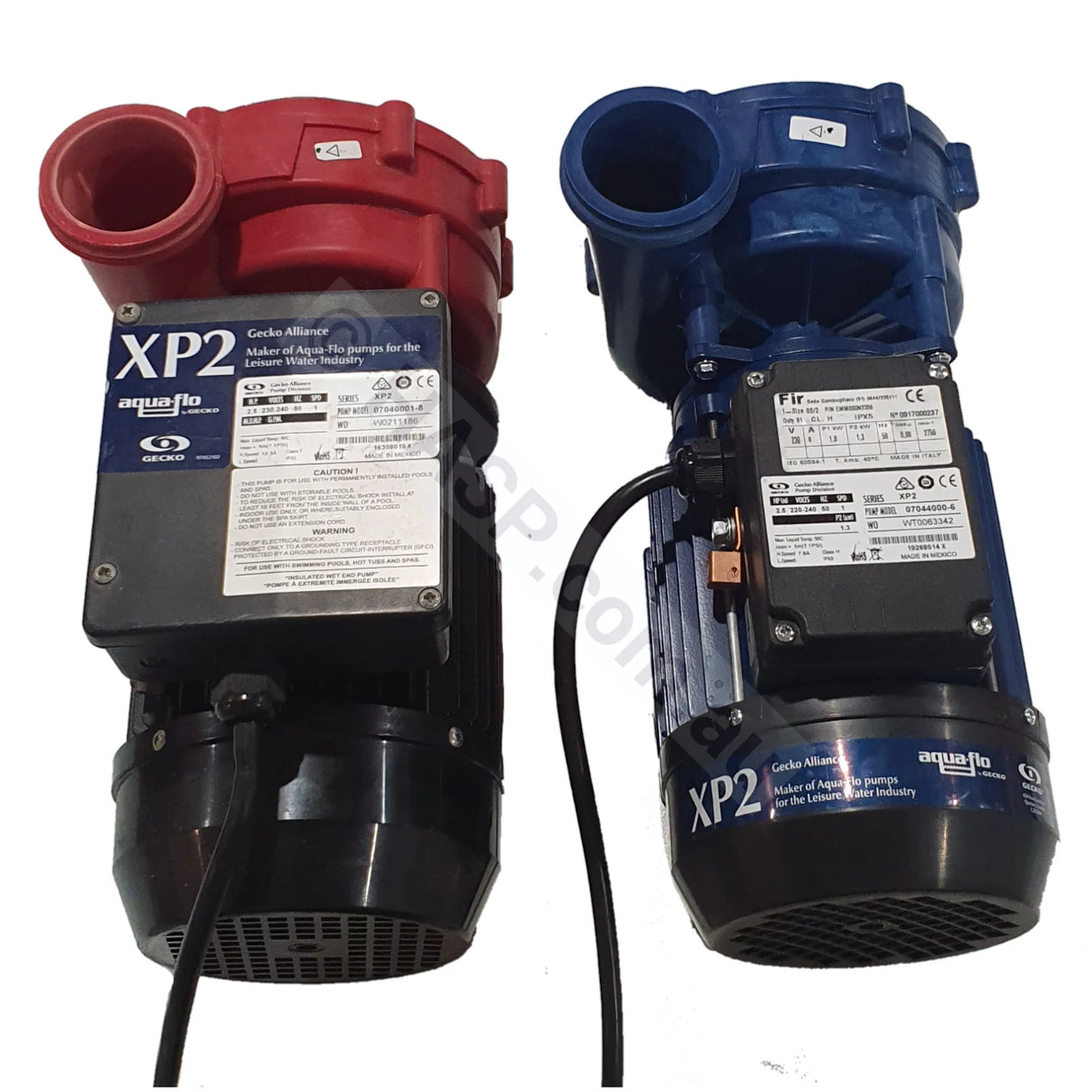

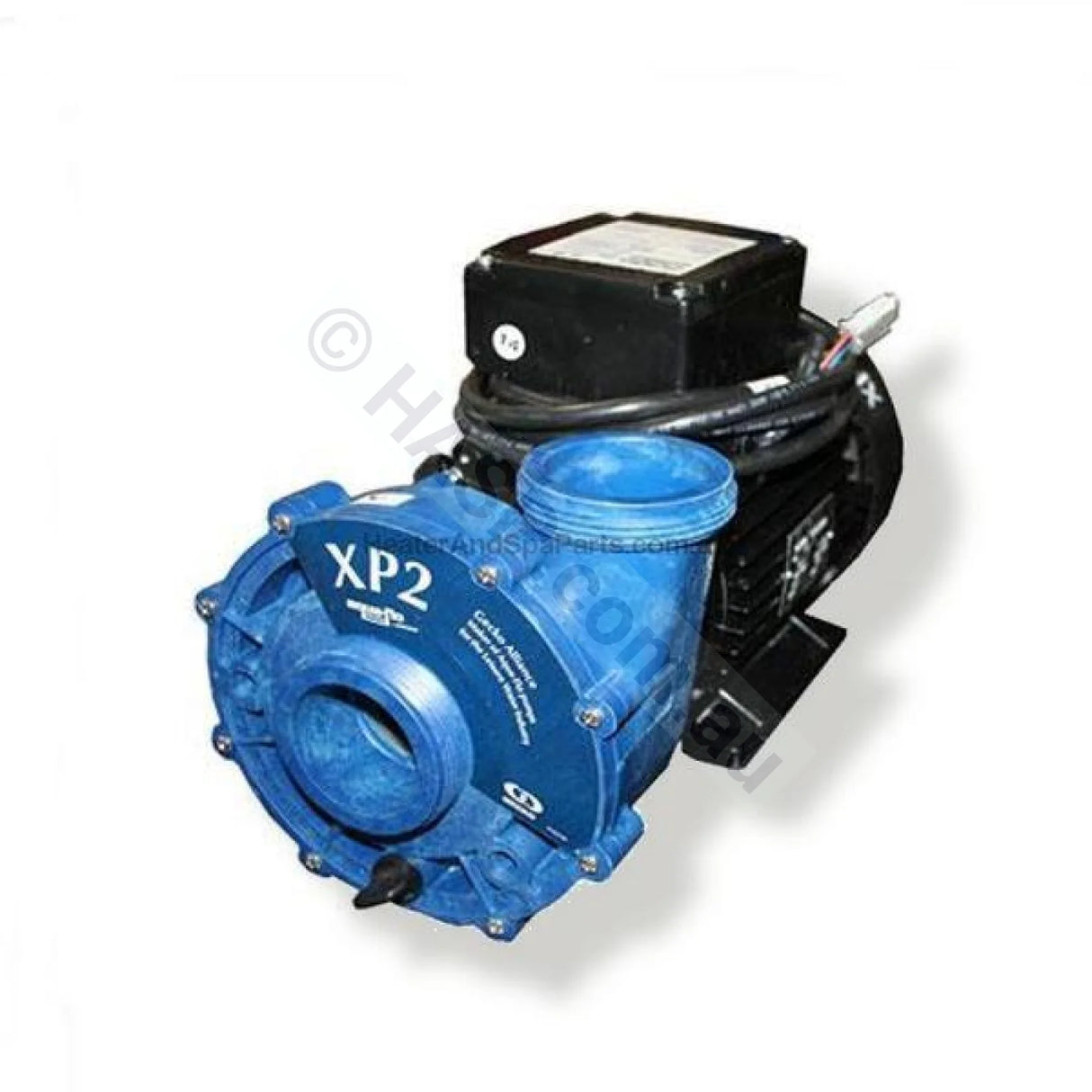

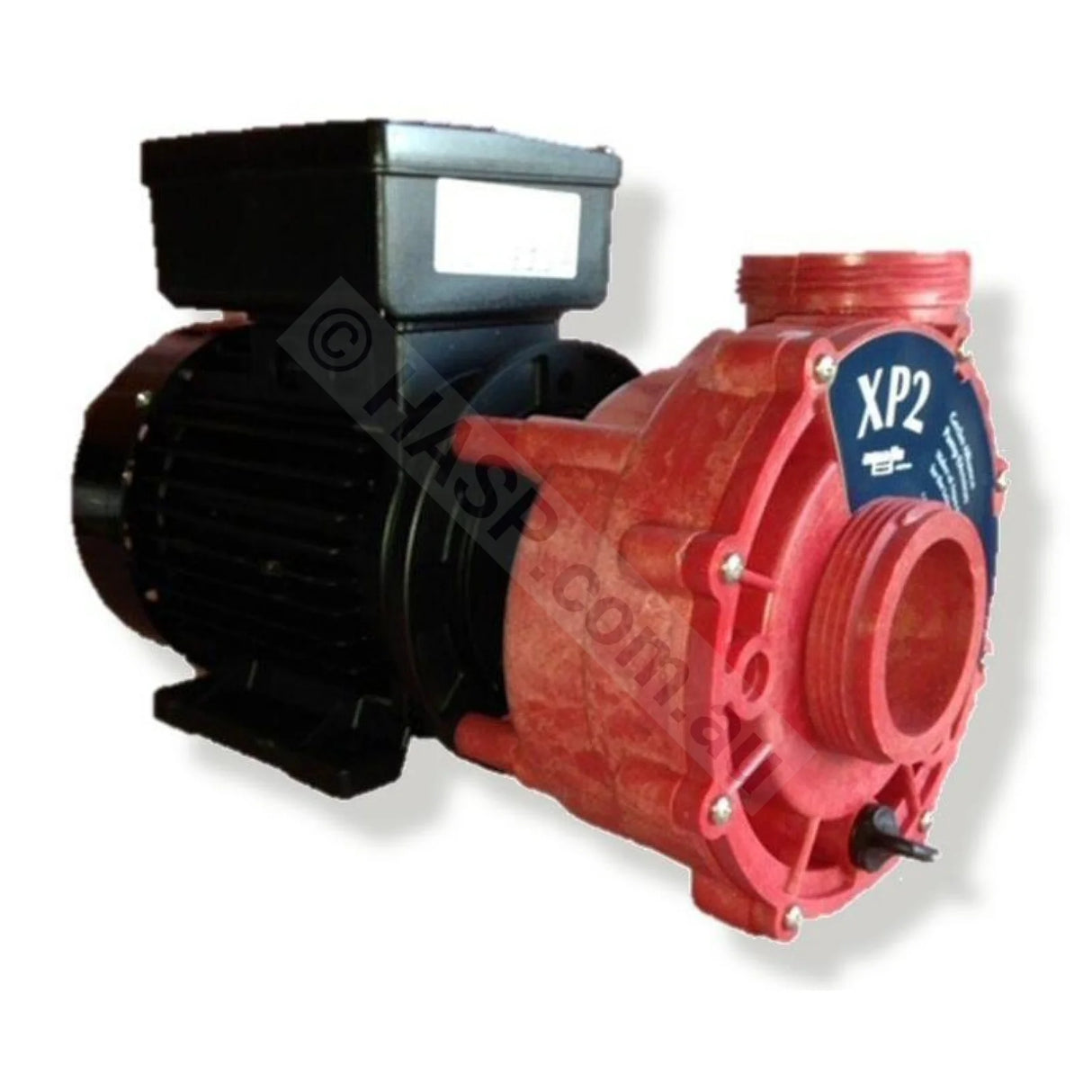

AquaFlo XP2 1 Speed 2.5HP Jet Booster Pump. Originally had a black wet-end. Some are sold with black, red, or blue wet-ends. This is by far the most common size on spas. Will have 3x wires going into the plug. If it has 4x wires going into the plug it will be a 2-speed pump.

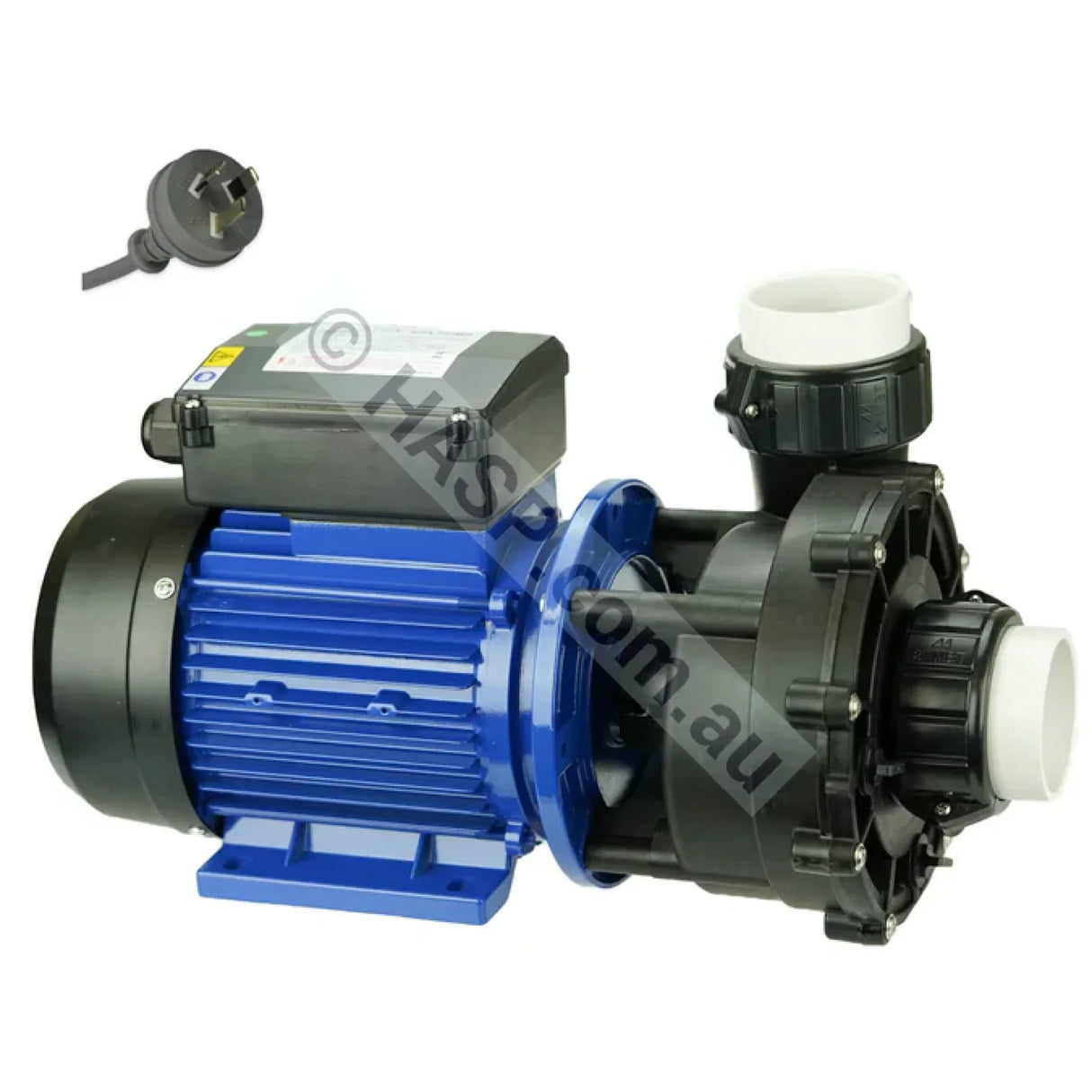

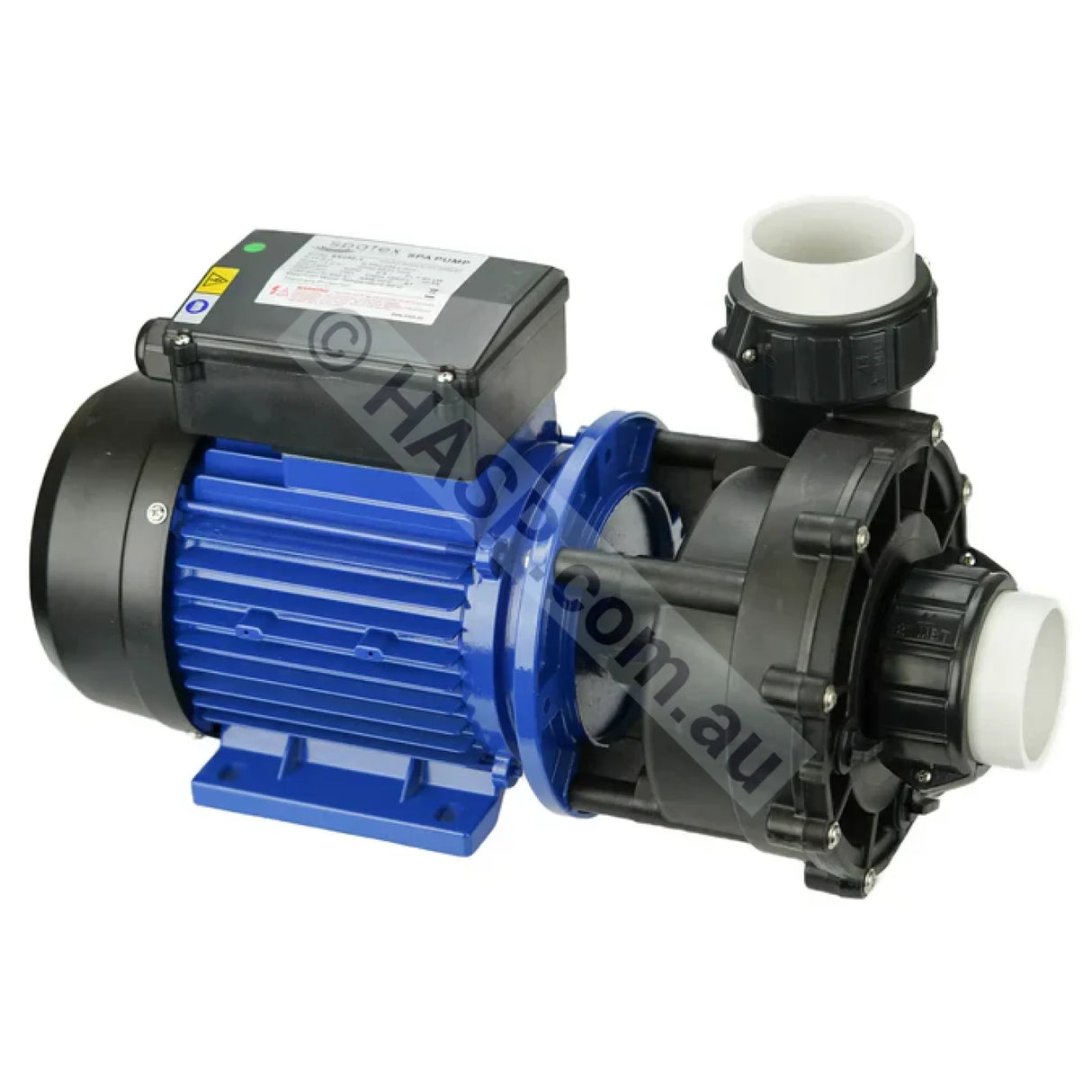

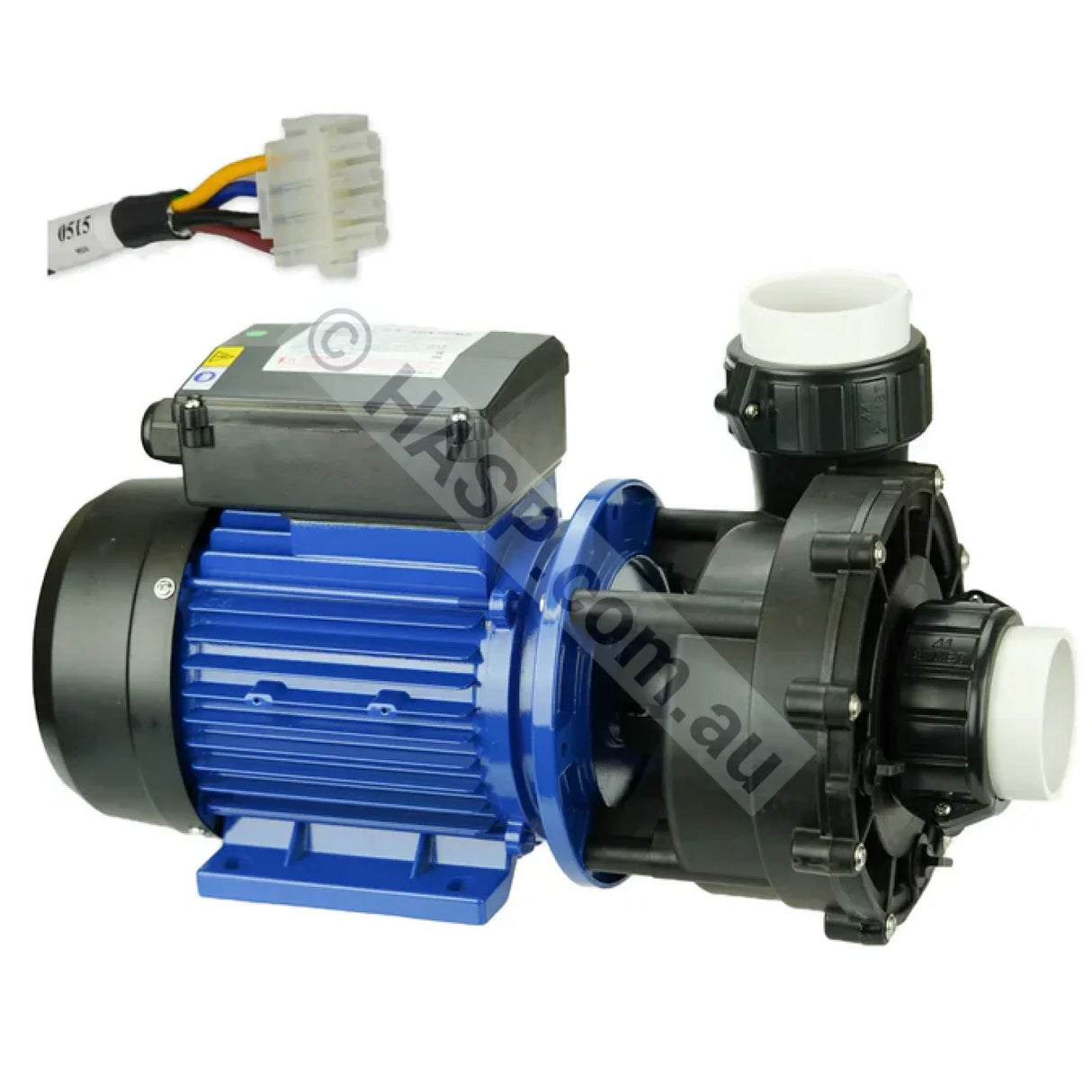

No Longer Available: Click Here for an alternative lower-cost pump with the Same Plumbing & Plug.
Used on almost all Spa Industries Spas, Signature Spas, Cyclone Spas, Bullfrog Spas, Leisurite Spas, Lanark Spas, Heritage Spas, H20 Spas, Jazzi Spas, Sapphire Spas, and many others!
Your old pump may have these numbers:
XP2-902513 M 93546590 No. 244802260507 A452X582A6100, XP2-802513, 93556590 (2.5HP). Pump Mod: 07040001-6, 07130002-6, 06025834-6, Code 03337, No G39H3720
Spa Industries APUM42152A is 2.5HP 1-Speed
- Supercedes all XP2 Pumps with the Century LASAR Pool/Spa Motor with AO Smith motors.
Specifications:
- Flo-master XP2
- 2.5HP - 1.9kW / 4.8BHP
- 50mm Std Fine Thread Unions
- EMG Elettromeccanica
- Length: 380mm / Width: 200mm / Height: 197-235mm
- 2"/50mm FBT Thread - measures ~78-79mm OD on pump
Notes about Horsepower Ratings:
- Some Spa Manufacturers use a complicated & confusing form of Horsepower measurement that was more commonly used in the USA, called hydraulic horsepower (HP=PSI*GPM/1714). It gives a more impressive appearance, and may give a false impression of performance.
- Standard Australian HP ratings are calculated purely on input power in Watts, which are then converted to HP. (1HP=745.7Watts).
- You can always measure (with an Amp Meter) the input current and convert back to real HP.
- Rough HP measurement can also be calculated using Ohm's Law (V=IR). These pumps also have an Amperage rating that can be roughly converted back to Watts, and then to Horsepower. The problem here, is some spa manufacturers used slightly misleading ratings here as well, eg, they'd use a locked-rotor Amperage draw, etc. You'll see how the Amperage ratings and the HP labels don't match up.
- Furthermore, HP ratings are not an ideal measurement of pump performance anyway! Pump flow curves, which measure flow per metre of head pressure are a far more reliable method of measuring pump performance, especially with the advent of variable-speed DC motors.
- Basically the labels can appear to be very different in regards to the pump's actual HP rating.
Examples: Some Balboa Pumps marked "4HP" is actually a 2HP pump in Australian terms. Some Aquaflo Pumps labelled as 4.8BHP are 2.5HP in Australian terms.
