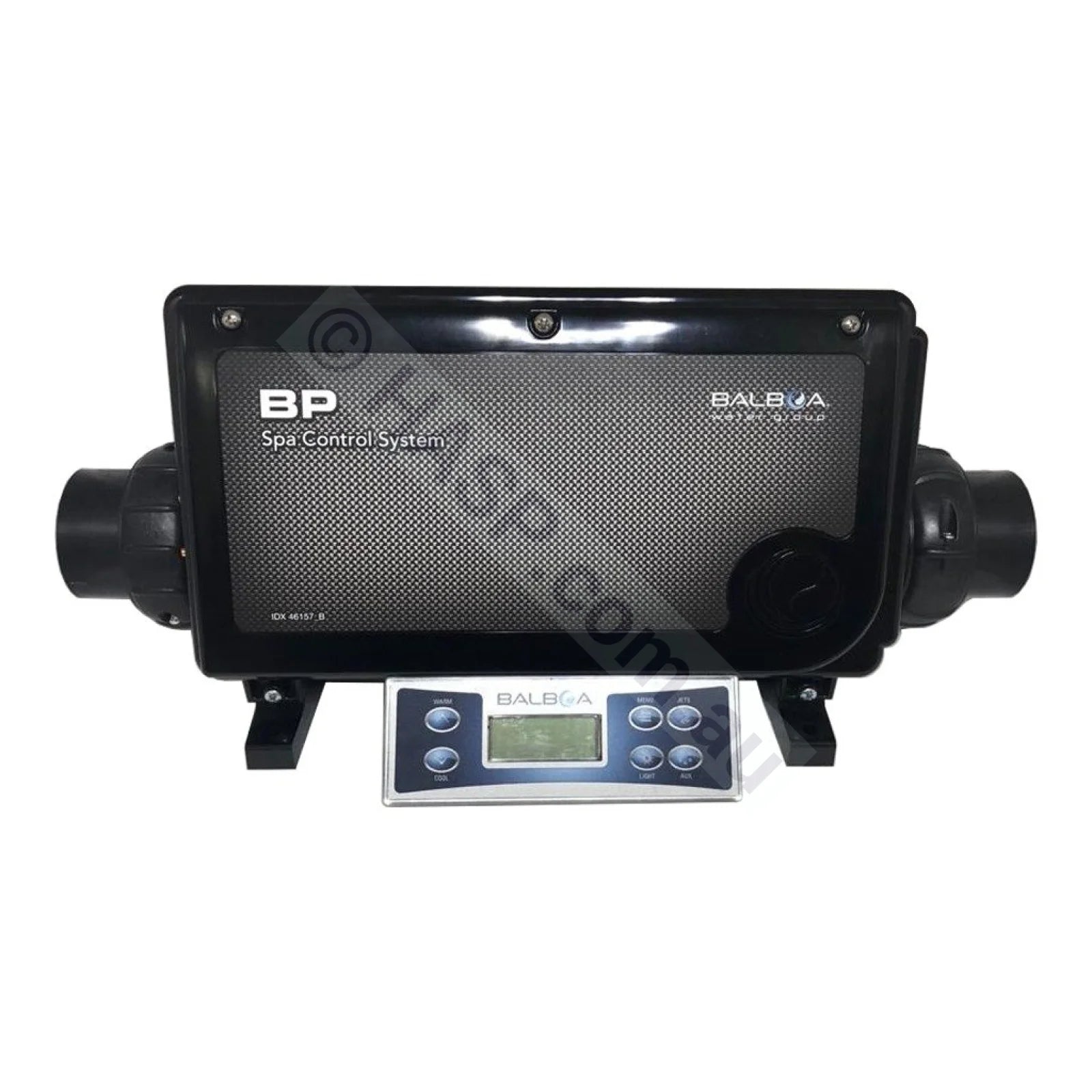

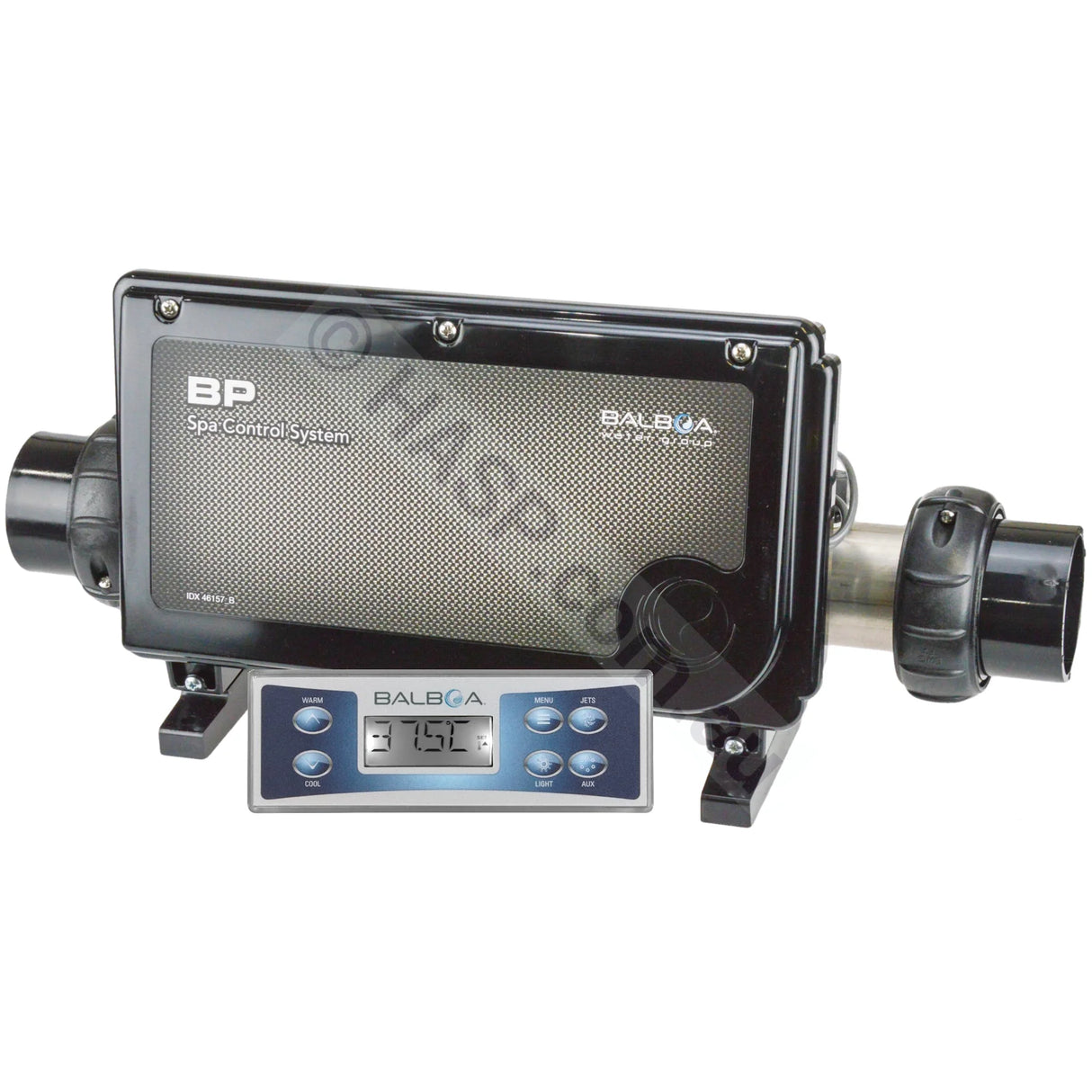

Balboa BP200G2 Spa Control System Kit - Retrofit
Balboa BP200G2 Spa Control System Kit - Retrofit - is backordered and will ship as soon as it is back in stock.
Special Introductory Price. The all NEW Balboa BP200. Retrofit system replaces dozens of older controllers. New for 2020. Smoothly integrates with bwa™, ControlMySpa™, bba™ and Balboa's Topside Panels. Balboa BP200 Spa Controller Kit. The best replacement for a Balboa GS501Z. Has a better touchpad, and the option to add WiFi worldwide control if you like.

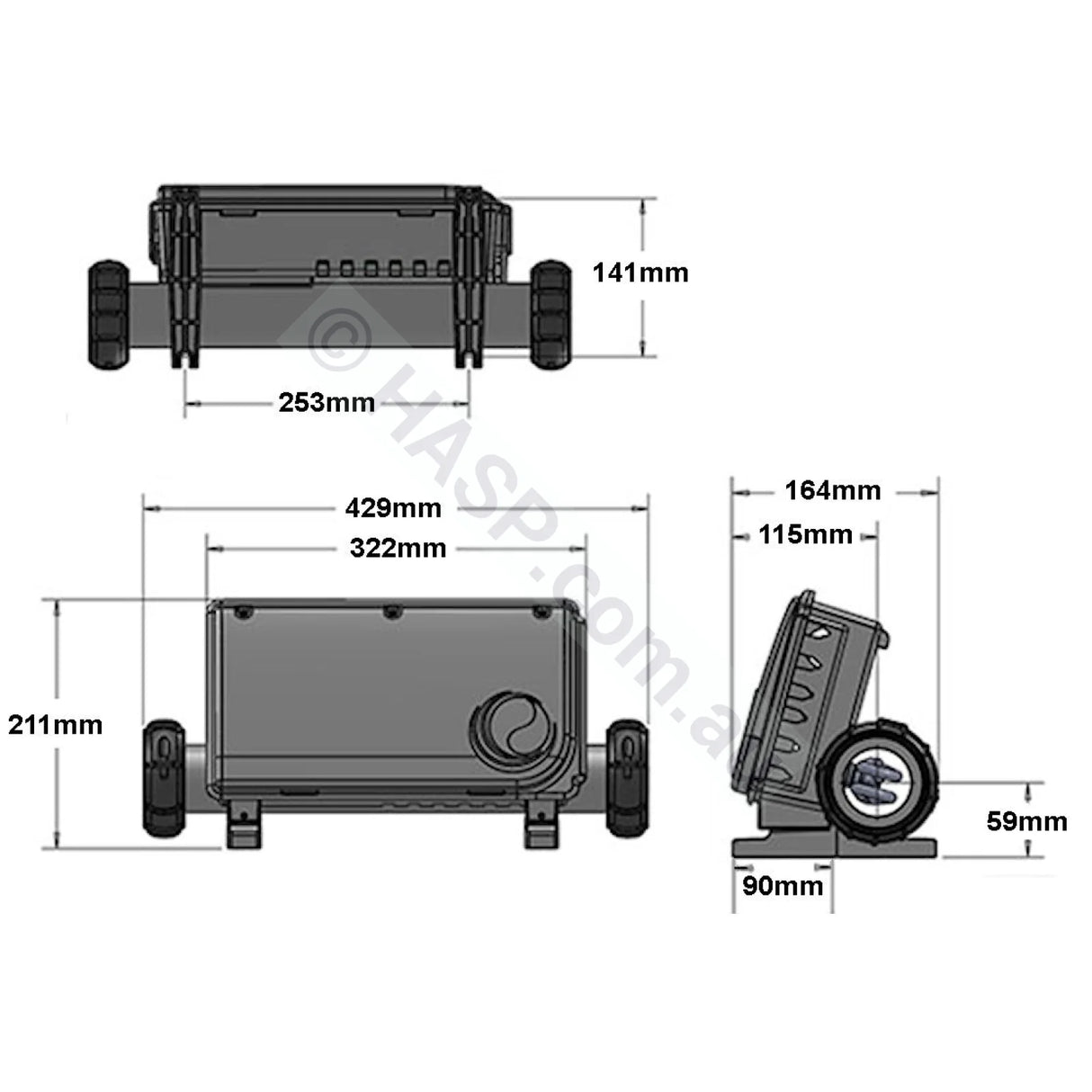

Dimensions:
- 205mm high
- 380mm wide (flange to flange)
- 160mm total depth. 90mm depth from the front of the pack to the tube/pipe. (This may be an issue if space is restrictive.)
The Balboa BP200 (G2) Can Control:
- 1 x Circ Pump (<2A) + 2 x Jet Pumps or + Light + Ozone (or)
- 1 x Circ Pump (<2A) + 1 x Jet Pump + 1 x Blower + Light + Ozone (or)
- 1 x 2-speed Pump + 1 Jet Pump + Light + Ozone (or)
- 1 x 2-speed Pump + Blower + Light + Ozone (or)
Key Points:
- Lowest cost entry level BP System
- Compact size with removable feet
- Attached or remote heater
- BP capable features

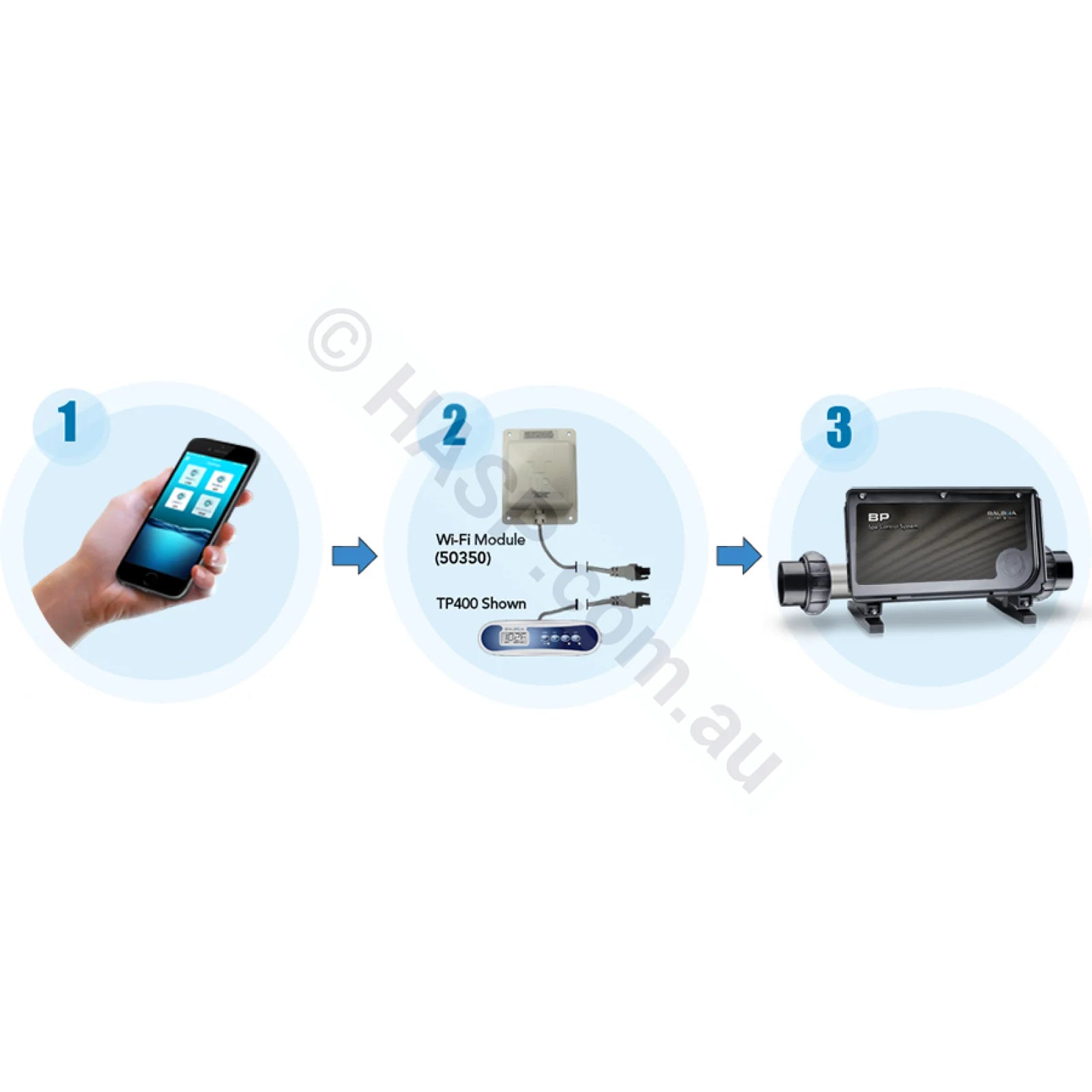

- WiFi (bwa™ & ControlMySpa™), Balboa Bluetooth Audio (bba™), Newest TP/SpaTouch™ Panels
- Can be customized to fit your needs
- BP100: North America. BP200: International
When replacing other control systems, check measurements to ensure the box will fit. The heater itself fits where most older Balboa, Gecko, Hydroquip heaters fitted.
Kit Comes with:
Installation:
- Must be fitted by qualified persons only
- Tech Sheet
In plumbing, named sizes are not the actual measurements. A pipe called “50mm” or “2"” does not measure 50 mm across. Instead, it follows nominal sizing, an internationally-standardised naming system.
Use the Outside Diameter (OD) to check your pipe against fittings. Below is a quick reference for common spa & pool pipe sizes:
| Imperial Name | Metric Name | Pipe Diameter (OD) |
|---|---|---|
| 1/2" | 15mm | ~21.2–21.5 mm |
| 3/4" | 20mm | ~26.6–26.9 mm |
| 1" | 25 mm | ~33.4–33.7 mm |
| 1.5" | 40 mm | ~48.1–48.4 mm |
| 2" | 50 mm | ~60.2–60.8 mm |
| 2.5" | 65 mm | ~75.2–75.5 mm |
These are nominal sizes and are designed to fit matching fittings — not to measure exactly what their name suggests. These are based on PVC Pressure Pipe AS/NZ 1477 Dimensions1.
- º Internal diameters vary slightly by manufacturer and class.
- 1 Not all pool/spa fittings match these dimensions exactly. Some do not follow Australian or international standards. Chinese spas may use proprietary fittings.
Understanding Plumbing Sizes & Nominal Measurements
Plumbing sizes can be confusing. PVC and many other pipe systems use nominal sizes—the size is a name, not the exact measured dimension. This convention is used across most pool and spa systems so that pipes and fittings remain compatible.
Why pipe sizes don’t match the measurements
The Nominal Pipe Size (NPS) system standardises pipe dimensions so that pipes, fittings, valves, and accessories interoperate. Plumbers work with these nominal names every day, but DIYers can be tripped up if they try to match by a tape-measure alone.
How to Measure Pipe Correctly
-
Pipe size is identified by:
- The pipe’s Outside Diameter (OD).
- The fitting’s Inside Diameter (ID) (socket opening).
- Pipe Class / Schedule (e.g., Class 9, 12, 18 or Sch 40) relates to wall thickness and therefore the Internal Diameter (ID) and pressure rating.
- The outside diameter of a fitting is not useful (wall thickness varies by manufacturer).
Hose & Tube Dimensions
Common flexible hose sizes used in pool/spa systems (approximate IDs).
| Imperial Name | Metric Name | Inside Diameter (ID) |
|---|---|---|
| 3/8" | 9–10 mm | ~9 mm |
| 3/4" | 19 mm | ~19 mm |
BSP – British Standard Pipe Thread Sizes
BSP thread names are also nominal. The thread OD will not equal the nominal name.
| BSP Thread Size Naming | Outside Diameter (mm / inch) | TPI |
|---|---|---|
| 1/16" BSP | 7.7 mm / 0.304" | 28 |
| 1/8" BSP | 9.7 mm / 0.383" | 28 |
| 1/4" BSP | 13.16 mm / 0.518" | 19 |
| 3/8" BSP | 16.66 mm / 0.656" | 19 |
| 1/2" BSP / 15 mm | 20.99 mm / 0.825" | 14 |
| 5/8" BSP | 22.99 mm / 0.902" | 14 |
| 3/4" BSP / 20 mm | 26.44 mm / 1.041" | 14 |
| 7/8" BSP | 30.20 mm / 1.189" | 14 |
| 1" BSP / 25 mm | 33.25 mm / 1.309" | 11 |
| 1-1/4" BSP | 41.91 mm / 1.650" | 11 |
| 1-1/2" BSP / 40 mm | 47.80 mm / 1.882" | 11 |
| 2" BSP / 50 mm | 59.61 mm / 2.347" | 11 |
| 2-1/4" BSP | 65.71 mm / 2.587" | 11 |
| 2-1/2" BSP | 75.18 mm / 2.960" | 11 |
| 3" BSP | 87.88 mm / 3.460" | 11 |
| 4" BSP | 113.03 mm / 4.450" | 11 |
| 5" BSP | 138.43 mm / 5.450" | 11 |
| 6" BSP | 163.83 mm / 6.450" | 11 |
