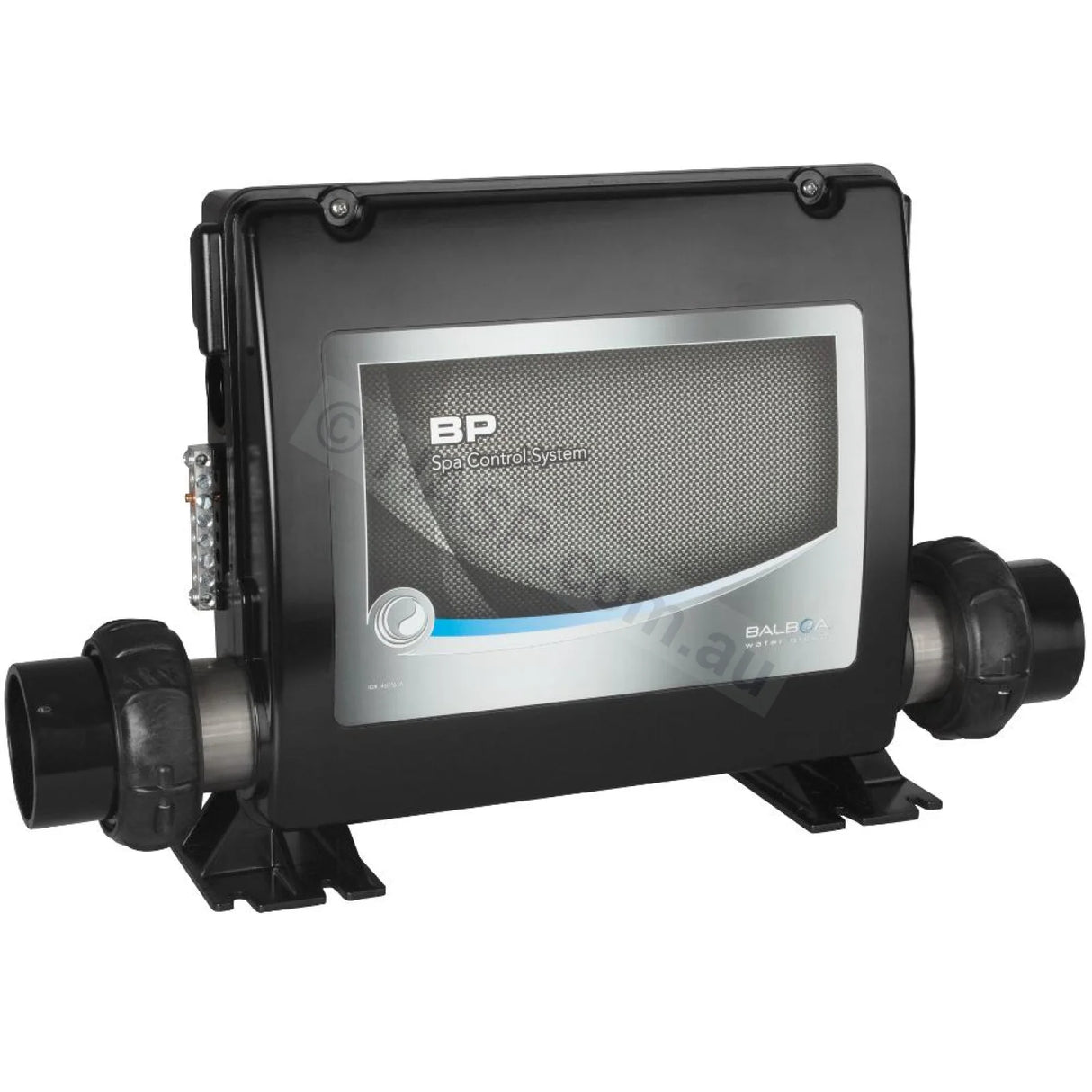

Balboa BP601. Supercedes Balboa Revolution Controllers. The BP601 G1/G2/G3 versions replaces all BP 501 & BP 601 controllers. Can also be used to replace many BP21 and other customer controllers made by Balboa.

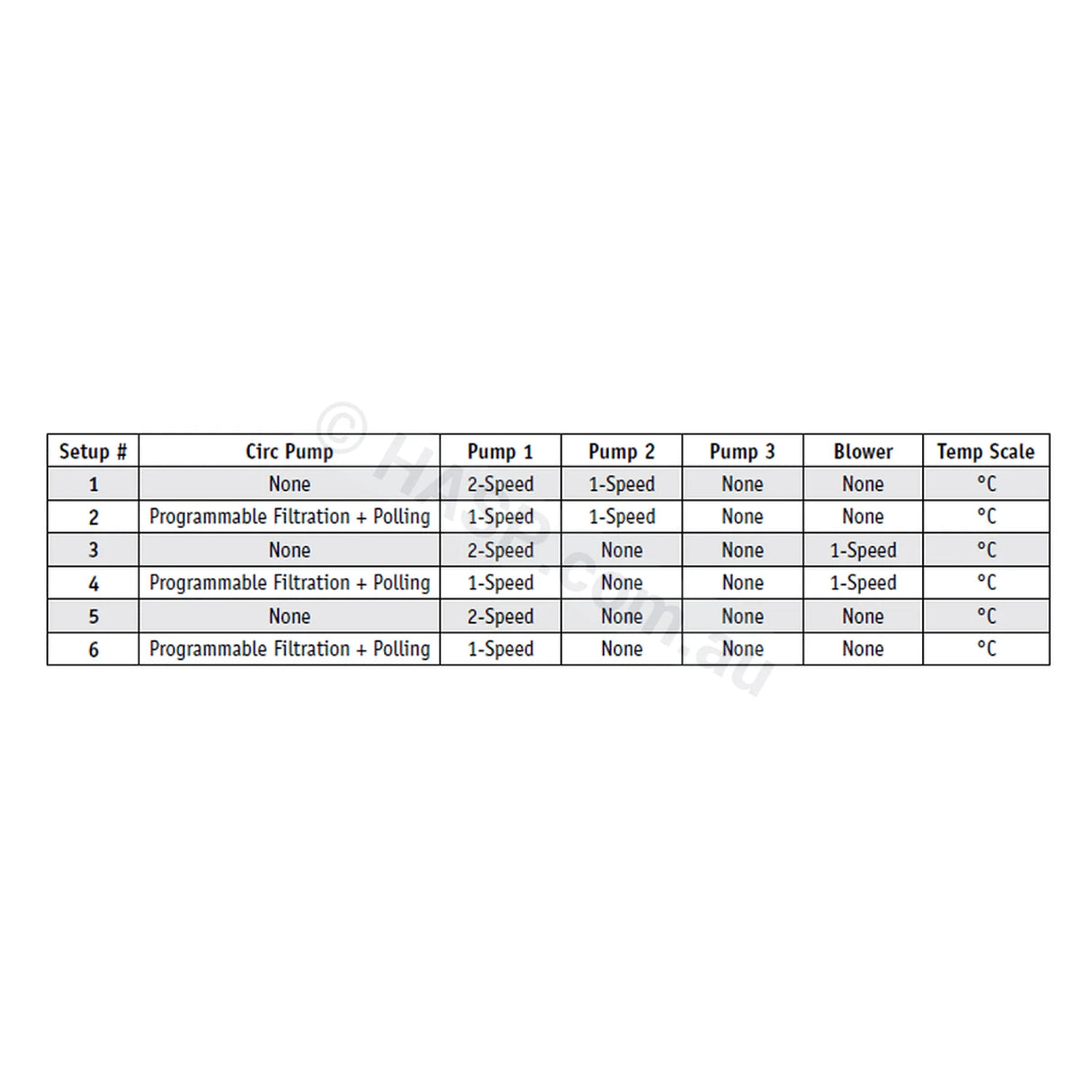

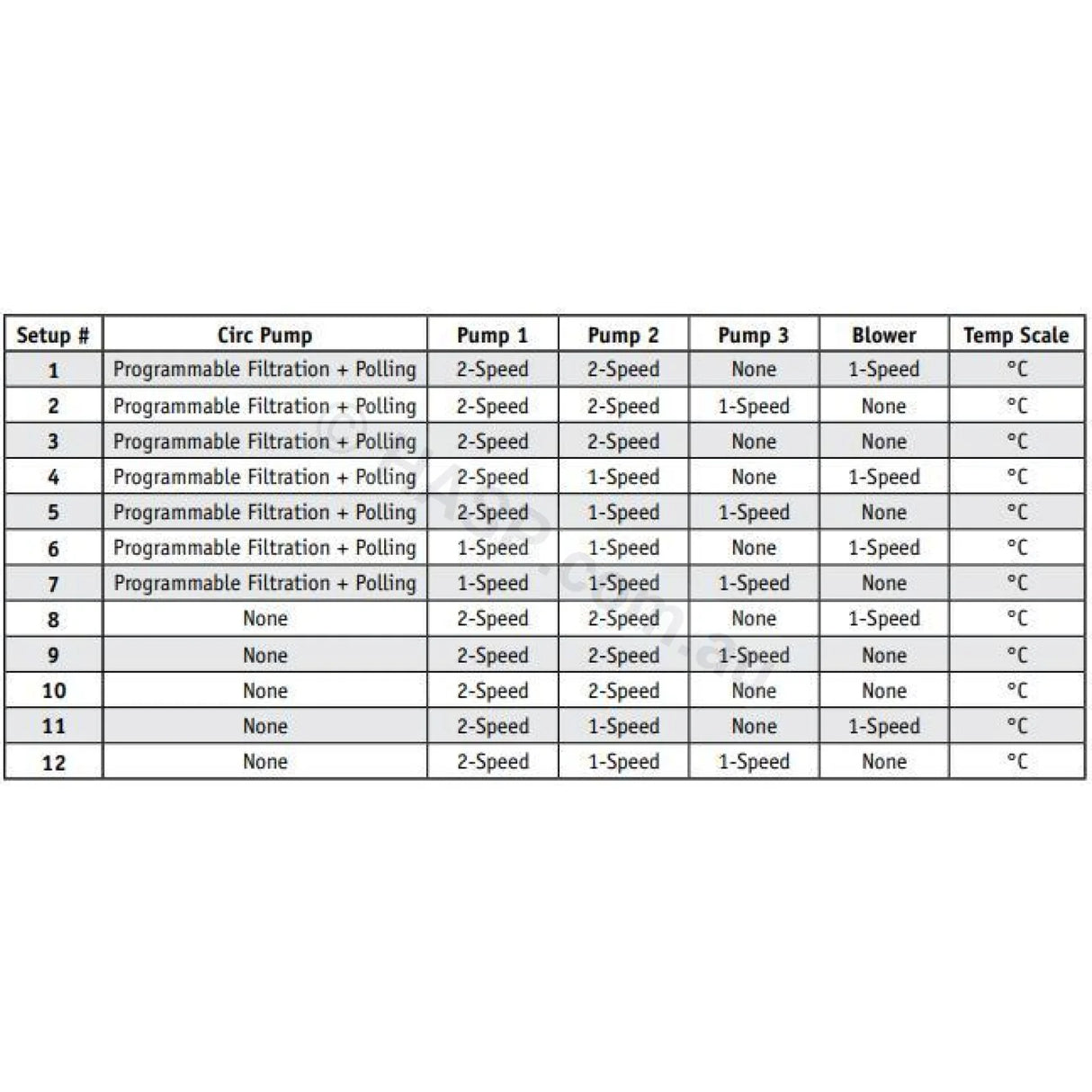

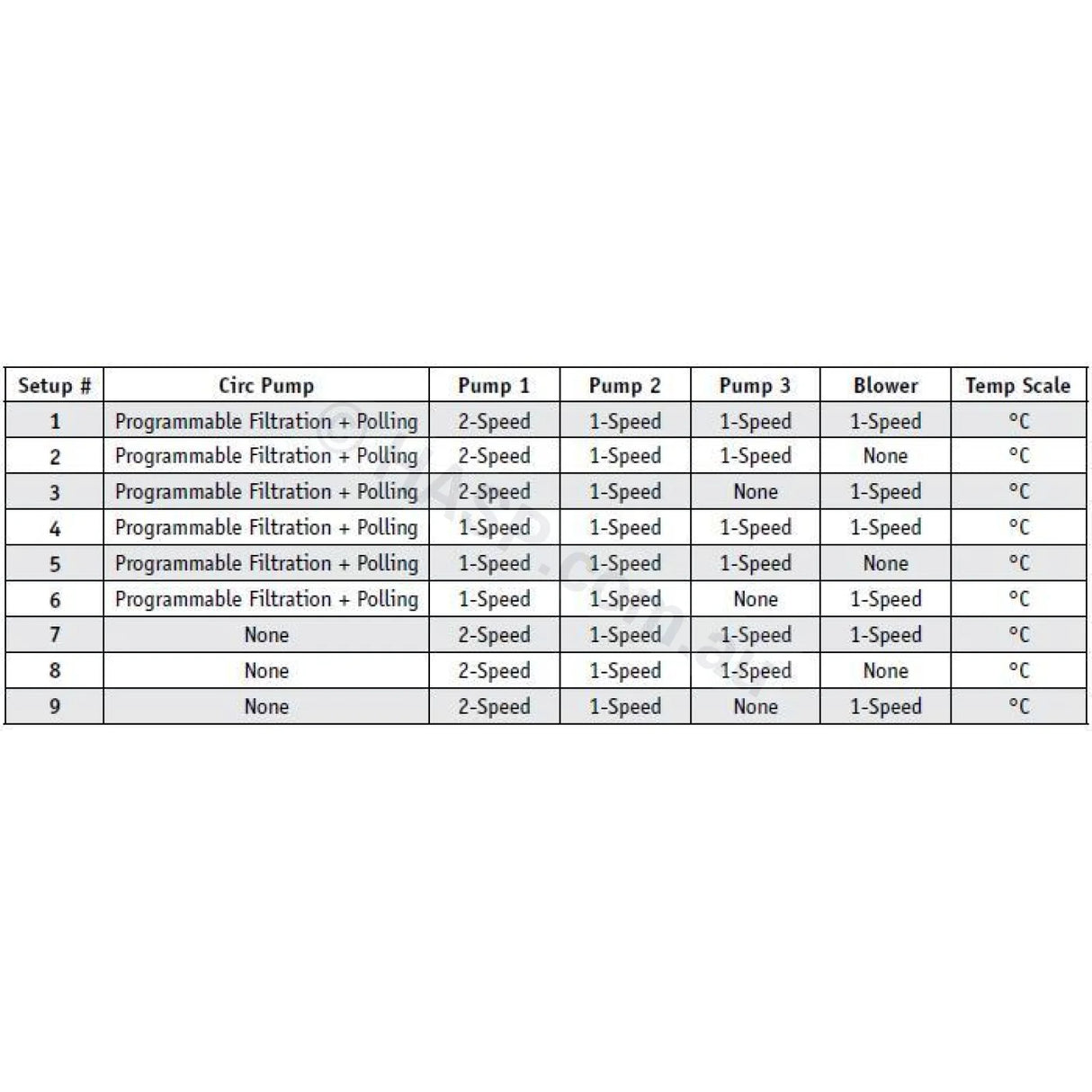

See the programming table for full details of what each model can cater to. Selecting a model in the variants section will change to it's programming table.
Does not come with touchpad. TP400, TP600, TP800, TP900, SpaTouch touchpads can be used with this controller.
BP601 G1:
- Touchpads: TP500 / TP500S / TP600 are ideal touchpads, but other TP series can be used.
- Technical Manual / Instruction / Info: BP601G1 Tech Sheet
BP601:
- Touchpads: TP800 is an ideal touchpad, but other TP series can be used.
- Technical Manual / Instruction / Info: BP602G2 Tech Sheet
The BP601G2 is the best Balboa Revolution replacement. Please note that if you have a TP400 touchpad, you will need to upgrade to a TP600 touchpad as well, in most cases.
BP601 G3:
- Touchpads: SpaTouch are ideal touchpads, but other TP series can be used.
- Technical Manual / Instruction / Info: BP601G3 Tech Sheet
Specifications:
- 490mm x 270mm x 90mm
- Heater: 3kW (M7)
- WiFi: Upgradeable
- Overheat Fault Detection for Runaway Pumps / Stuck Relays
-
Quick heater connect power plug
- Based on Balboa's most popular models
- Press & Hold Buttons for ease of use
Balboa listened and added the new BP501/601 to the popular BP Series of spa controls. Based on the BP500/600, this new model can run up to a 5.5 kW heater (60Hz systems), supports an expander card to run another pump and has multiple panel jacks on the main board.
Includes Balboa's patented overheat Fault Detection for runaway pumps or stuck relays. The new M7 Plus software design incorporates patented technology using a microprocessor to intelligently monitor the hot tub water temperature and detect a runaway pump or stuck relays. If detected, the system will automatically attempt to shut the power off to the tub to prevent any overheating by trying to trip the GFCI in the circuit (per electrical codes). (BP501 only).

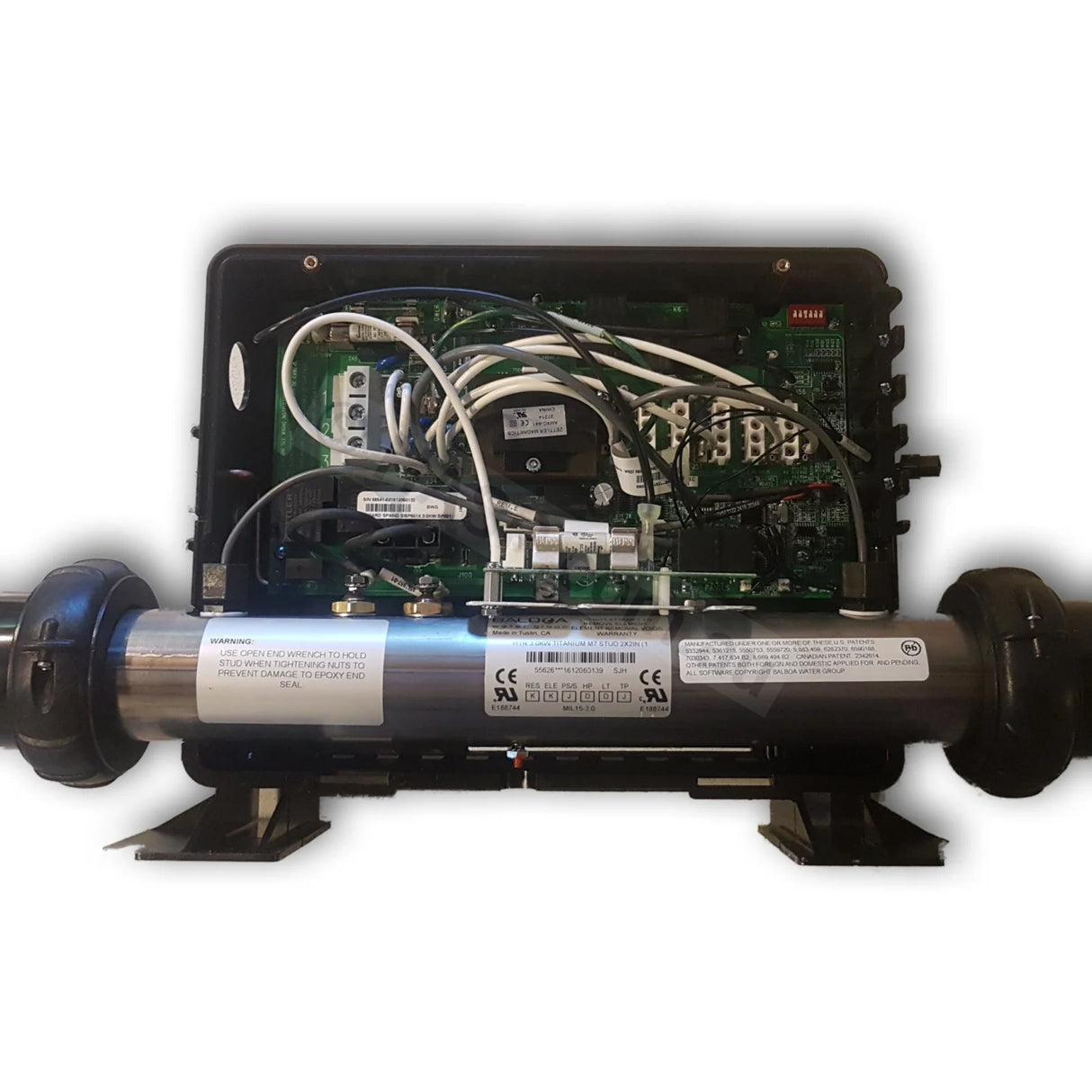

For serviceability, the new BP501/BP601 systems include a new single board configuration and have Balboa’s new quick connect heater system – no more removing heater straps, just unplug the old heater and plug in a new one.
Part Numbers: BP6013G1 BP6013G2 BP6013G3 ACONBP6013
In plumbing, named sizes are not the actual measurements. A pipe called “50mm” or “2"” does not measure 50 mm across. Instead, it follows nominal sizing, an internationally-standardised naming system.
Use the Outside Diameter (OD) to check your pipe against fittings. Below is a quick reference for common spa & pool pipe sizes:
| Imperial Name | Metric Name | Pipe Diameter (OD) |
|---|---|---|
| 1" | 25 mm | ~33.4–33.7 mm |
| 1.5" | 40 mm | ~48.1–48.4 mm |
| 2" | 50 mm | ~60.2–60.5 mm |
| 2.5" | 65 mm | ~75.2–75.5 mm |
These are nominal sizes and are designed to fit matching fittings — not to measure exactly what their name suggests.
Understanding Plumbing Sizes & Nominal Measurements
Plumbing sizes can be confusing. PVC and many other pipe systems use nominal sizes—the size is a name, not the exact measured dimension. This convention is used across most pool and spa systems so that pipes and fittings remain compatible.
Why pipe sizes don’t match the measurements
The Nominal Pipe Size (NPS) system standardises pipe dimensions so that pipes, fittings, valves, and accessories interoperate. Plumbers work with these nominal names every day, but DIYers can be tripped up if they try to match by a tape-measure alone.
How to Measure Pipe Correctly
-
Pipe size is identified by:
- The pipe’s Outside Diameter (OD).
- The fitting’s Inside Diameter (ID) (socket opening).
- Pipe Class / Schedule (e.g., Class 9, 12, 18 or Sch 40) relates to wall thickness and therefore the Internal Diameter (ID) and pressure rating.
- The outside diameter of a fitting is not useful (wall thickness varies by manufacturer).
PVC Pressure Pipe AS/NZ 1477 Dimensions1:
Common nominal sizes with typical outside diameters and indicative inside diameters by class.
| Imperial Name | Metric Name | Outside Diameter (OD) | Class 9 IDº | Class 12 IDº | Class 18 IDº |
|---|---|---|---|---|---|
| 1/2" | 15 mm | ~21.2–21.5 mm | 18.3 mm | 17.8 mm | |
| 3/4" | 20 mm | ~26.6–26.9 mm | 23.7 mm | 22.4 mm | |
| 1" | 25 mm | ~33.4–33.7 mm | 30.5 mm | 29.8 mm | 28.1 mm |
| 32 mm | ~42.1–42.4 mm | 38.5 mm | 37.5 mm | 35.4 mm | |
| 1.5" | 40 mm | ~48.1–48.4 mm | 45.2 mm | 44.1 mm | 42.8 mm |
| 2" | 50 mm | ~60.2–60.5 mm | 55.2 mm | 53.7 mm | 50.5 mm |
| 65 mm | ~75.2–75.5 mm | 68.9 mm | 67.0 mm | 63.2 mm | |
| 2.5" | ~73 mm |
- º Internal diameters vary slightly by manufacturer and class.
- 1 Not all pool/spa fittings match these dimensions exactly. Some do not follow Australian or international standards. Chinese spas may use proprietary fittings.
Hose & Tube Dimensions
Common flexible hose sizes used in pool/spa systems (approximate IDs).
| Imperial Name | Metric Name | Inside Diameter (ID) |
|---|---|---|
| 3/8" | 9–10 mm | ~9 mm |
| 3/4" | 19 mm | ~19 mm |
BSP – British Standard Pipe Thread Sizes
BSP thread names are also nominal. The thread OD will not equal the nominal name.
| BSP Thread Size Naming | Outside Diameter (mm / inch) | TPI |
|---|---|---|
| 1/16" BSP | 7.7 mm / 0.304" | 28 |
| 1/8" BSP | 9.7 mm / 0.383" | 28 |
| 1/4" BSP | 13.16 mm / 0.518" | 19 |
| 3/8" BSP | 16.66 mm / 0.656" | 19 |
| 1/2" BSP / 15 mm | 20.99 mm / 0.825" | 14 |
| 5/8" BSP | 22.99 mm / 0.902" | 14 |
| 3/4" BSP / 20 mm | 26.44 mm / 1.041" | 14 |
| 7/8" BSP | 30.20 mm / 1.189" | 14 |
| 1" BSP / 25 mm | 33.25 mm / 1.309" | 11 |
| 1-1/4" BSP | 41.91 mm / 1.650" | 11 |
| 1-1/2" BSP / 40 mm | 47.80 mm / 1.882" | 11 |
| 2" BSP / 50 mm | 59.61 mm / 2.347" | 11 |
| 2-1/4" BSP | 65.71 mm / 2.587" | 11 |
| 2-1/2" BSP | 75.18 mm / 2.960" | 11 |
| 3" BSP | 87.88 mm / 3.460" | 11 |
| 4" BSP | 113.03 mm / 4.450" | 11 |
| 5" BSP | 138.43 mm / 5.450" | 11 |
| 6" BSP | 163.83 mm / 6.450" | 11 |
