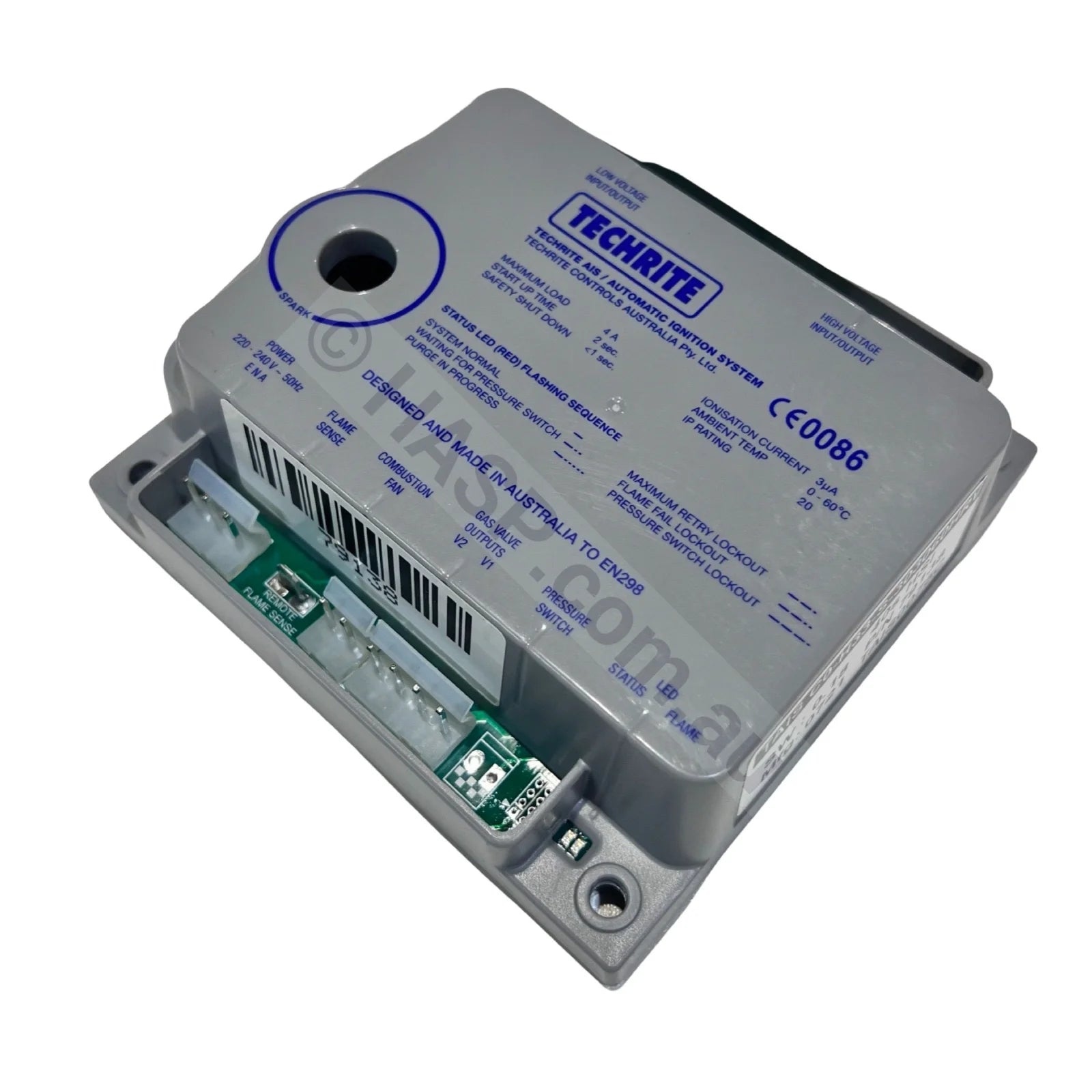

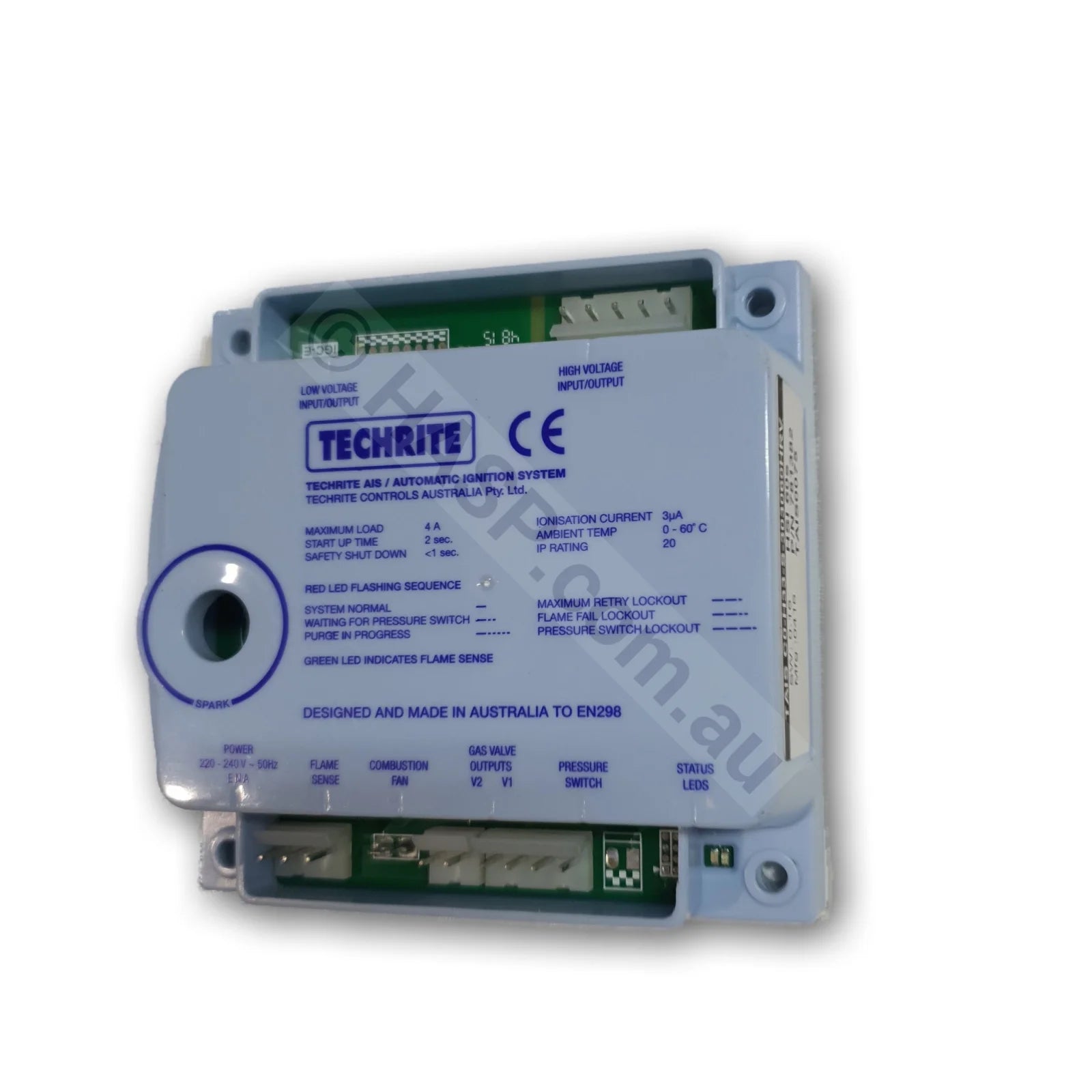

Astralpool Viron eVo / ICI HSI Ignition Module - Techrite Astralpool Fluidra
Ignition control module for Viron eVo and ICI gas pool and spa heaters from Astralpool Fluidra. Suits most Viron eVo heaters built after 2012. Do not confuse with Spark or Pilot control modules.
- Physically Stocked, unlike most "drop-shipping" websites.
- Shipped from VIC, NSW, WA, QLD
- Suits Viron 250, 350, 450, ICI 200, ICI 400.
- Does not suit HiNRG. - HiNRG Module here.
- Originally Blue, then Grey, and now Beige in color.
Ensure you have the correct diagnosis and you are ordering correctly. These items cannot be returned for change of mind.
This OneSuits Newer Astralpool Gas Heaters:
ICI 200, ICI 400, Viron eVo 250, Viron eVo 350, Viron eVo 400, Viron eVo 450, Viron eVo 550
This is the "HSI" Hot Surface Ignition Version for heaters with a Graphite Sinitride ignitor
Techrite AIS / Automatic Ignition System
- Max Load: 4A
- Ionization Current: 3uA
- Startup Time: 2 sec
- Safety Shutdown: <1 sec
- Ambient Temp: 0-60C
- IP Rating: 20
- Warranty: 6 months. Excludes damage from overheating.
781382(obsolete), now 79138 or SP79138
Manufacturer Catalogues, Diagrams & Part Numbers
Need exploded views, spare part numbers, product numbers, diagrams, or more product information? See the manufacturer catalogues: Astralpool Catalogue 2026 | Zodiac Catalogue 2026
Important Before Ordering: Please ensure you order correctly. Confirm this product is suitable before ordering. Use the catalogues above, seek professional assistance, or contact us with photos of your existing part, model details, serial numbers, and any labels.
As with all products, these must be diagnosed and fitted by a qualified and experienced person. This is a special-order item & cannot be returned for change of mind.
In plumbing, named sizes are not the actual measurements. A pipe called “50mm” or “2"” does not measure 50 mm across. Instead, it follows nominal sizing, an internationally-standardised naming system.
Use the Outside Diameter (OD) to check your pipe against fittings. Below is a quick reference for common spa & pool pipe sizes:
| Imperial Name | Metric Name | Pipe Diameter (OD) |
|---|---|---|
| 1/2" | 15mm | ~21.2–21.5 mm |
| 3/4" | 20mm | ~26.6–26.9 mm |
| 1" | 25 mm | ~33.4–33.7 mm |
| 1.5" | 40 mm | ~48.1–48.4 mm |
| 2" | 50 mm | ~60.2–60.8 mm |
| 2.5" | 65 mm | ~75.2–75.5 mm |
These are nominal sizes and are designed to fit matching fittings — not to measure exactly what their name suggests. These are based on PVC Pressure Pipe AS/NZ 1477 Dimensions1.
- º Internal diameters vary slightly by manufacturer and class.
- 1 Not all pool/spa fittings match these dimensions exactly. Some do not follow Australian or international standards. Chinese spas may use proprietary fittings.
Understanding Plumbing Sizes & Nominal Measurements
Plumbing sizes can be confusing. PVC and many other pipe systems use nominal sizes—the size is a name, not the exact measured dimension. This convention is used across most pool and spa systems so that pipes and fittings remain compatible.
Why pipe sizes don’t match the measurements
The Nominal Pipe Size (NPS) system standardises pipe dimensions so that pipes, fittings, valves, and accessories interoperate. Plumbers work with these nominal names every day, but DIYers can be tripped up if they try to match by a tape-measure alone.
How to Measure Pipe Correctly
-
Pipe size is identified by:
- The pipe’s Outside Diameter (OD).
- The fitting’s Inside Diameter (ID) (socket opening).
- Pipe Class / Schedule (e.g., Class 9, 12, 18 or Sch 40) relates to wall thickness and therefore the Internal Diameter (ID) and pressure rating.
- The outside diameter of a fitting is not useful (wall thickness varies by manufacturer).
Hose & Tube Dimensions
Common flexible hose sizes used in pool/spa systems (approximate IDs).
| Imperial Name | Metric Name | Inside Diameter (ID) |
|---|---|---|
| 3/8" | 9–10 mm | ~9 mm |
| 3/4" | 19 mm | ~19 mm |
BSP – British Standard Pipe Thread Sizes
BSP thread names are also nominal. The thread OD will not equal the nominal name.
| BSP Thread Size Naming | Outside Diameter (mm / inch) | TPI |
|---|---|---|
| 1/16" BSP | 7.7 mm / 0.304" | 28 |
| 1/8" BSP | 9.7 mm / 0.383" | 28 |
| 1/4" BSP | 13.16 mm / 0.518" | 19 |
| 3/8" BSP | 16.66 mm / 0.656" | 19 |
| 1/2" BSP / 15 mm | 20.99 mm / 0.825" | 14 |
| 5/8" BSP | 22.99 mm / 0.902" | 14 |
| 3/4" BSP / 20 mm | 26.44 mm / 1.041" | 14 |
| 7/8" BSP | 30.20 mm / 1.189" | 14 |
| 1" BSP / 25 mm | 33.25 mm / 1.309" | 11 |
| 1-1/4" BSP | 41.91 mm / 1.650" | 11 |
| 1-1/2" BSP / 40 mm | 47.80 mm / 1.882" | 11 |
| 2" BSP / 50 mm | 59.61 mm / 2.347" | 11 |
| 2-1/4" BSP | 65.71 mm / 2.587" | 11 |
| 2-1/2" BSP | 75.18 mm / 2.960" | 11 |
| 3" BSP | 87.88 mm / 3.460" | 11 |
| 4" BSP | 113.03 mm / 4.450" | 11 |
| 5" BSP | 138.43 mm / 5.450" | 11 |
| 6" BSP | 163.83 mm / 6.450" | 11 |
