Davey SpaQuip Spa Power 400 SP400 Control System - Obsolete (No Longer Available)

This product is no longer available.

Scroll down for replacement options and more information.

Description

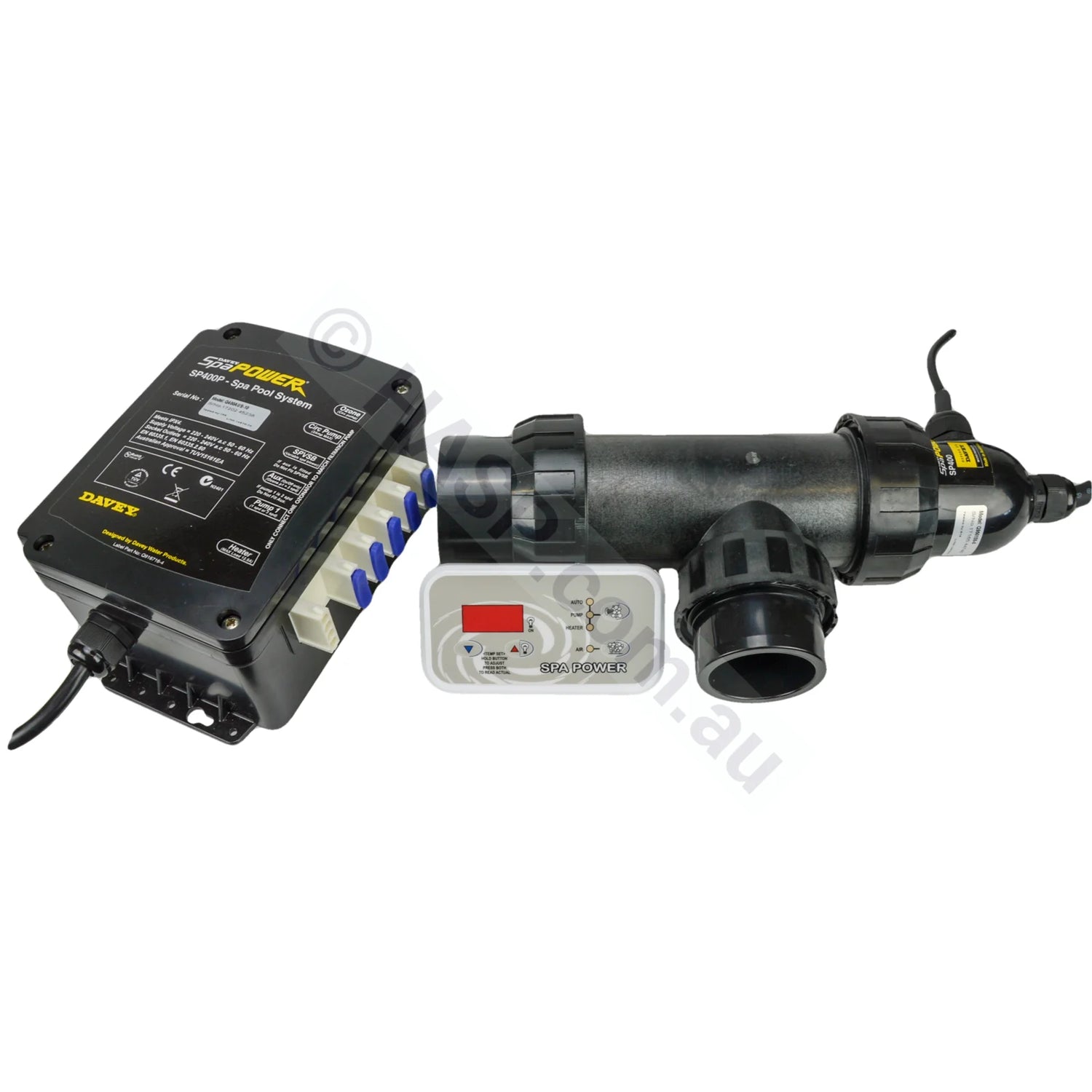

Davey Spa-quip (SpaQuip) Spa Power 400 SP400 Control System - Obsolete (No Longer Available)

Obsolete - No Longer Available. We suggest upgrading to Spanet Mini 1 listed here. Will require replumbing and hard-wiring changes.

Archived Information:

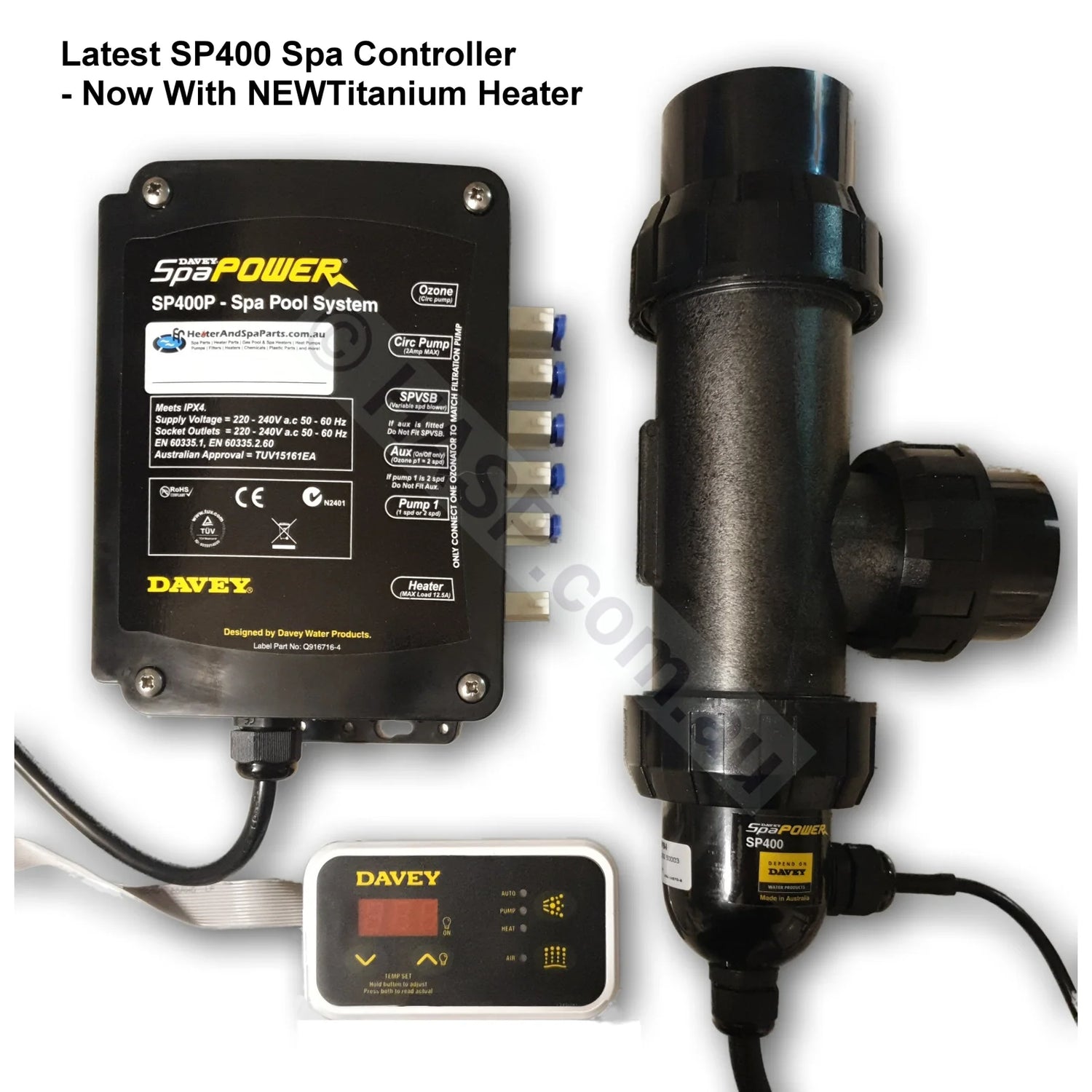

This is the latest version of the Davey Spa Power 400 SP 400 Kit. Last models came with a Titanium Heater Element. SP400P. Available with 1.5kW (10A) or 2.0kW (15A) heater. Uses industry-standard AMP plugs.

Replaces older Spa Power 400, Spa-quip / Aquaswim / Aquapacific Pulsar Series (1, 2, 3 and 4 button touchpads without displays), SQ1000, SQ1500 Series, and Monarch / Spa-quip Intuitive Series (7 button touchpad with LED bar temp indicator display) spa control system replacement retrofit.
Straight (no-plumbing) replacement for Ampac Pulsar series and Intuitive series. See Options below & ensure you order the correct kit. Does not require replumbing.

Options for Equipment:

Ensure this will work with your system, as Ampac/Pulsar had many variations. Remember that when upgrading from Ampac/Pulsar system, your leads will need to be changed to the AMP-style overmoulded leads.

  • Option 1: 1 x 1-speed pump plus 1 x Blower
  • Option 2: 1 x 2-speed pump plus 1 x Blower (must use Variable Speed Blower)
  • Option 3: 2 x 1-Speed Pumps
  • Other Options: If you have more than above, we suggest opgrading to the Spanet Mini 2 (requires re-plumbing)

About the Versions:

  • 10A version comes with a 10A lead & 1.5kW element, leaving 3-4A to use on up to a 1HP pump. Allows a total load of 10A.
  • 15A version comes with a 15A lead & 2.0kW element, leaving 6-7A to use on either a 1.5HP pump & small blower, or a 2HP pump. Allows a total load of 15A

Historical Information:
Ampac Intl. Pulsar Aquaswim Aquapacific Intuitive spa control systems were invented and made in New Zealand before Spa-quip took them over. Then several years ago, Davey bough Spa-quip, discontinuing most parts. The SP400 was then made to replace the majority of the Ampac Pulsar systems.

SP400 SP 400

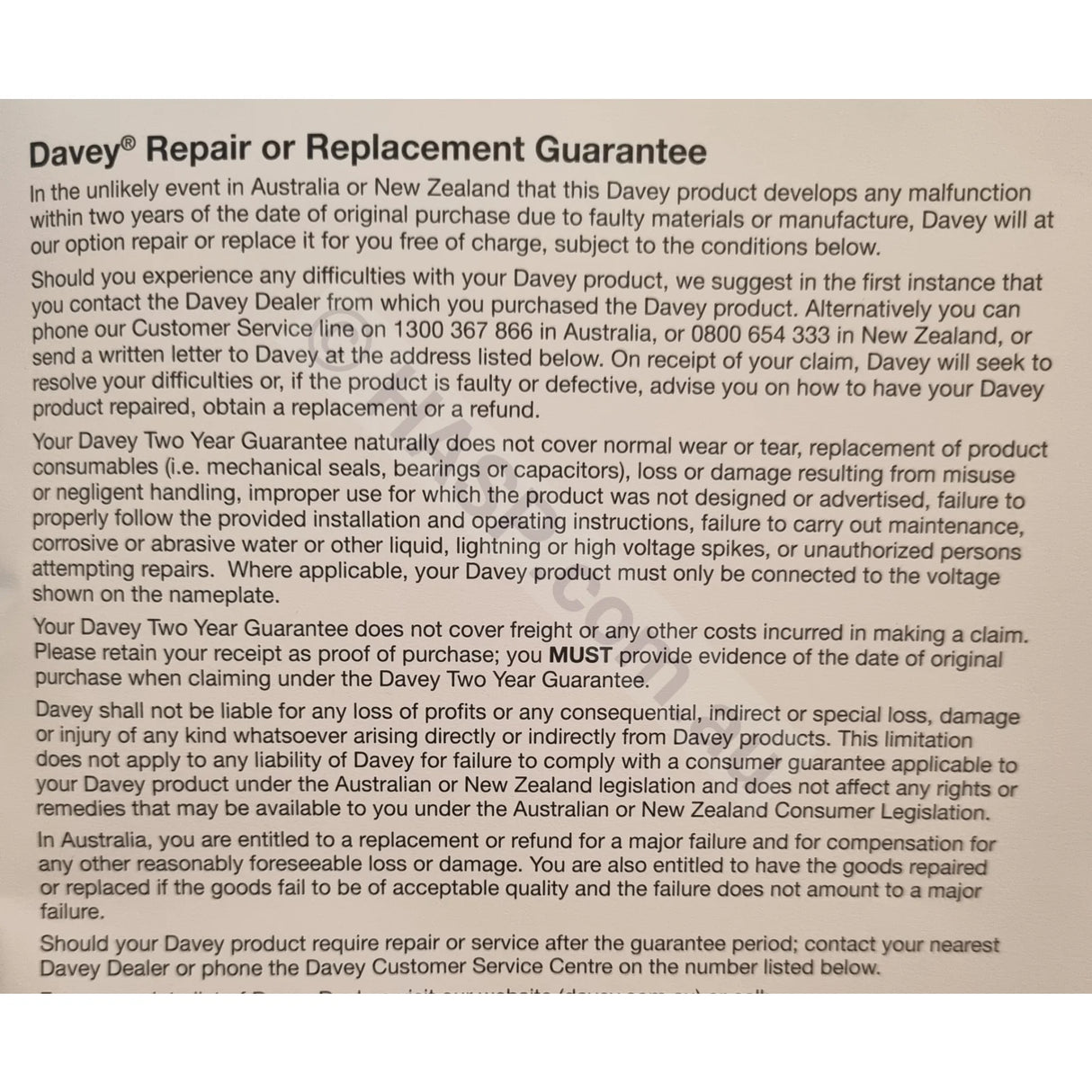

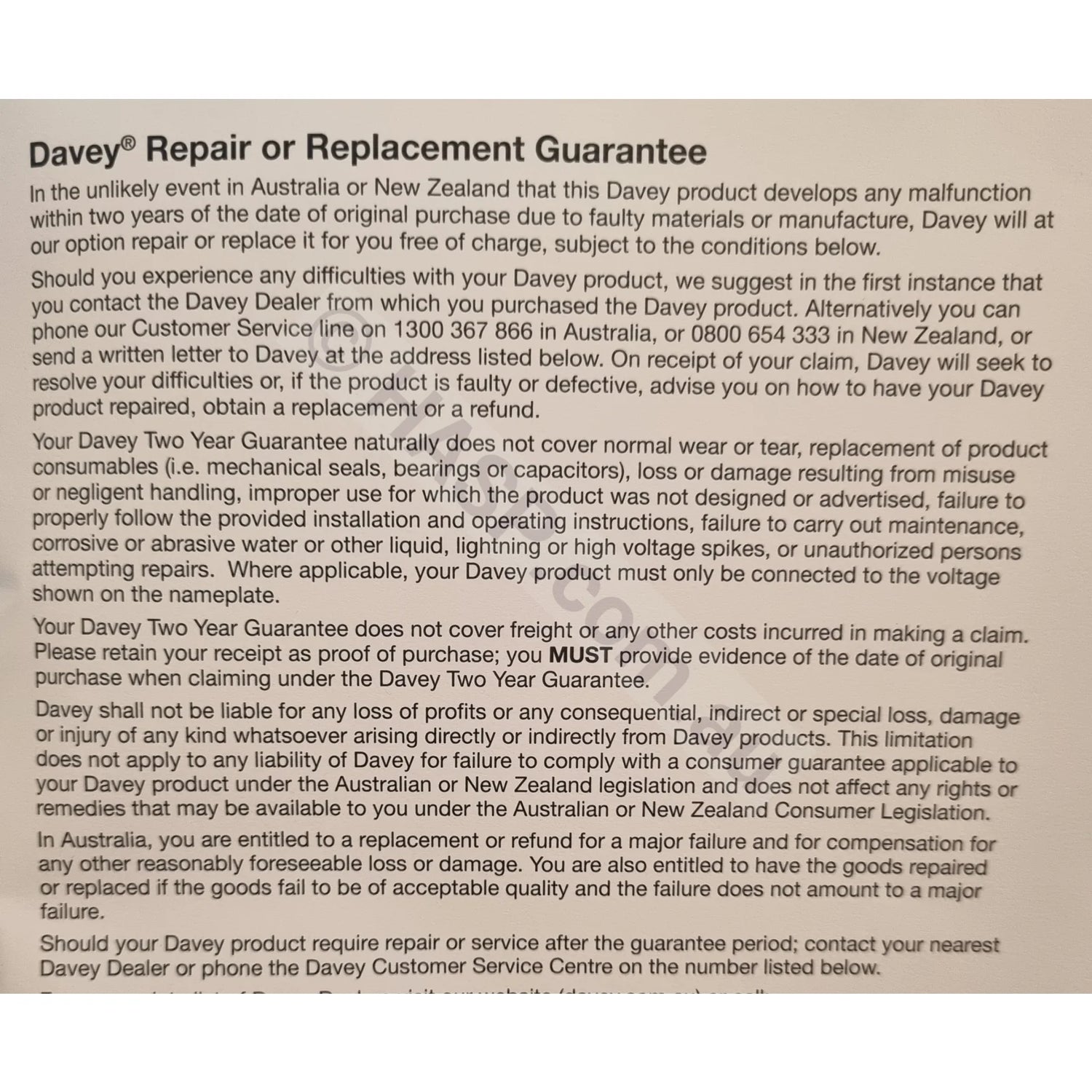

Warranty Information - We do not endorse Bromine tablets on any spa heater.
