Name: 120mm Waterway Dual-Flo Jet Internal - Diverter Swimjet - Scalloped - Grey
Brand: Heater and Spa Parts
SKU: WW 212-4547
Price: 225.0 AUD
Availability: InStock

120Mm Waterway Dual-Flo Jet Internal - Diverter Swimjet Scalloped Grey

Roll over image to zoom in Click on image to zoom

Waterway Plastics Dual-Flo Swimjet ,Whirlpool, or Diverter jet internal jet barrel. 16 scalloped indents around the jet face. Discontinued line - limited to stock on hand

120mm diameter face,
36.5mm ID nozzle,
25mm orifice

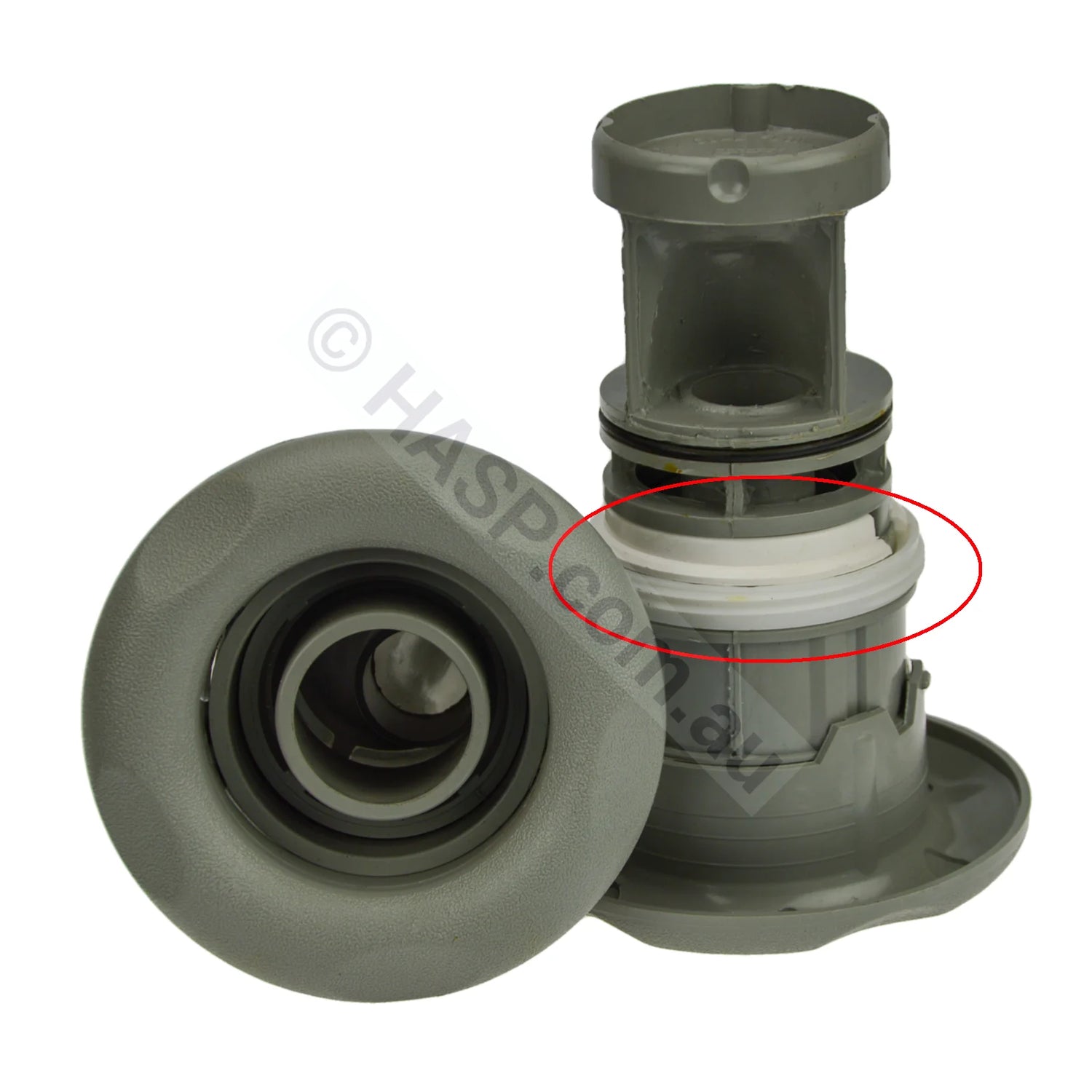

White threaded ring - rotates approx 150 degrees. Don't confuse with Quad-Flo Jet
Waterway Plastics Dual Flo jet barrels are able to rotate 150 degrees / 1/3 of a turn, to divert the water to either this jet or one other jet system/manifold in the spa

IN SOME CASES THE THREADED RETAINER RING ON THIS JET MUST BE REVERSED FOR JET TO FUNCTION CORRECTLY AND TO PREVENT A 'DEAD HEAD' TO THE PUMP WHICH COULD DAMAGE THE PUMP - This depends on which side the water inlet is plumbed to.

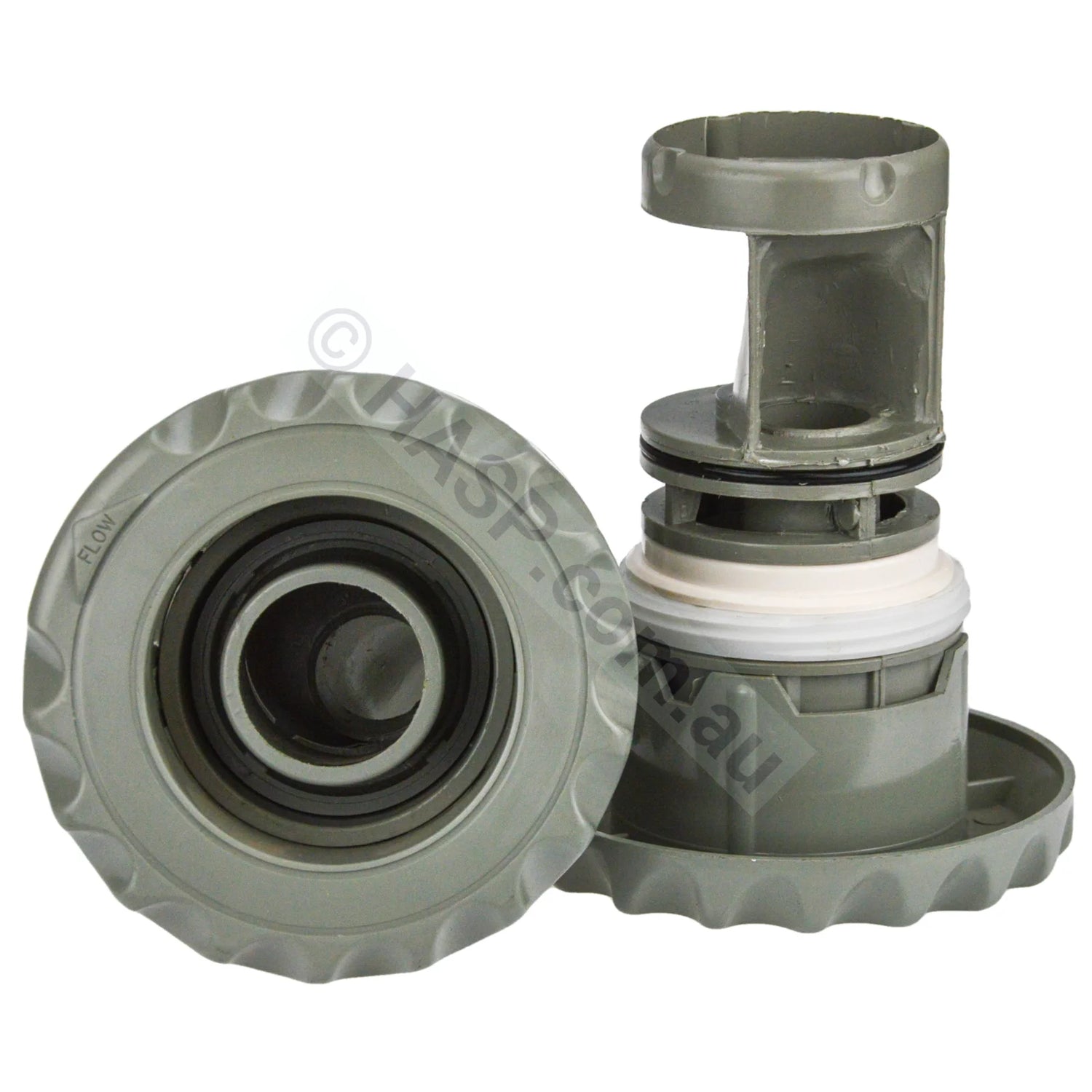

*Alternate 5 scallop textured jet shown in additional pics, also discontinued/no longer available.

120mm Waterway Dual-Flo Jet Internal - Diverter Swimjet - Scalloped - Grey
