Astralpool Hurlcon Brass Plug for Hi-Limit Switches HX, JX, Viron, MX, HiNRG - also Jacuzzi


Tax included

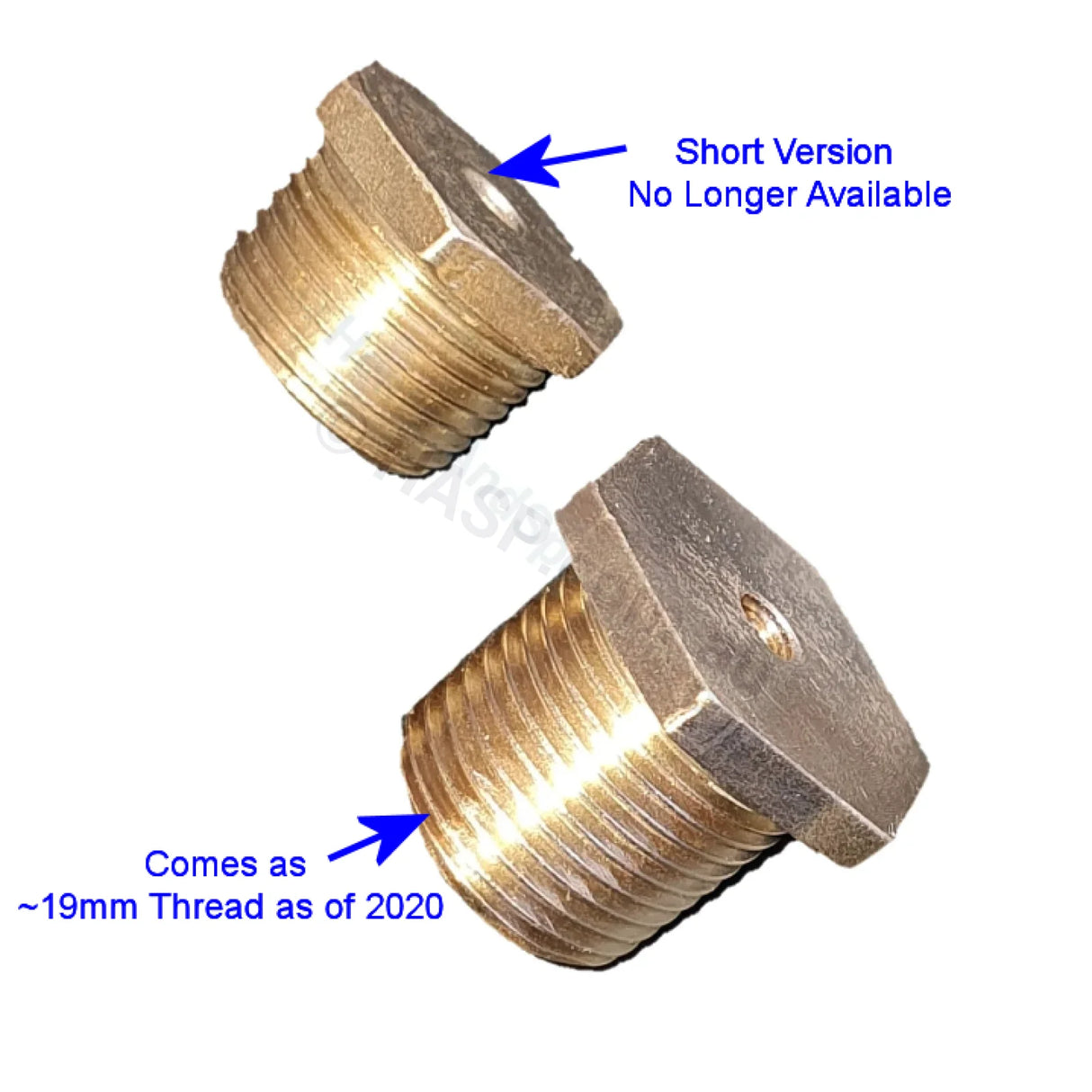

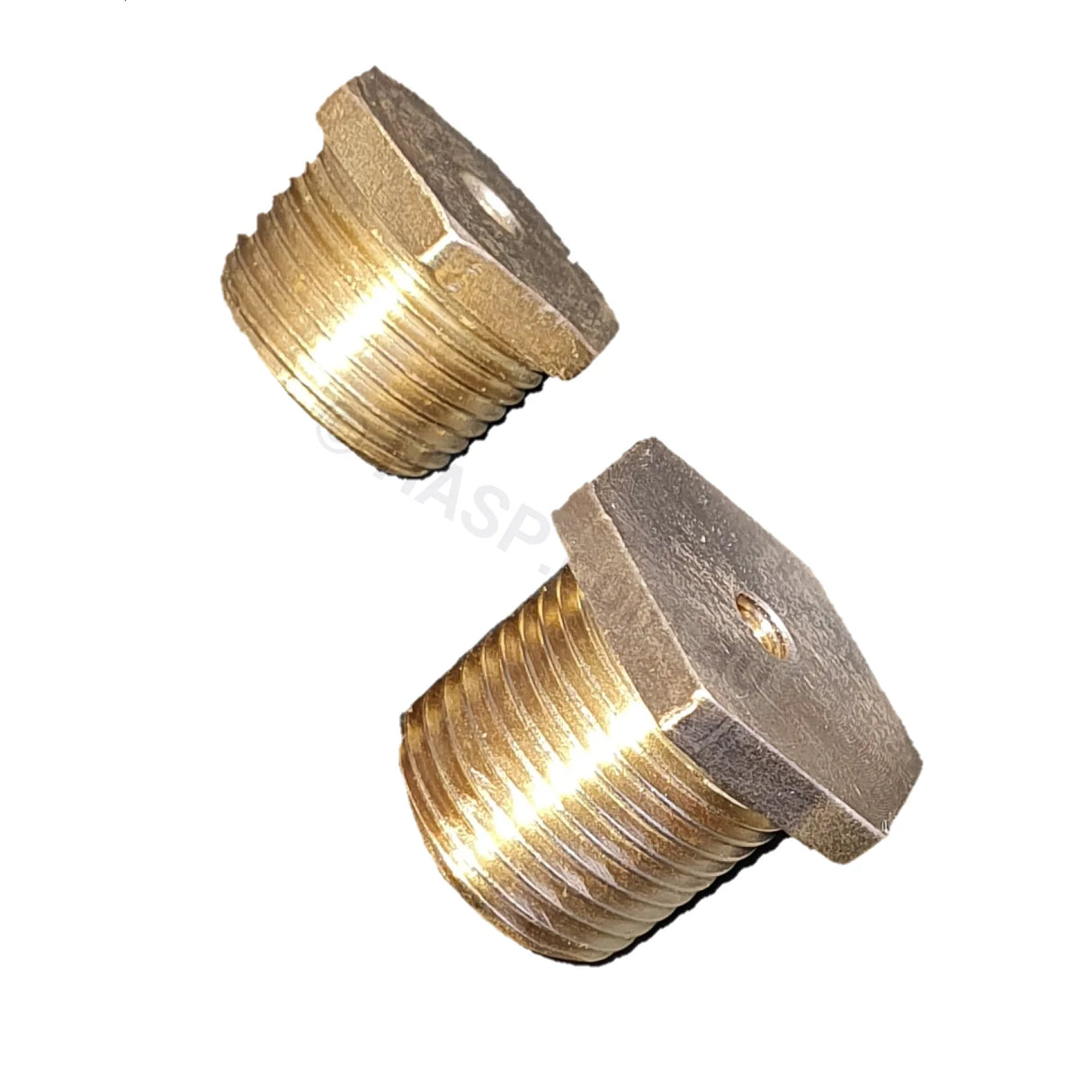

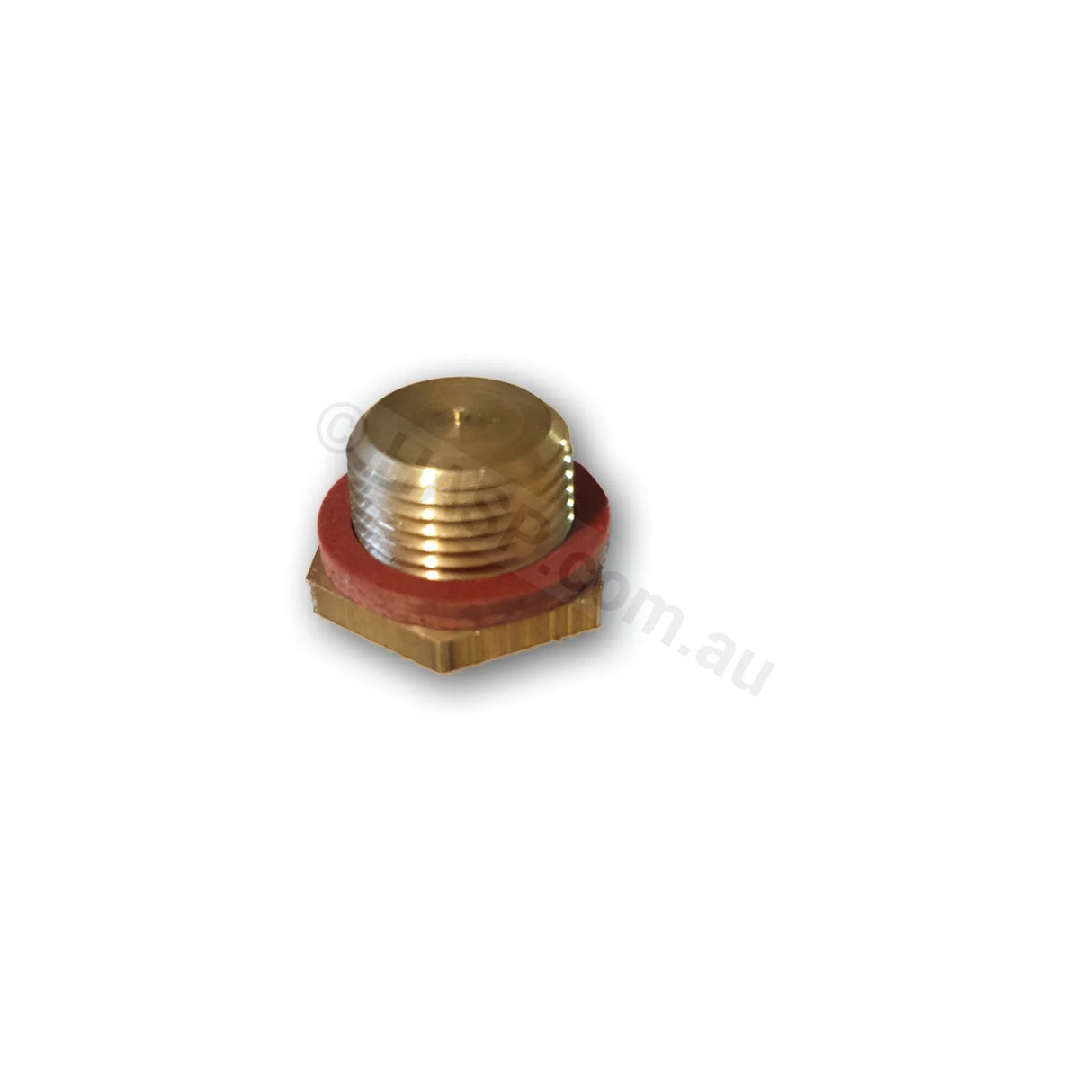

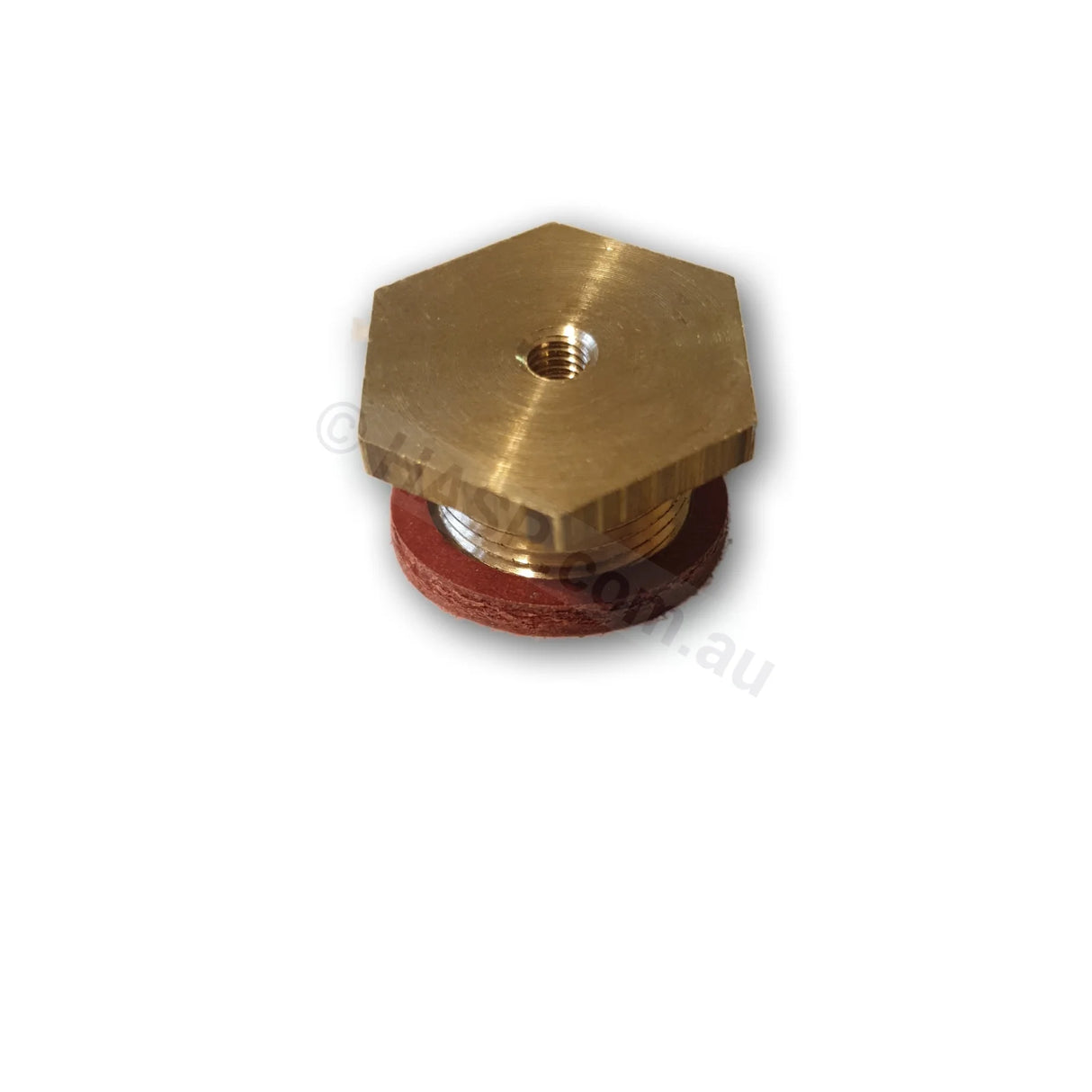

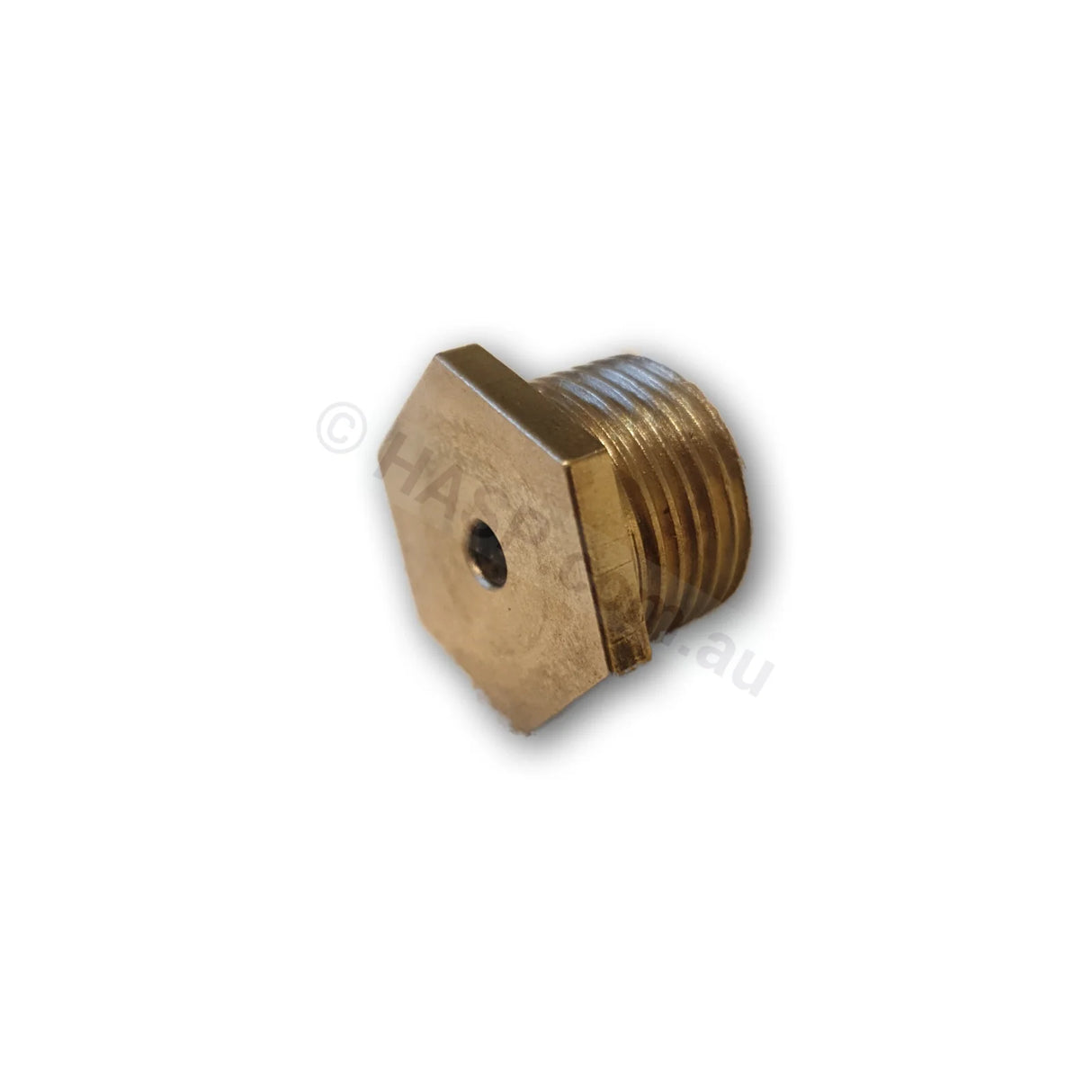

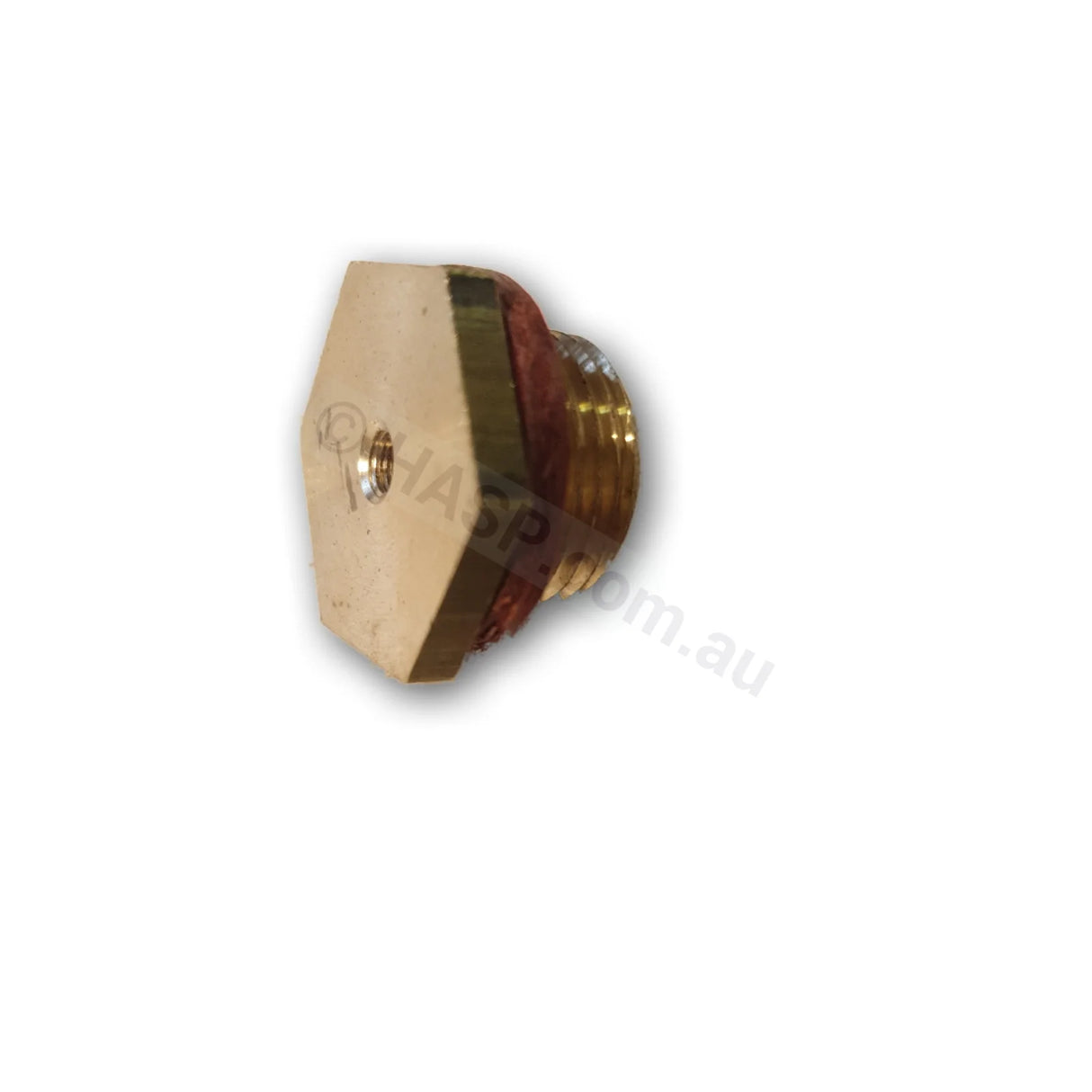

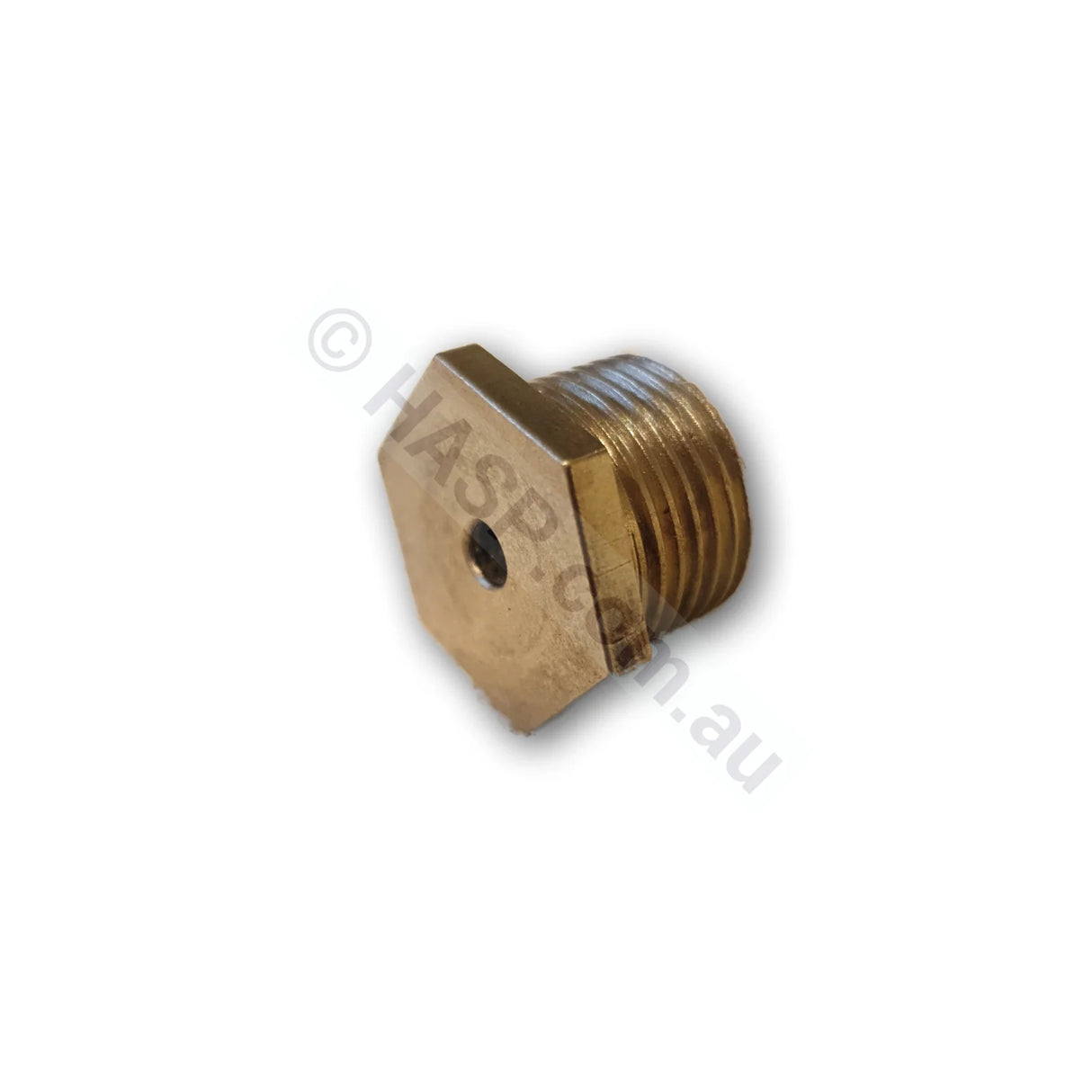

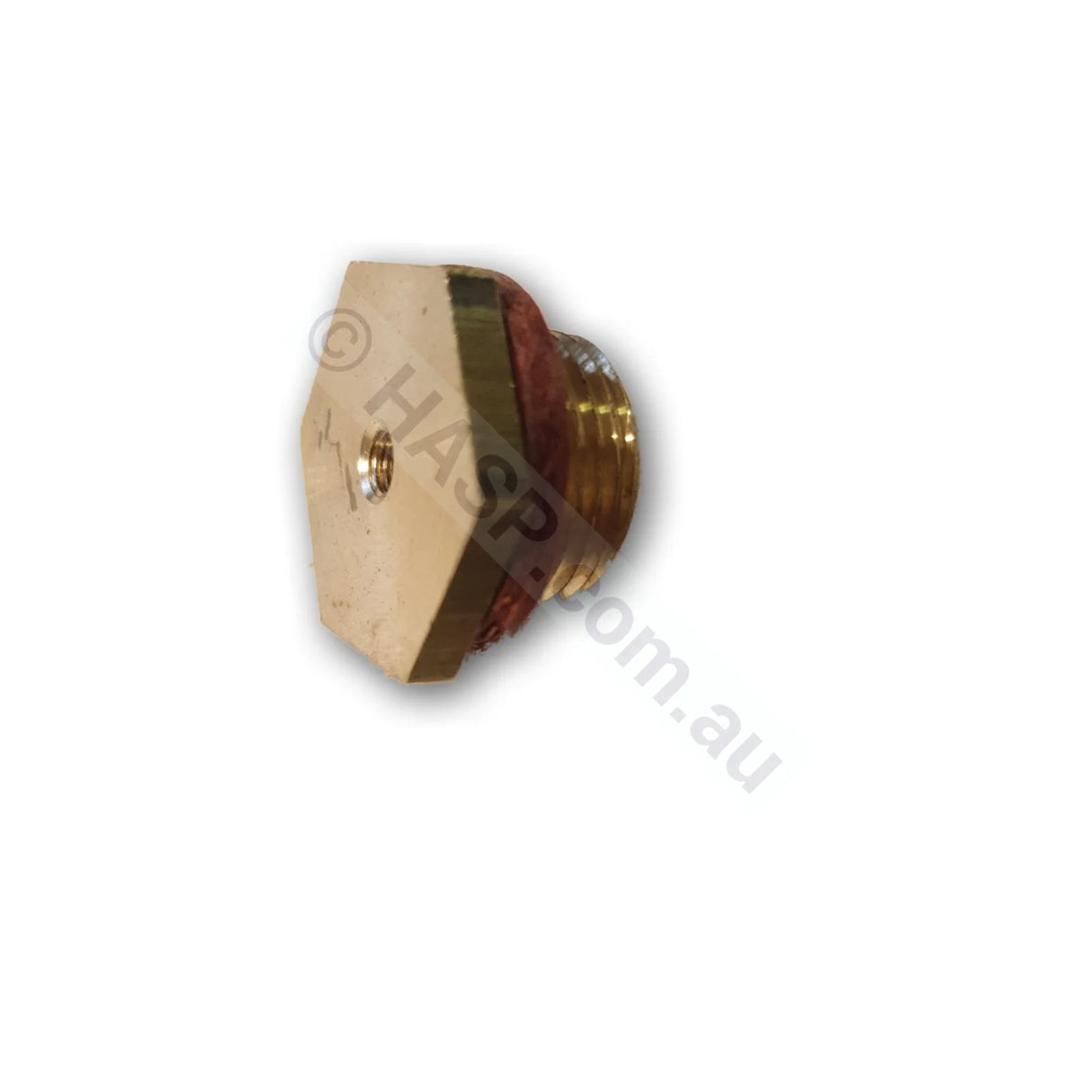

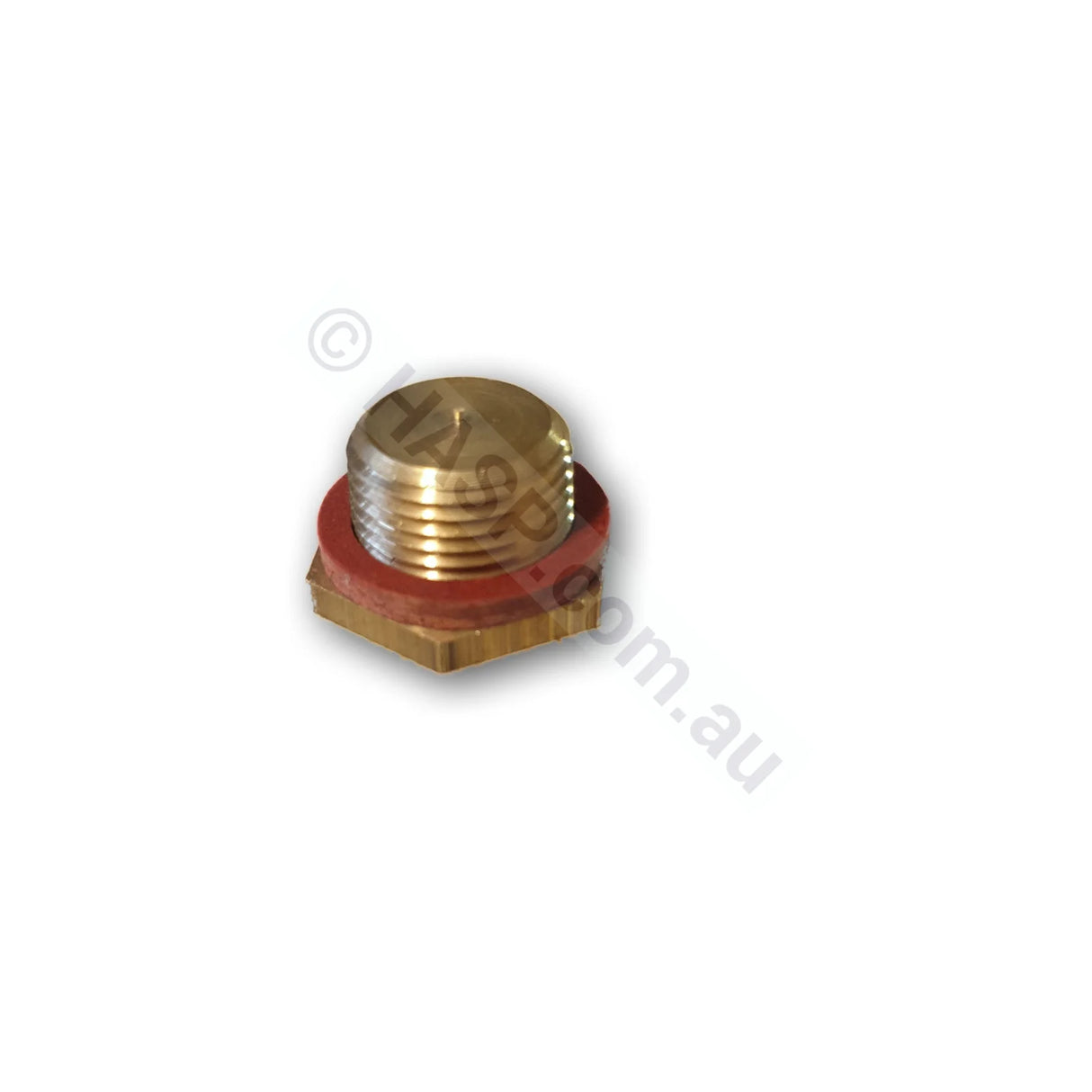

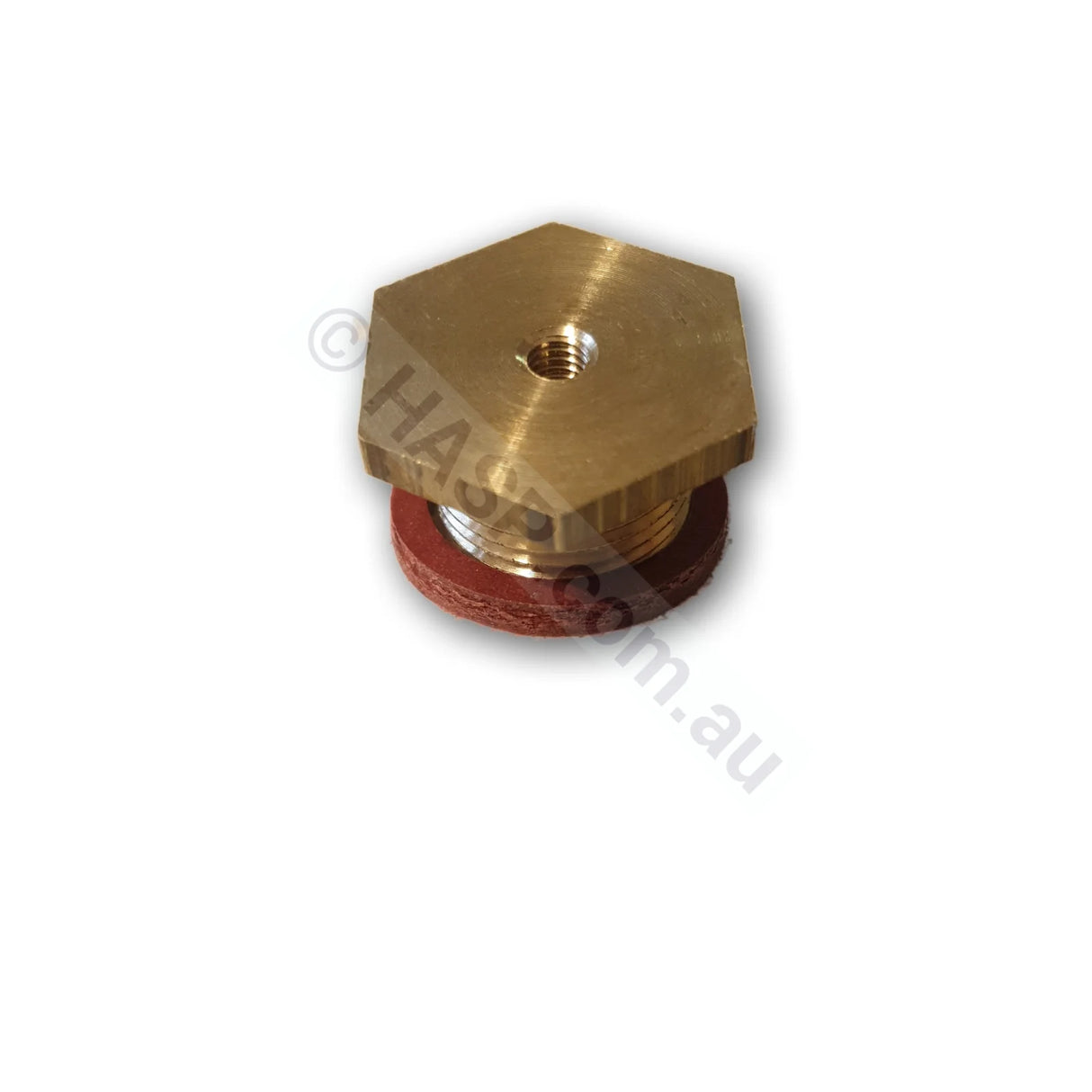

Astralpool Hurlcon threaded 3/8" M4 Brass Plug with Hex Head. Used for High-Limit Switches. Hi-Limit switch screws into these brass plugs. They can corrode due to water quality, or where a leak has allowed the 24V from the hi-limit switch to cause electrolytic corrosion. Old ones had a 3/4" head and were 13-16mm long. New ones have a larger head, and are now 19-25mm long. They are all interchangeable.

Shipped Fast from NSW, VIC, QLD.
Pick-up is available from our office in Carrum Downs, Vic.

It is important to replace or repair these when leaking, and should be checked every 6-12months. This can be one of the biggest causes of damage to gas heaters.

Suits: Later MX, HX, Viron, JX, ICI Heaters. Also suits Jacuzzi J-HN250C & J-HN400C heaters.

Use Pink Thread Tape or a chemical-resistant thread sealant for Sealing threads. Care must be taken not to cause radial cracks in the header manifold around the female threaded area. <-- This is usually caused by over-tightening.

71053 old / 71060 new

Other High Limit (Hi Limit) Switches:
42-45C° Inlet Hi Limit (Hurlcon, Astralpool, Raypak, Pentair)
52-55C° Outlet Hi Limit (Hurlcon, Astralpool, Raypak, Pentair)
60C° Outlet Hi Limit AGS (Hurlcon, Astralpool, Raypak, Pentair)
70C° Outlet Hi Limit (Hurlcon, Astralpool HX/JX)
175C° Flue Temp Sensor (Hurlcon, Astralpool)
Hurlcon / Astralpool HiLimit Locator Brass Threaded Plug
