Hurlcon Astralpool JX 130 / JX 160 Wall-Mount Gas Heater Spare Parts - JX130/JX160
Hurlcon Astralpool JX 130 / JX 160 Wall-Mount Gas Heater Spare Parts - JX130/JX160 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Free Shipping over $149 for most products. Choose Express Post for fastest shipping!

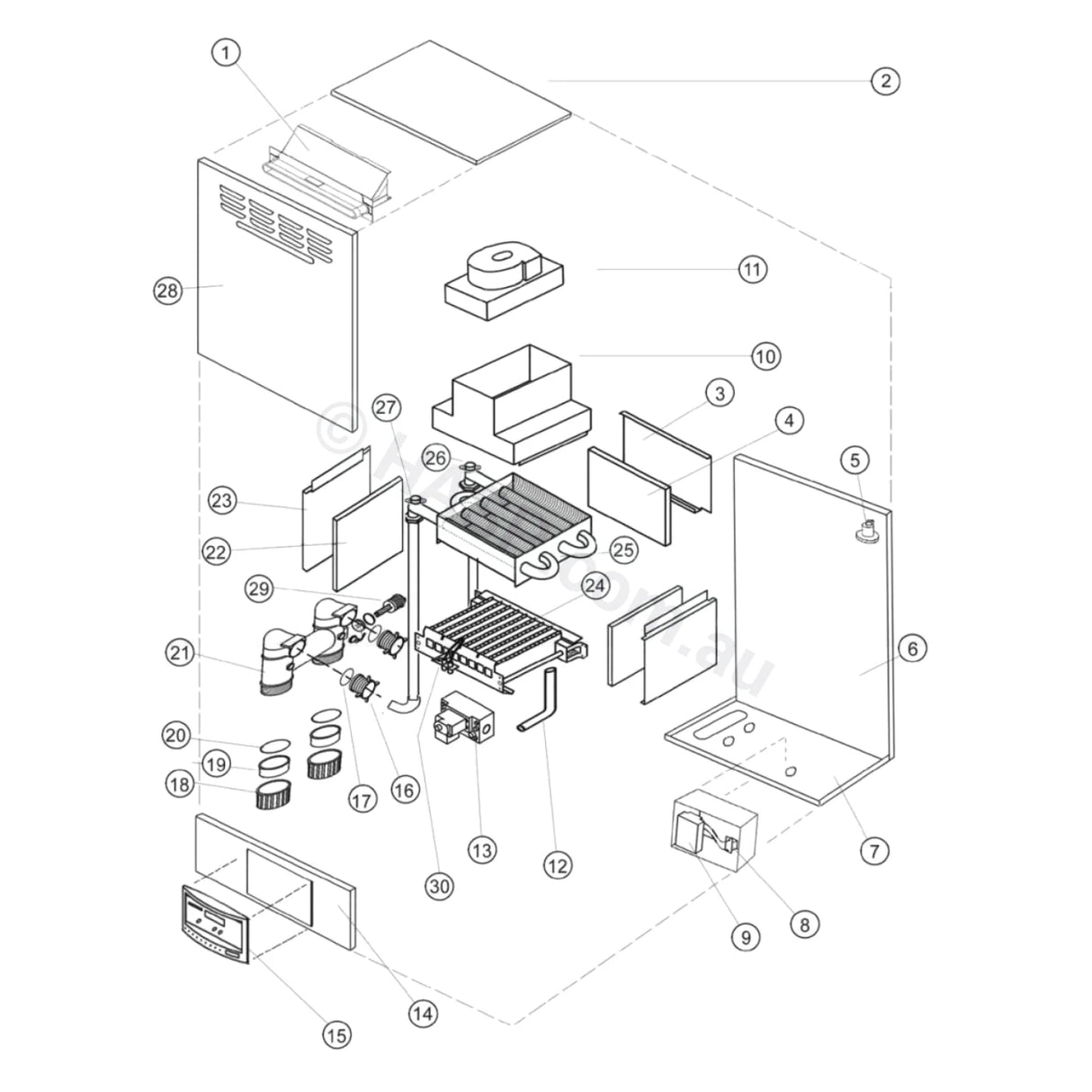

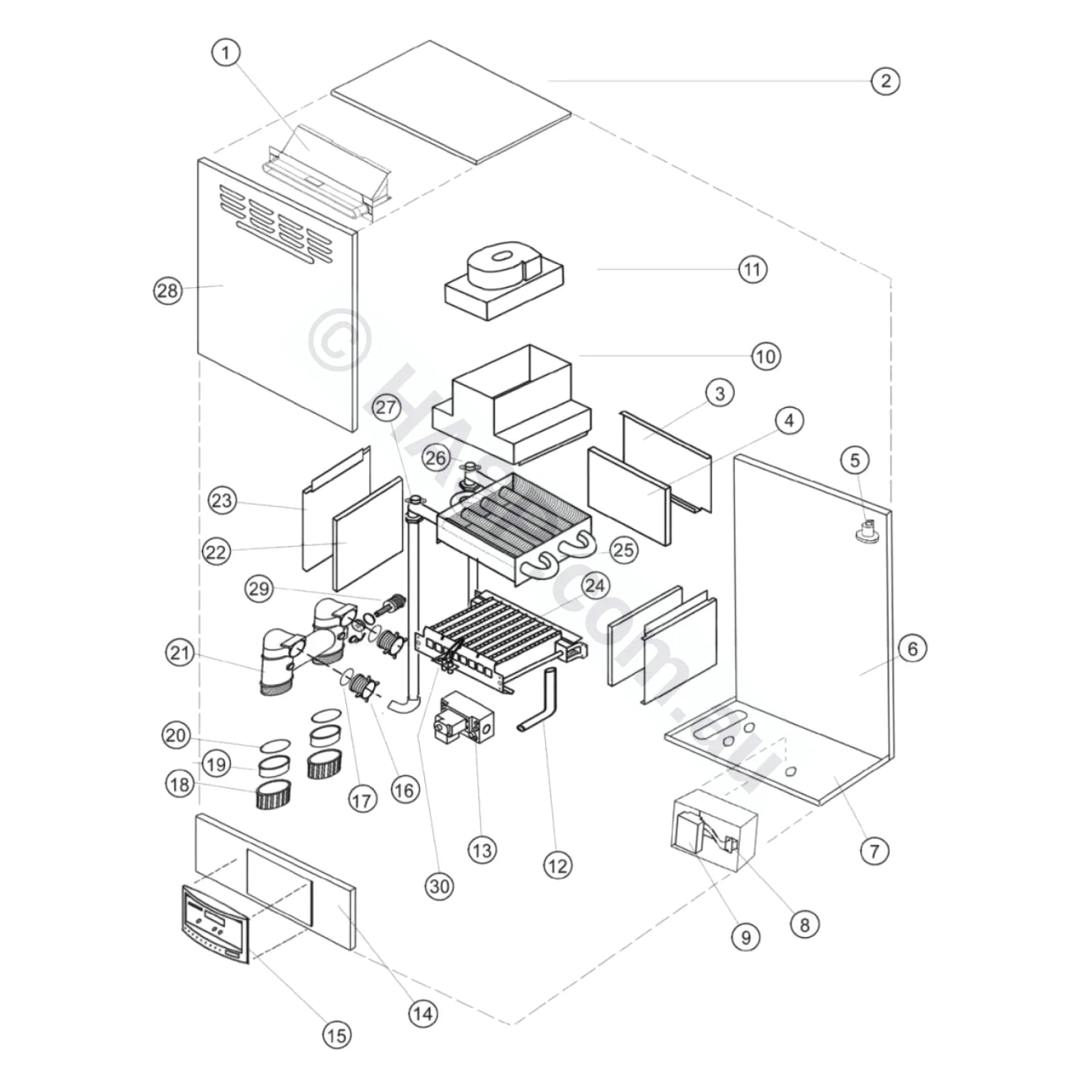

Spare parts for all Hurlcon / Astralpool JX130 and 160 Gas Pool & Spa Heaters. See diagram and match numbers for the parts. Most parts kept in stock.
Fast Shipping or Pick-Up
1. Flue Top (not available as spare part)
2. Top Panel (not available as spare part)
3. Side Panel (not available as spare part)
5. Air Pressure Switch
6. Rear Panel (not available as spare part)
7. Base Panel (not available as spare part)
8. Transformer
10. Flue Assembly (not available as spare part)
(not shown) Ignition Module 2461D 526-111
11. Combustion Fan
13. Gas Valve 36E06-301
14. Front Panel (not available as spare part)
15. PCB - Thermostat Circuit Board
(not shown) Temperature Sensor Lead
16. Adaptor - Heat Exchanger
17. O Ring Heat Exchange Adaptor
18. 19. 20. Barrel Union Parts
21. In/Out Manifold Header
22. Insulation (not available as spare part)
23. Firebox End (not available as spare part)
24. Burner Assembly JX130 / JX160
25. Heat Exchanger JX130 / JX160
26. Hi Limit 42C (inlet)
27. Hi Limit 52C (outlet) / Hi Limit 70C
29. Plunger Bypass Assembly
30. Ignitor DSI Electrode Assembly
Ignitor Suppression Lead 77186
Ignitor Sensor Lead - White 77187
(not shown) Water Pressure Switch
(not shown) Spring Bypass
(not shown) Disc Bypass Assembly
(not shown) Facia Thermostat Label
Natural Gas to LPG (Propane) Conversion Kit
LPG (Propane) to Natural Gas Conversion Kit
Please don't order diagram, as they are not for sale.
