Raypak 127 &167 Gas Heater Spare Parts

Tax included Shipping calculated at checkout.

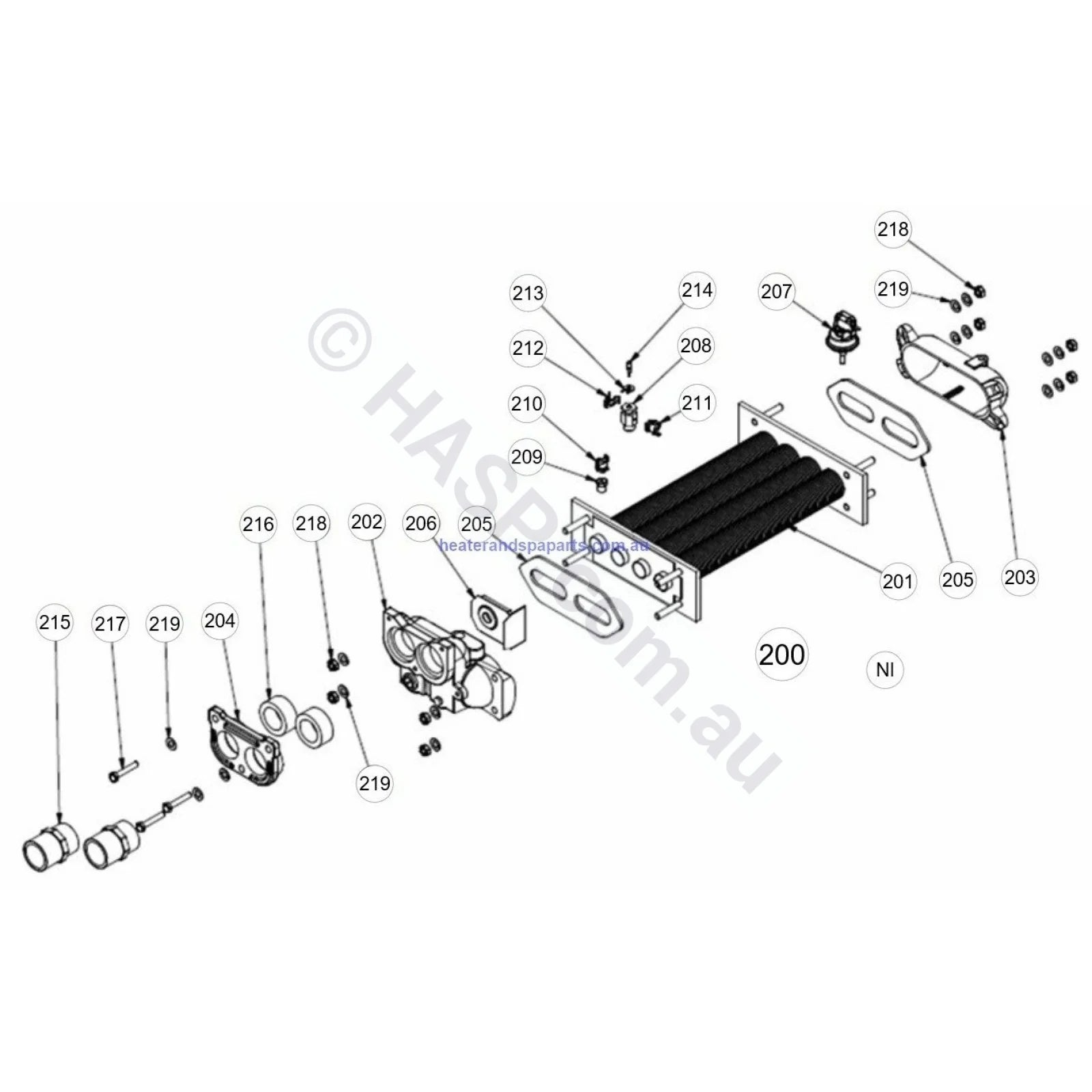

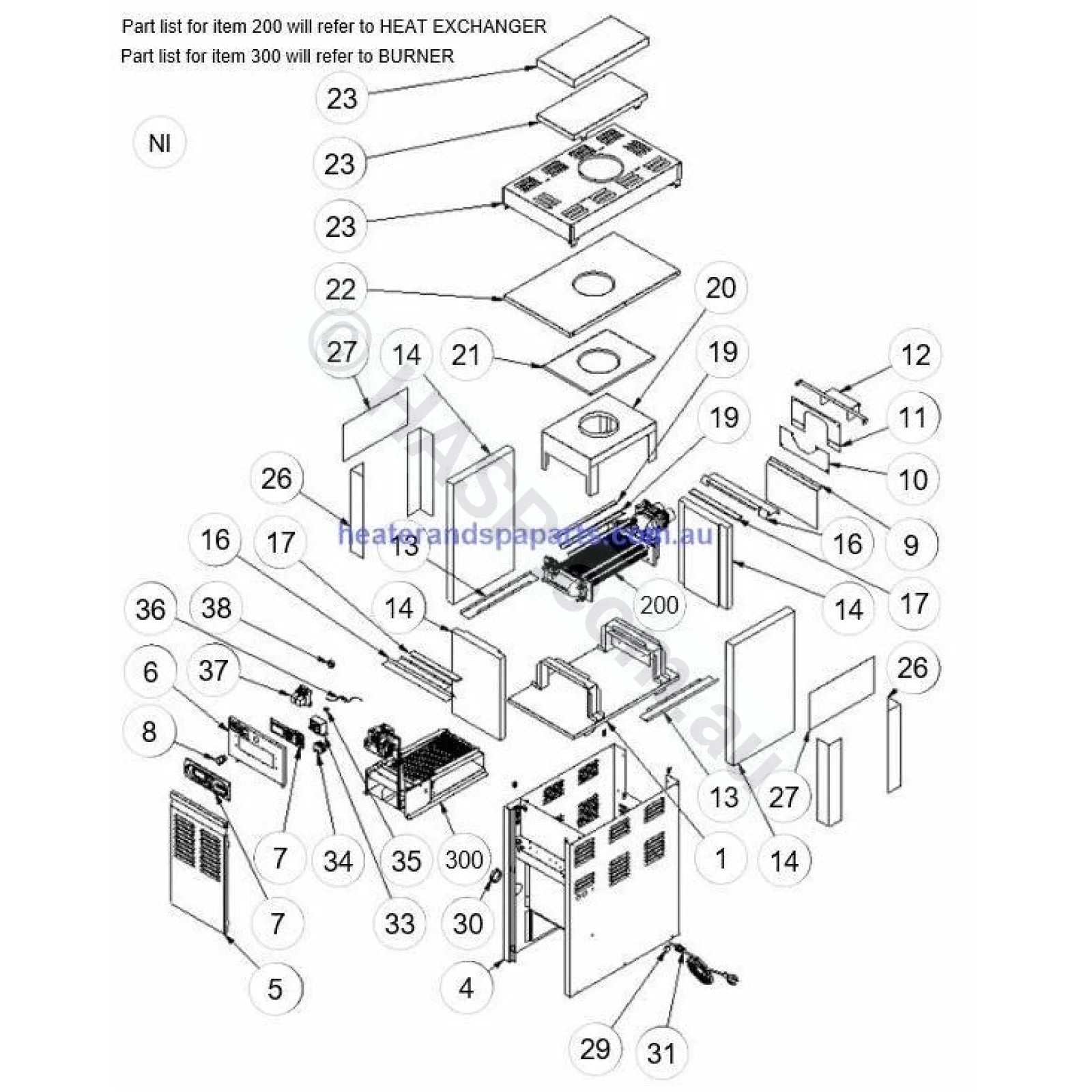

All available spare parts for Raypak 167 heaters available online. Choose your part from the diagrams below: Highlighted items have their own product page. The dropdown list has a list of common 167-specific parts. For parts not listed, please contact us.

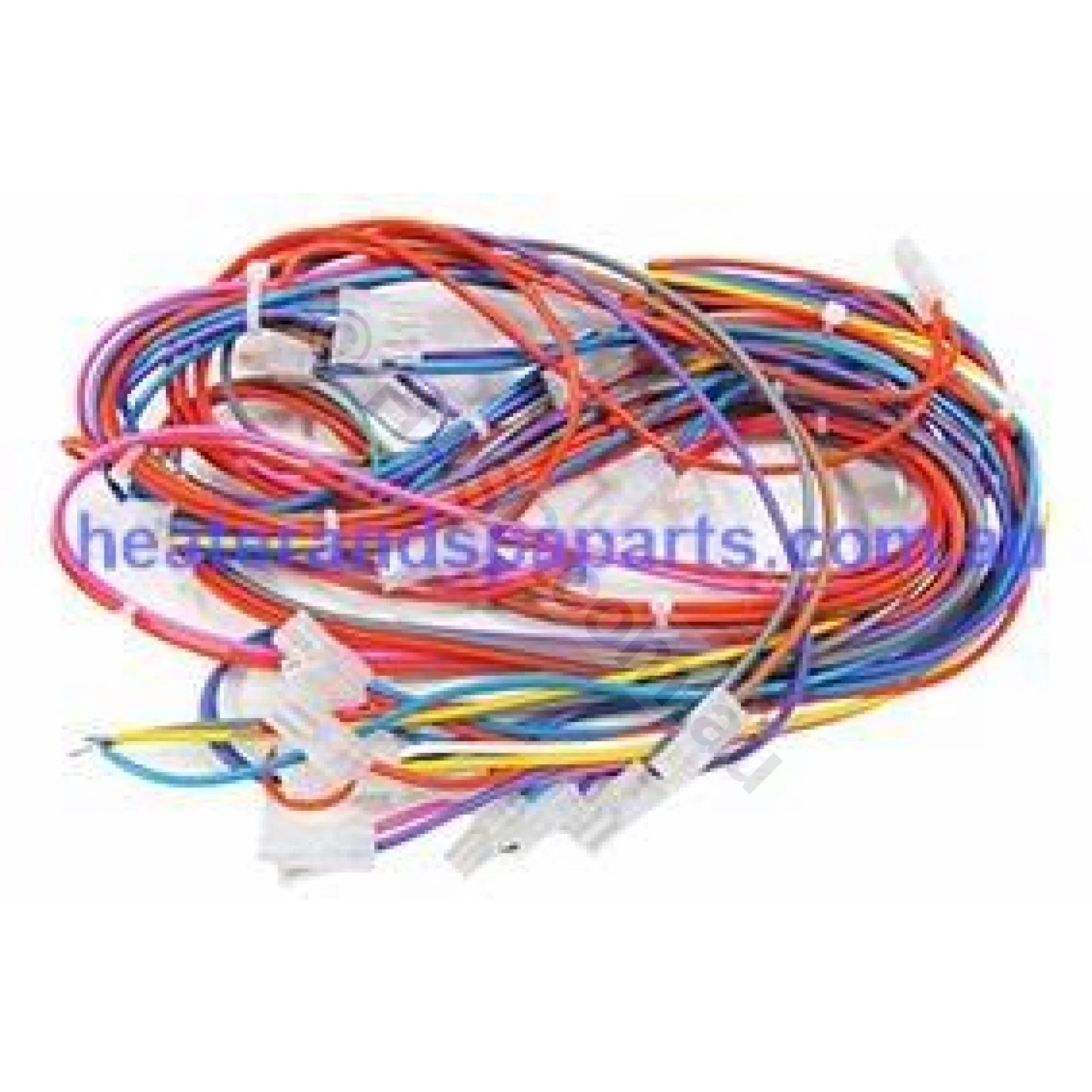

NI Wiring Loom - 127 & 167 and 200-430 NI – Not Illustrated 56009126.jpg
1. SS Base Panel
4. Panel Jacket Group
5. Panel Door
6. Panel Display
7. Electronic Control Panel (Grey) 56659197.jpg
7. Electronic Control Panel (Black)
7. RP2100 PCB (Red Label)
8. Switch Reset with 24V lamp
9. Panel Jacket Rear
10. Panel Access Lower
11. Panel Access Upper
12. Panel Cover Upper In/Out Header 167
13.  Refractory Support Bridge
14. Fire Tile Kit
16. Refractory Retainer Kit
17. Tape Fibreglass 3mm x 25mm
19. Baffle Heat Exchanger Flue 147/167 (3)
19. Baffle Heat Exchanger Side 147/167 (2)
20. Flue Collector
21. Insulation
22. Panel Jacket Top
23. Outdoor Hood Kit
26. Corner Tile Support(set of 4)
27. Panel Heat Shield
29.  Cable bush
30. Snap bush 50mm
31. Cordset
33. Transformer 56650931N.jpg
34. Relay 24V (pre 14/4/09) 56659014.jpg
34. PCB - Auto Reset (post 14/4/09) 56PE5006.jpg
35. Earth Connection Mains Power
36. Fuse 3.15 Amp 56659146.jpg
37.  Relay Base 56659011.jpg
38. Cable Bush Black 22mm



NI. Plug – Brass NI – Not Illustrated 56500035.jpg
NI.  Plug BR 1/8BSP Hex Head NI – Not Illustrated

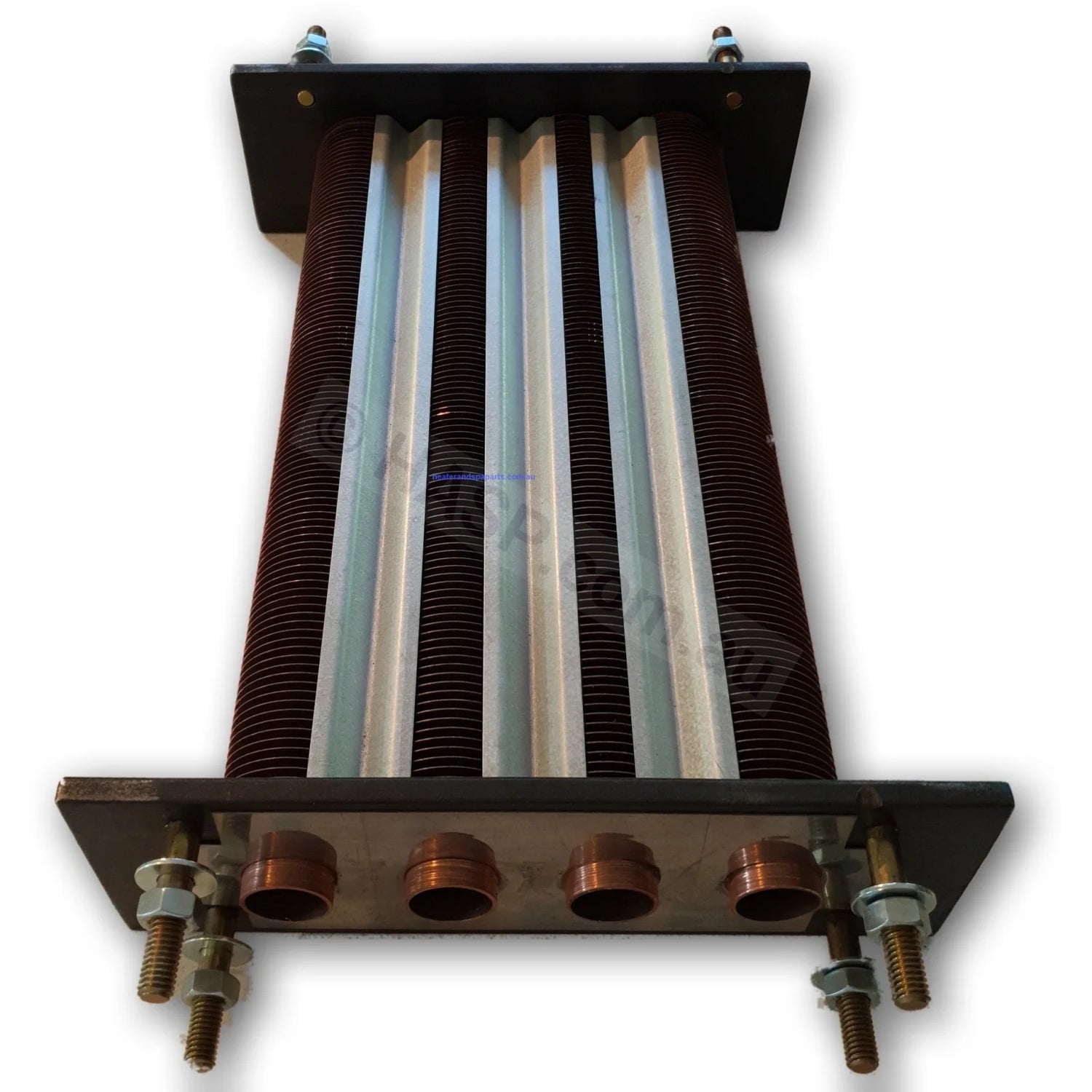

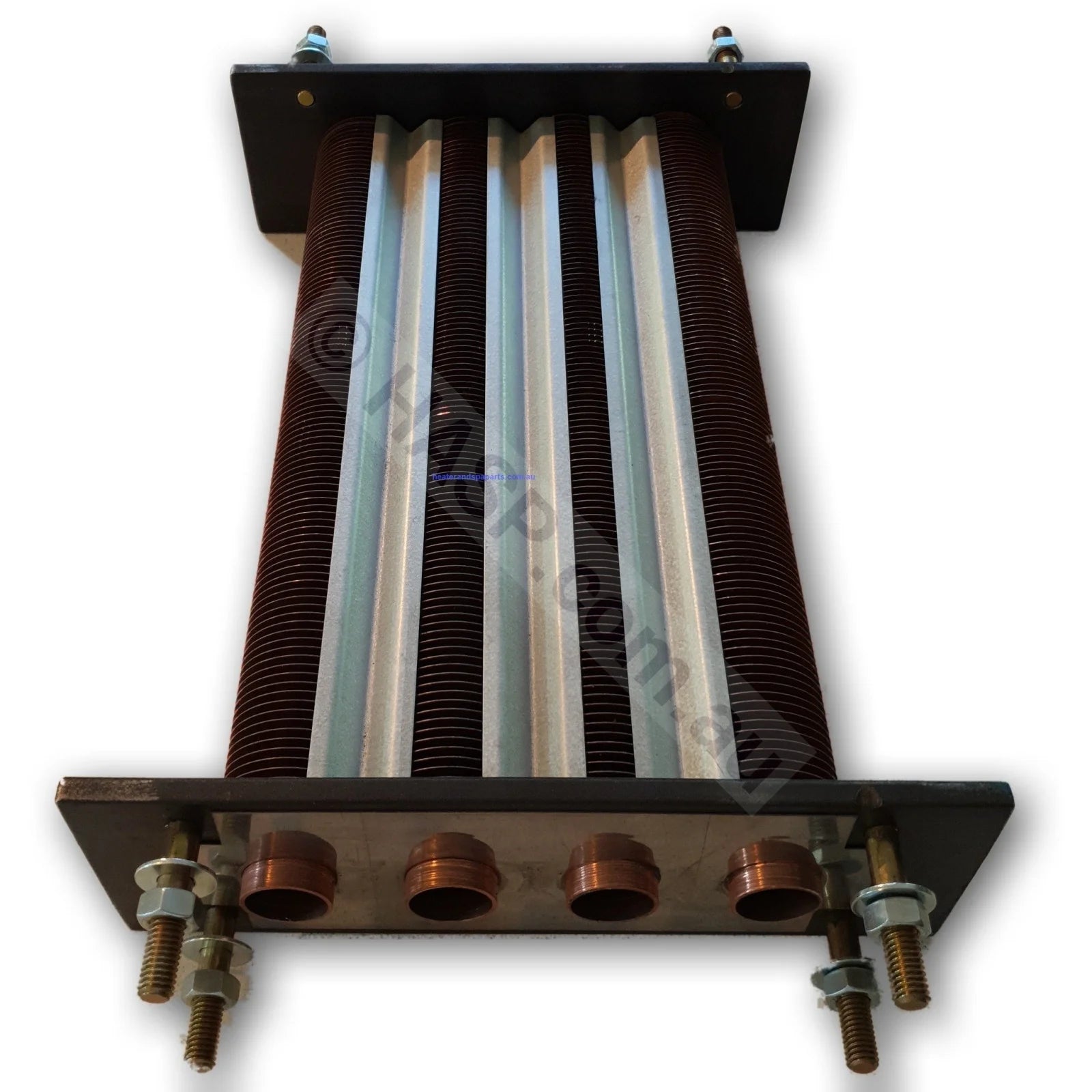

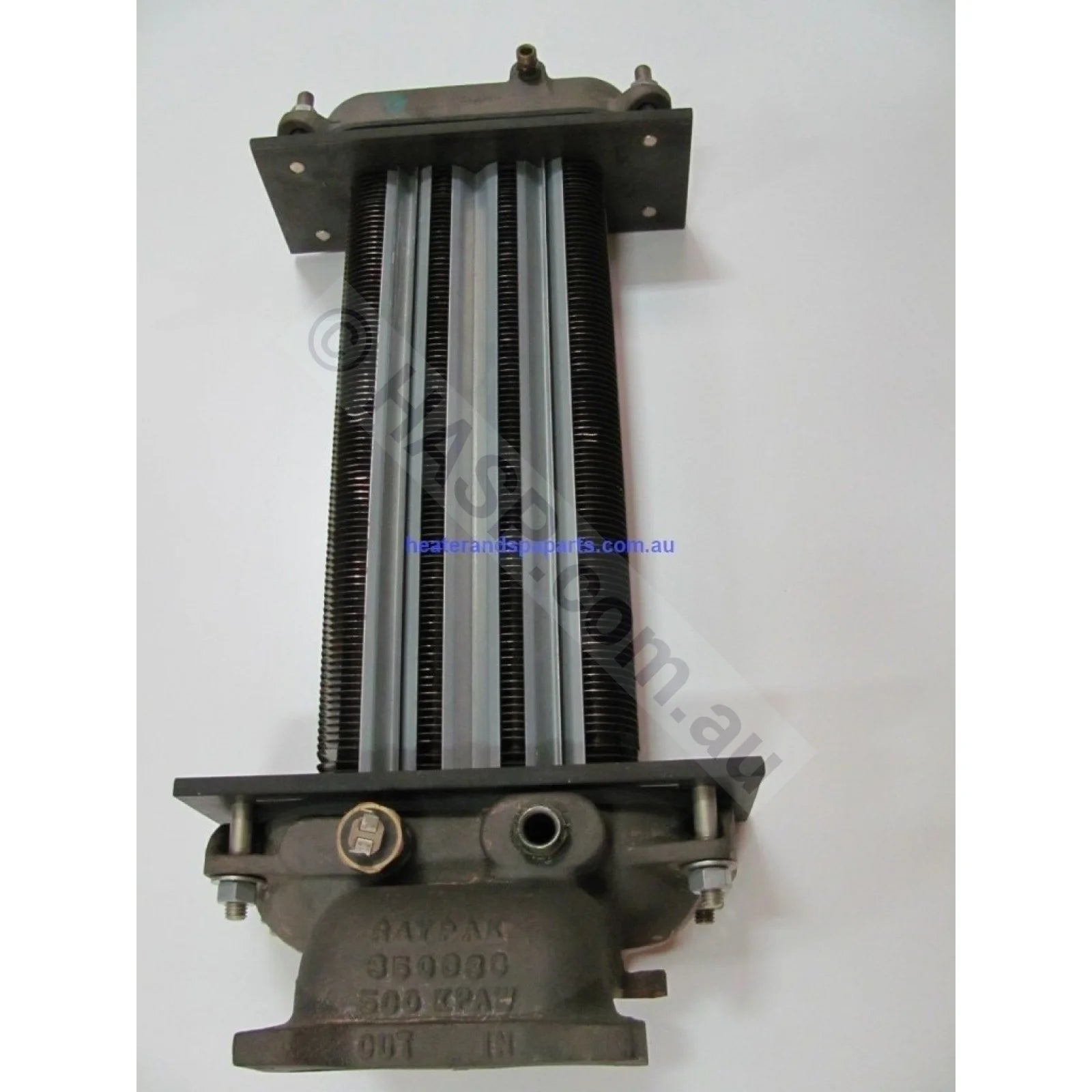

200. Heat Exchanger - Complete w/ Cupro Nickel Tubes & Bronze Headers

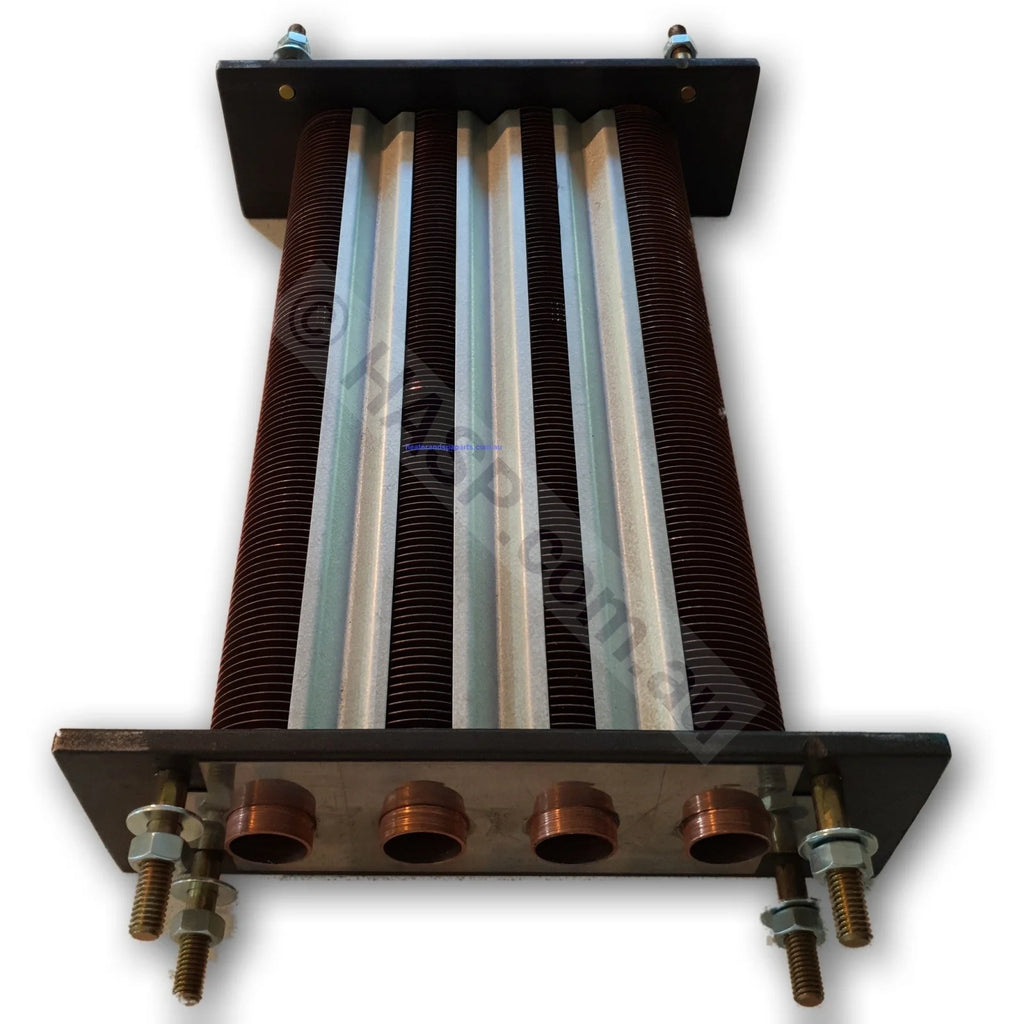

200. Heat Exchanger - Complete w/ Copper Tubes & Bronze Headers
201. Tube Bundle Copper Tubes
201. Tube Bundle Cupro Nickel Tubes
202. Header – In/Out Assy
203. Header – Return
204. Flange Plate

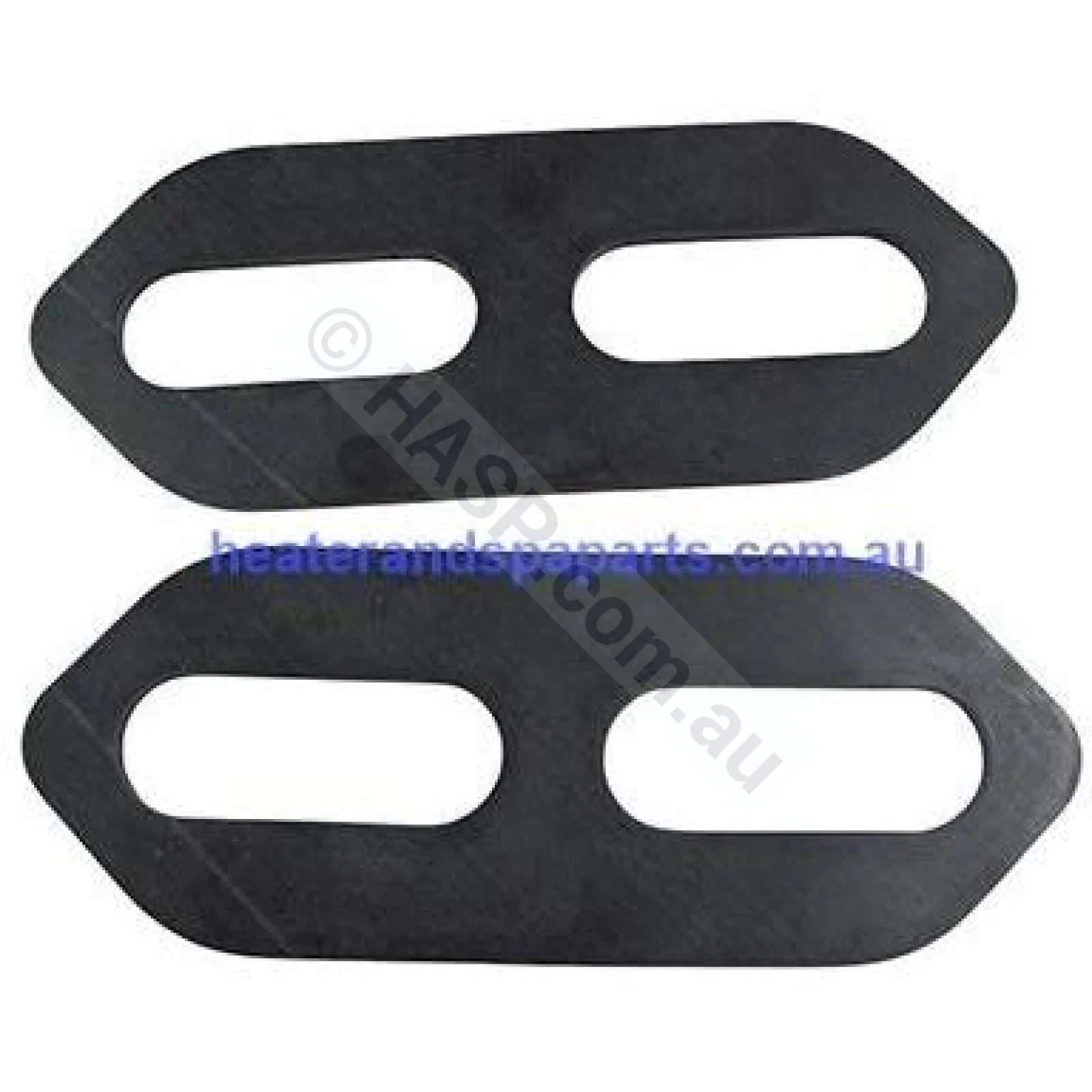

205. Header Gasket 56800075.jpg
206. Unatherm Governor Disc
207. Pressure Switch Capron Headers 56651284.jpg
208. Locator Sensor Probe & Hi Limit56659206.jpg
209. Outlet High Limit Locater 56659207.jpg
209b. Old Style High Limit
210. Auto Reset Bronze Hdr 56600189.jpg
211. T/Stat Hi Limit A/Reset 45 deg 56600188.jpg
212. Spring Clip 890263.jpg

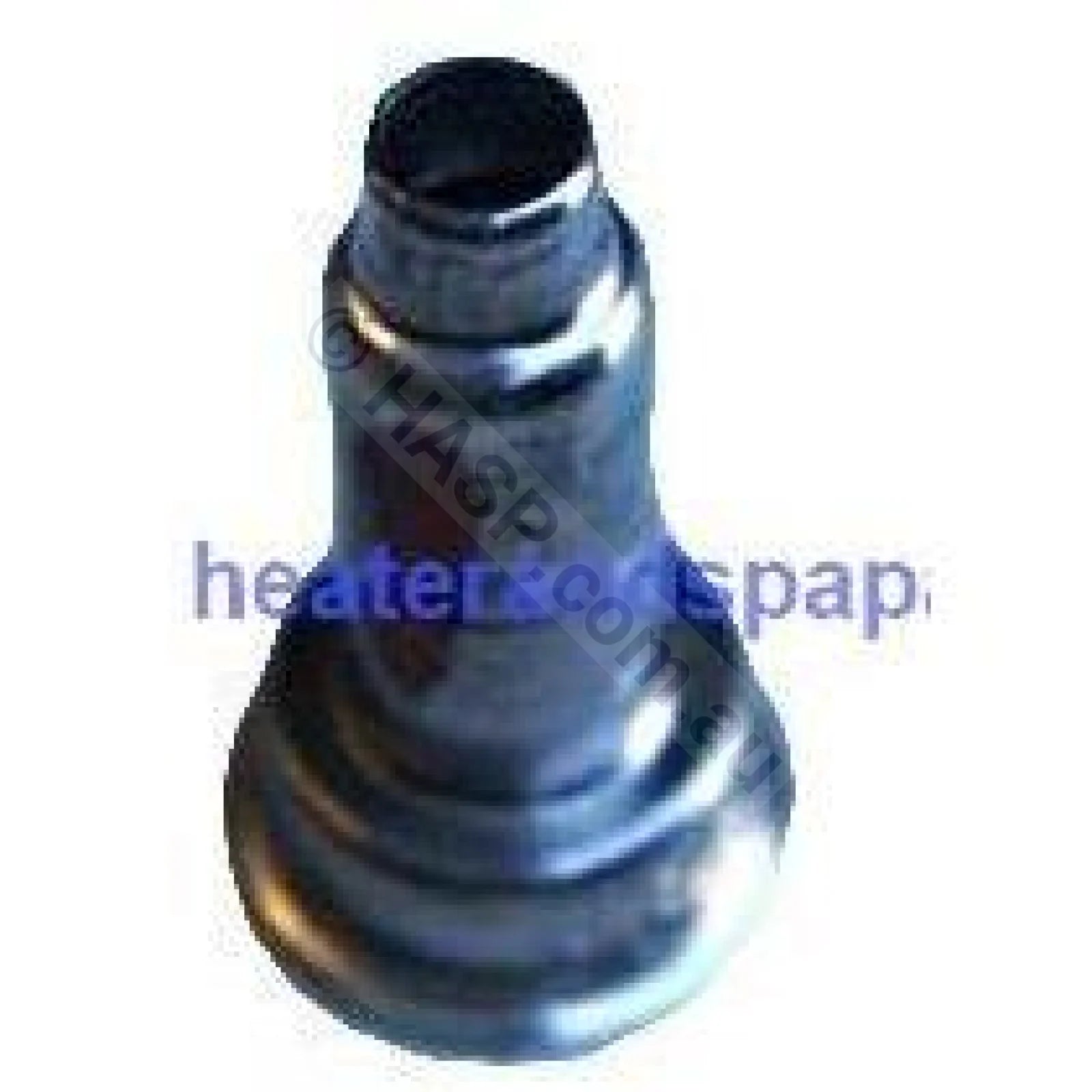

213. Nsensorseat Only available as part of item 214 Not For Order, Illustrating Only.

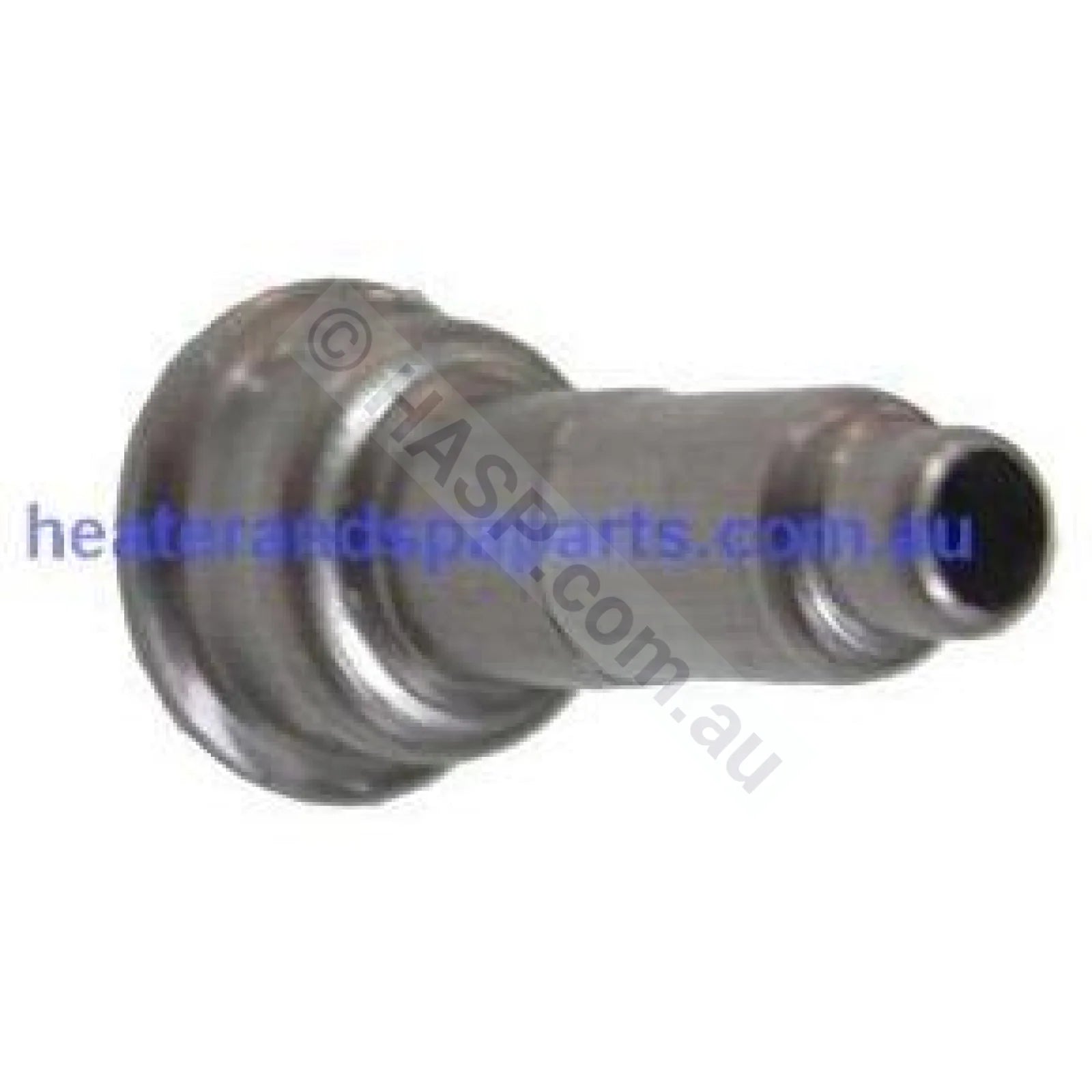

214. Sensor Probe 56659202.jpg

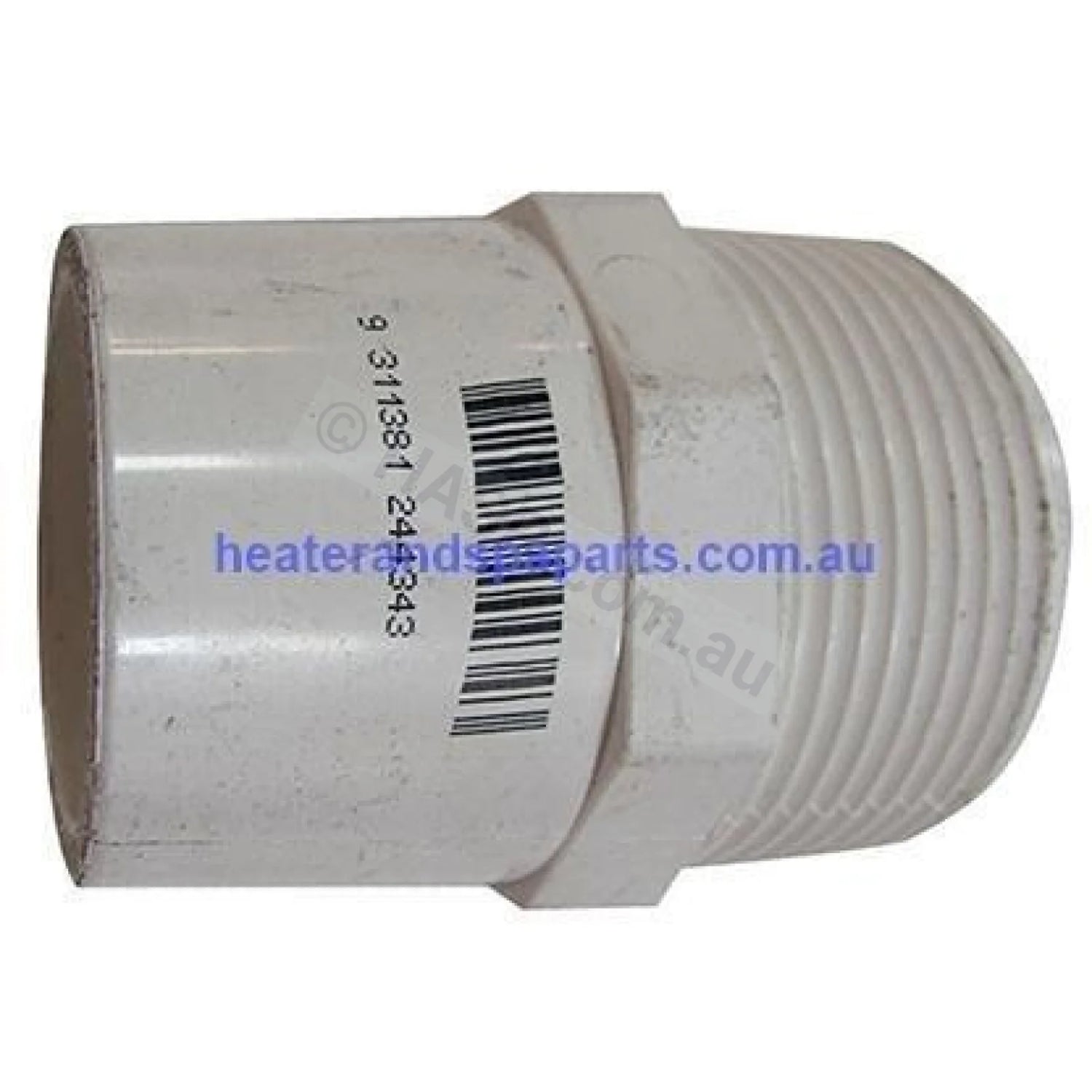

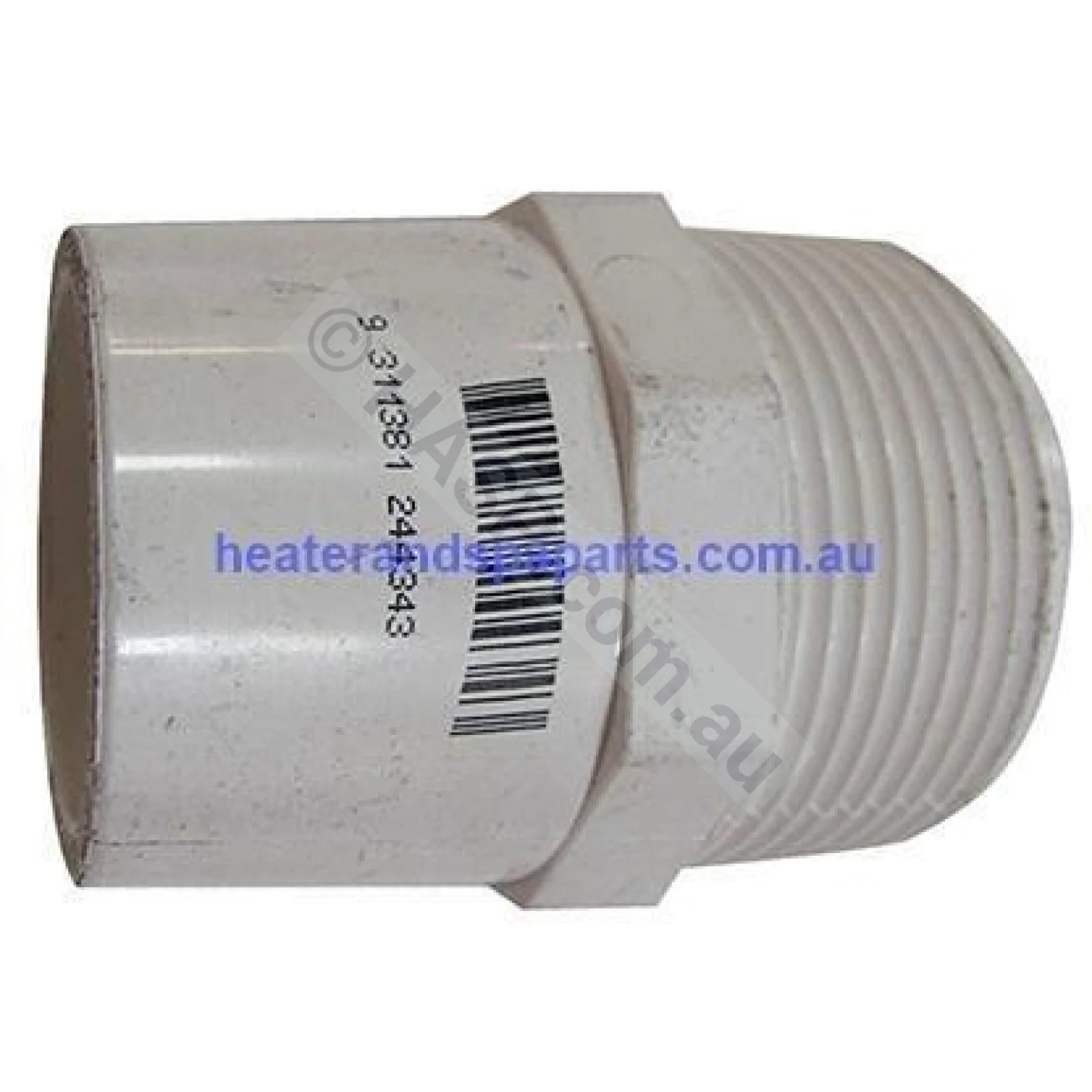

215. PVC Union Adaptor 56809017.jpg

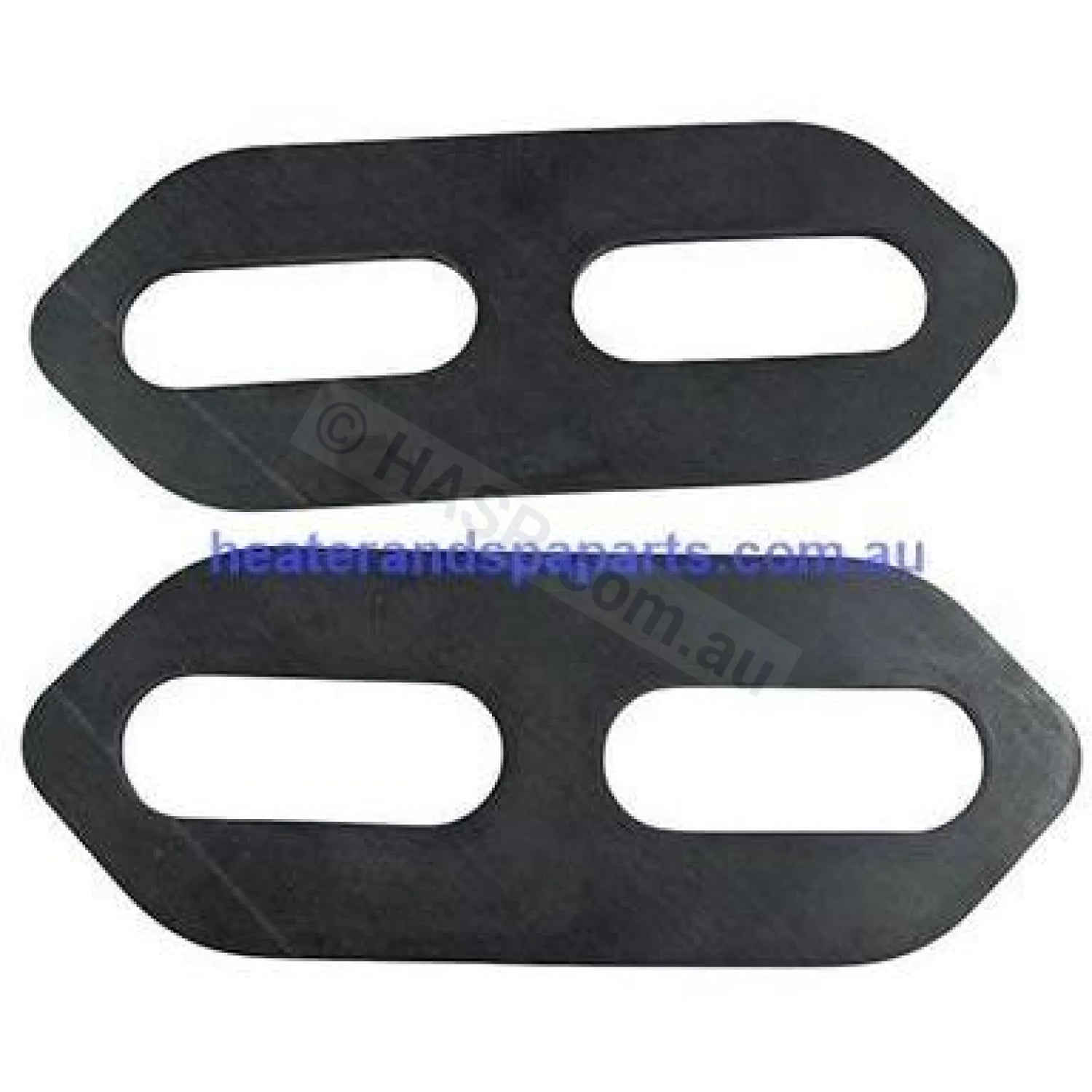

216. Flange Gasket 56800013.jpg
217. 56550404 Bolt

218. Nut 3/8” BSW Zinc Plated (24 per heater) 56550024.jpg
219. Washer



NI. Test Point – AGS 3mm NI – Not Illustrated 56359011.jpg
NI. Union BR 06C*03F NI – Not Illustrated 56500434.jpg
NI. Union BR 06T*03M NI – Not Illustrated 56509012.jpg

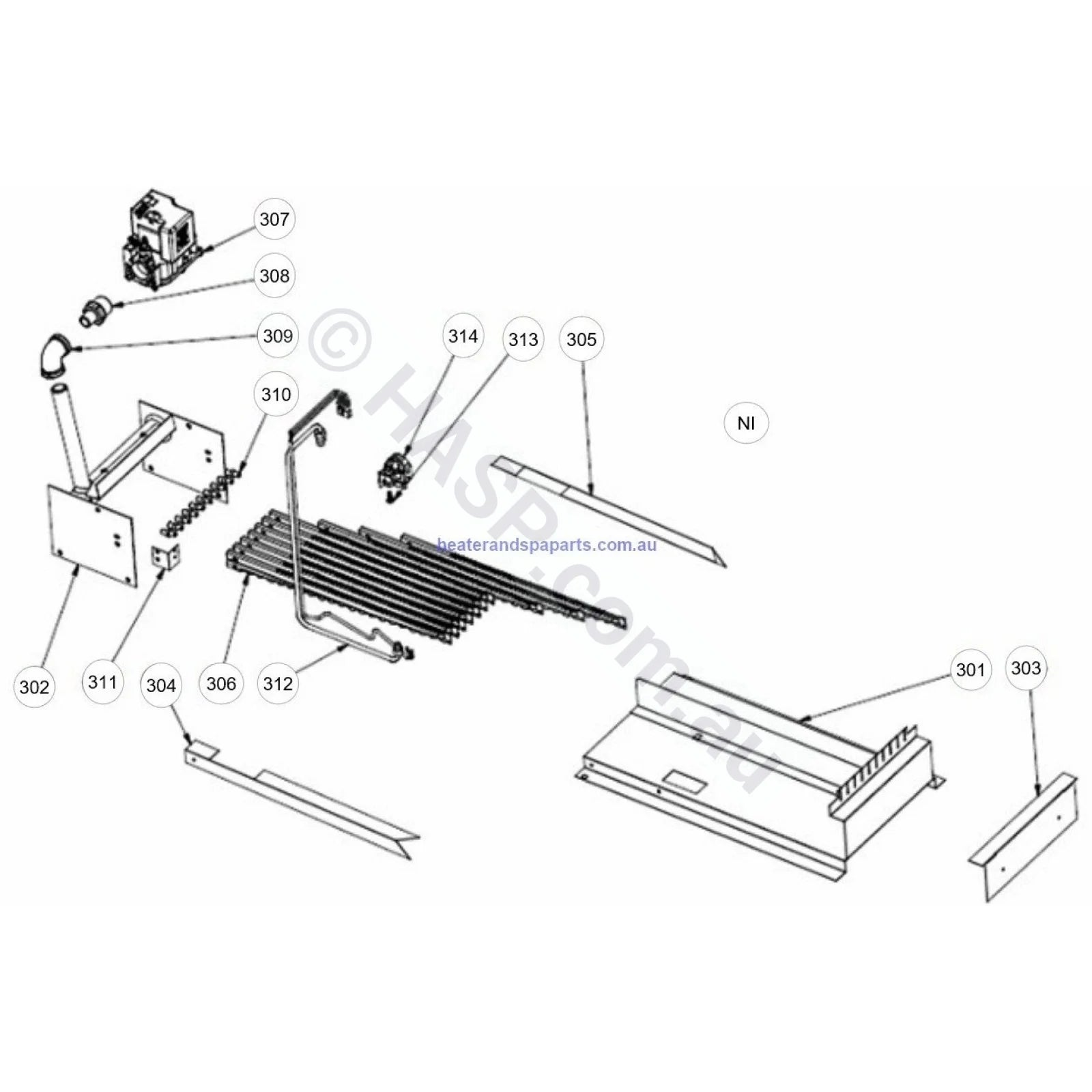

301. Burner Sheet Metal Burner Sheet metal does not include burner bars
302.  Manifold Assembly – Without Injectors
303. Nburnersheet Only available as part of Item 301 Not For Order, Illustrating Only.
304. Nburnersheet Only available as part of Item 301 Not For Order, Illustrating Only.
305. Nburnersheet Only available as part of Item 301 Not For Order, Illustrating Only.
306. Burner Bar 56301210.jpg

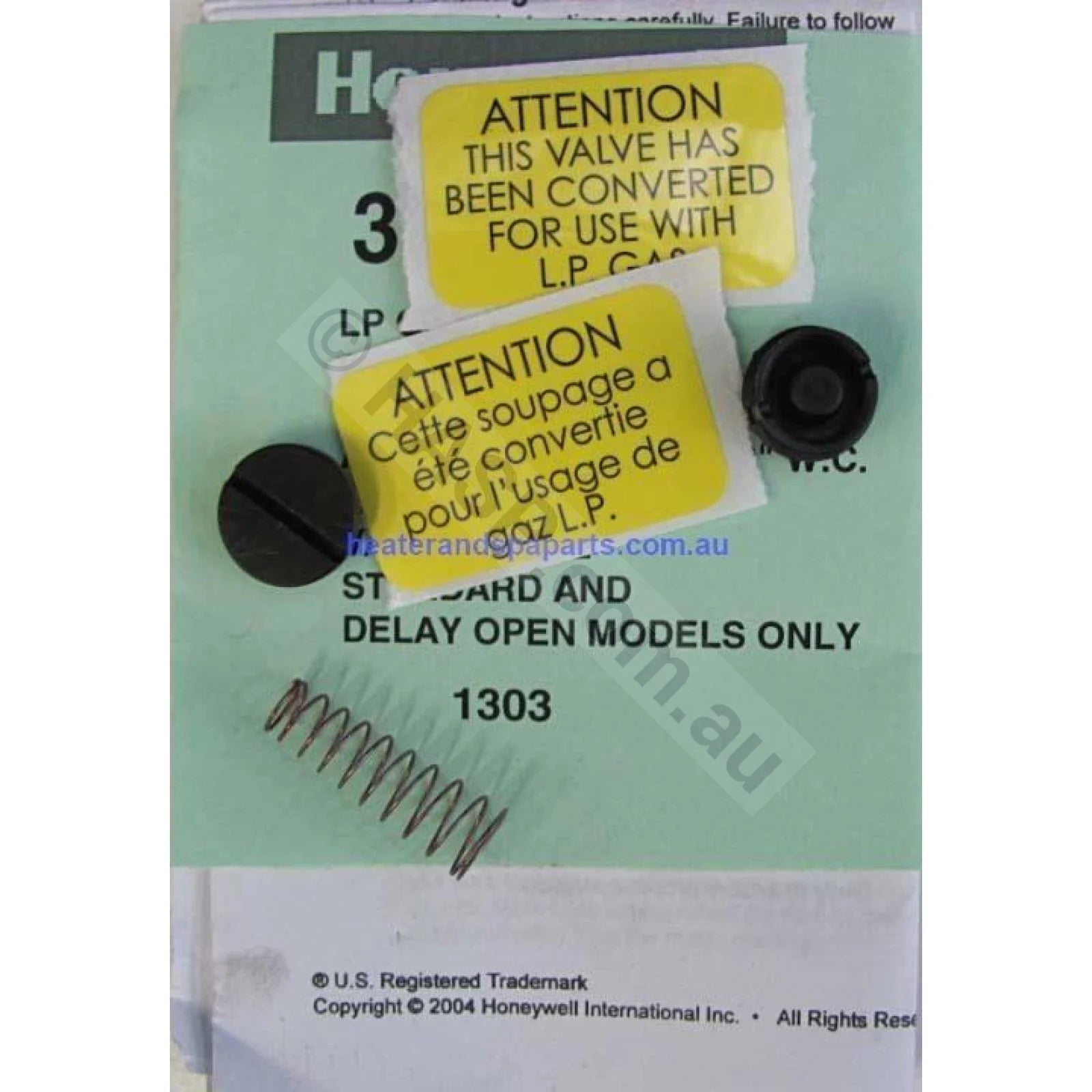

307. Gas Valve Spring – Propane Gas Conversion 56609048.jpg
307. Valve Gas – Smart Valve 9605 Nat Gas Honeywell smart 56609198.jpgvalve supplied as Natural Gas only. LPG Conversion Spring 56609048 is needed to convert to LPG.
308. Nipple – Gal Reducing 20M*15M
309. Elbow – Gal 15F*15F

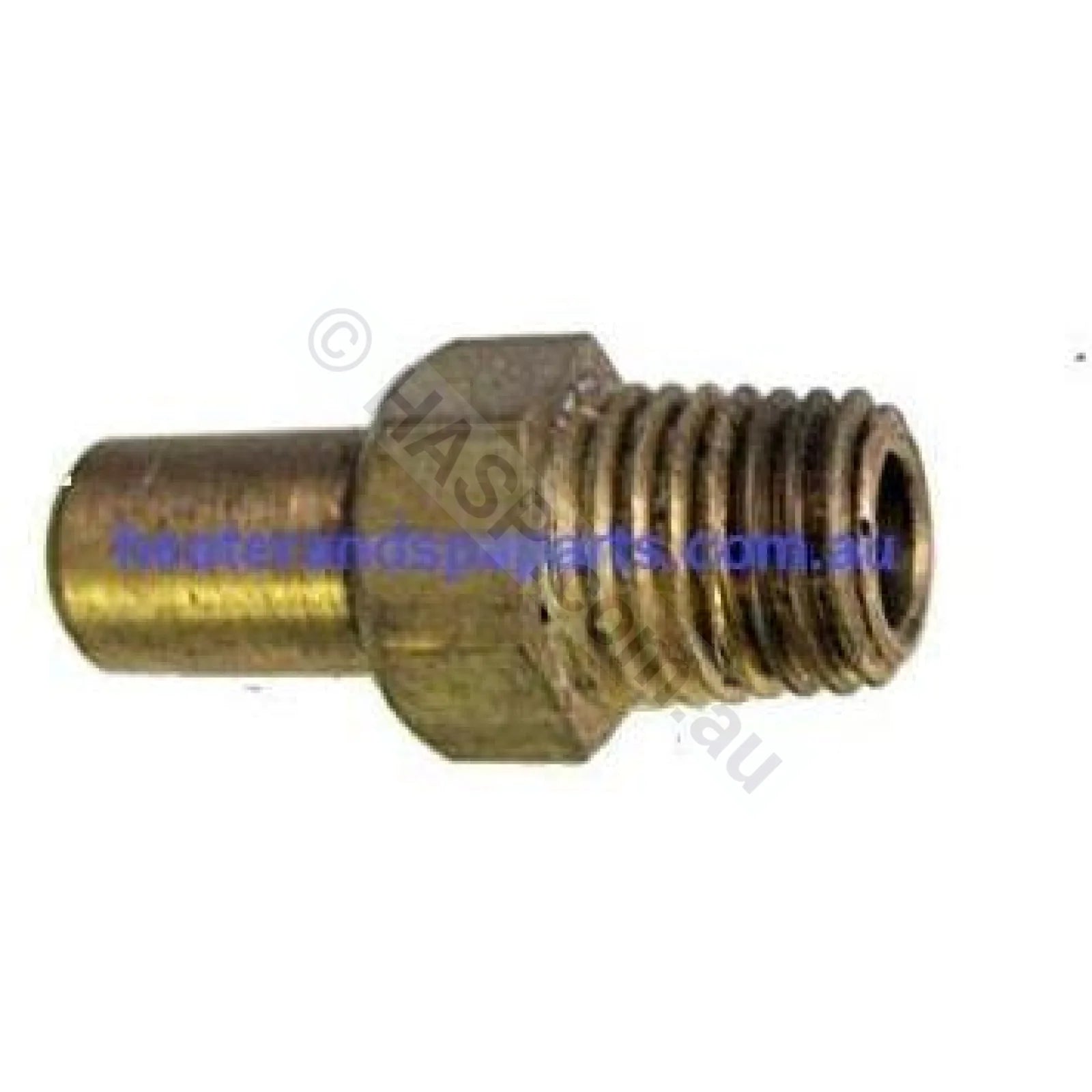

310. Jet Burner 1/16” NPT Nat Gas 1.95mm 56350077.jpg
310. Jet Burner 1/16” NPT 1.10mm Propane  56350083.jpg
311. Bracket – Pilot Mounting
312. Pilot Tube 6mm 650mm length
313. Pilot Injector Natural Gas 56600811.jpg

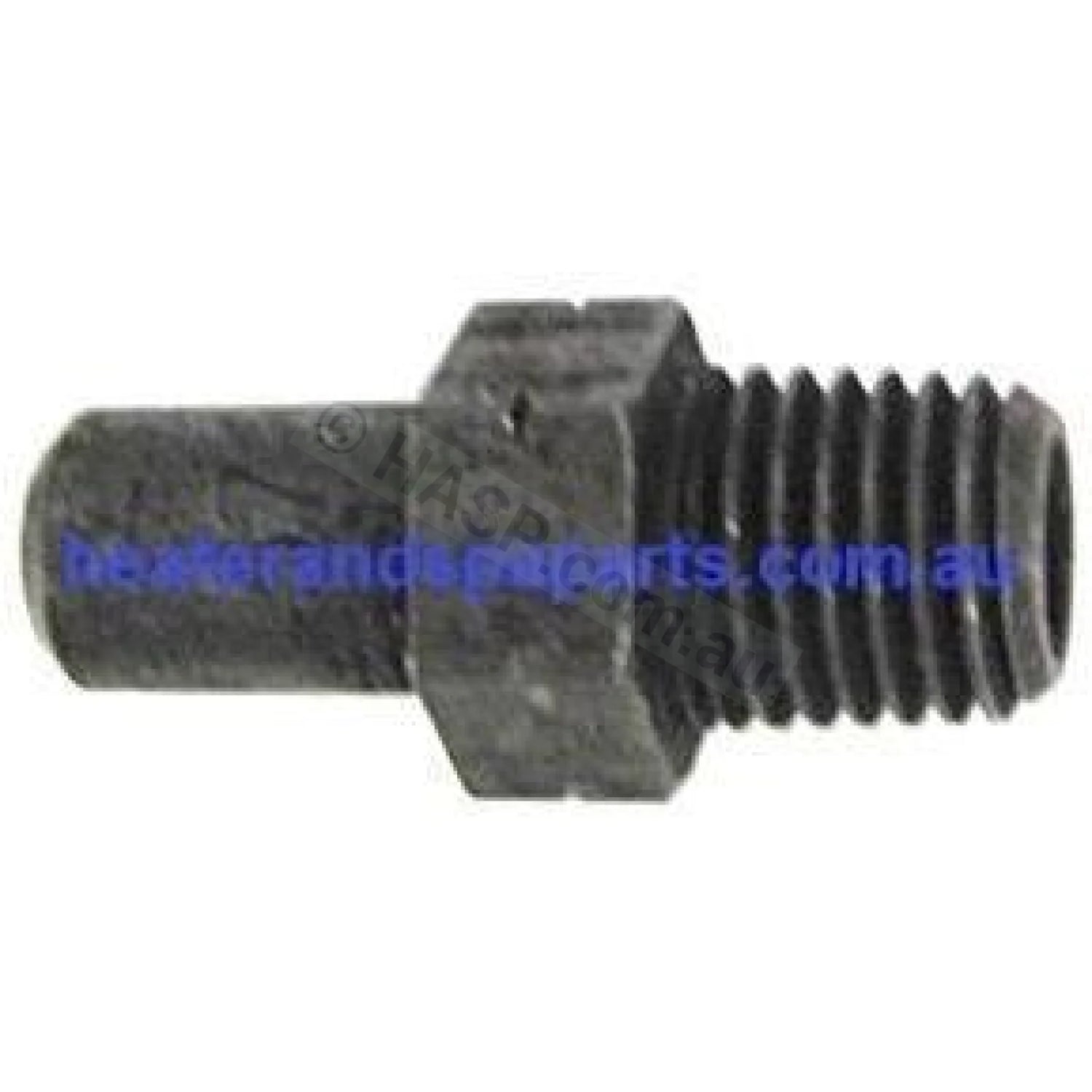

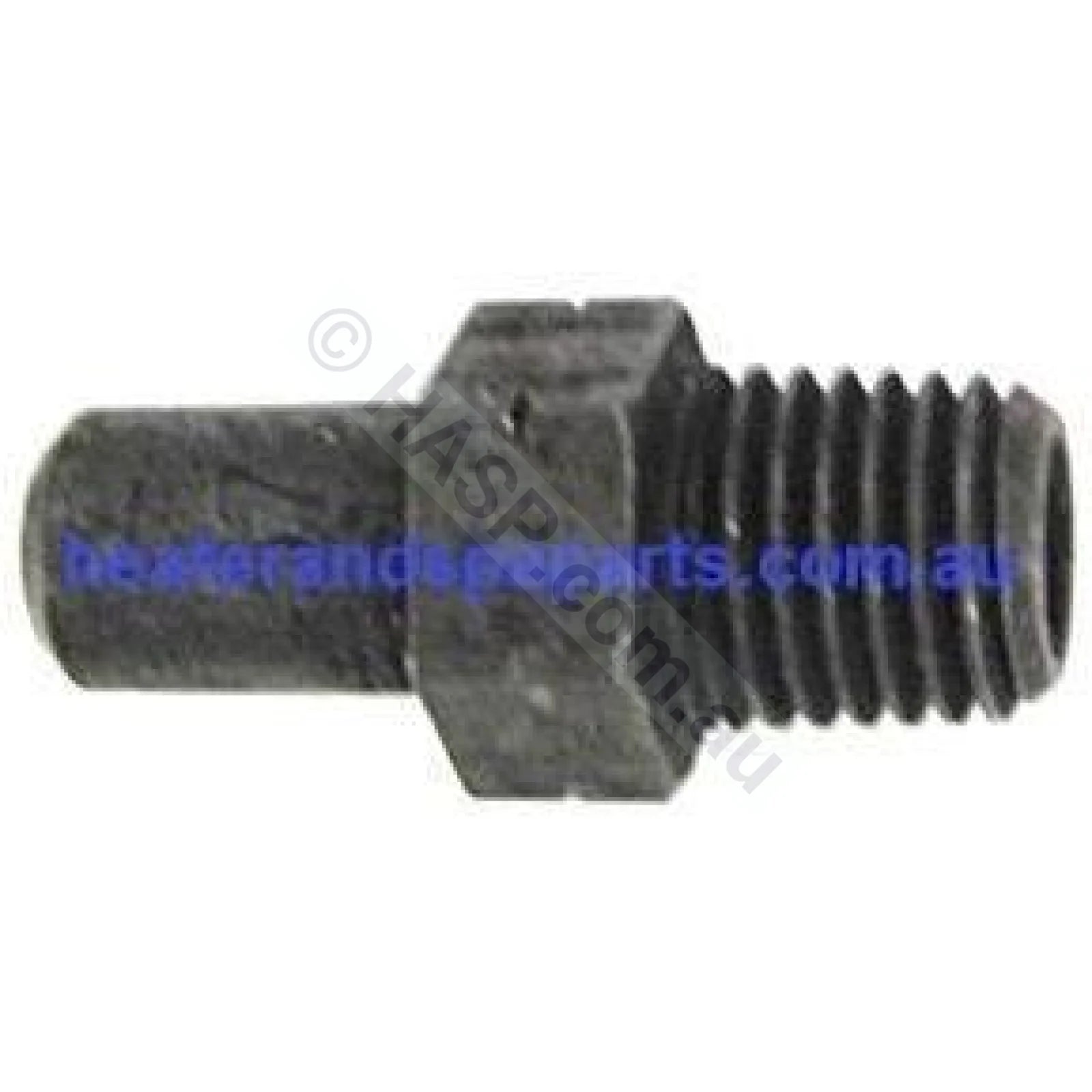

313. 56600812 Pilot Injector Propane Gas 56600812.jpg
314. 56609199 Pilot Assembly H.S.I – Natural Gas Pilot is only supplied as Natural Gas. Injector 56600812 must be used to convert to Propane. 56609199.jpg


 Rheem (Raypak) no longer allows prices to be listed online. Contact us or more information. Please note that any online reseller with prices listed online may Void any warranties on your products as per Rheem's online selling policies.


Please don't order diagram, as they are not for sale.
